2SC3312
View detailed images (4)

2SC3312

SKU: 2SC3312

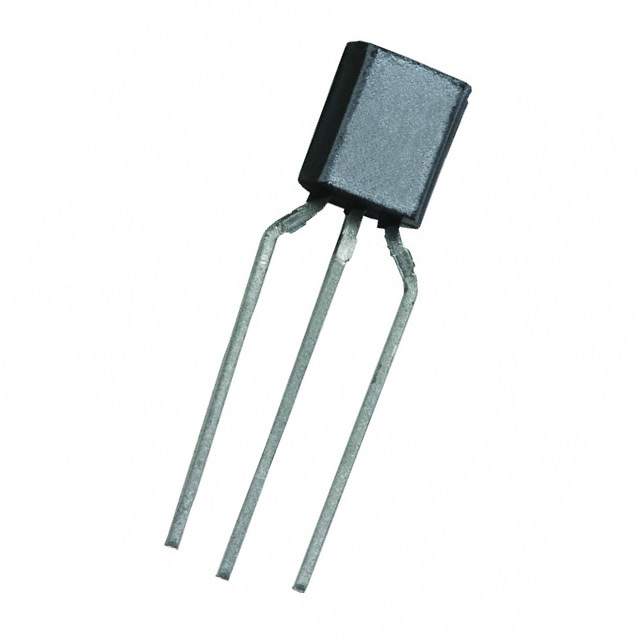

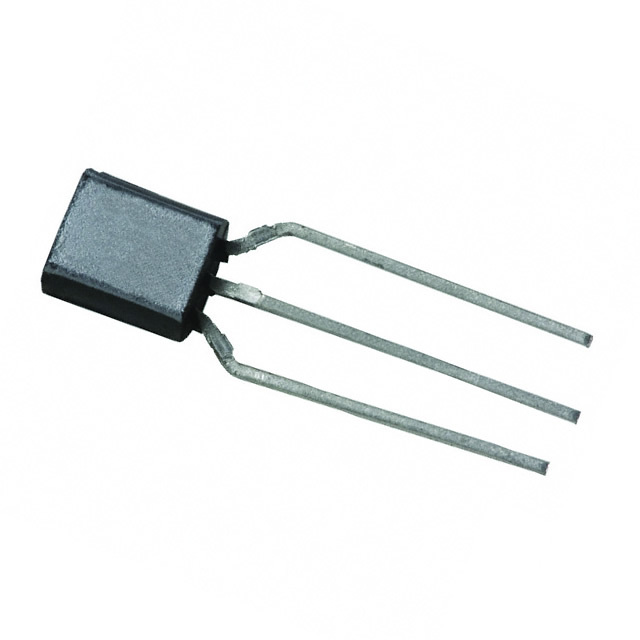

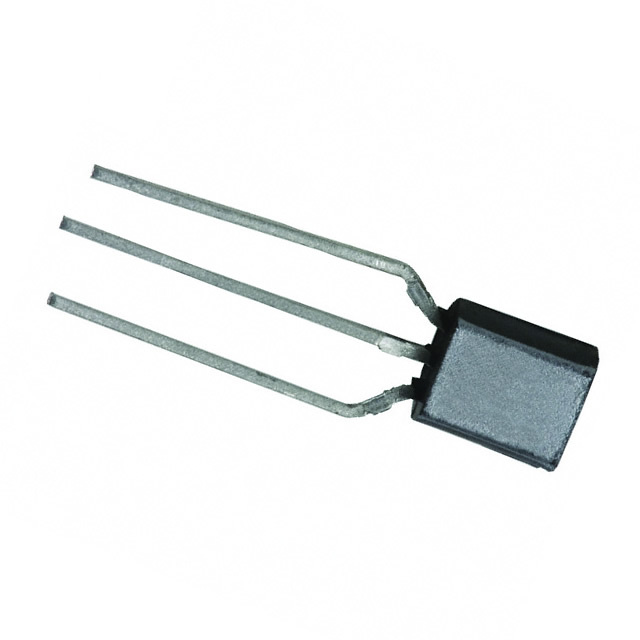

2SC3312 Transistor Silicon NPN CASE: TO92T MAKE: Panasonic
Price:
£5.75 Inc. VAT (£4.79 Ex. VAT)
£5.75 Inc. VAT (£4.79 Ex. VAT)
Qty
  • 19 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Datasheet
2SC3312 Datasheet
Product specifications
Type Transistor Silicon NPN
Case TO92T
Manufacturer Panasonic
Vbr CBO 60
Vbr CEO 55
Max. PD (W) 300m
C(ob) (F) 3.5p
Derate (Amb) (W/°C) 3.0m
hfe 700=
Ic Max. (A) 100m
Icbo Max. @Vcb Max. (A) 100n
Polarity NPN
@VCE (test) (V) 5.0
Oper. Temp (°C) Max. 125
@Ic (A) 2.0m
Pinout Equivalence Number 3-10
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.3 W
Maximum Collector-Base Voltage |Vcb| 55 V
Maximum Collector Current |Ic max| 0.05 A
Max. Operating Junction Temperature (Tj) 125 °C
Transition Frequency (ft): 110 MHz
Forward Current Transfer Ratio (hFE), MIN 40
SKU 81117
