2SC3358
View detailed images (13)

2SC3358

SKU: 2SC3358

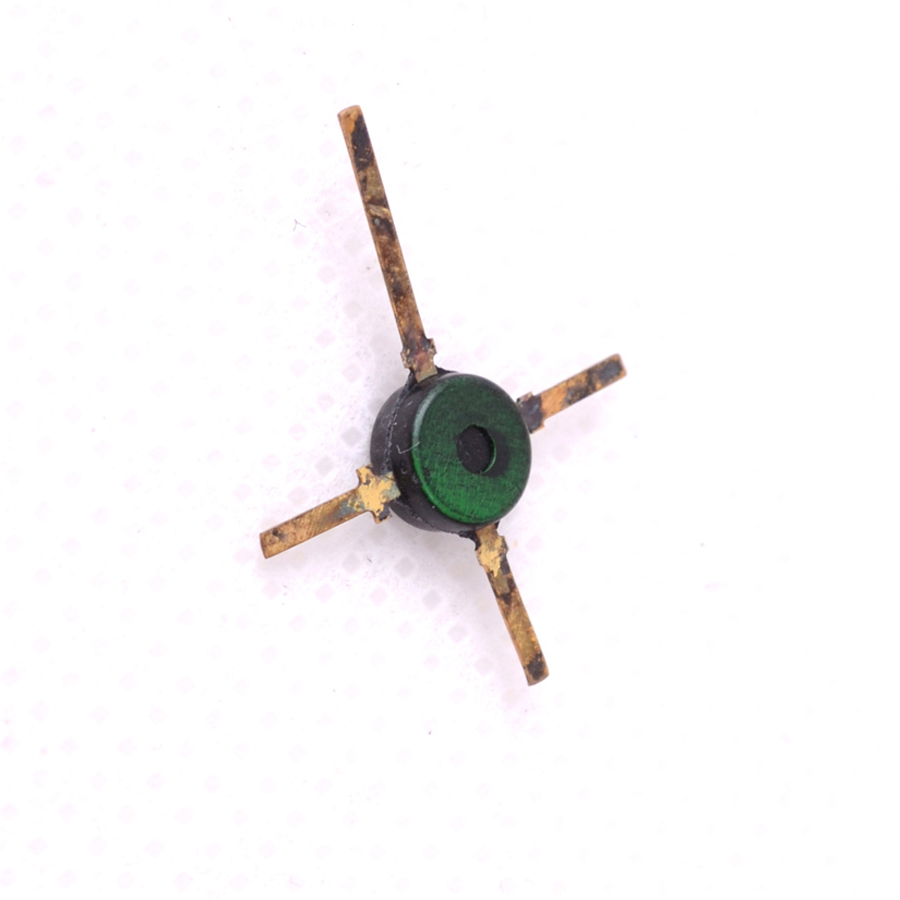

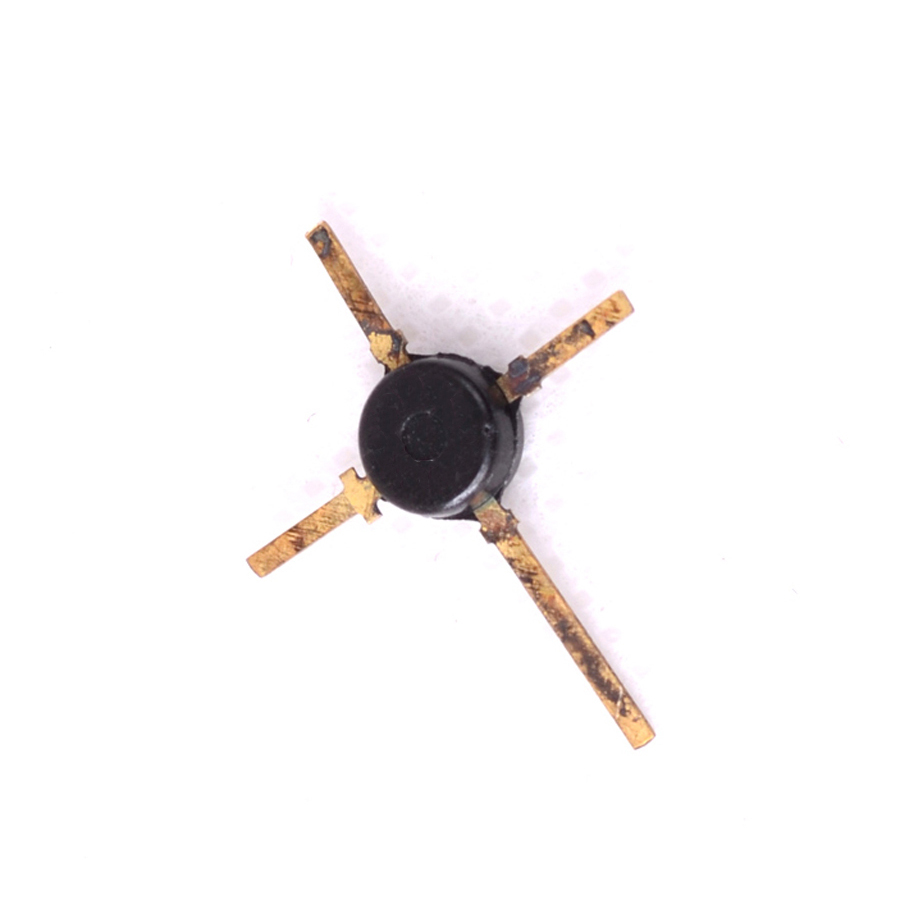

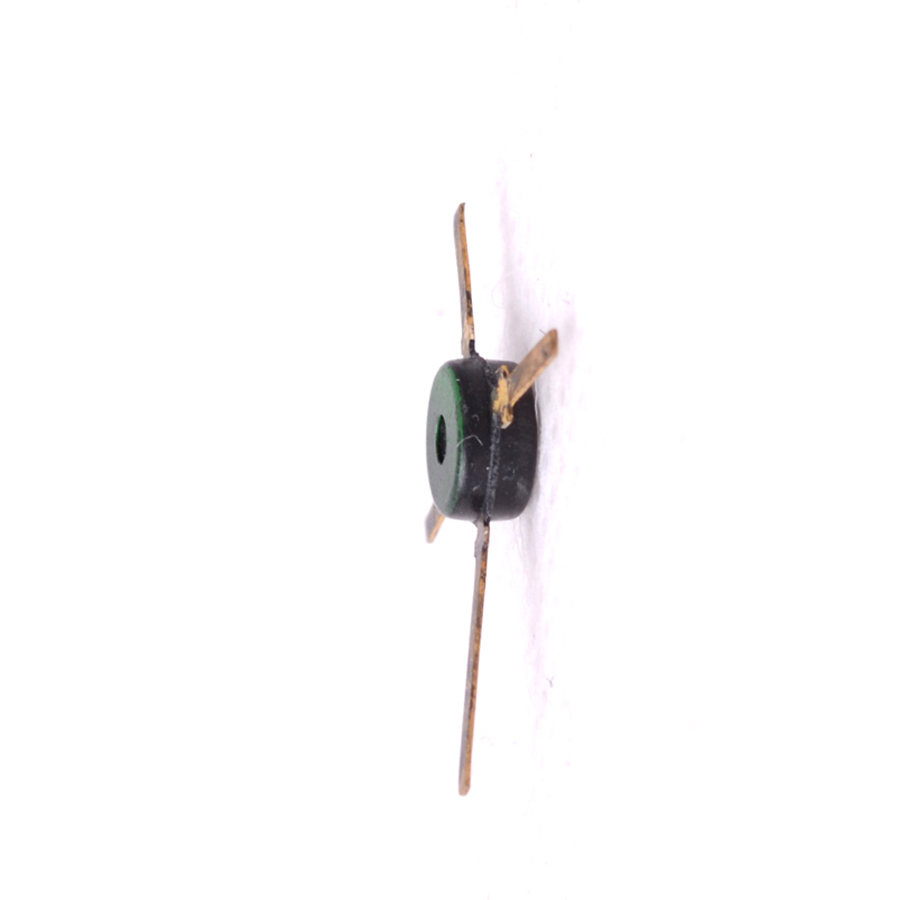

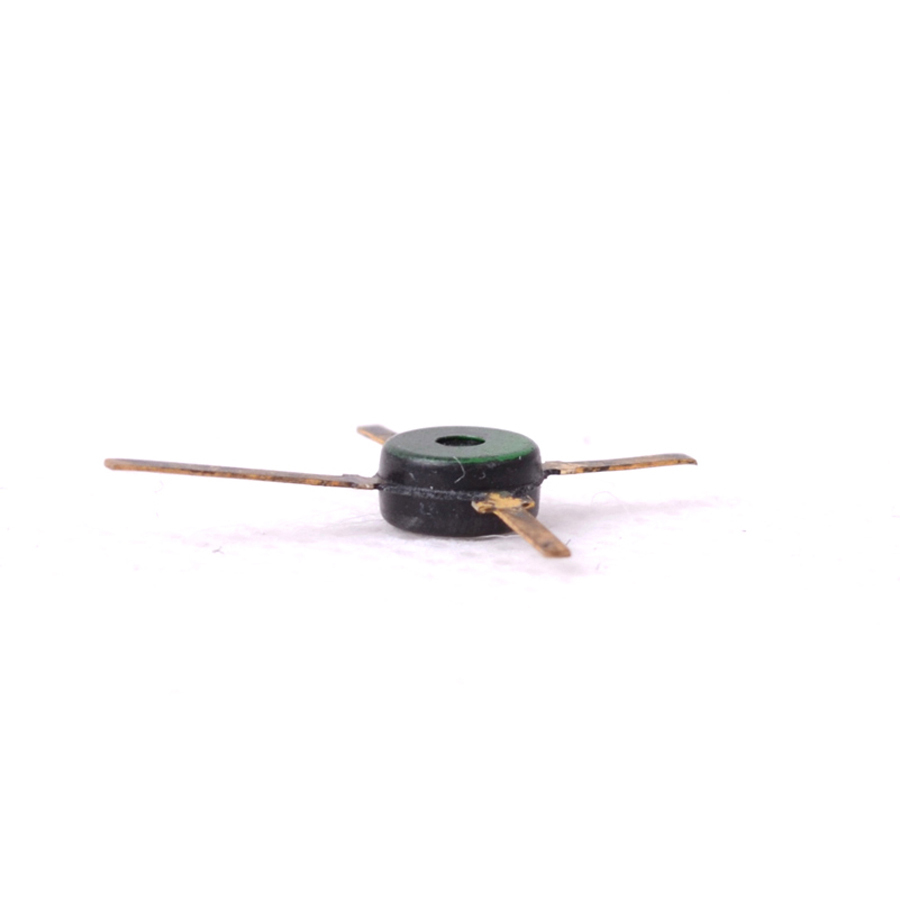

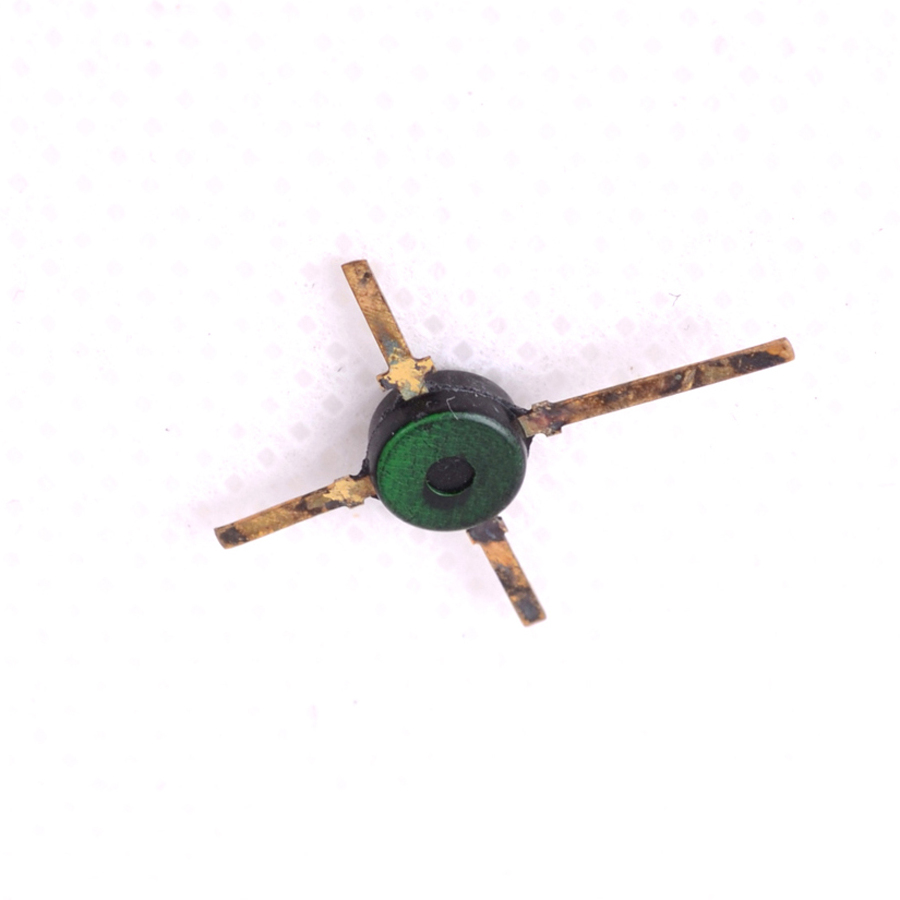

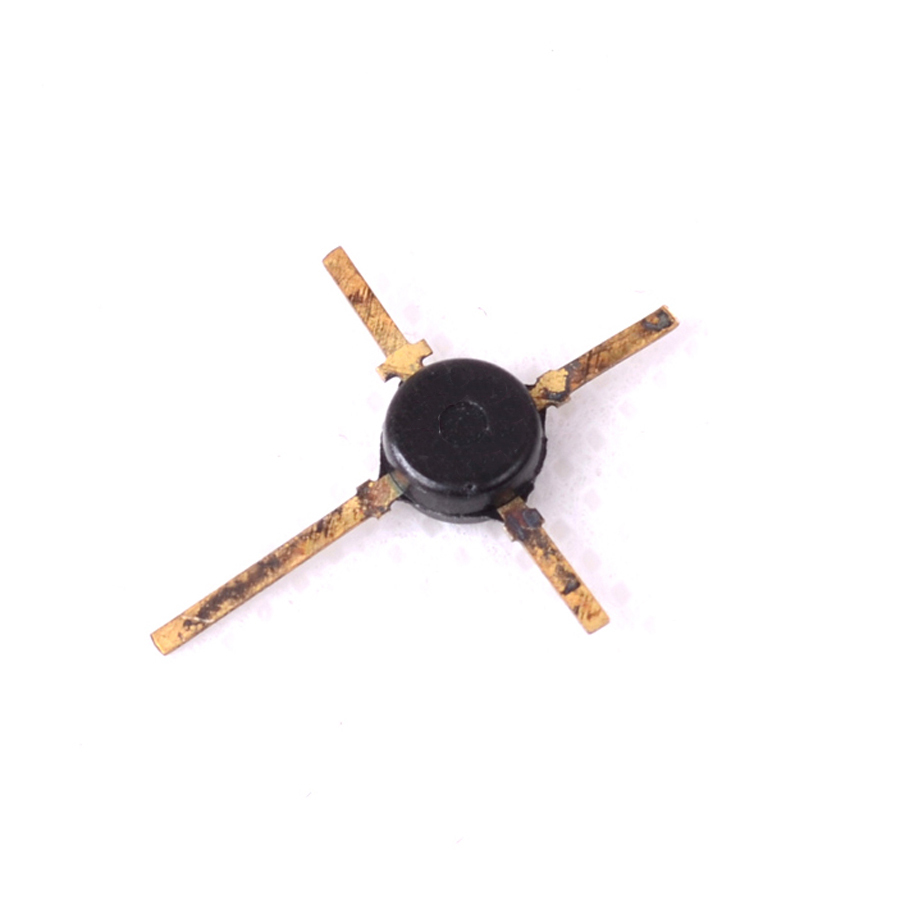

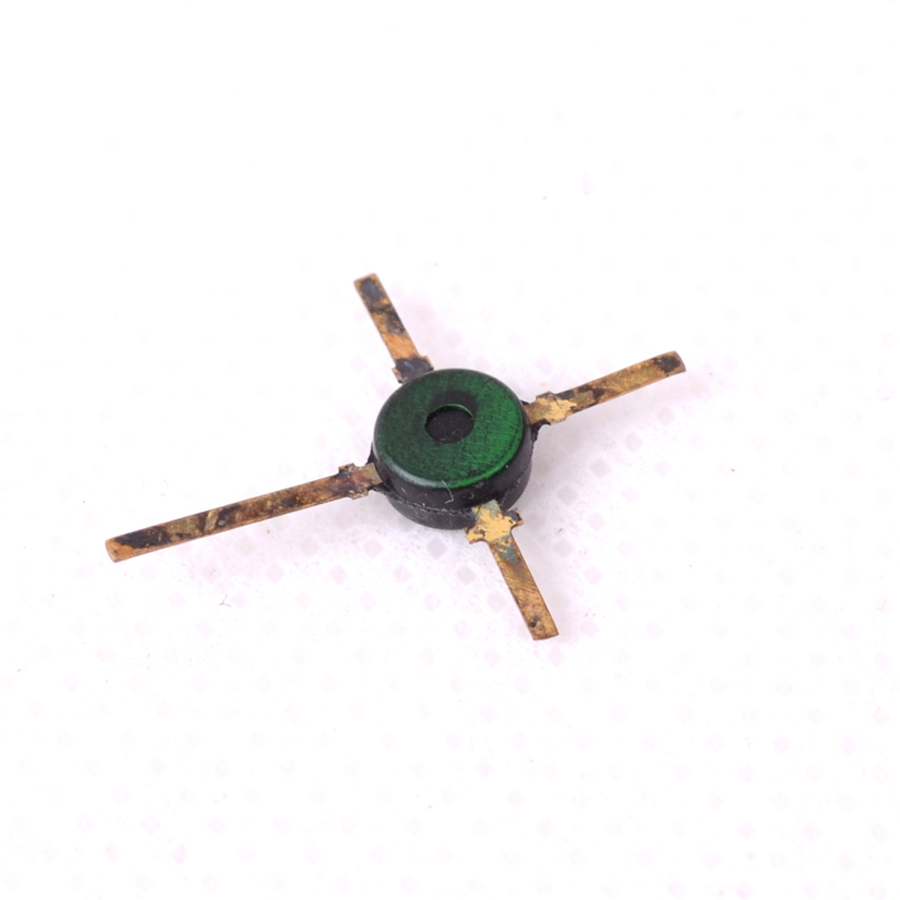

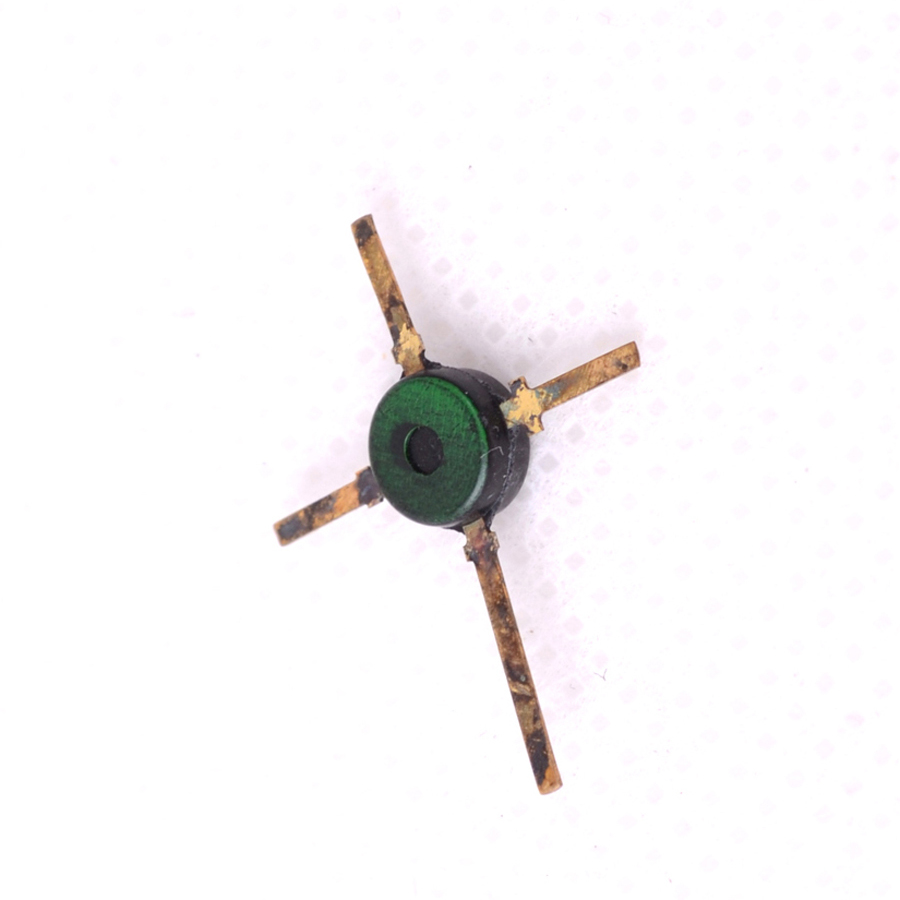

2SC3358 Transistor Silicon NPN CASE: SOT103 MAKE: NEC
Price:
£5.75 Inc. VAT (£4.79 Ex. VAT)
£5.75 Inc. VAT (£4.79 Ex. VAT)
Qty
  • 377 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Datasheet
2SC3358 Datasheet
Product specifications
Type Transistor Silicon NPN
Case SOT103
Manufacturer NEC
Vbr CBO 20
@Freq. (test) 1.0G
@Ic (A) 7.0m
@Ic (A) 20m
Mat. Silicon Logic
Noise Fig. 2.0
Oper. Gain Typ (S21) 13
f(osc) Max. (Hz) 2.0G
Polarity NPN
PD Max. (W) 250m
S11 Deg. (Typ) 149
S11 Mag Typ. .332
S22 Deg. Typ. 35.0
S22 Mag Typ. .284
@VDS (VCE) (test) (V) 10
Coll. (or drain) Current Max. 100m
@Freq. (test) 1.0G
@VCE (test) 10
Oper. Temp (°C) Max. 150
Pinout Equivalence Number 4-28
Surface Mounted Yes/No YES
Maximum Collector Power Dissipation (Pc) 0.3 W
Maximum Collector-Base Voltage |Vcb| 20 V
Maximum Collector Current |Ic max| 0.1 A
Max. Operating Junction Temperature (Tj) 125 °C
Transition Frequency (ft): 7000 MHz
Forward Current Transfer Ratio (hFE), MIN 20
SKU 85366
