2SC3425
View detailed images (4)

2SC3425

SKU: 2SC3425

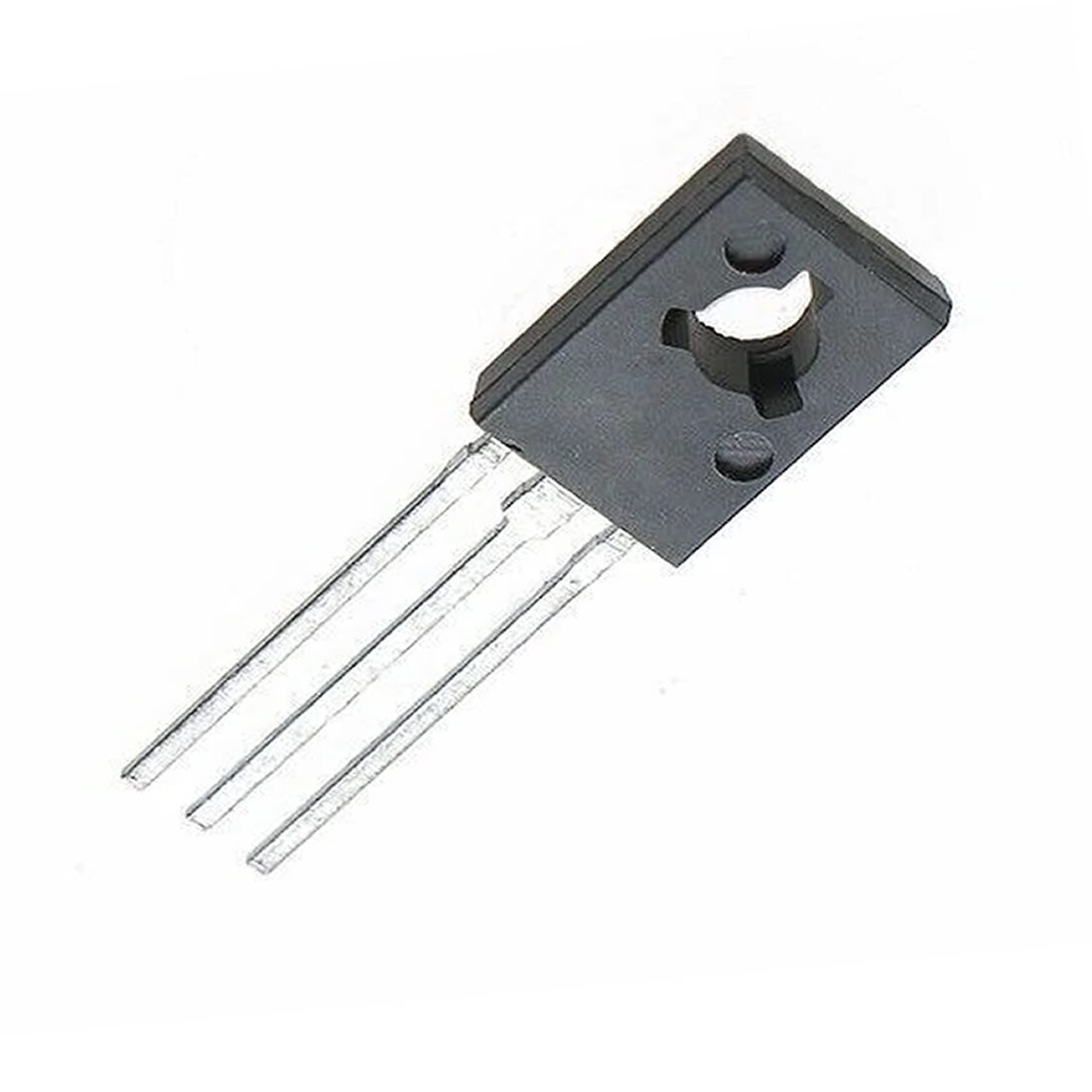

2SC3425 Transistor Silicon NPN CASE: TO126F MAKE: Toshiba
Price:
£4.79 Inc. VAT (£3.99 Ex. VAT)
£4.79 Inc. VAT (£3.99 Ex. VAT)
Qty
  • 2 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Datasheet
2SC3425 Datasheet
Product specifications
Type Transistor Silicon NPN
Case TO126F
Manufacturer Toshiba
Vbr CBO 500
Vbr CEO 400
Max. PD (W) 1.2
t(f) Max. (S) 1.5u
Max. hFE 100
Min hFE 20
Ic Max. (A) 800m
@Ic (test) (A) .10
Icbo Max. @Vcb Max. (A) 100u
Polarity NPN
Derate Above 25°C 9.6m
Oper. Temp (°C) Max. 140
@VCE (V) 5.0
Pinout Equivalence Number 3-10
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 10 W
Maximum Collector-Base Voltage |Vcb| 500 V
Maximum Collector Current |Ic max| 0.8 A
Max. Operating Junction Temperature (Tj) 150 °C
Forward Current Transfer Ratio (hFE), MIN 120
SKU 85367
