2SC3474

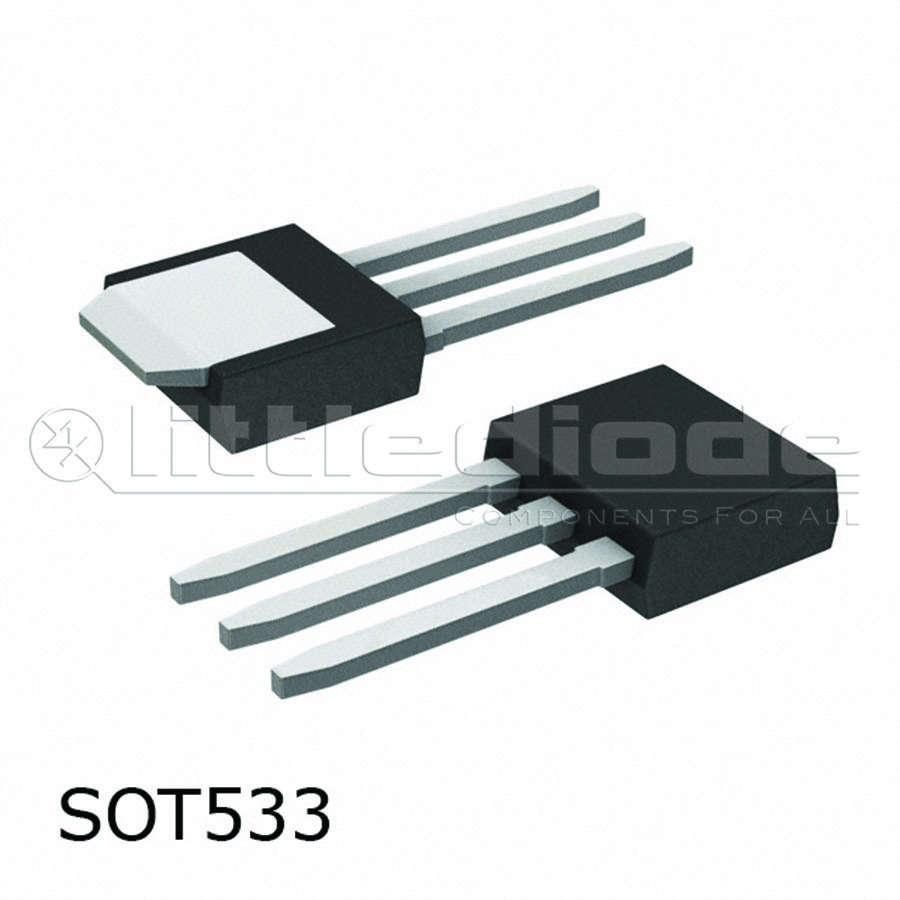

View detailed images (5)

2SC3474

SKU: 2SC3474
2SC3474 Transistor Silicon NPN CASE: SOT533 MAKE: Toshiba
Price:
£14.39 Inc. VAT (£11.99 Ex. VAT)
£14.39 Inc. VAT (£11.99 Ex. VAT)
Qty
  • More pieces shipped in 14 days
?
Datasheet
2SC3474 Datasheet
Product specifications
Type Transistor Silicon NPN
Case SOT533
Manufacturer Toshiba
Vbr CBO 80
Vbr CEO 80
Max. PD (W) 1.0
t(f) Max. (S) 2.0u
Min hFE 500
Ic Max. (A) 2.0
@Ic (test) (A) 400m
Icbo Max. @Vcb Max. (A) 1.0u
Polarity NPN
Derate Above 25°C 8.0m
Trans. Freq (Hz) Min. 85M
Oper. Temp (°C) Max. 140
@VCE (V) 1.0
Pinout Equivalence Number 3-15
Surface Mounted Yes/No YES
Maximum Collector Power Dissipation (Pc) 20 W
Maximum Collector-Base Voltage |Vcb| 80 V
Maximum Collector-Emitter Voltage |Vce| 80 V
Maximum Collector Current |Ic max| 2 A
Max. Operating Junction Temperature (Tj) 125 °C
Collector Capacitance (Cc) 50 pF
Transition Frequency (ft): 85 MHz
Forward Current Transfer Ratio (hFE), MIN 500
SKU 344111
