2SC3496A
View detailed images (12)

2SC3496A

SKU: 2SC3496A

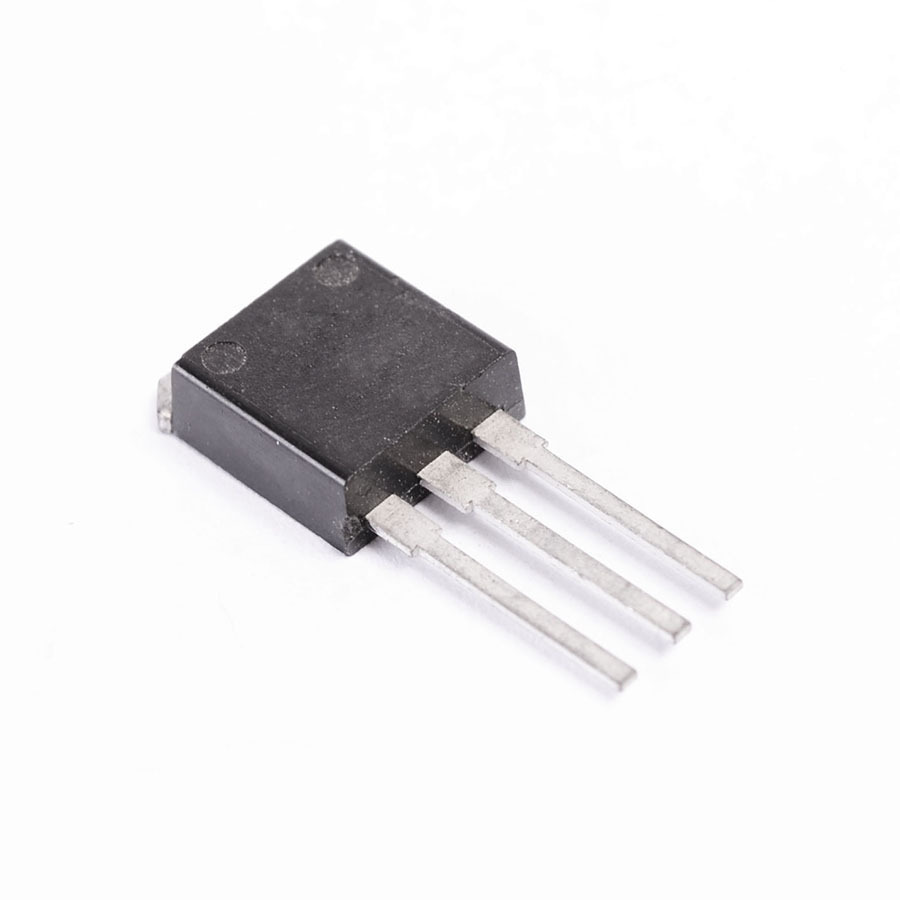

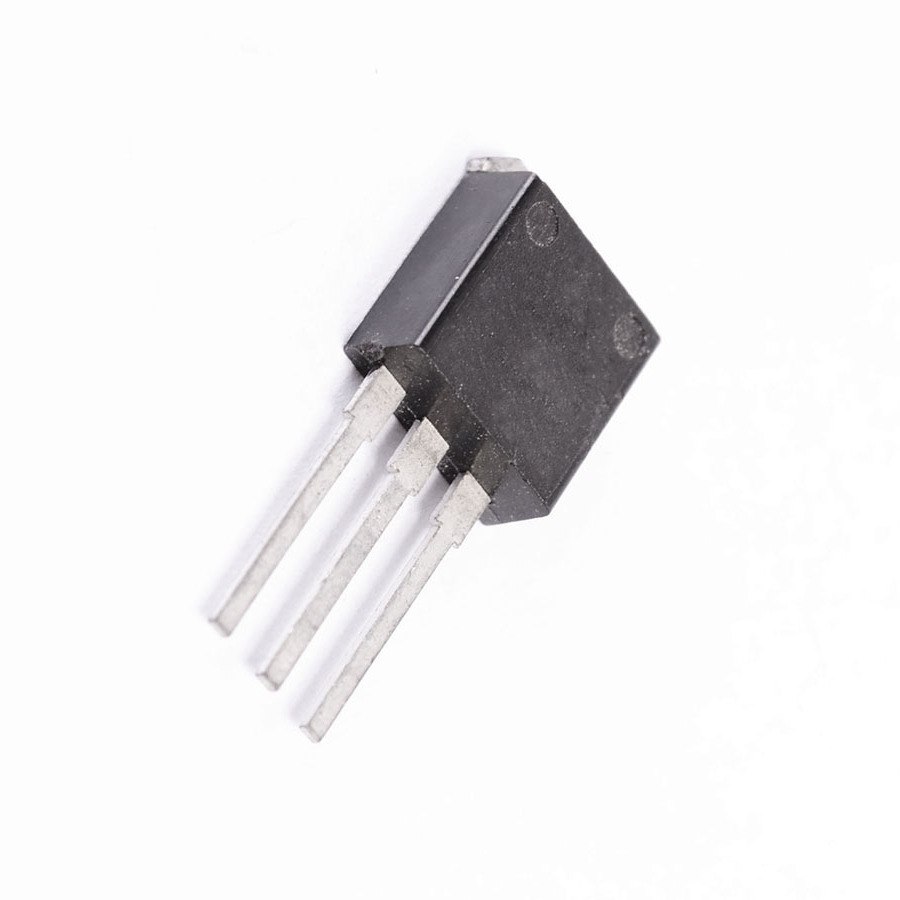

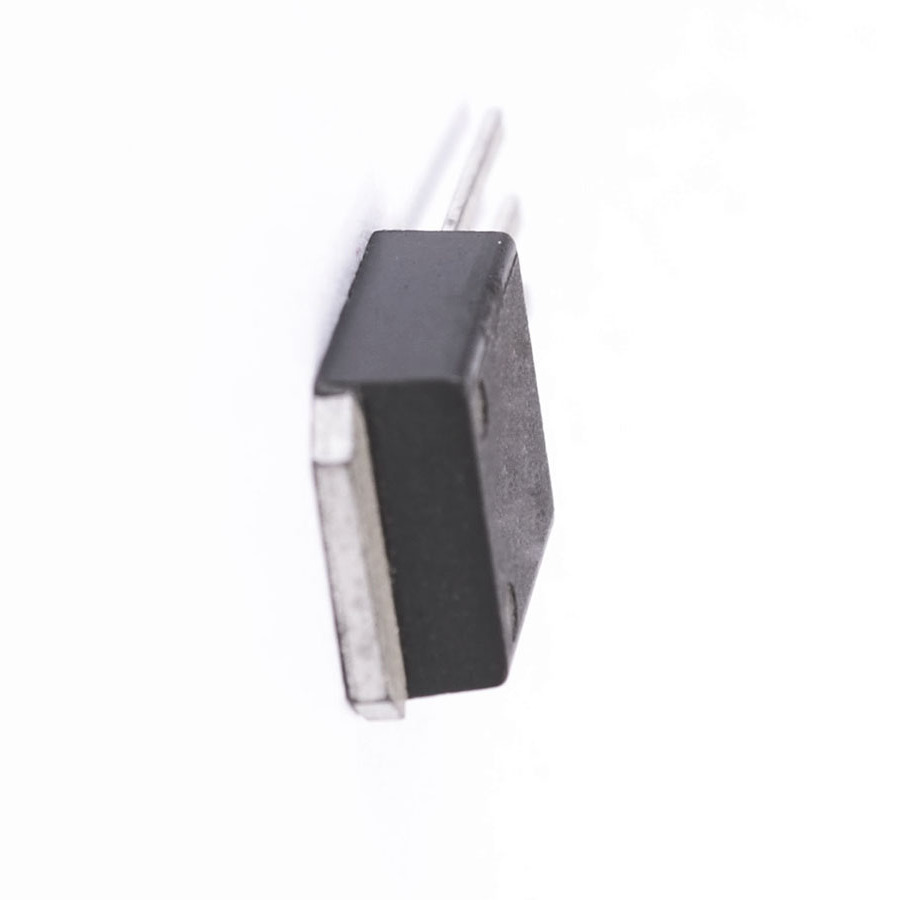

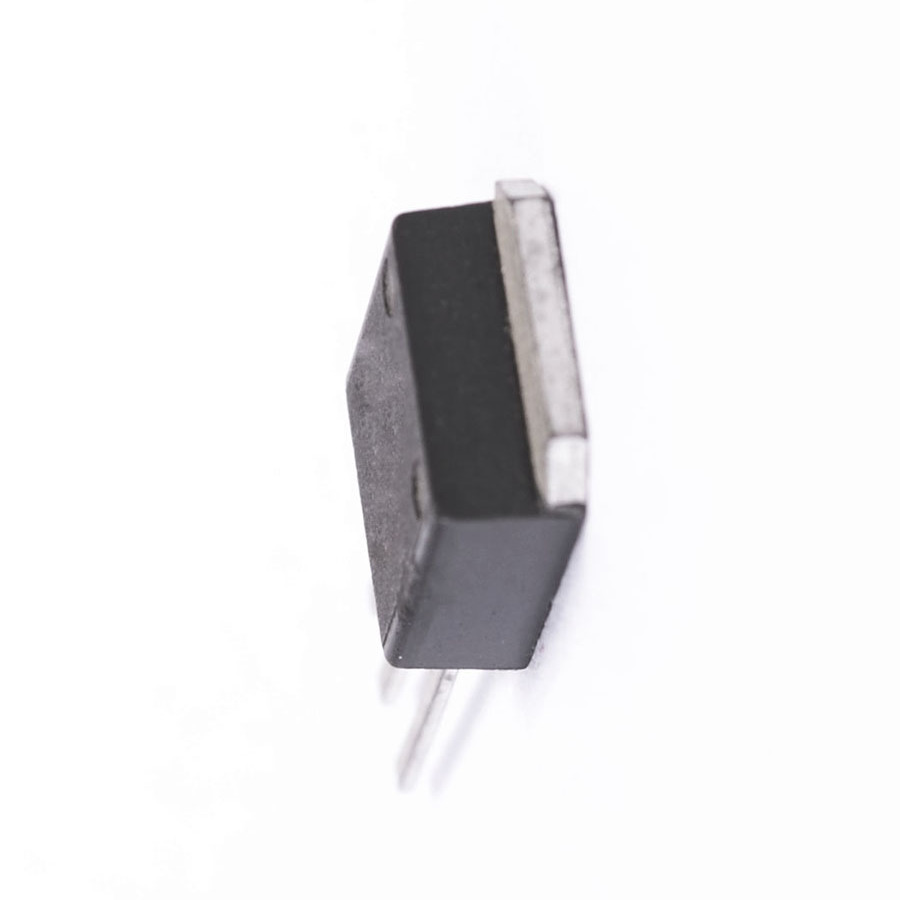

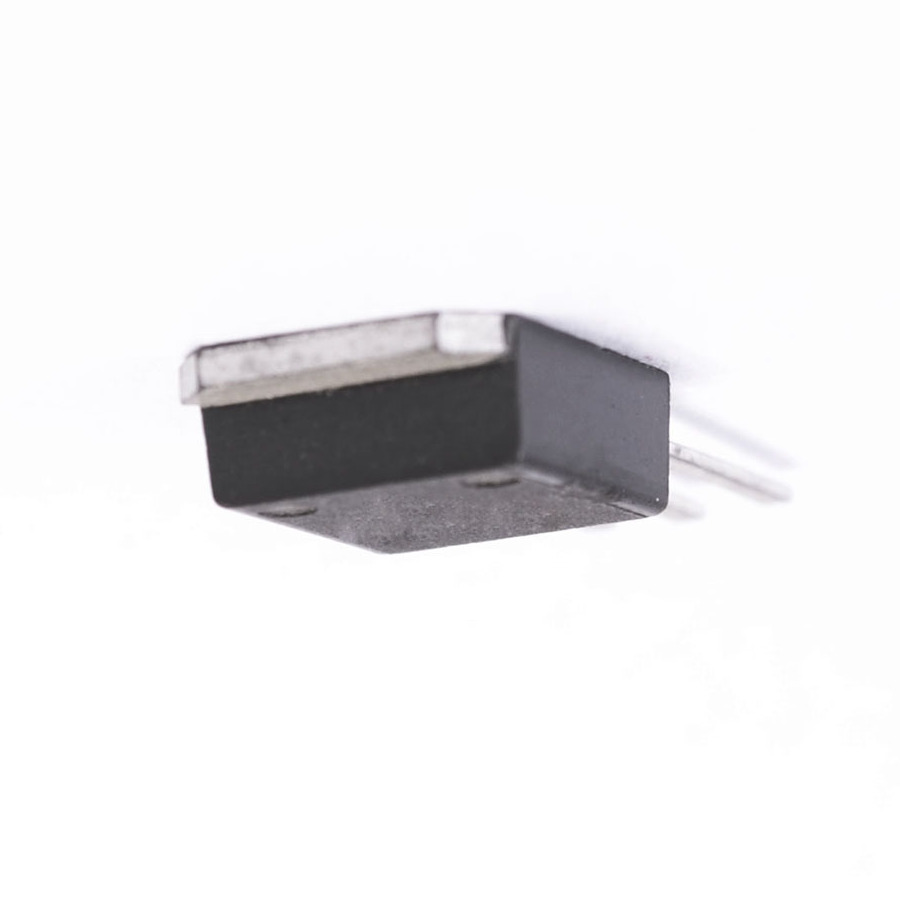

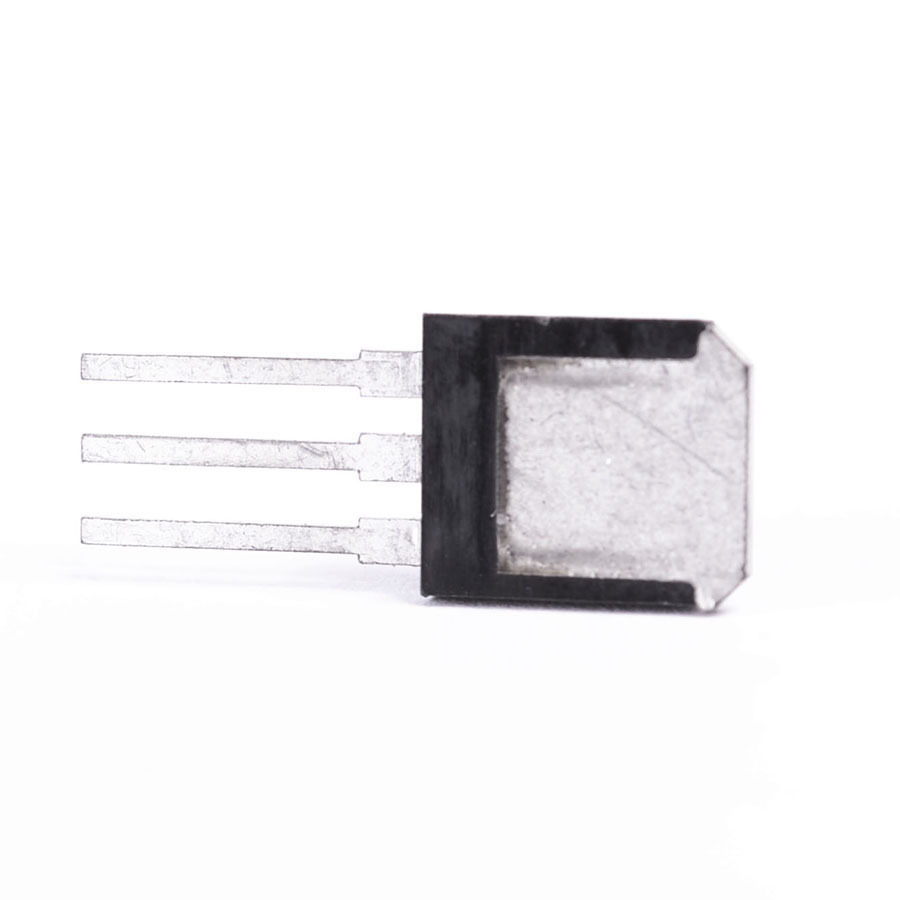

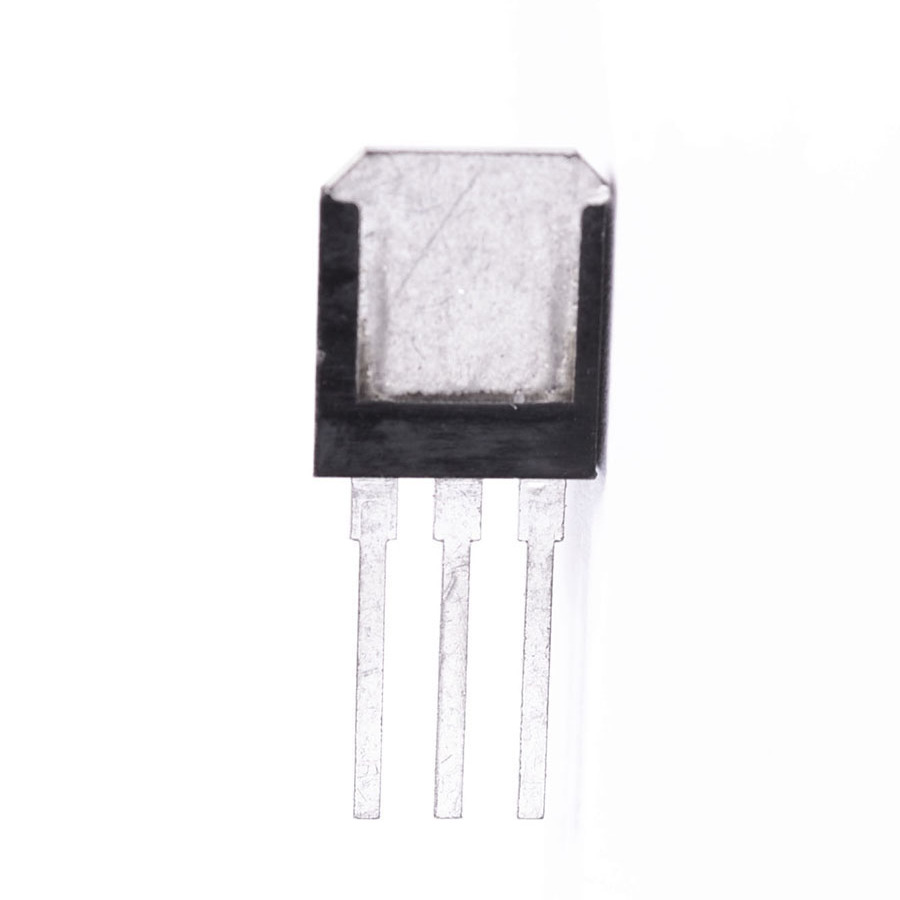

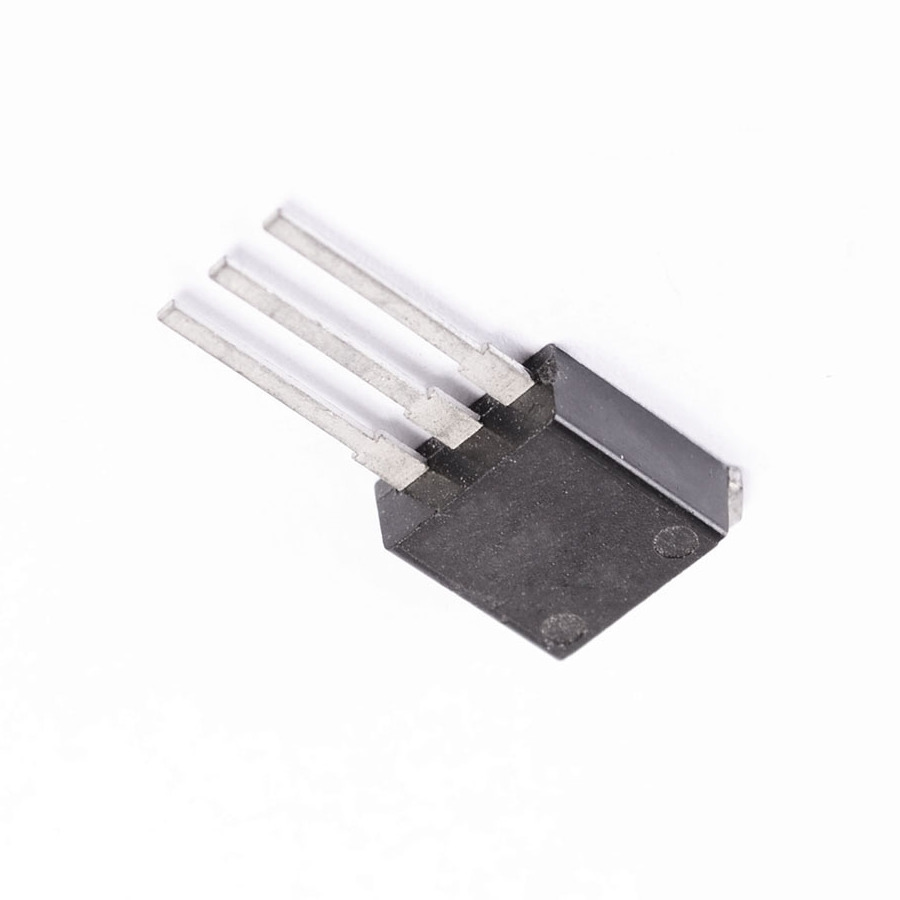

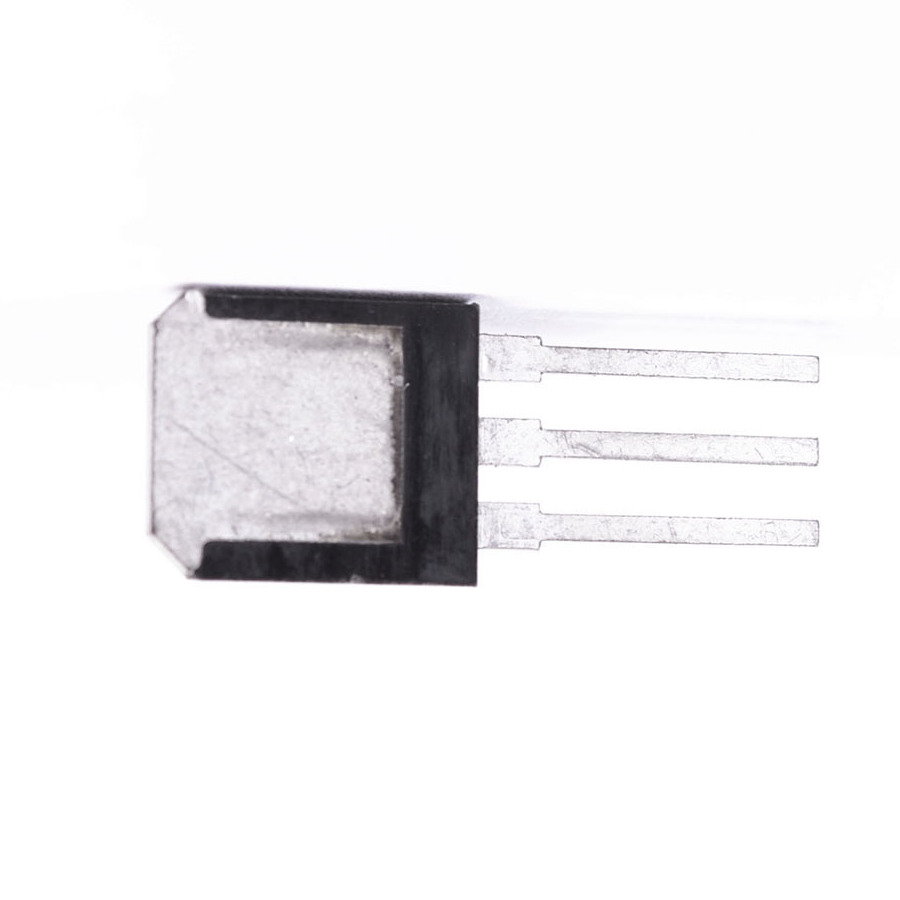

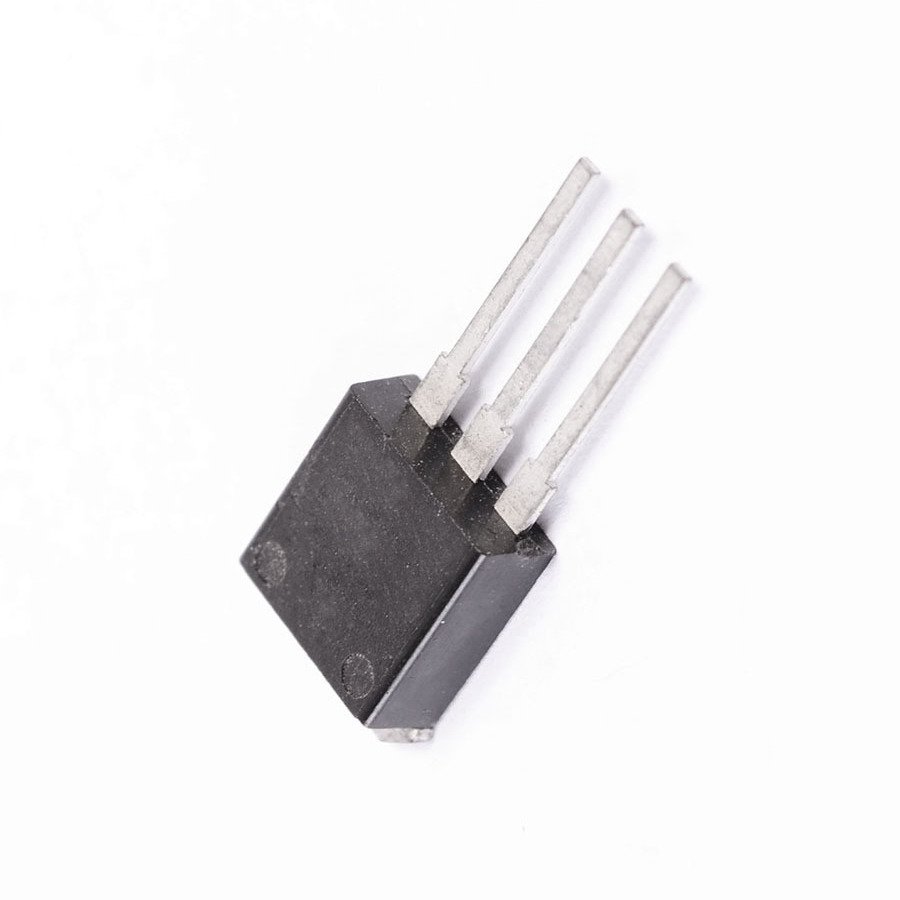

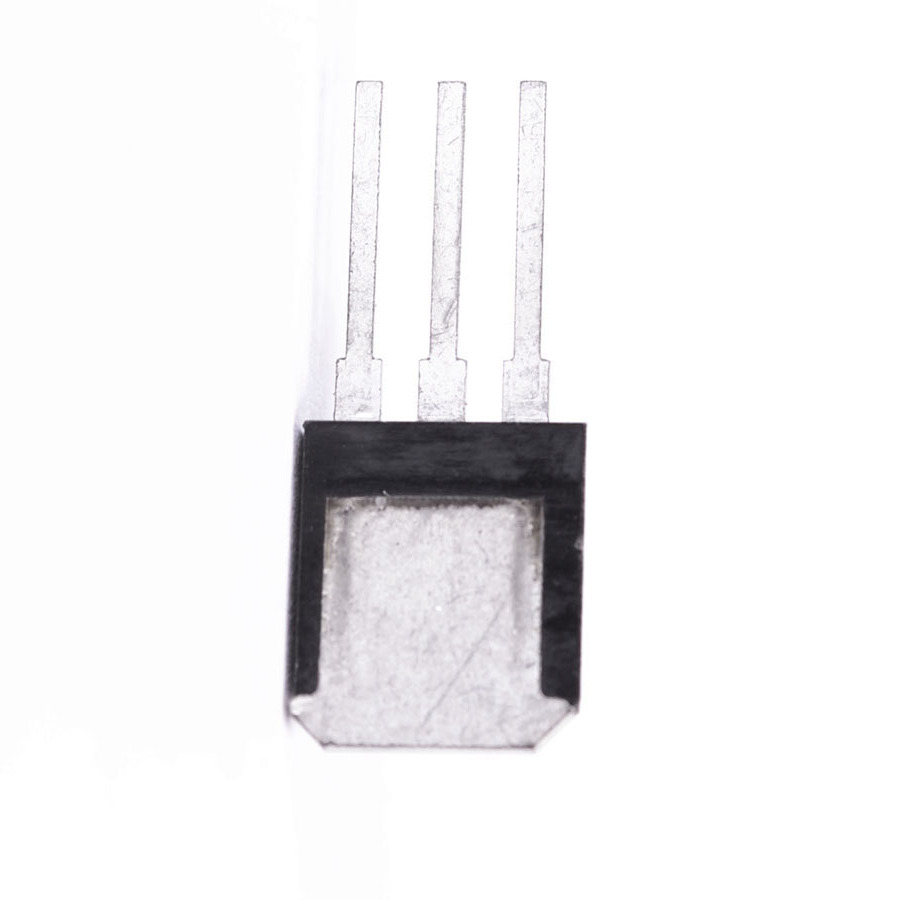

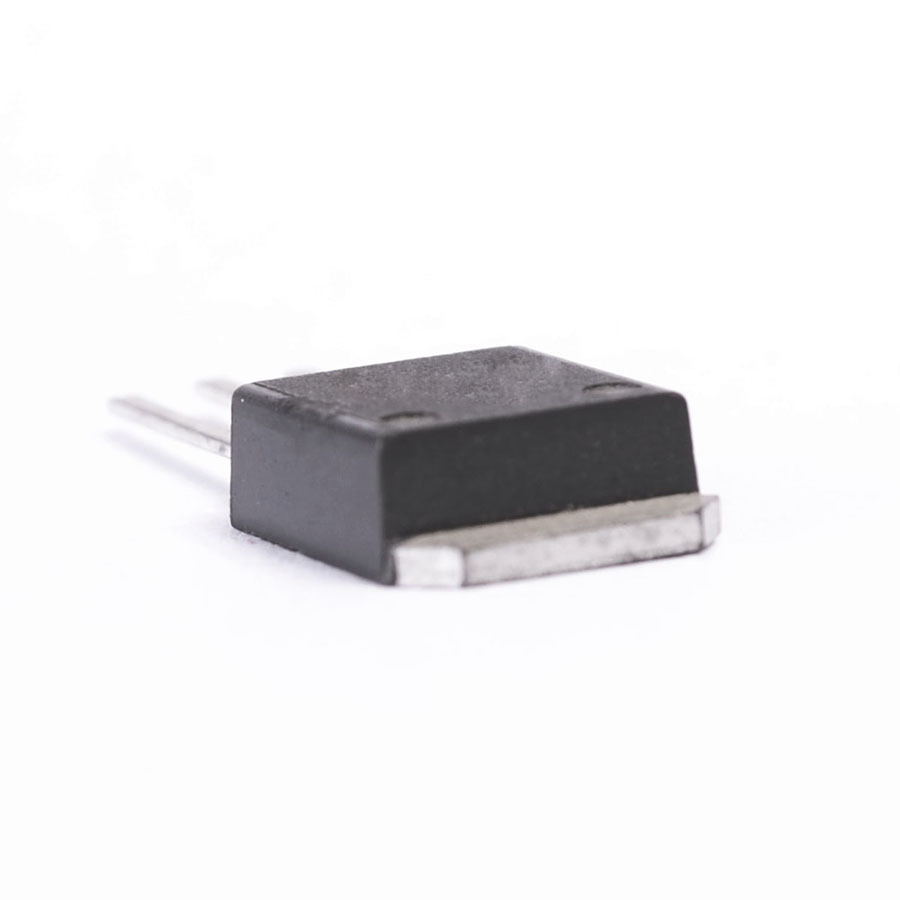

2SC3496A Transistor Silicon NPN CASE: TO262 MAKE: Matsushita Electronics
Datasheet
2SC3496A Datasheet
Product specifications
Equivalent 2SC3496
Type Transistor Silicon NPN
Case TO262
Manufacturer Matsushita Electronics
Vbr CBO 900
Vbr CEO 800
Max. PD (W) 20
Min hFE 5.0
Ic Max. (A) 800m
@Ic (test) (A) 50m
Icbo Max. @Vcb Max. (A) 100u
Polarity NPN
Tr Max. (s) 3.0u
Oper. Temp (°C) Max. 140
@VCE (V) 4.0
Pinout Equivalence Number 3-15
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 30 W
Maximum Collector-Base Voltage |Vcb| 1000 V
Maximum Collector-Emitter Voltage |Vce| 900 V
Maximum Emitter-Base Voltage |Veb| 7 V
Maximum Collector Current |Ic max| 1 A
Max. Operating Junction Temperature (Tj) 150 °C
Transition Frequency (ft): 4 MHz
Forward Current Transfer Ratio (hFE), MIN 3
SKU 344120
