2SC3504
View detailed images (12)

2SC3504

SKU: 2SC3504

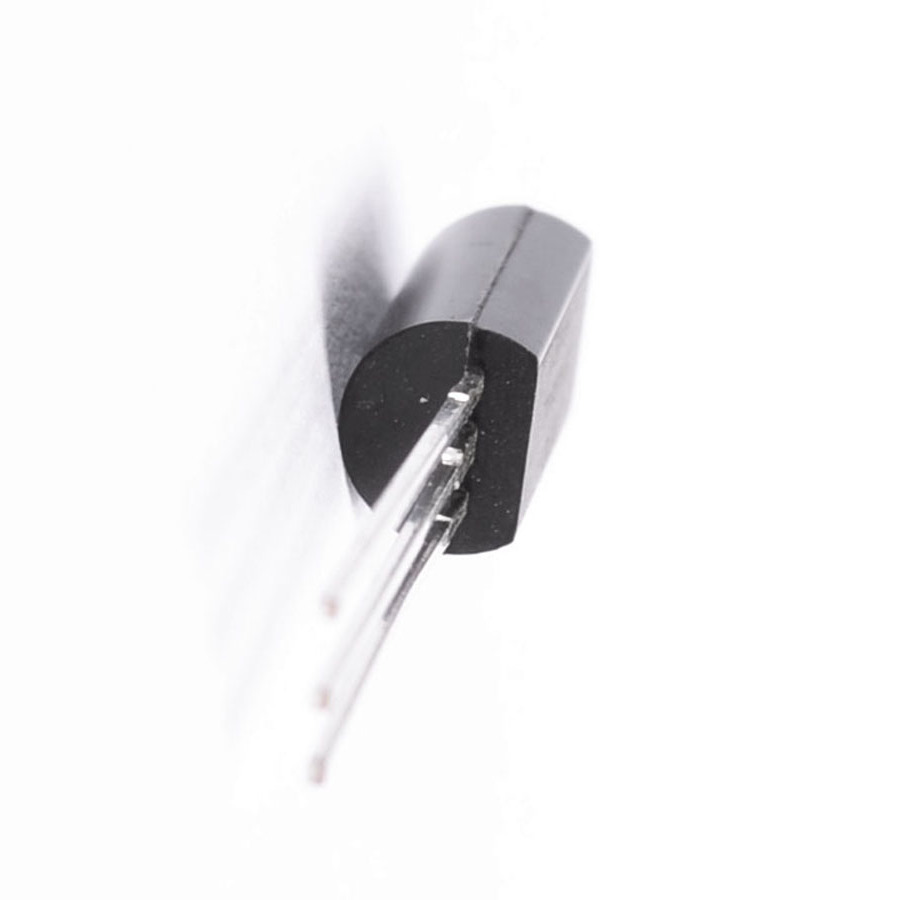

2SC3504 Transistor Silicon NPN - Case: TO92L Make: Sanyo Semiconductor
Price: £4.79
+ VAT 20% for UK purchases
£4.79
Qty
+ VAT 20% for UK purchases
  • 46 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Datasheet
2SC3504 Datasheet
Product specifications
Type Transistor Silicon NPN
Case TO92L
Manufacturer Sanyo Semiconductor
Vbr CBO 70
Vbr CEO 60
Max. PD (W) 900m
C(ob) (F) 1.6p
hfe 60
Ic Max. (A) 50m
Icbo Max. @Vcb Max. (A) 100n
Polarity NPN
Trans. Freq (Hz) Min. 300M
@VCE (test) (V) 10
Oper. Temp (°C) Max. 150
@Ic (A) 10m
Pinout Equivalence Number 3-10
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.9 W
Maximum Collector-Base Voltage |Vcb| 70 V
Maximum Collector-Emitter Voltage |Vce| 60 V
Maximum Emitter-Base Voltage |Veb| 4 V
Maximum Collector Current |Ic max| 0.05 A
Max. Operating Junction Temperature (Tj) 120 °C
Collector Capacitance (Cc) 1.6 pF
Transition Frequency (ft): 300 MHz
Forward Current Transfer Ratio (hFE), MIN 60
