2SC3506
View detailed images (12)

2SC3506

SKU: 2SC3506

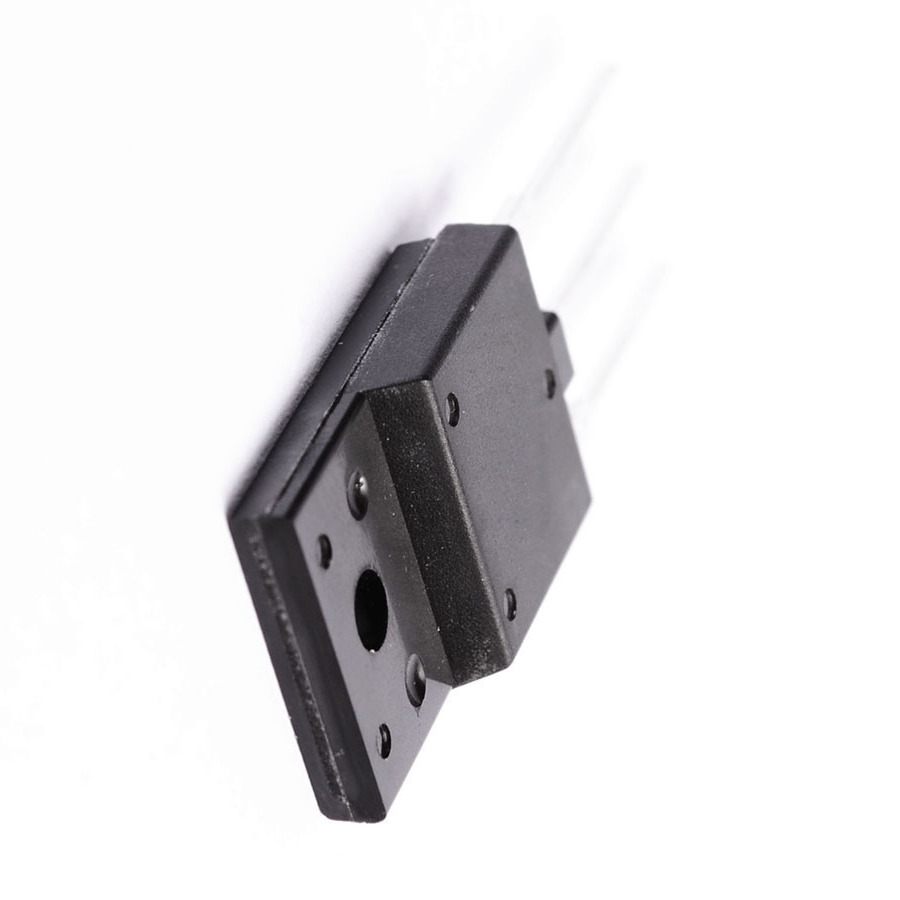

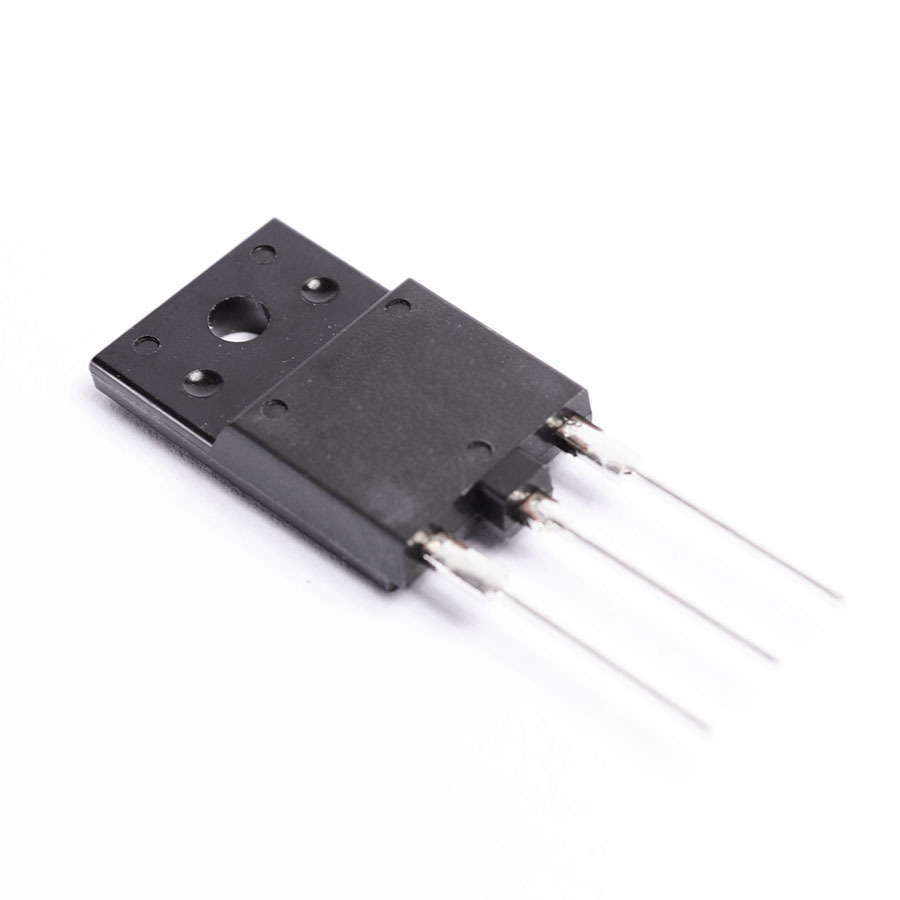

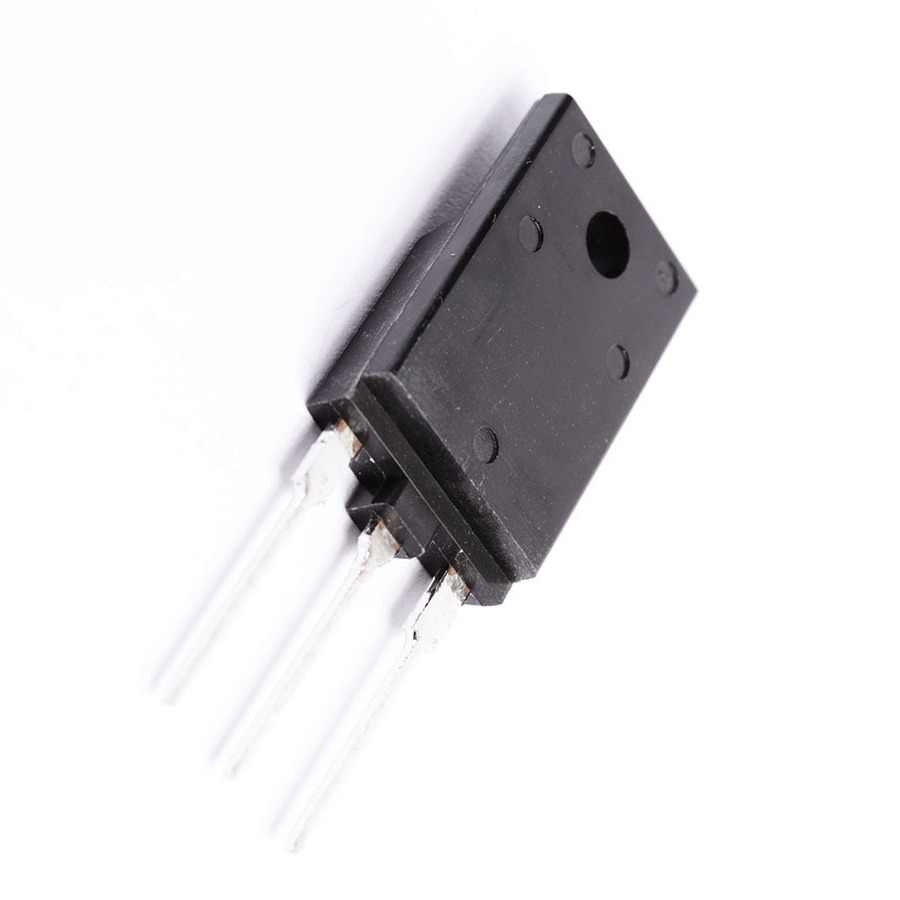

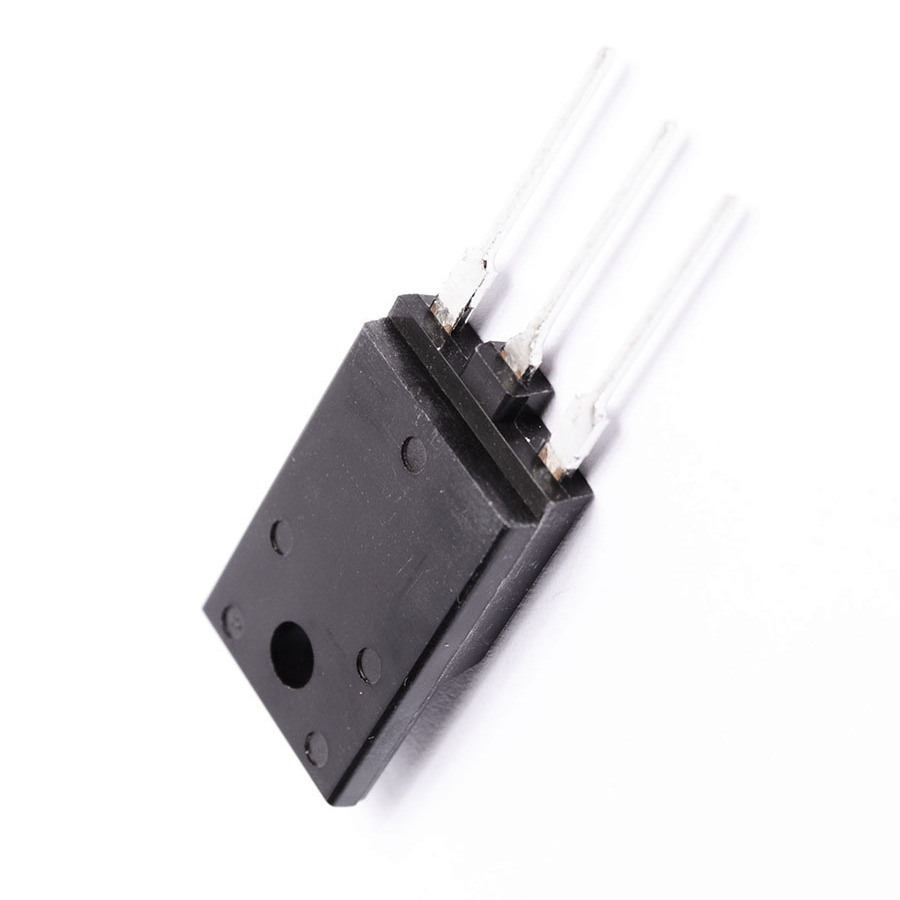

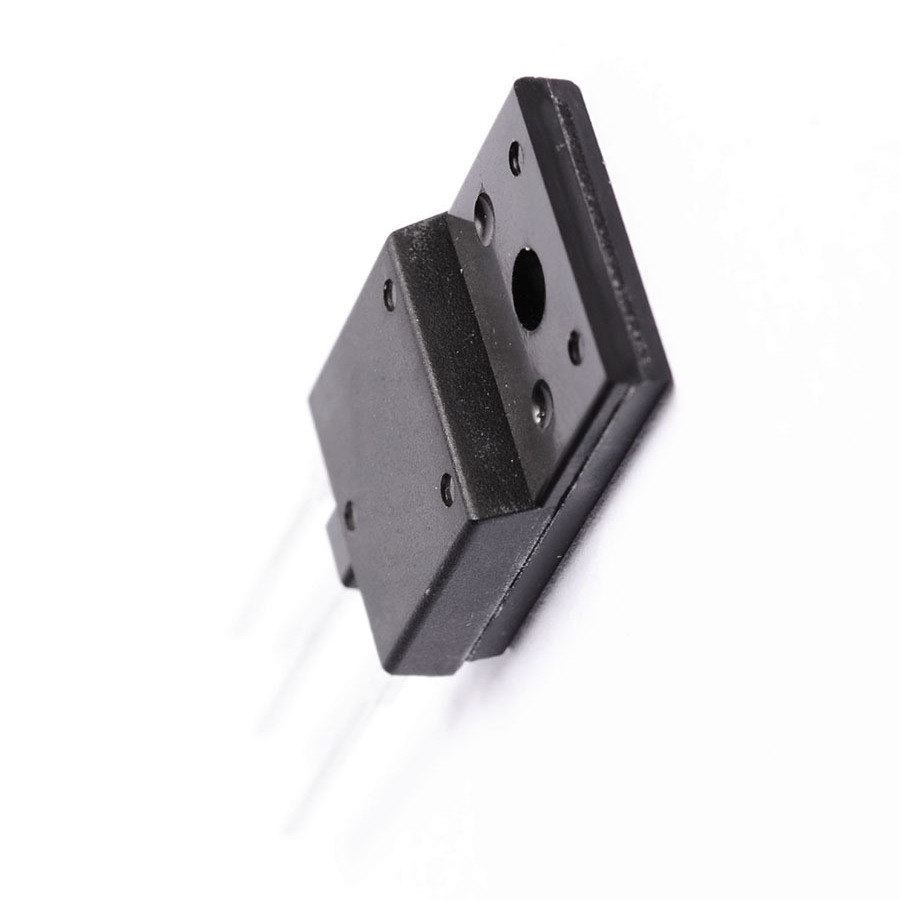

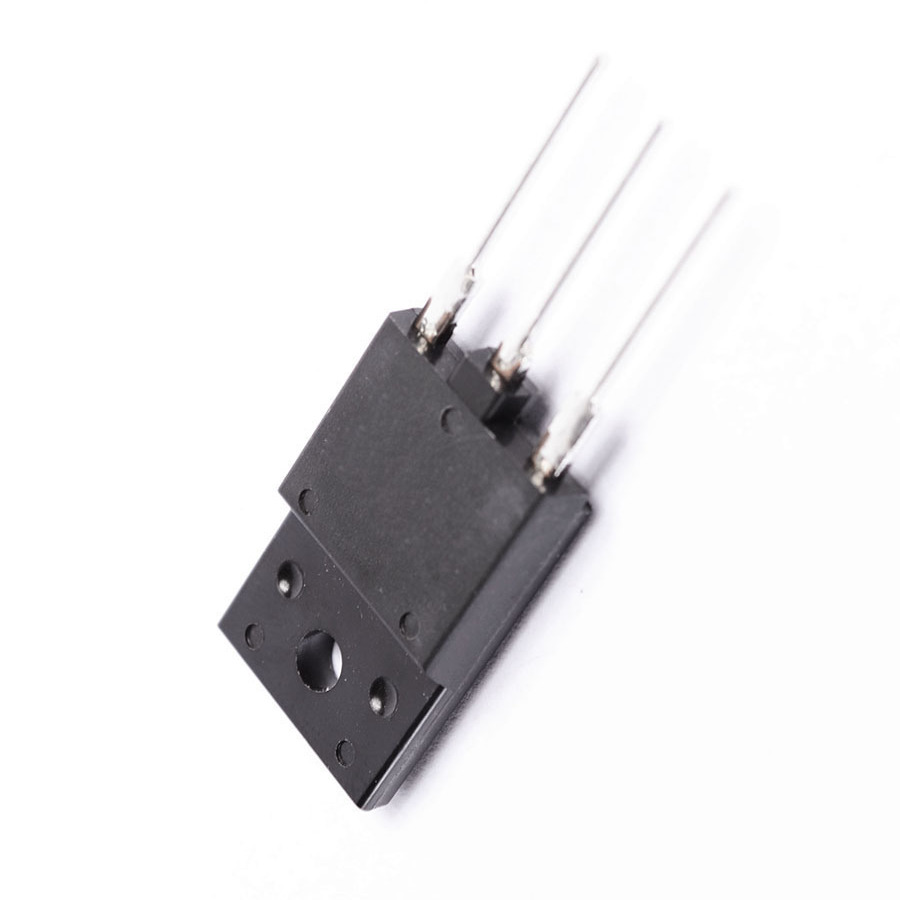

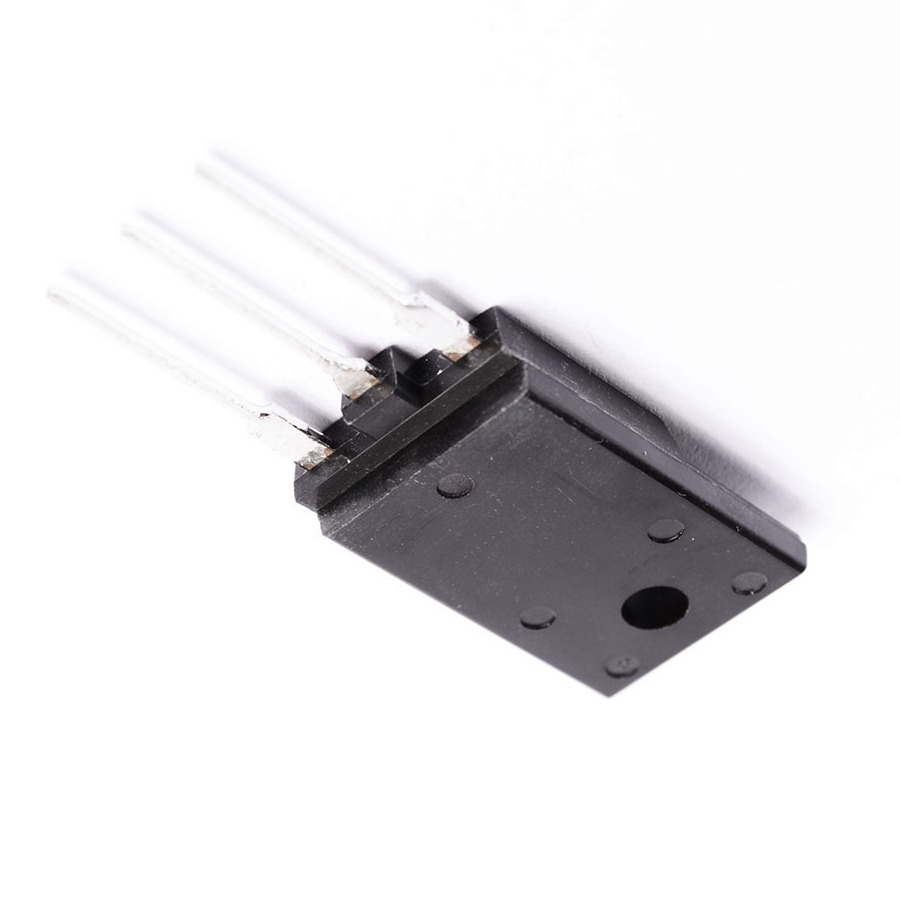

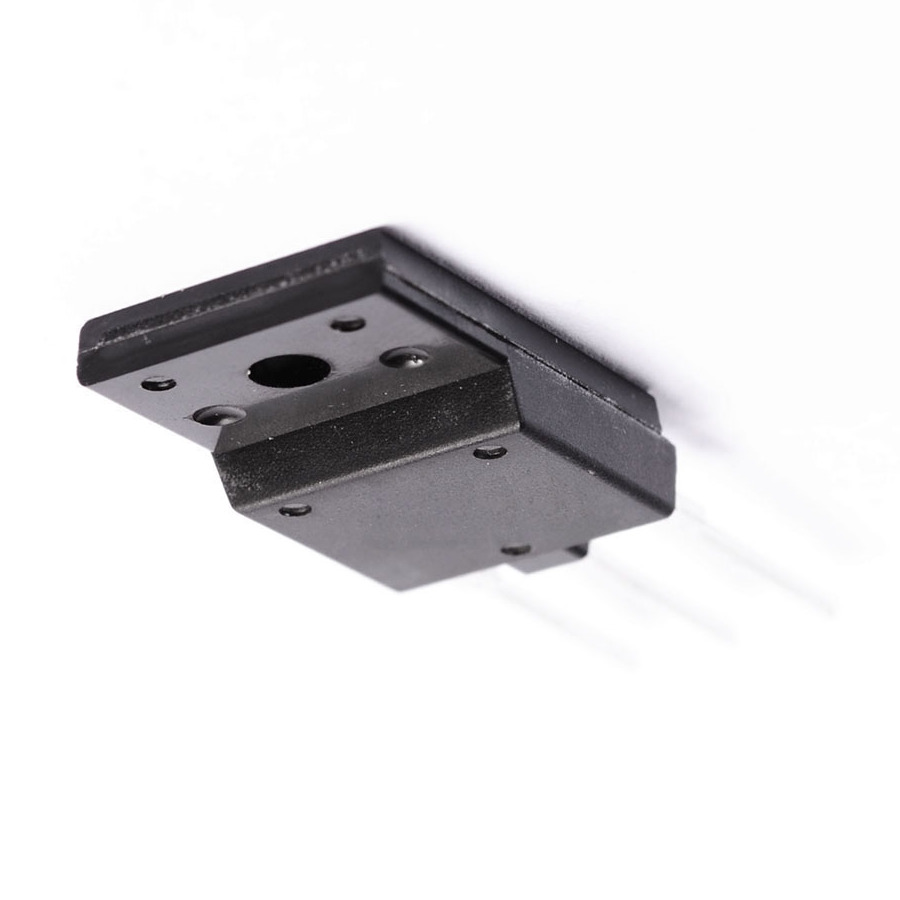

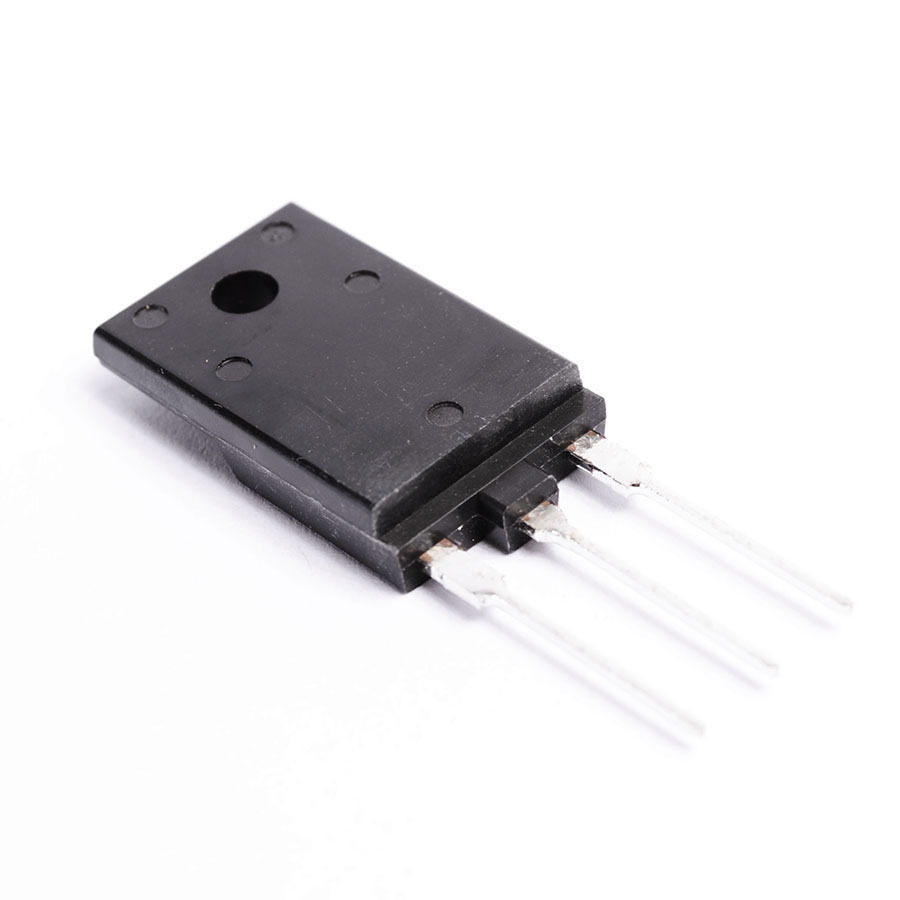

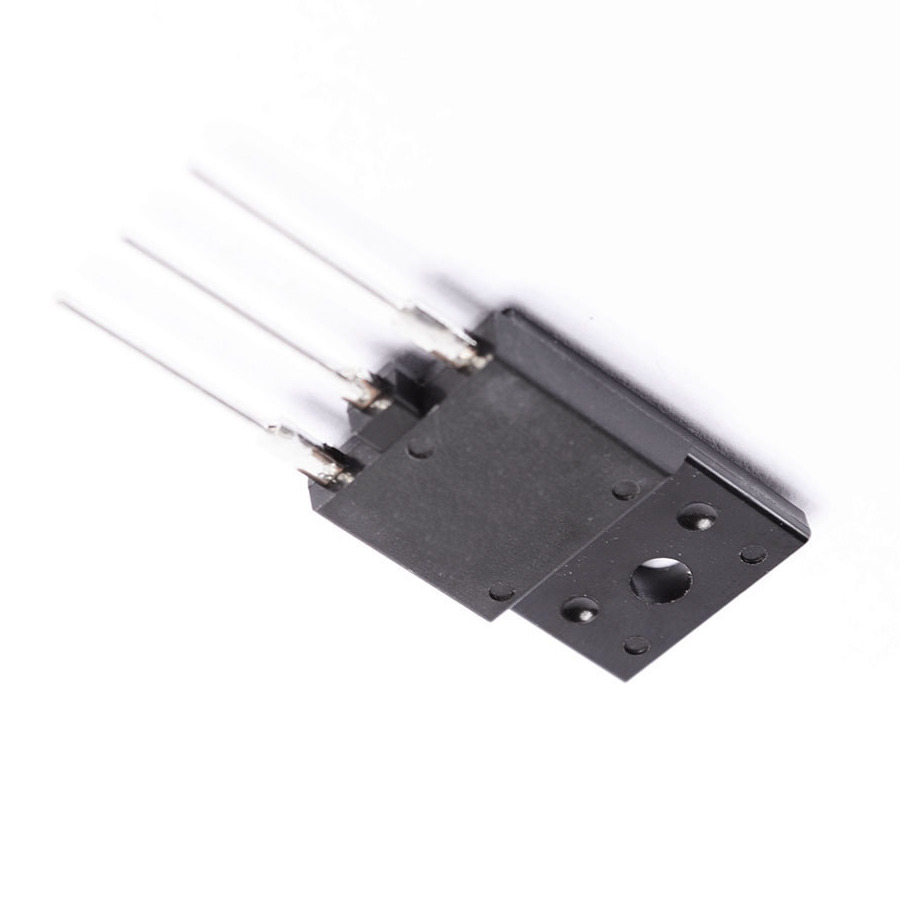

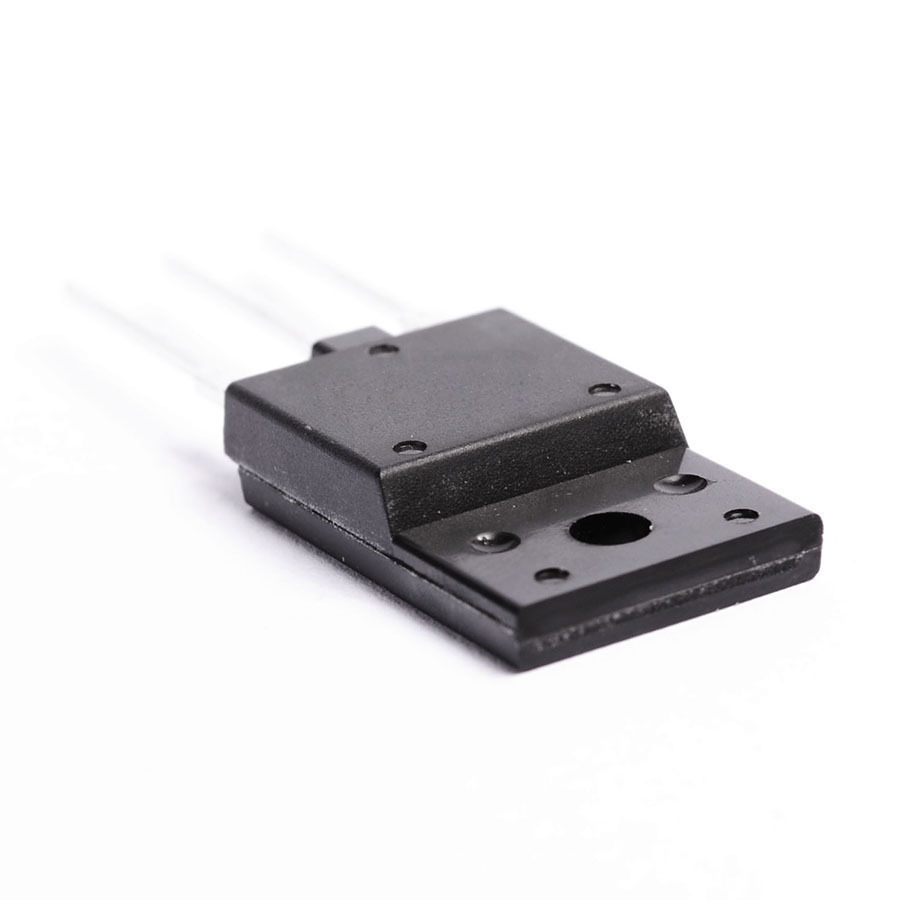

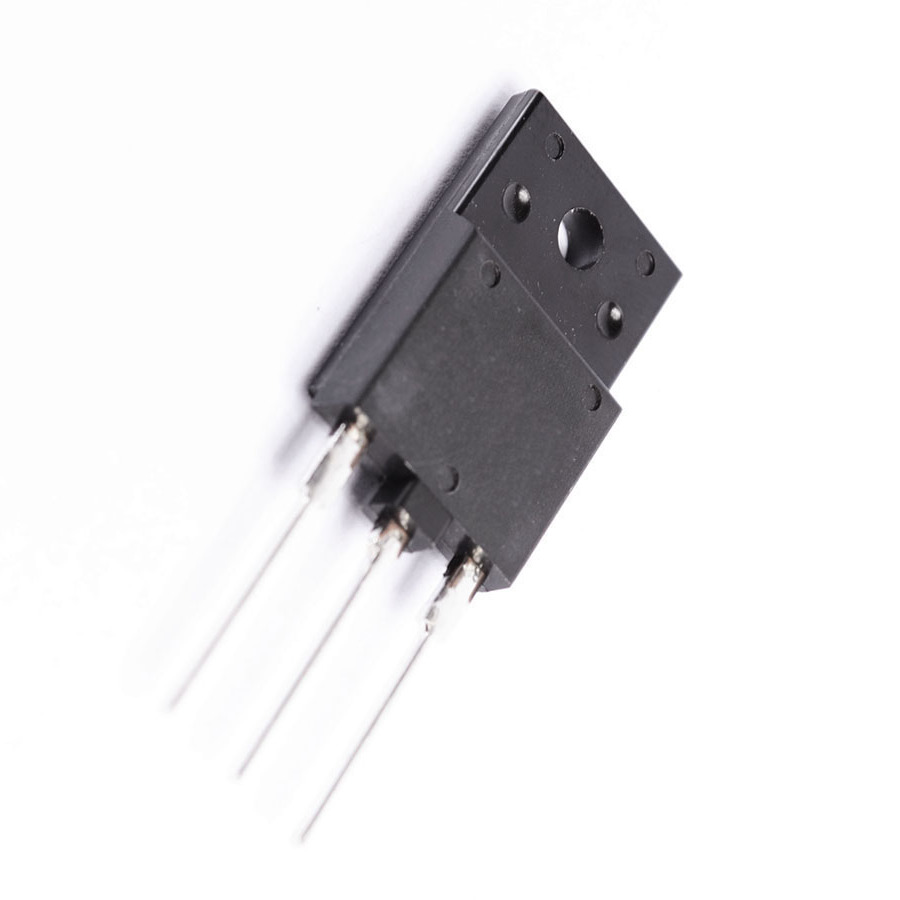

2SC3506 Transistor Silicon NPN CASE: TO3PF MAKE: Panasonic
Price:
£14.39 Inc. VAT (£11.99 Ex. VAT)
£14.39 Inc. VAT (£11.99 Ex. VAT)
Qty
  • 3 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Datasheet
2SC3506 Datasheet
Product specifications
Type Transistor Silicon NPN
Case TO3PF
Manufacturer Panasonic
Vbr CBO 1.0k
Vbr CEO 800
Max. PD (W) 70
t(f) Max. (S) 500n
Min hFE 6.0
Ic Max. (A) 3.0
@Ic (test) (A) 2.0
Icbo Max. @Vcb Max. (A) 50u
Polarity NPN
Tr Max. (s) 2.5u
Trans. Freq (Hz) Min. 4.0M
Oper. Temp (°C) Max. 140
@VCE (V) 5.0
Pinout Equivalence Number 3-15
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 70 W
Maximum Collector-Base Voltage |Vcb| 1000 V
Maximum Collector-Emitter Voltage |Vce| 800 V
Maximum Emitter-Base Voltage |Veb| 7 V
Maximum Collector Current |Ic max| 3 A
Transition Frequency (ft): 4 MHz
Forward Current Transfer Ratio (hFE), MIN 6
SKU 20523
