2SC3548
View detailed images (13)

2SC3548

SKU: 2SC3548

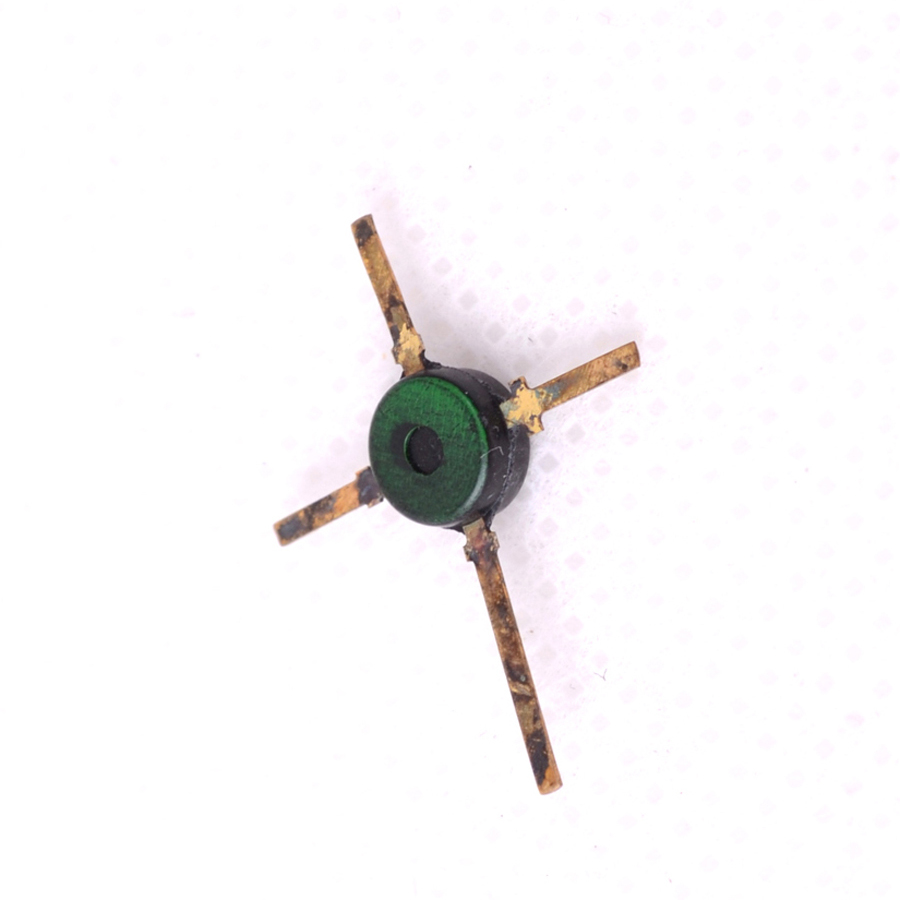

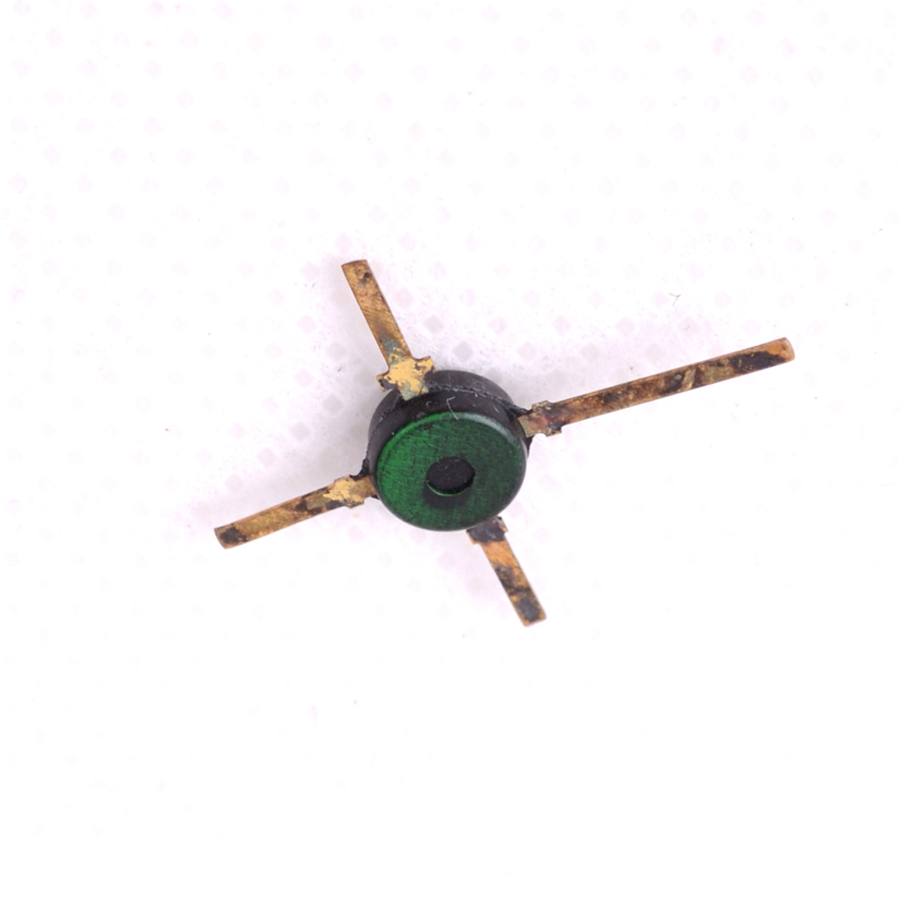

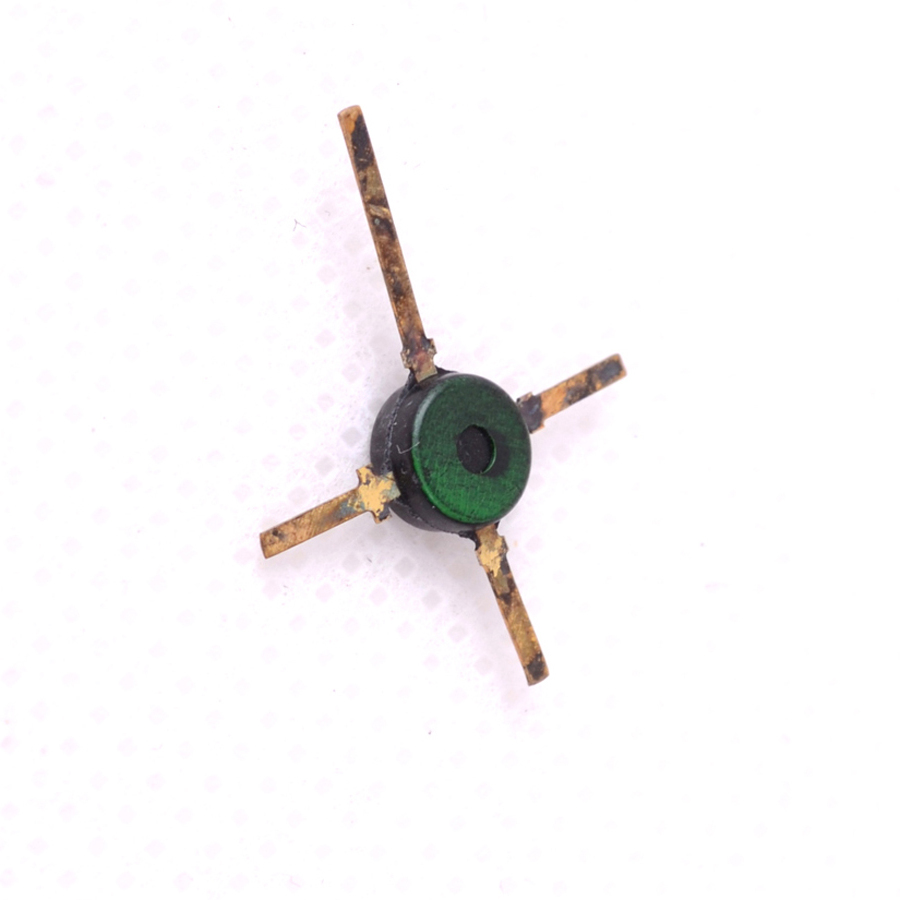

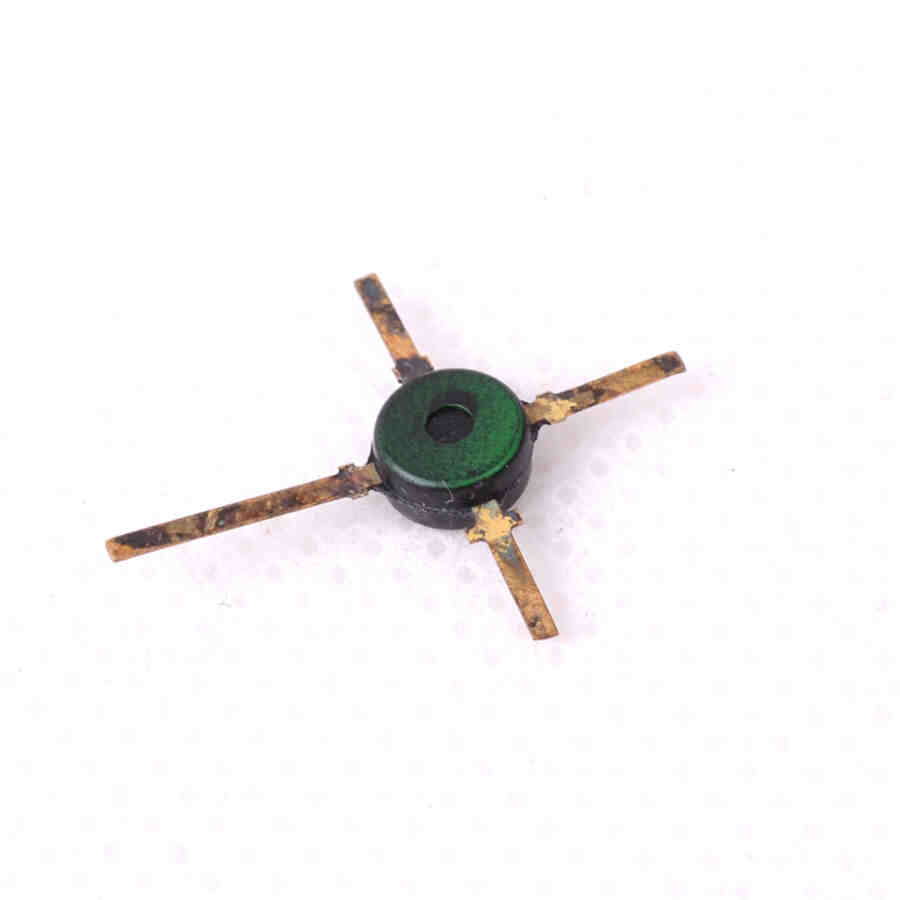

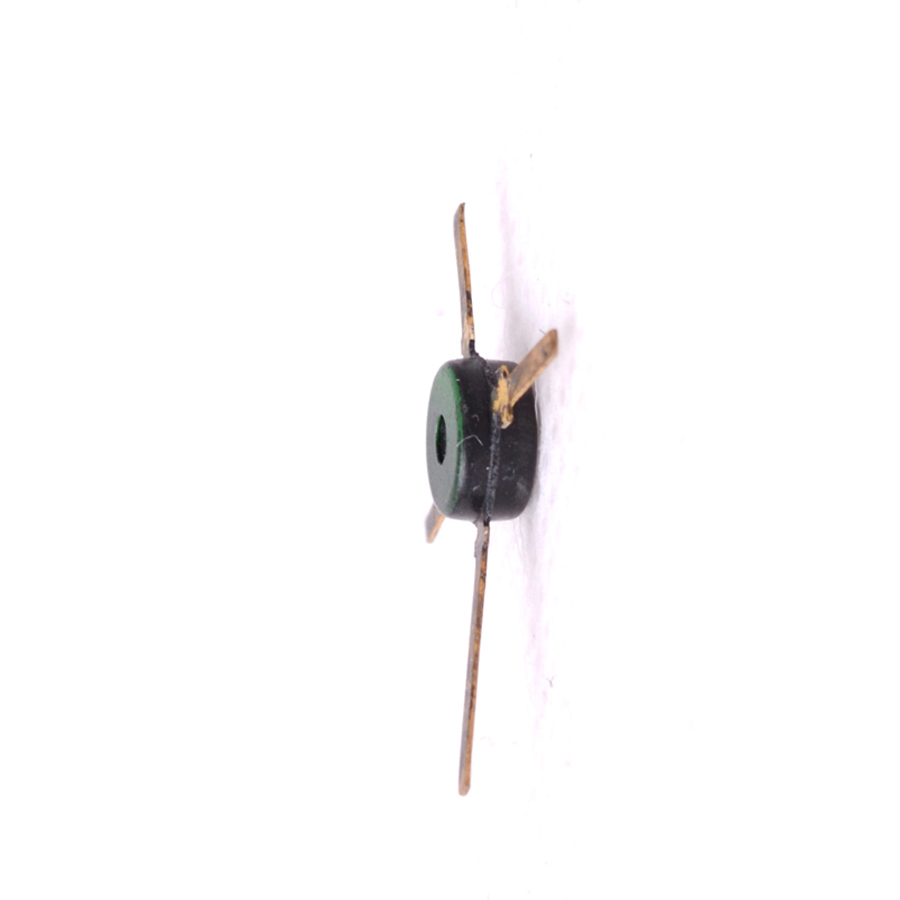

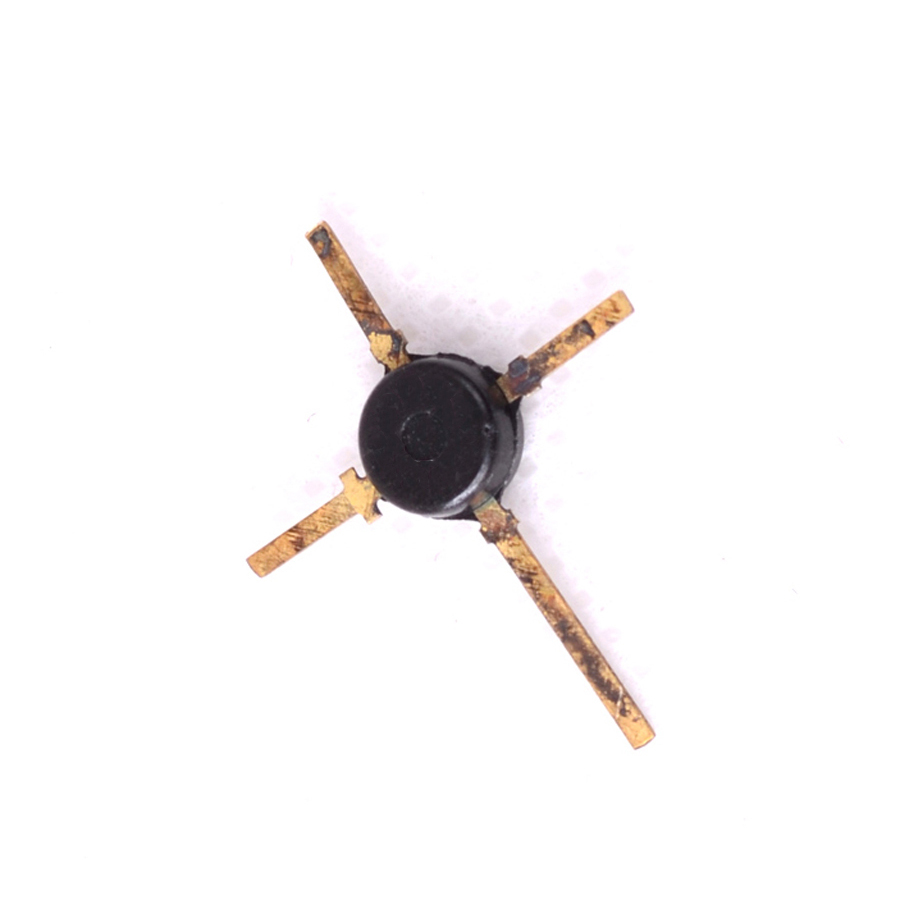

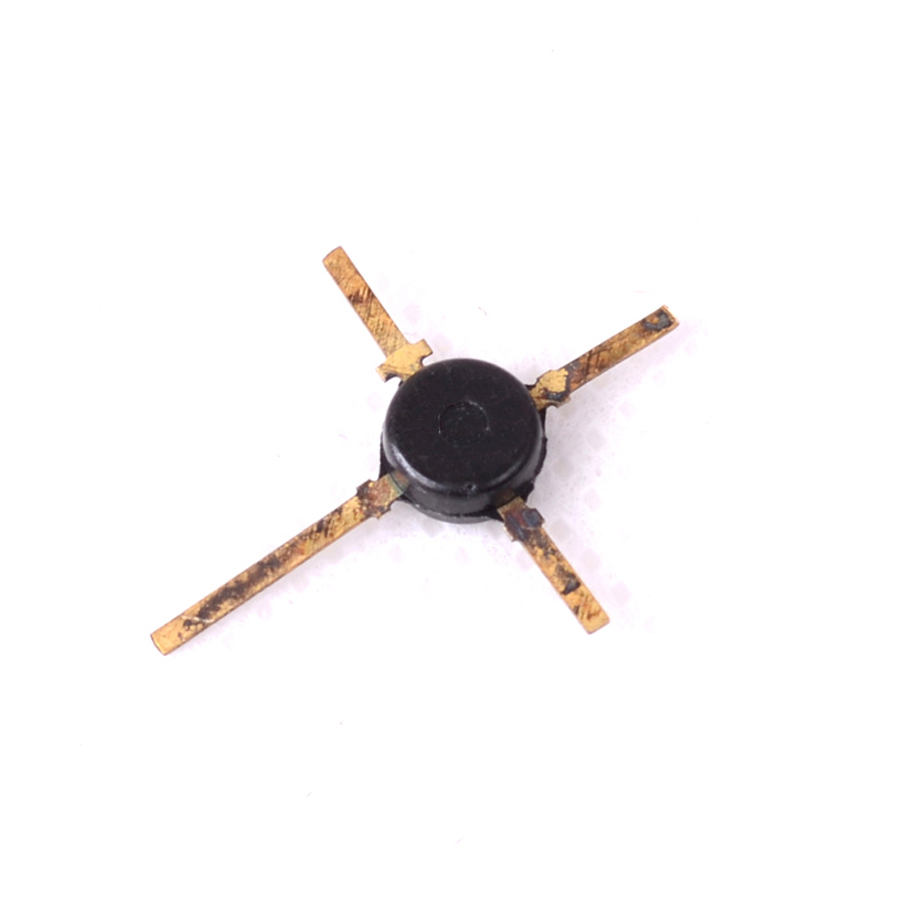

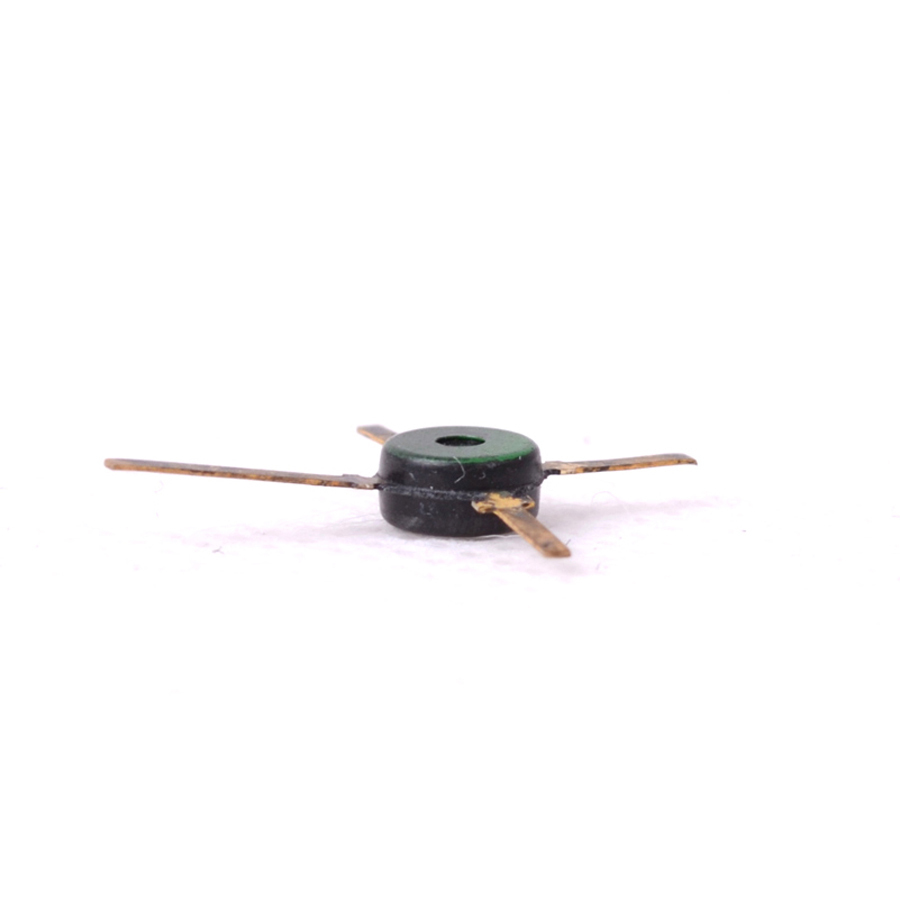

2SC3548 Transistor Silicon NPN CASE: SOT103 MAKE: Toshiba
Product specifications
Type Transistor Silicon NPN
Case SOT103
Manufacturer Toshiba
Vbr CBO 20
@Ic (A) 5.0m
Mat. Silicon Logic
Noise Fig. 2.0
Oper. Gain Typ (S21) 9.5
Polarity NPN
PD Max. (W) 200m
Coll. (or drain) Current Max. 30m
@Freq. (test) 1.0G
@VCE (test) 10
Oper. Temp (°C) Max. 125
Pinout Equivalence Number 4-28
Surface Mounted Yes/No YES
Maximum Collector Power Dissipation (Pc) 0.45 W
Maximum Collector-Base Voltage |Vcb| 20 V
Maximum Collector Current |Ic max| 0.03 A
Max. Operating Junction Temperature (Tj) 175 °C
Transition Frequency (ft): 4000 MHz
Forward Current Transfer Ratio (hFE), MIN 30
SKU 585242
