2SC3756
View detailed images (12)

2SC3756

SKU: 2SC3756

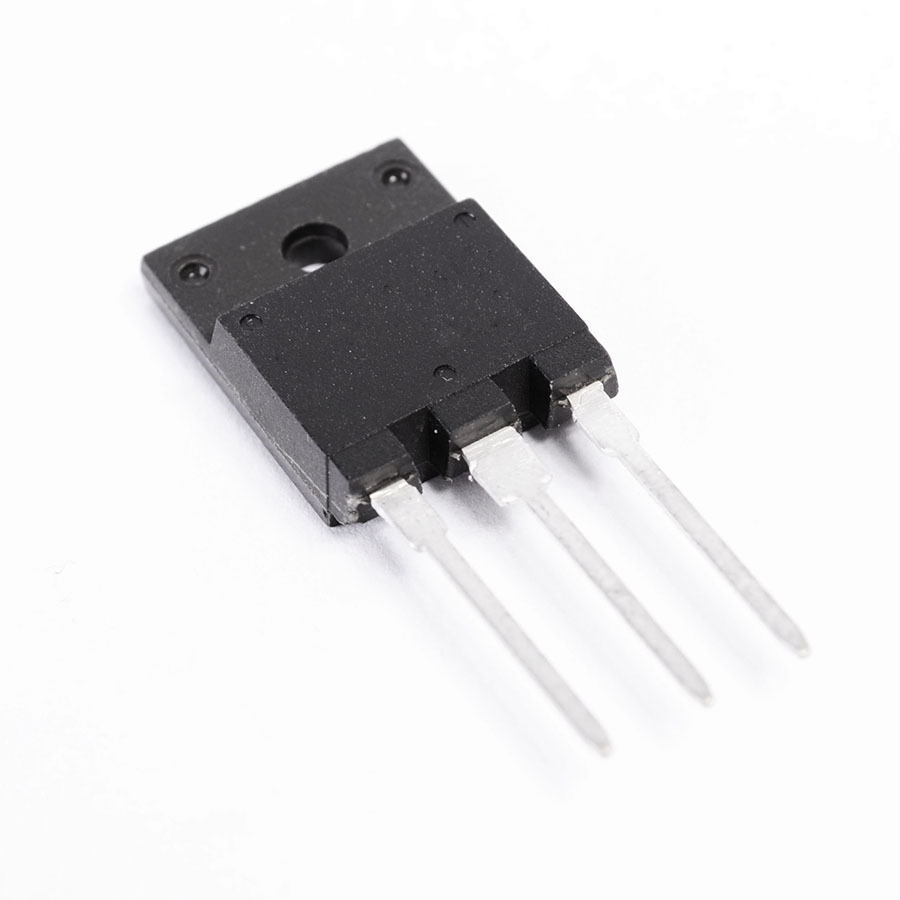

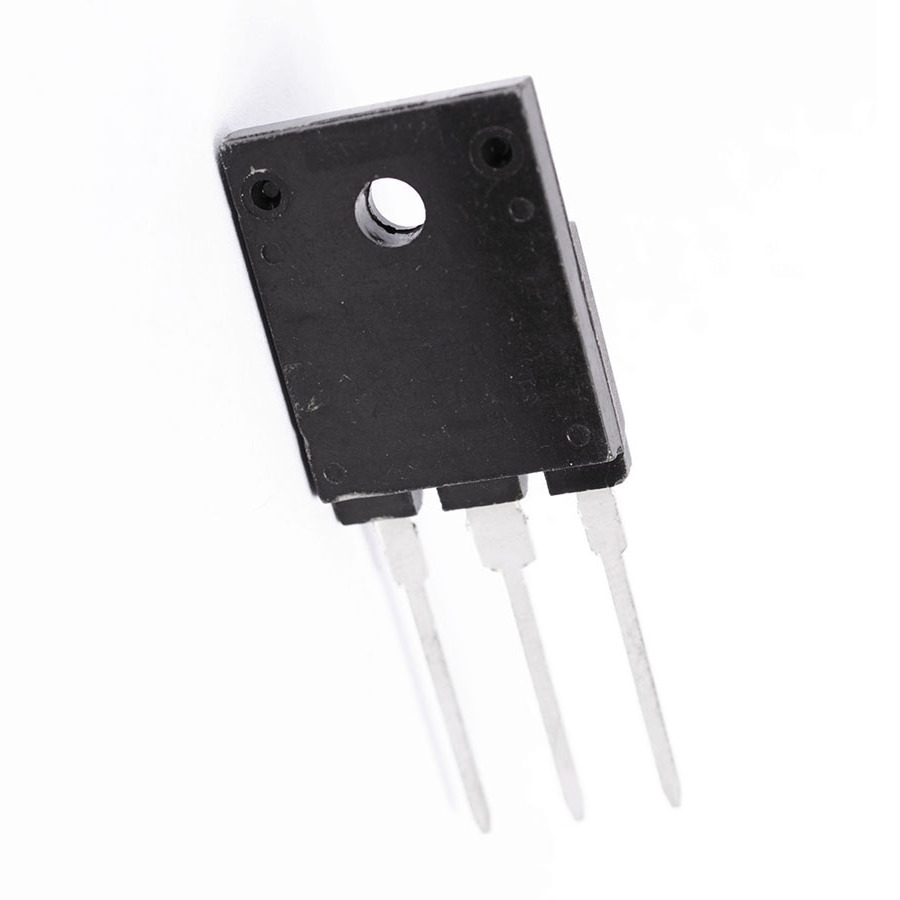

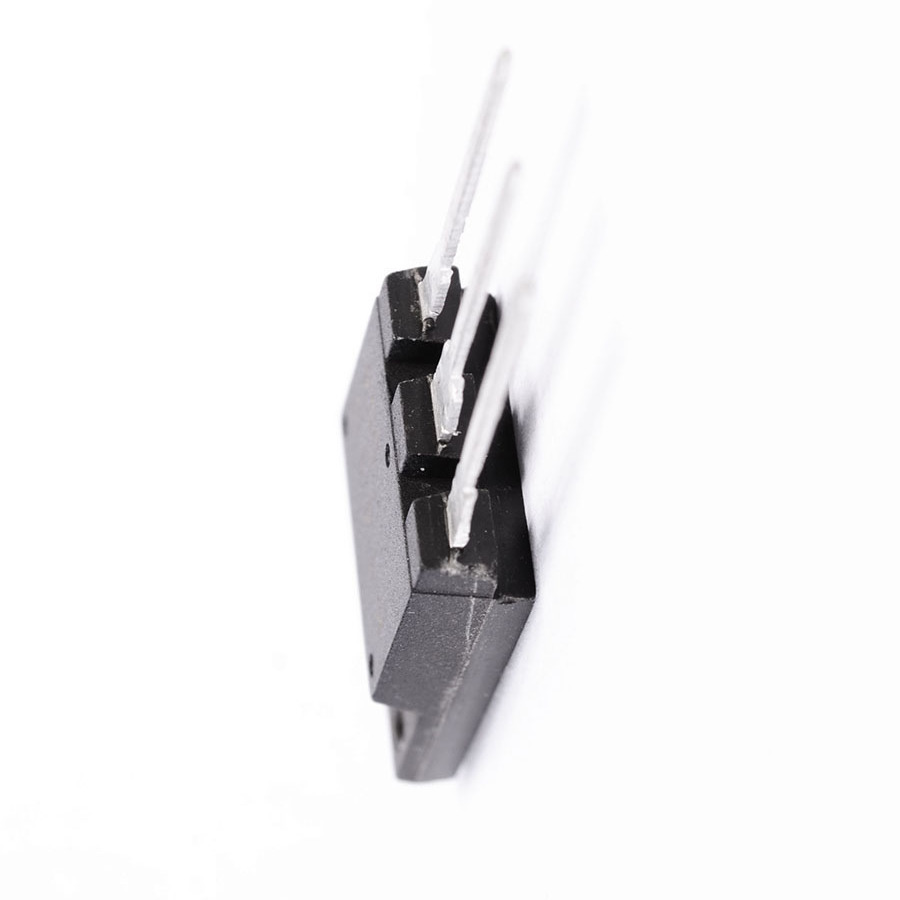

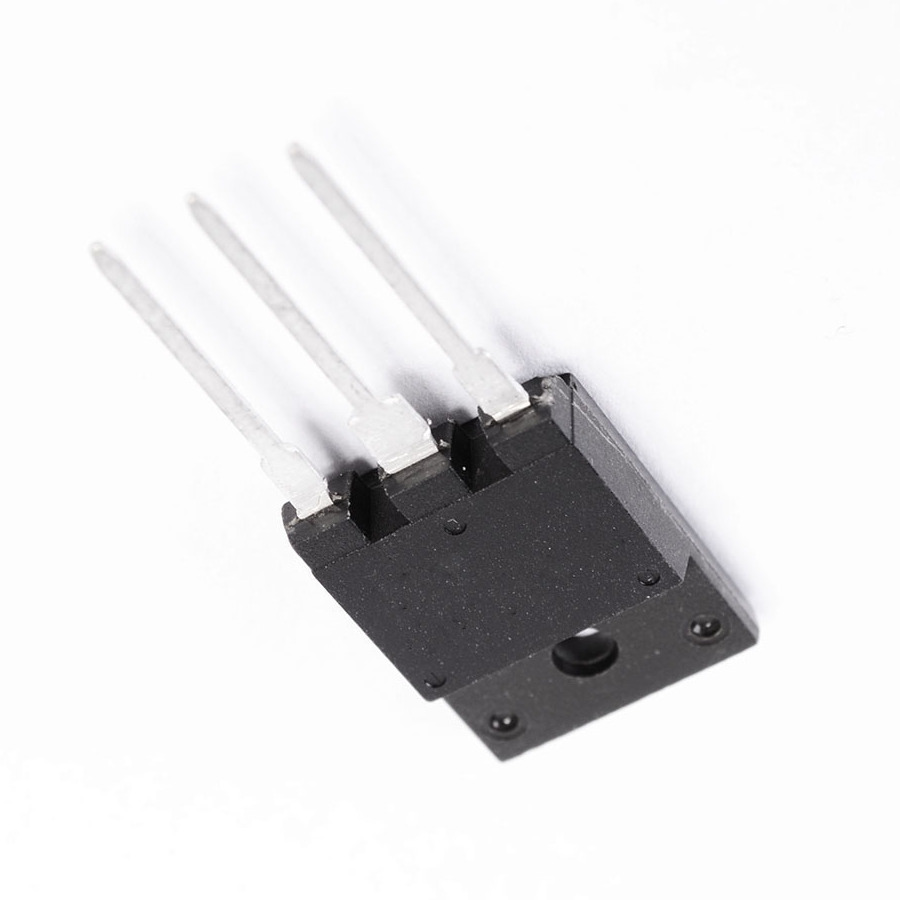

2SC3756 Transistor Silicon NPN CASE: TO218F MAKE: Sanyo Semiconductor
Product specifications
Type Transistor Silicon NPN
Case TO218F
Manufacturer Sanyo Semiconductor
Vbr CBO 1.5k
Vbr CEO 800
Max. PD (W) 60
t(f) Max. (S) 0.3u
Min hFE 8.0
Ic Max. (A) 6.0
@Ic (test) (A) 1.0
Icbo Max. @Vcb Max. (A) 10u
Polarity NPN
Oper. Temp (°C) Max. 140
@VCE (V) 5.0
Pinout Equivalence Number 3-10
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 60 W
Maximum Collector-Base Voltage |Vcb| 1500 V
Maximum Collector-Emitter Voltage |Vce| 800 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 6 A
Max. Operating Junction Temperature (Tj) 150 °C
Forward Current Transfer Ratio (hFE), MIN 30
SKU 571686
