2SC3786
View detailed images (12)

2SC3786

SKU: 2SC3786

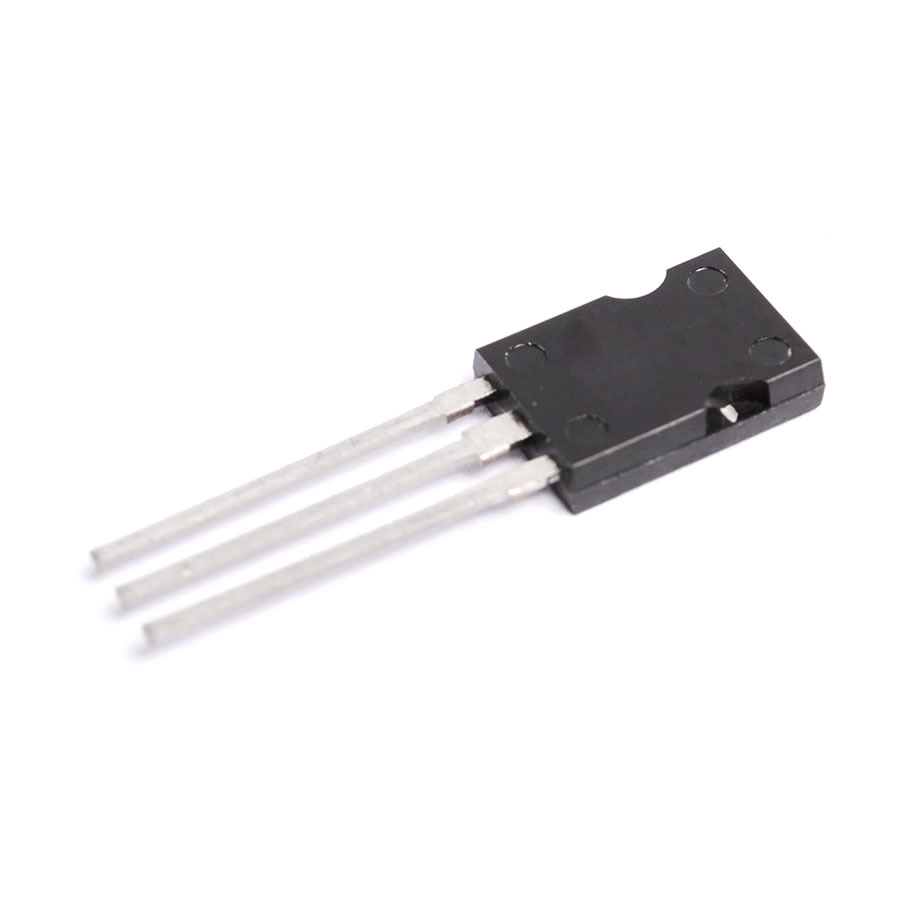

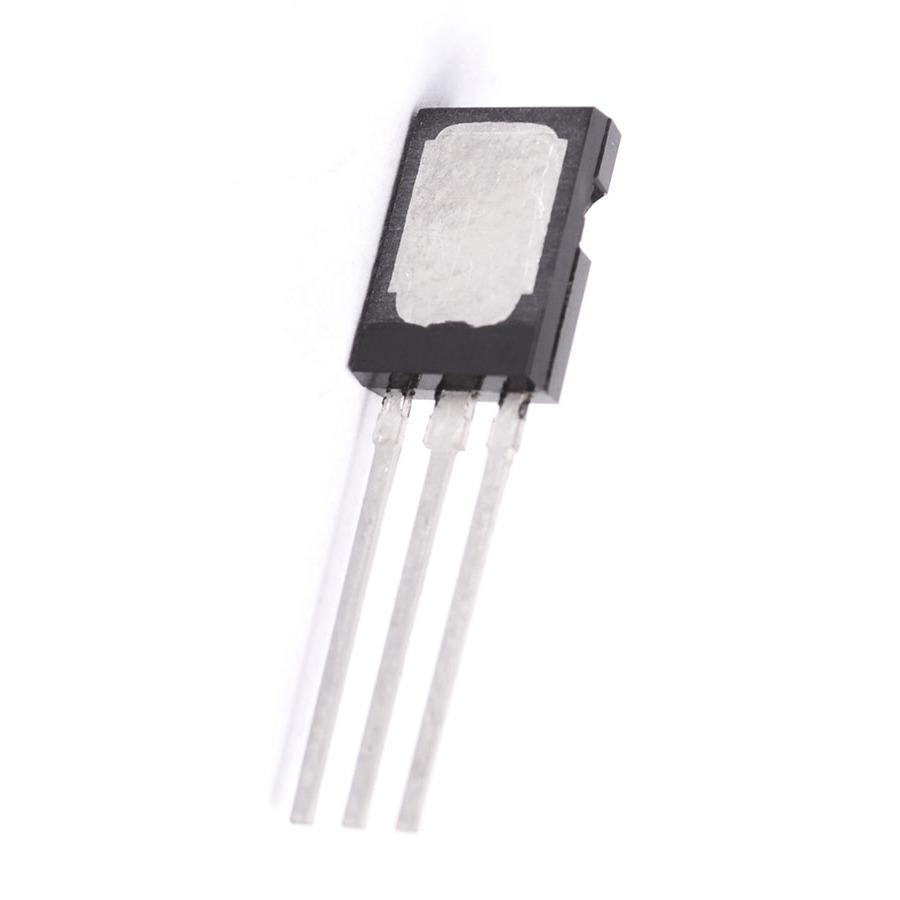

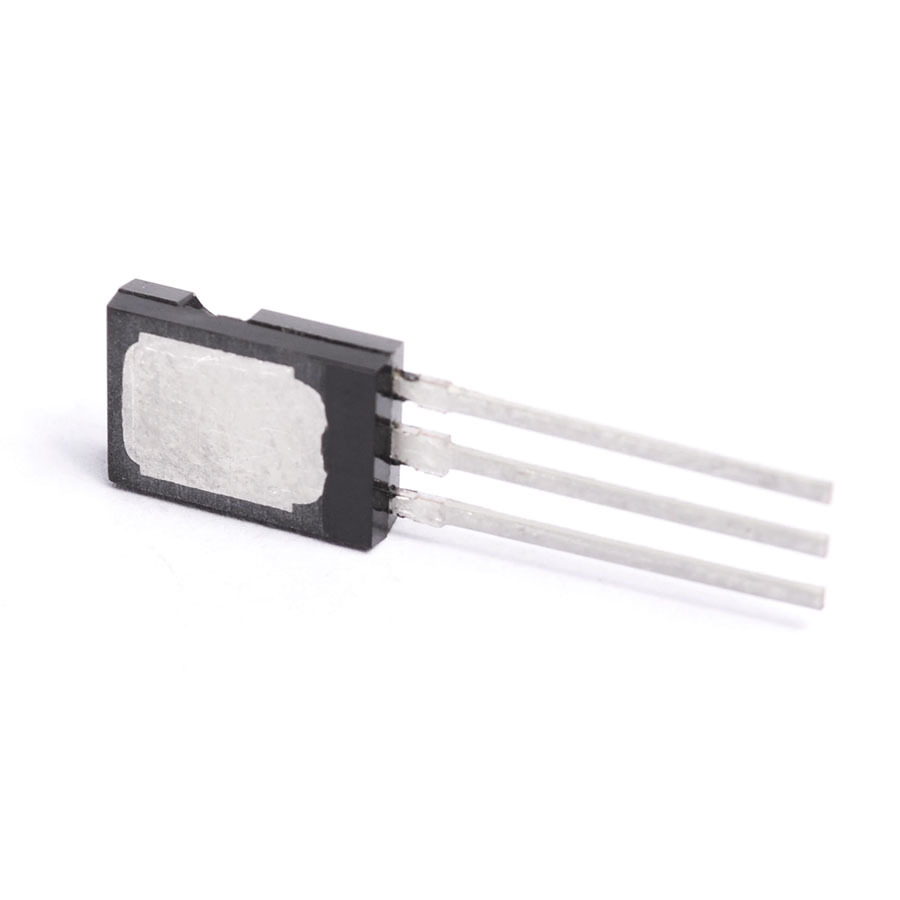

2SC3786 Transistor Silicon NPN CASE: SOT82 MAKE: Sanyo Semiconductor
Datasheet
2SC3786 Datasheet
Product specifications
Type Transistor Silicon NPN
Case SOT82
Manufacturer Sanyo Semiconductor
Vbr CBO 50
Vbr CEO 50
Max. PD (W) 20
t(f) Max. (S) 700n
Max. hFE 4.0k-
Min hFE 1.0k
Ic Max. (A) 3.0
@Ic (test) (A) 1.5
Icbo Max. @Vcb Max. (A) 10u
Polarity NPN
Tr Max. (s) 200n
Trans. Freq (Hz) Min. 180M
Oper. Temp (°C) Max. 150
@VCE (V) 5.0
Pinout Equivalence Number 3-15
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 20 W
Maximum Collector-Base Voltage |Vcb| 50 V
Maximum Collector-Emitter Voltage |Vce| 50 V
Maximum Emitter-Base Voltage |Veb| 6 V
Maximum Collector Current |Ic max| 3 A
Max. Operating Junction Temperature (Tj) 125 °C
Transition Frequency (ft): 180 MHz
Forward Current Transfer Ratio (hFE), MIN 4000
SKU 344210
