2SC3789E
View detailed images (4)

2SC3789E

SKU: 2SC3789E

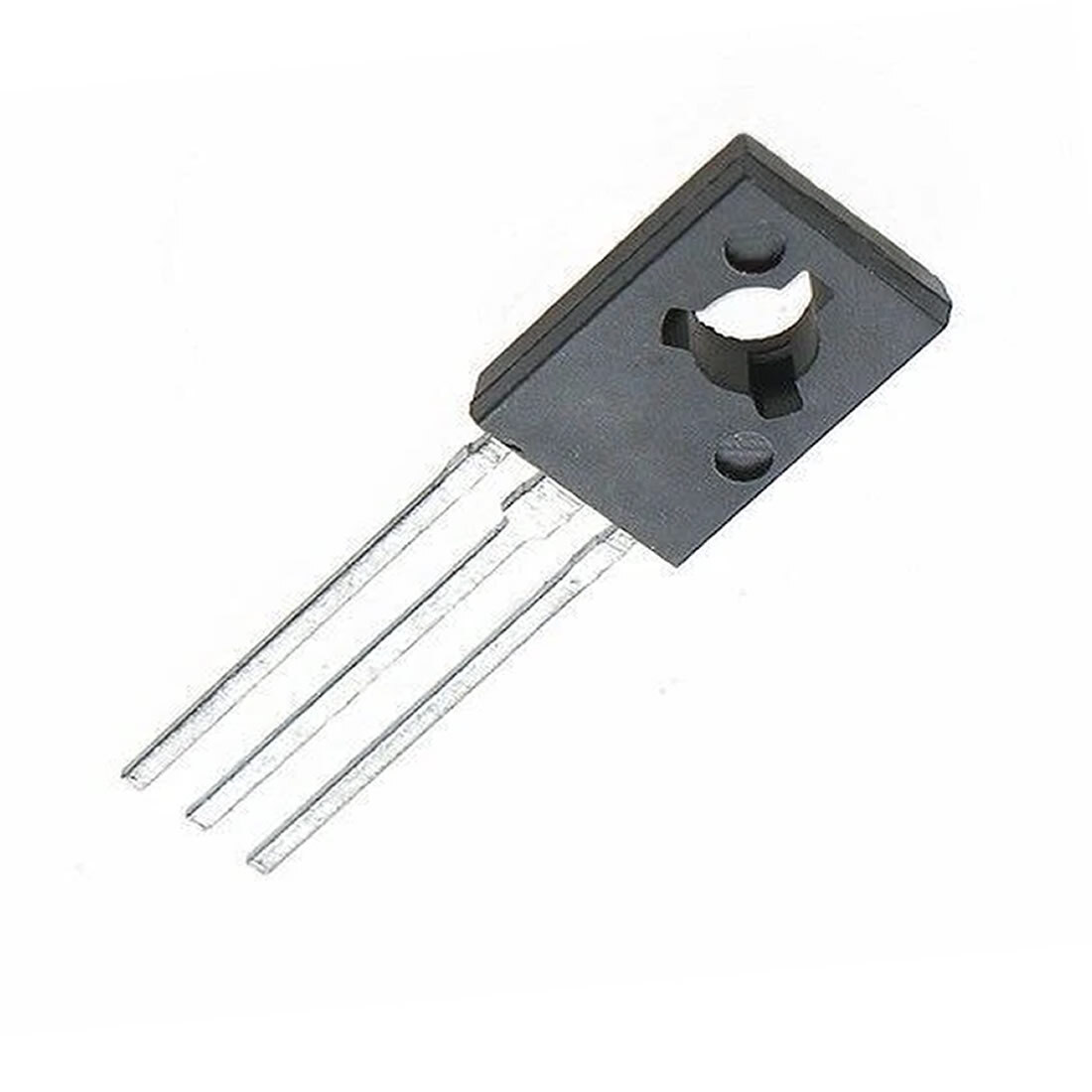

2SC3789E Transistor Silicon NPN CASE: TO126F MAKE: Sanyo Semiconductor
Price:
£4.79 Inc. VAT (£3.99 Ex. VAT)
£4.79 Inc. VAT (£3.99 Ex. VAT)
Qty
  • 37 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Product specifications
Type Transistor Silicon NPN
Case TO126F
Manufacturer Sanyo Semiconductor
Vbr CBO 300
Vbr CEO 300
Max. PD (W) 7.0
Max. hFE 320
Min hFE 160
Ic Max. (A) 100m
@Ic (test) (A) 10m
Icbo Max. @Vcb Max. (A) 100n
Polarity NPN
Trans. Freq (Hz) Min. 70M
Oper. Temp (°C) Max. 150
@VCE (V) 10
Pinout Equivalence Number 3-10
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 7 W
Maximum Collector-Base Voltage |Vcb| 300 V
Maximum Collector-Emitter Voltage |Vce| 300 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 0.1 A
Max. Operating Junction Temperature (Tj) 125 °C
Collector Capacitance (Cc) 2.6 pF
Transition Frequency (ft): 70 MHz
Forward Current Transfer Ratio (hFE), MIN 100
SKU 764543
