2SC3790C
View detailed images (4)

2SC3790C

SKU: 2SC3790C

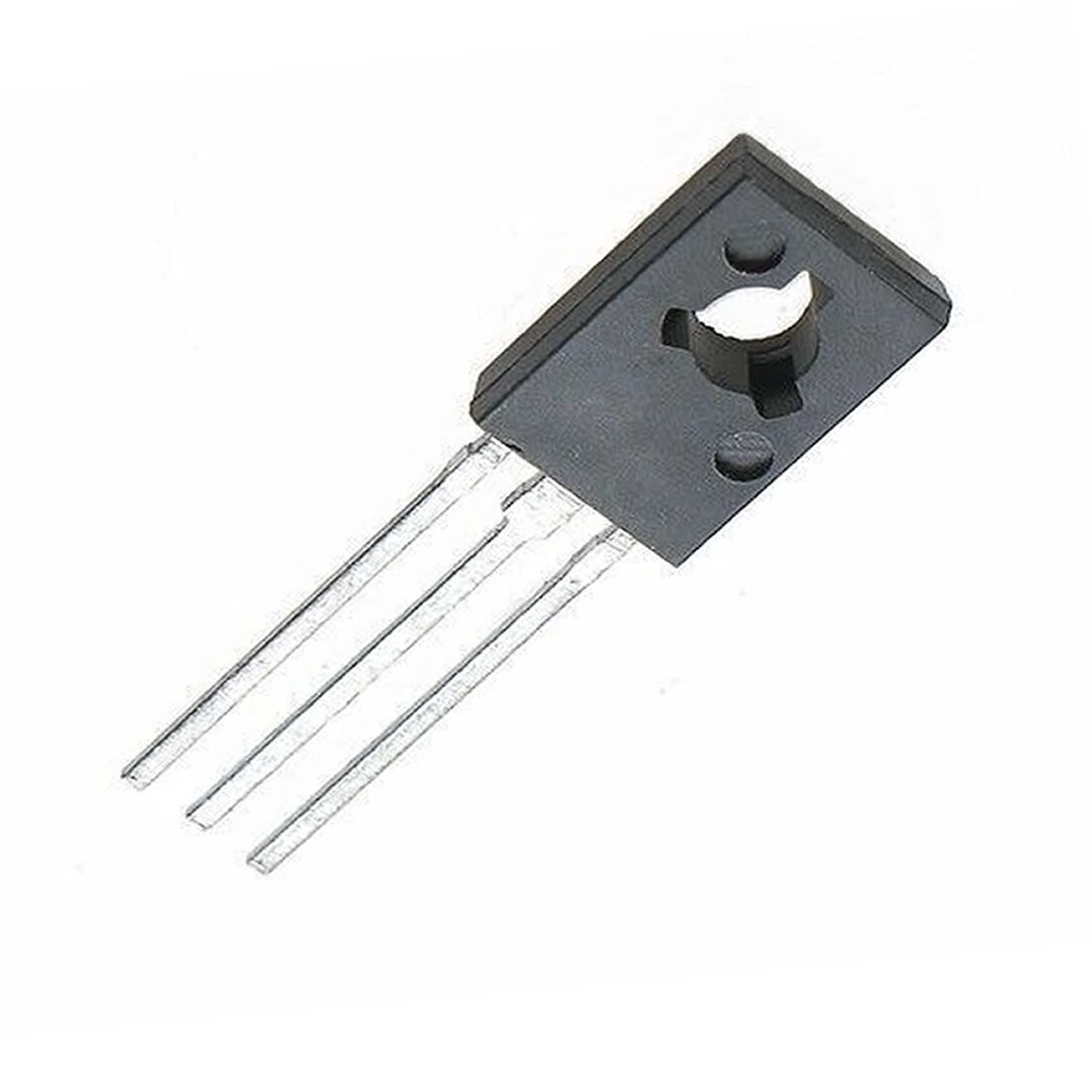

2SC3790C Transistor Silicon NPN CASE: TO126F MAKE: Sanyo Semiconductor
Price:
£5.75 Inc. VAT (£4.79 Ex. VAT)
£5.75 Inc. VAT (£4.79 Ex. VAT)
Qty
Product specifications
Equivalent 2SC3790
Type Transistor Silicon NPN
Case TO126F
Manufacturer Sanyo Semiconductor
Vbr CBO 300
Vbr CEO 300
Max. PD (W) 7.0
Max. hFE 80
Min hFE 40
Ic Max. (A) 100m
@Ic (test) (A) 10m
Icbo Max. @Vcb Max. (A) 100n
Polarity NPN
Trans. Freq (Hz) Min. 150M
Oper. Temp (°C) Max. 150
@VCE (V) 10
Pinout Equivalence Number 3-10
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 7 W
Maximum Collector-Base Voltage |Vcb| 300 V
Maximum Collector-Emitter Voltage |Vce| 300 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 0.1 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 2.6 pF
Transition Frequency (ft): 150 MHz
Forward Current Transfer Ratio (hFE), MIN 40
SKU 764541
