2SC3843
View detailed images (12)

2SC3843

SKU: 2SC3843

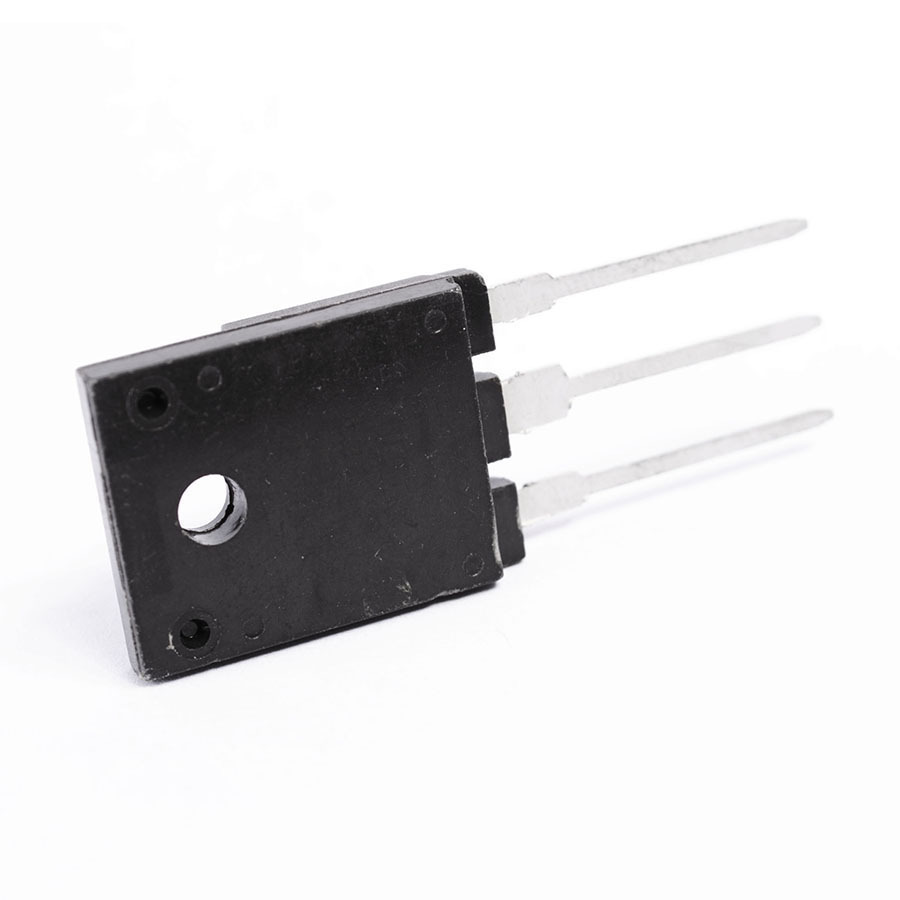

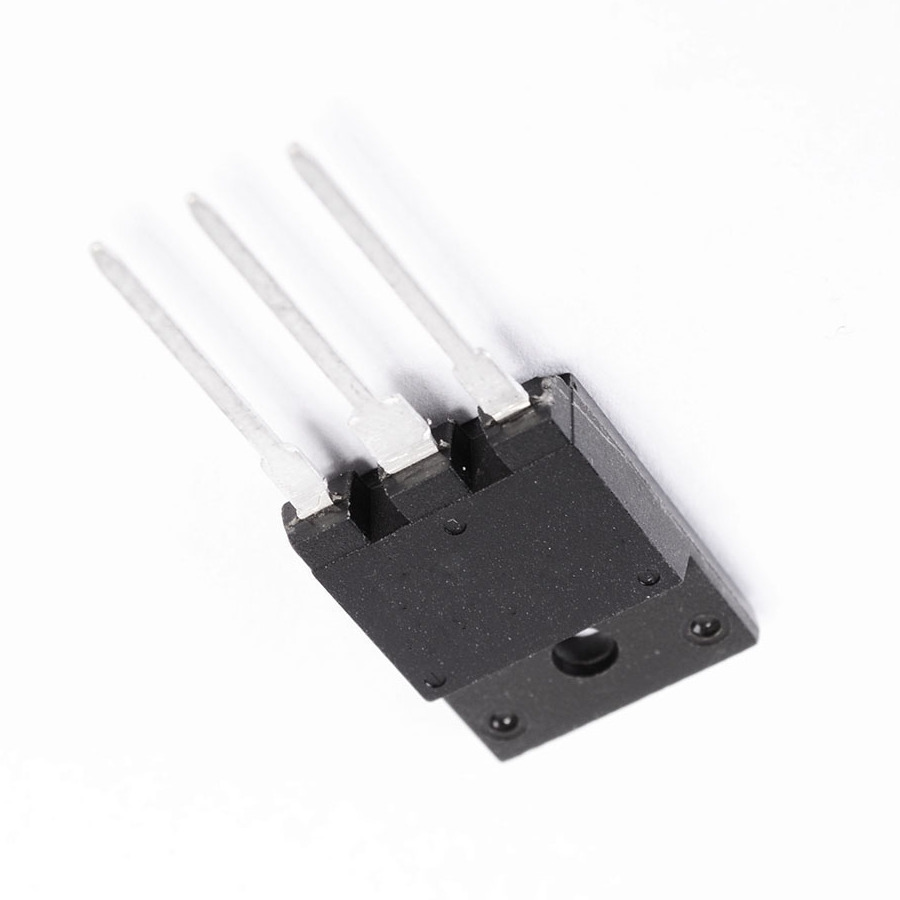

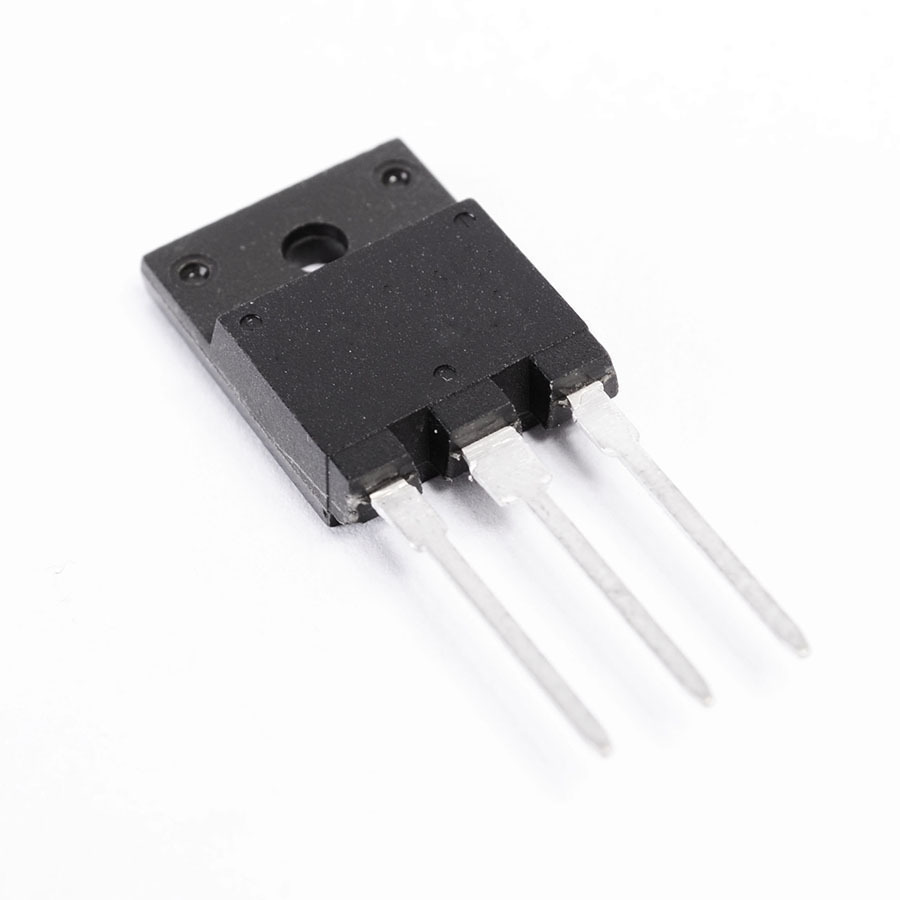

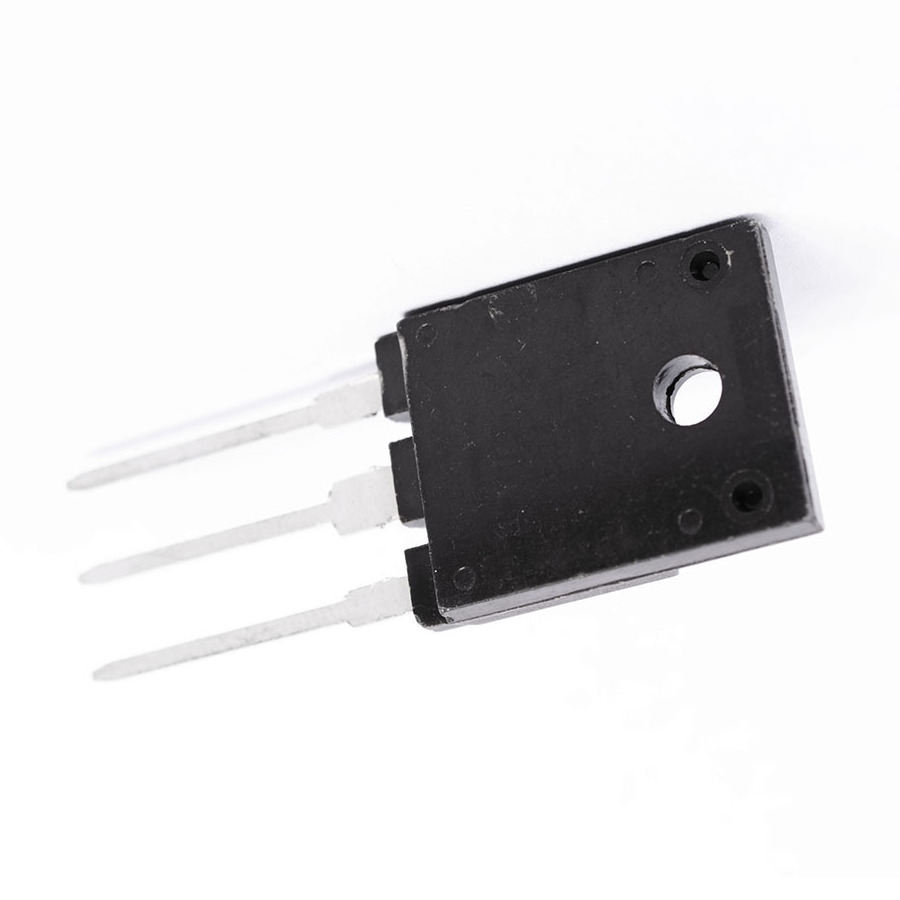

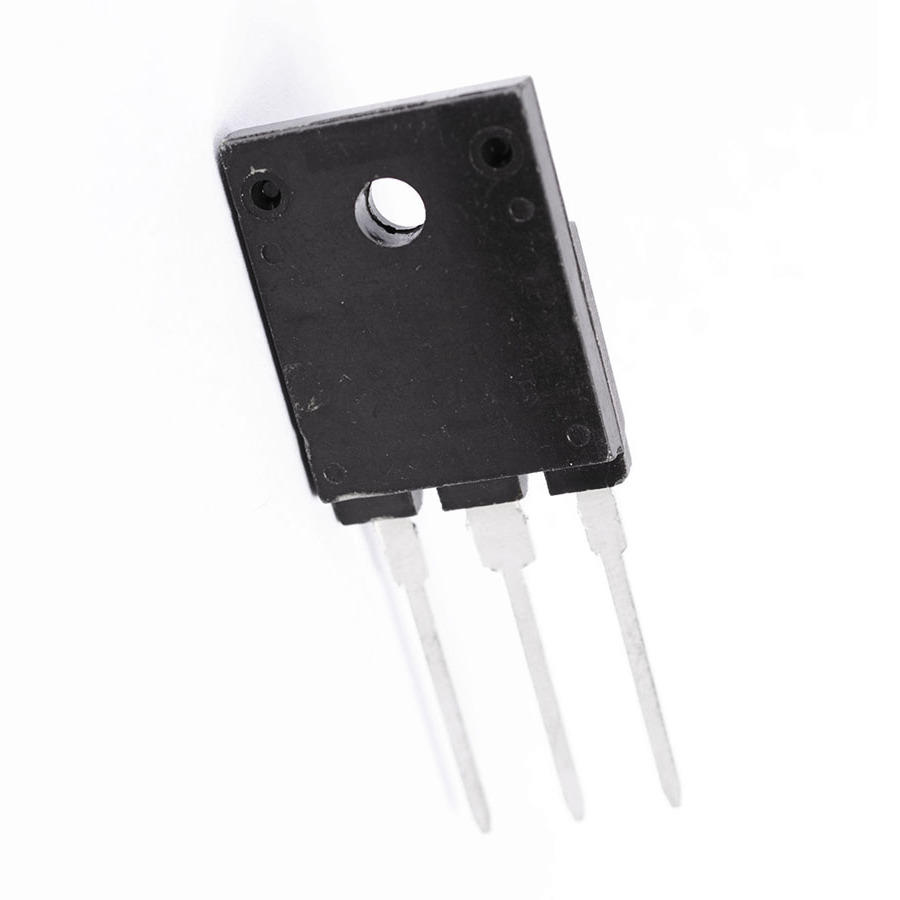

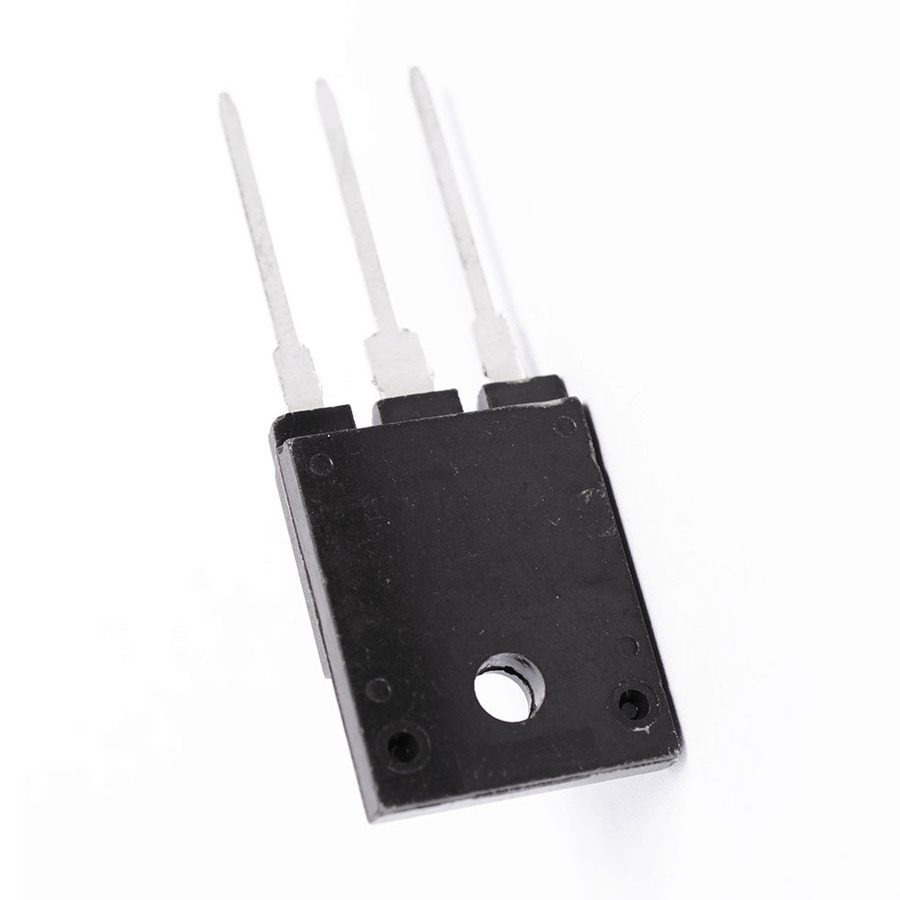

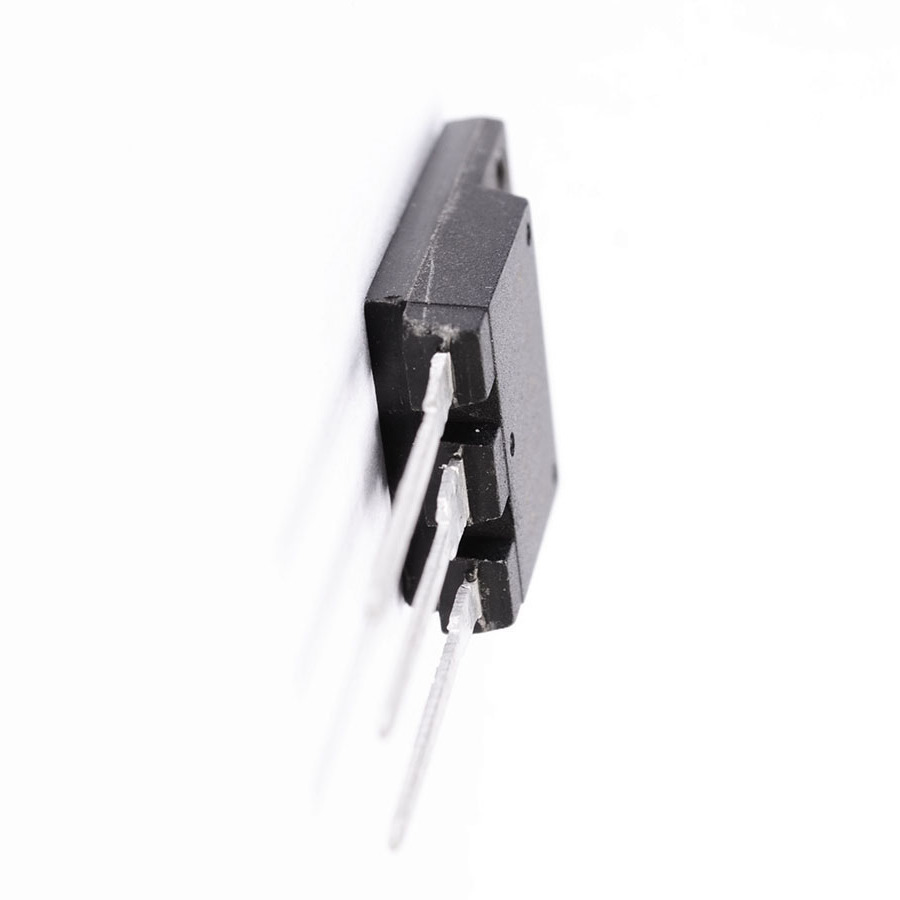

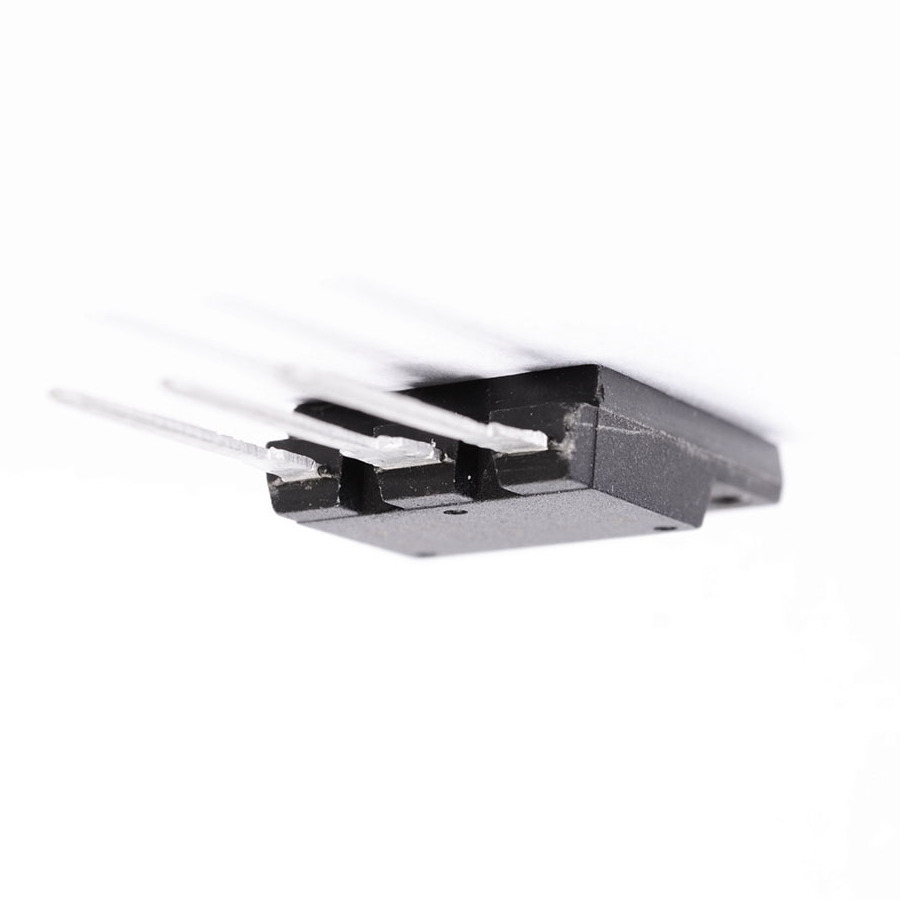

2SC3843 Transistor Silicon NPN CASE: TO218F MAKE: Fujitsu
Product specifications
Type Transistor Silicon NPN
Case TO218F
Manufacturer Fujitsu
Vbr CBO 600
Vbr CEO 450
Max. PD (W) 75
t(f) Max. (S) 200n
Max. hFE 30
Min hFE 10
Ic Max. (A) 10
@Ic (test) (A) 6.0
Icbo Max. @Vcb Max. (A) 100u
Polarity NPN
Tr Max. (s) 300n
Trans. Freq (Hz) Min. 28M
Oper. Temp (°C) Max. 150
@VCE (V) 5.0
Pinout Equivalence Number 3-15
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 75 W
Maximum Collector-Base Voltage |Vcb| 600 V
Maximum Collector-Emitter Voltage |Vce| 450 V
Maximum Collector Current |Ic max| 10 A
Max. Operating Junction Temperature (Tj) 150 °C
Transition Frequency (ft): 28 MHz
Forward Current Transfer Ratio (hFE), MIN 60
SKU 540382
