2SC3846
View detailed images (12)

2SC3846

SKU: 2SC3846

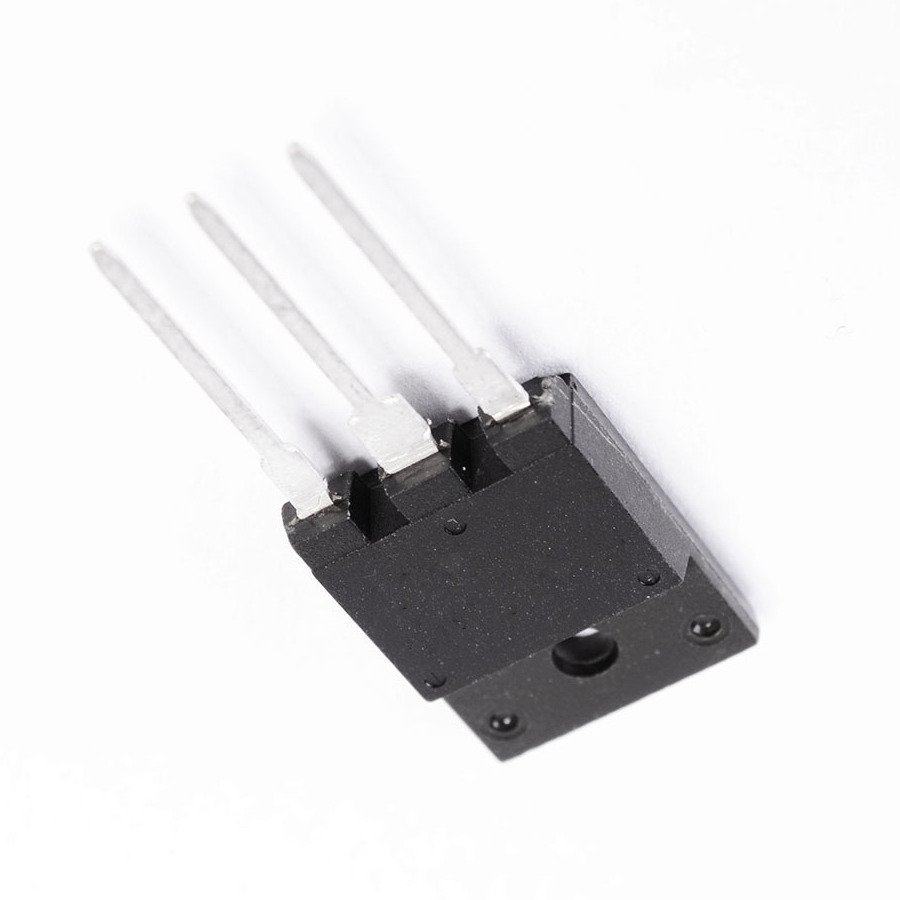

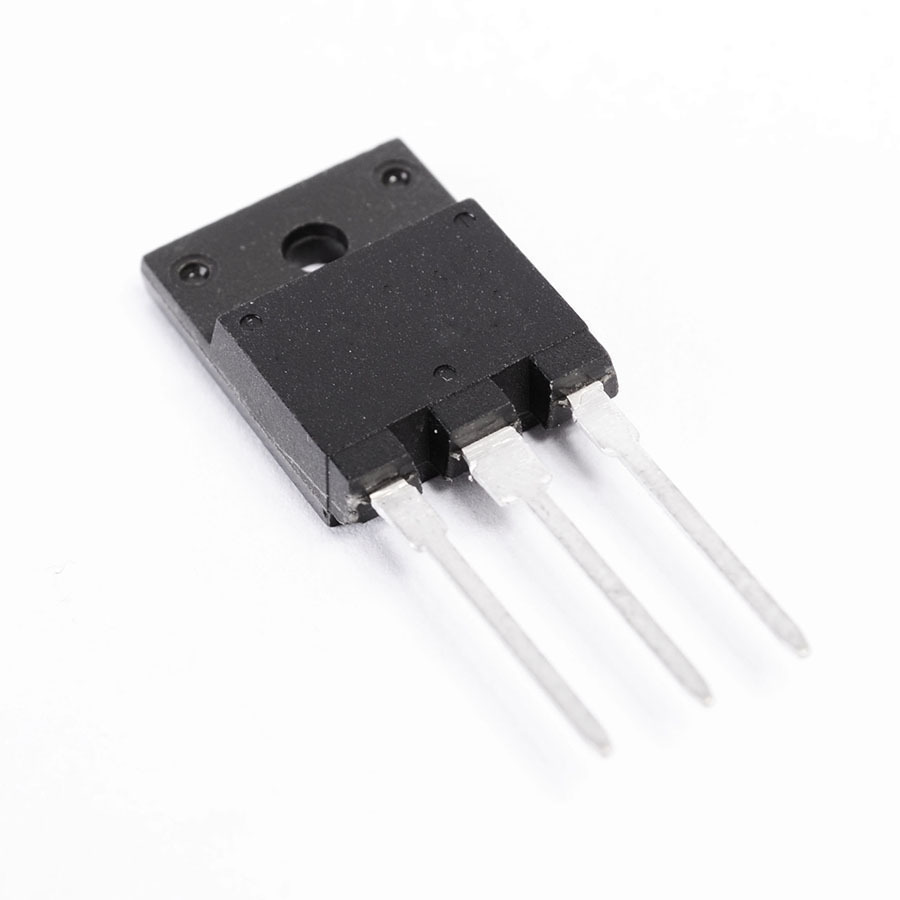

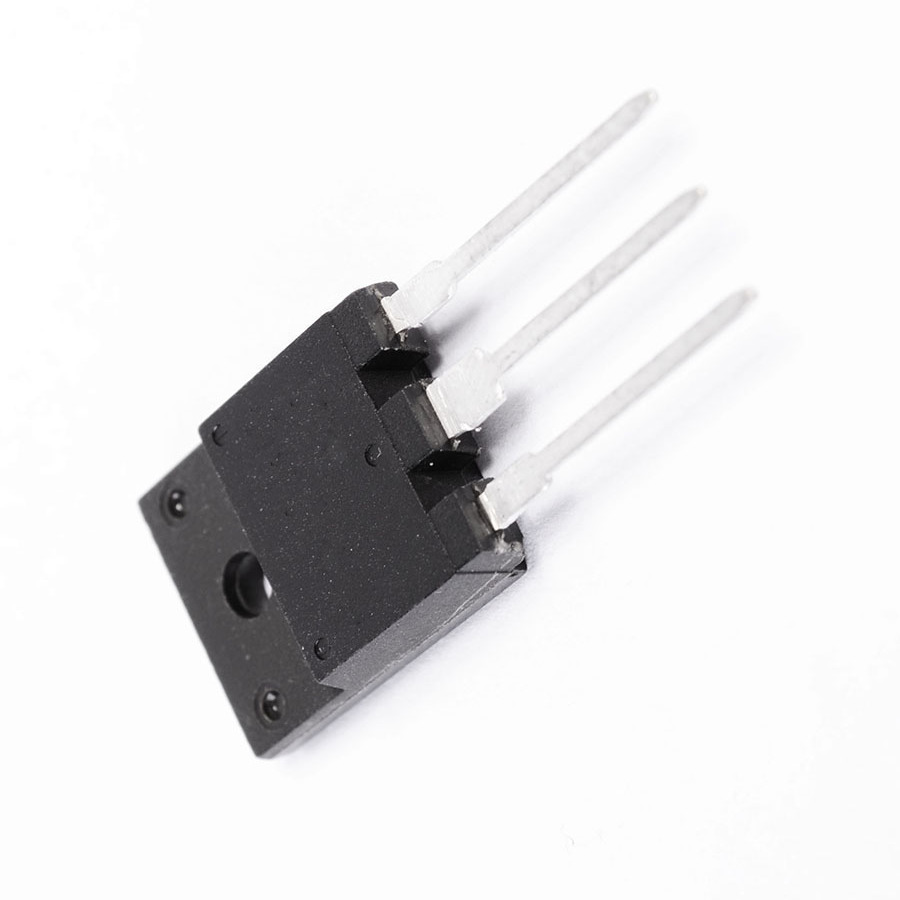

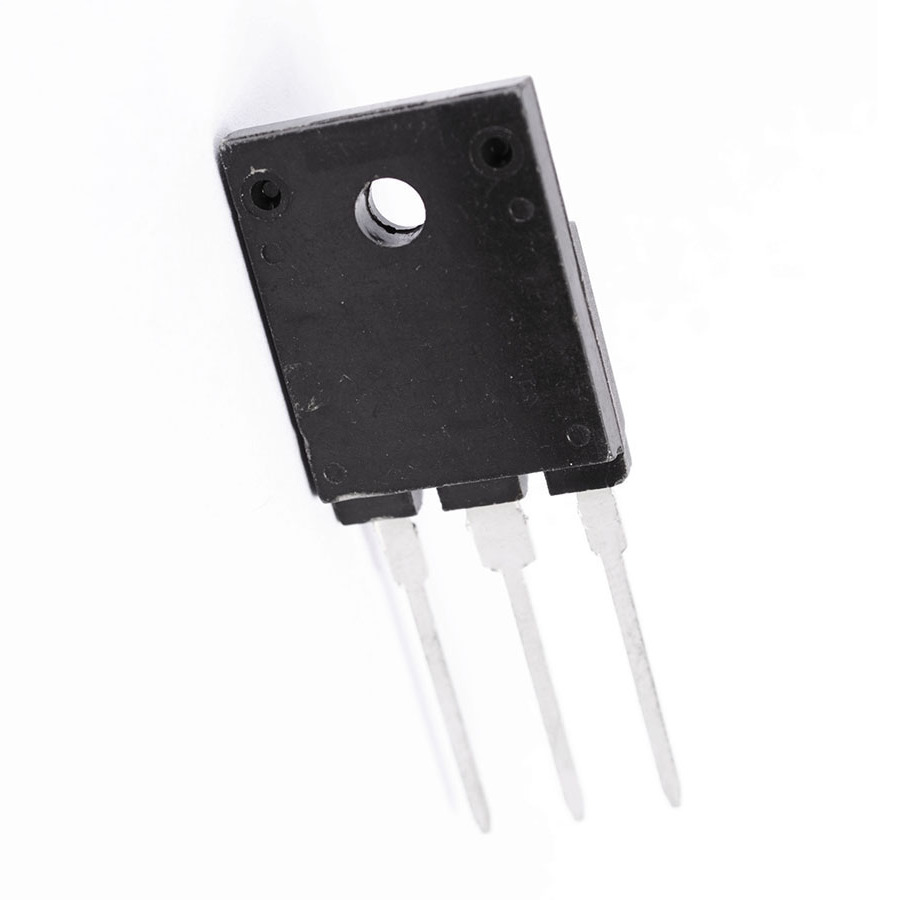

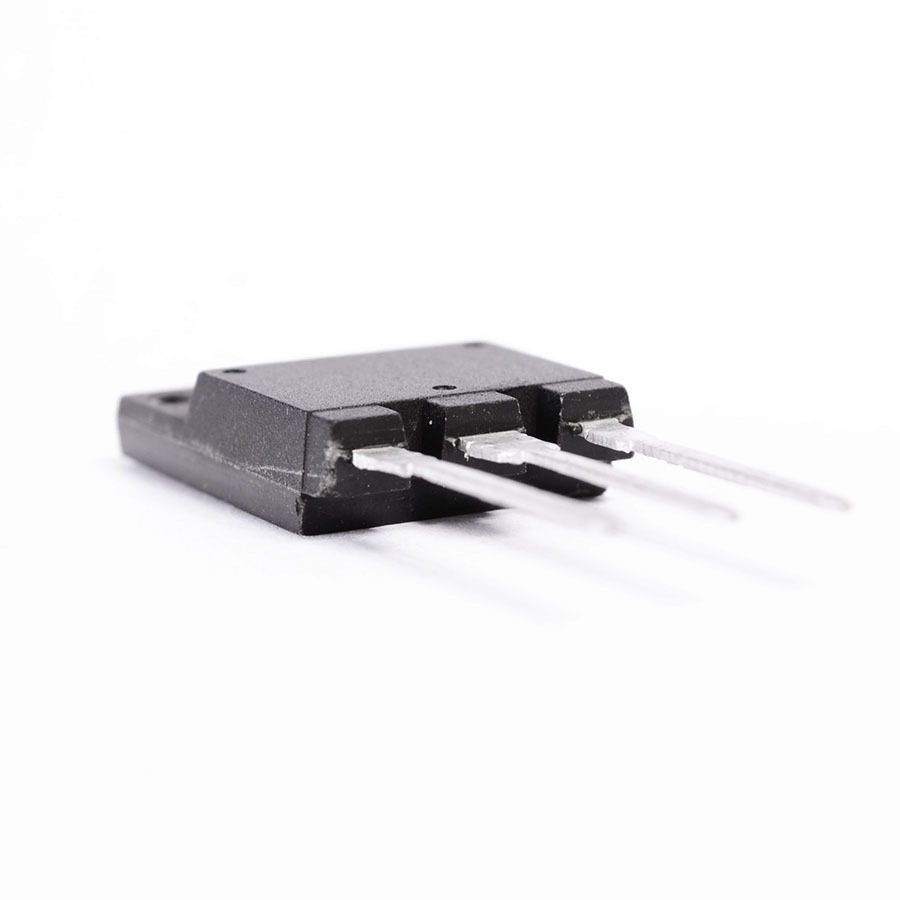

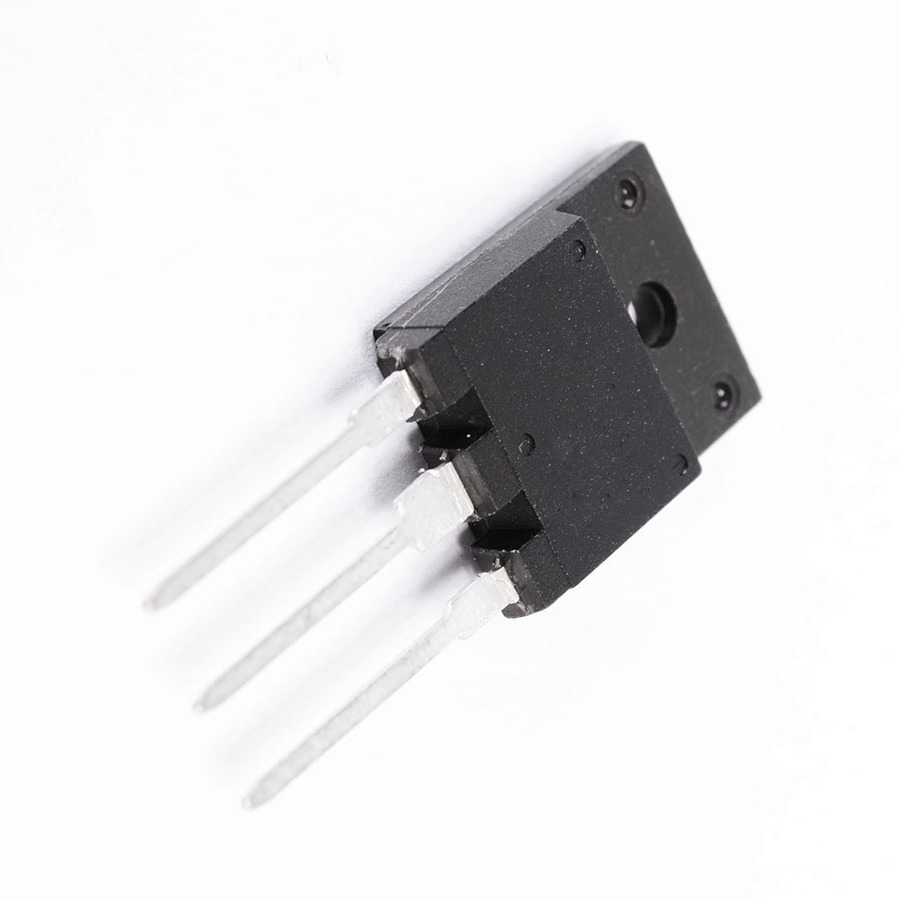

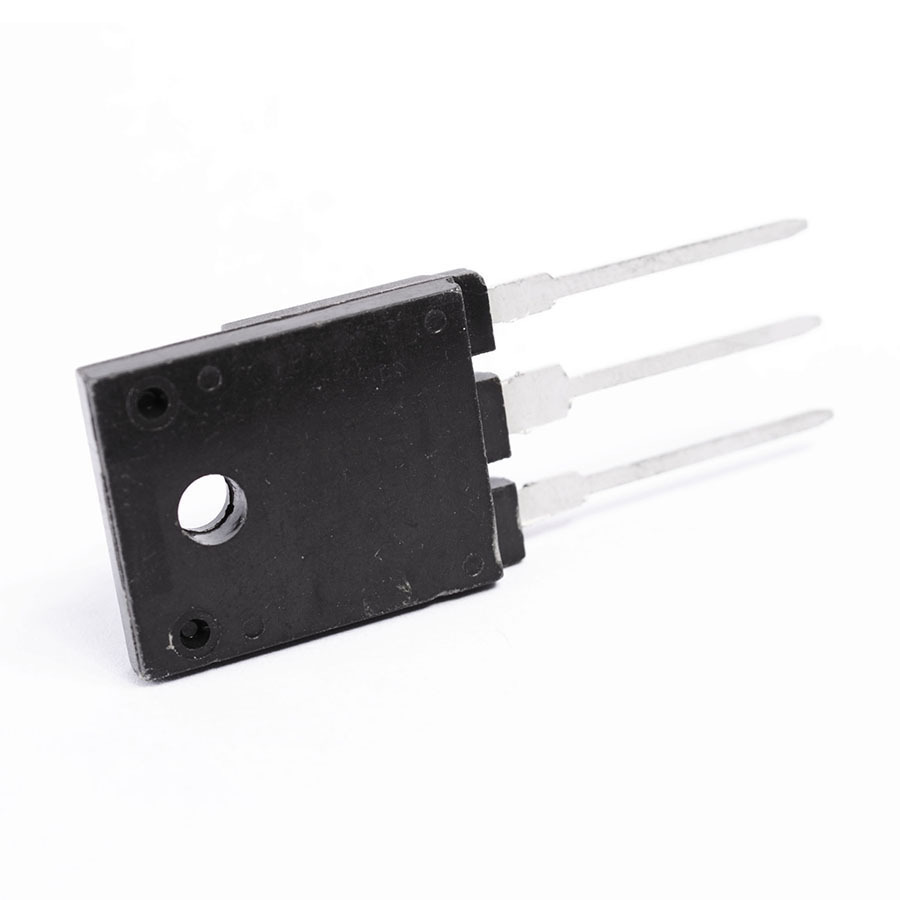

2SC3846 Transistor Silicon NPN CASE: TO218F MAKE: Fujitsu
Product specifications
Type Transistor Silicon NPN
Case TO218F
Manufacturer Fujitsu
Vbr CBO 1.2k
Vbr CEO 800
Max. PD (W) 80
t(f) Max. (S) 300n
Max. hFE 30
Min hFE 10
Ic Max. (A) 6.0
@Ic (test) (A) 2.0
Icbo Max. @Vcb Max. (A) 100u
Polarity NPN
Tr Max. (s) 500n
Trans. Freq (Hz) Min. 15M
Oper. Temp (°C) Max. 150
@VCE (V) 5.0
Pinout Equivalence Number 3-15
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 80 W
Maximum Collector-Base Voltage |Vcb| 1200 V
Maximum Collector-Emitter Voltage |Vce| 800 V
Maximum Collector Current |Ic max| 6 A
Max. Operating Junction Temperature (Tj) 150 °C
Transition Frequency (ft): 15 MHz
Forward Current Transfer Ratio (hFE), MIN 25
SKU 540384
