2SC3949
View detailed images (12)

2SC3949

SKU: 2SC3949

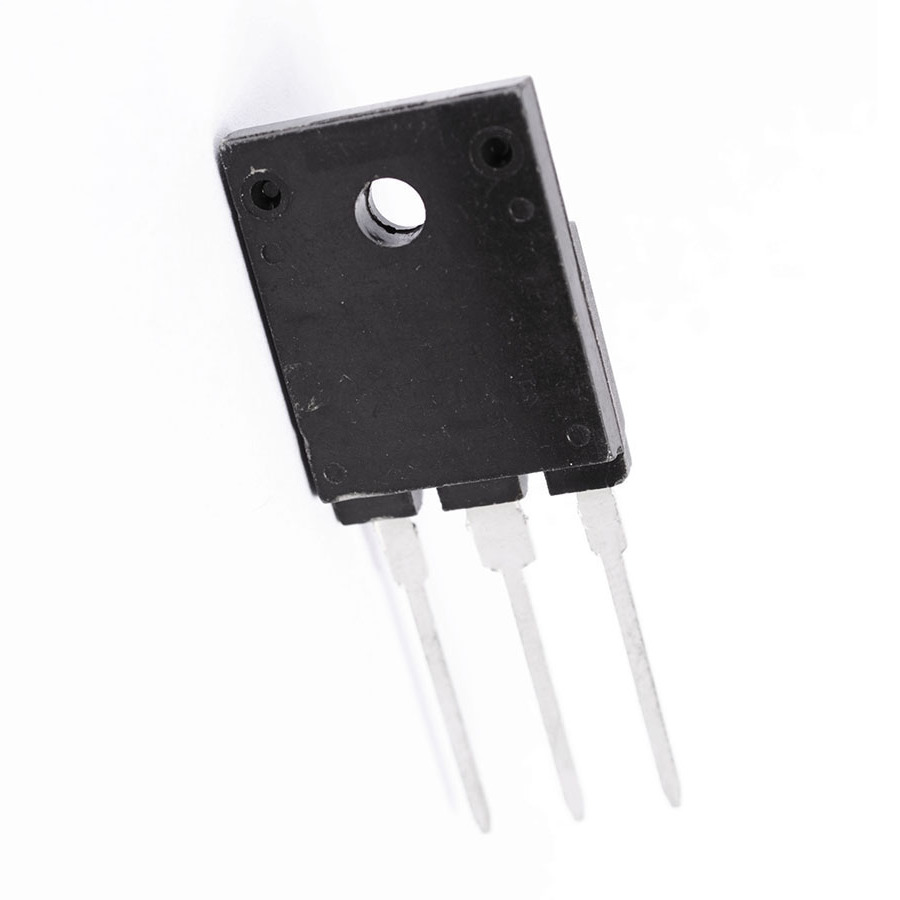

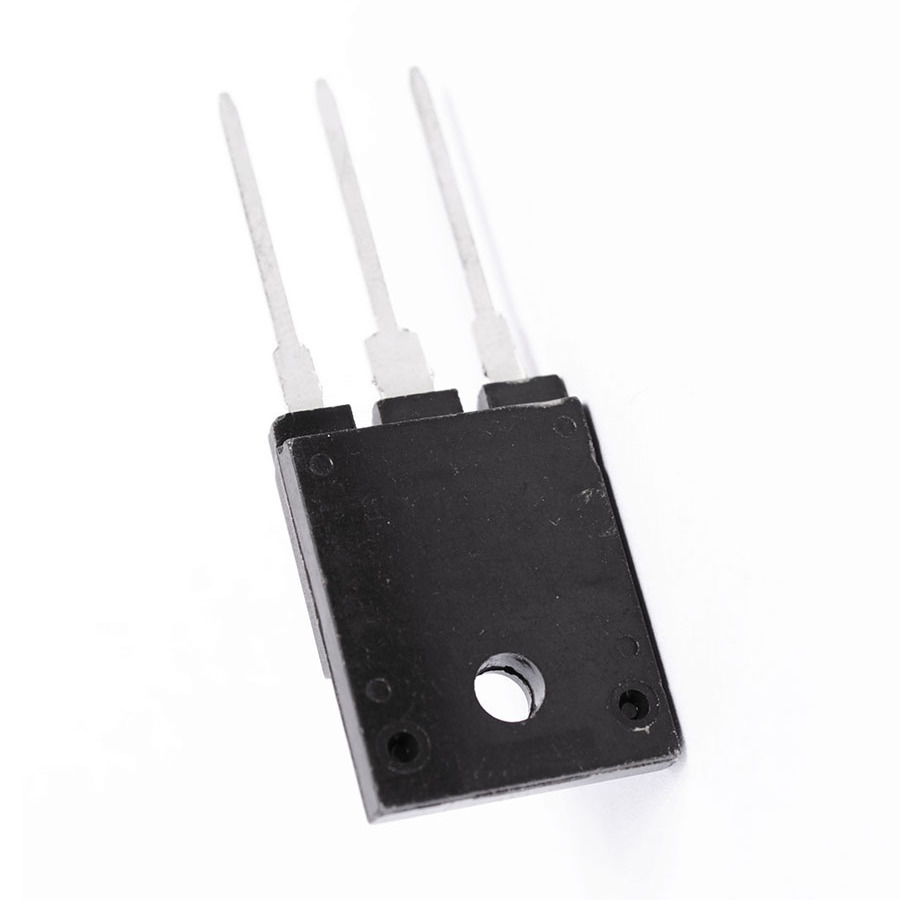

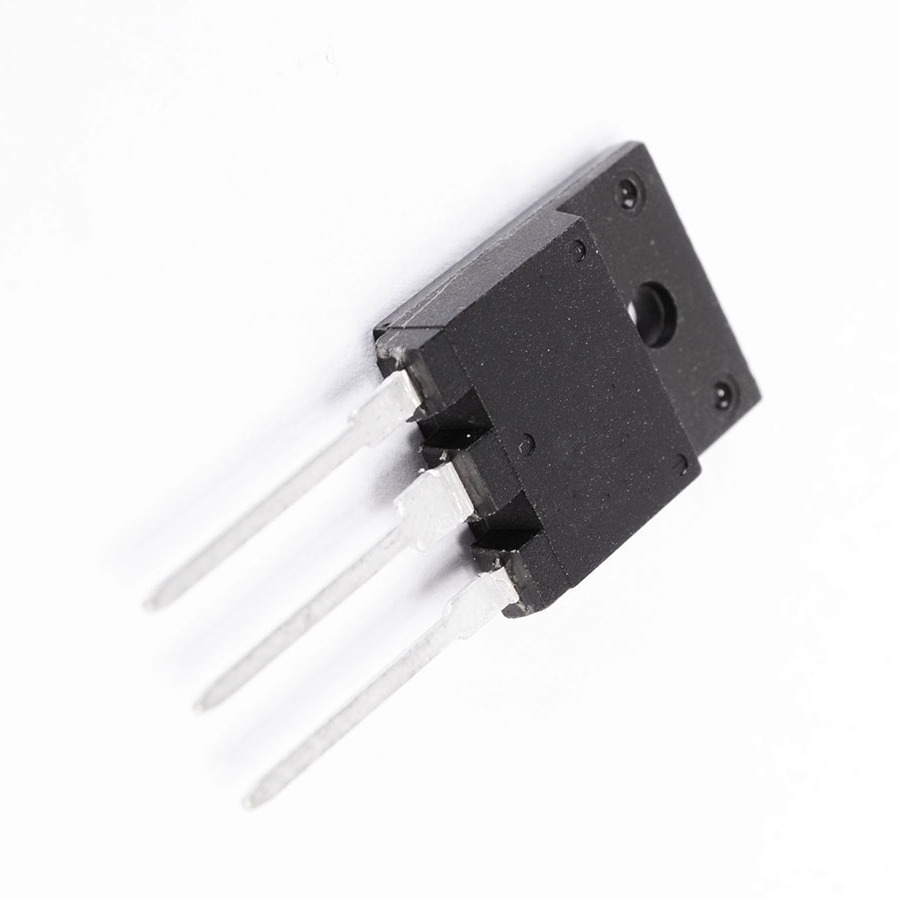

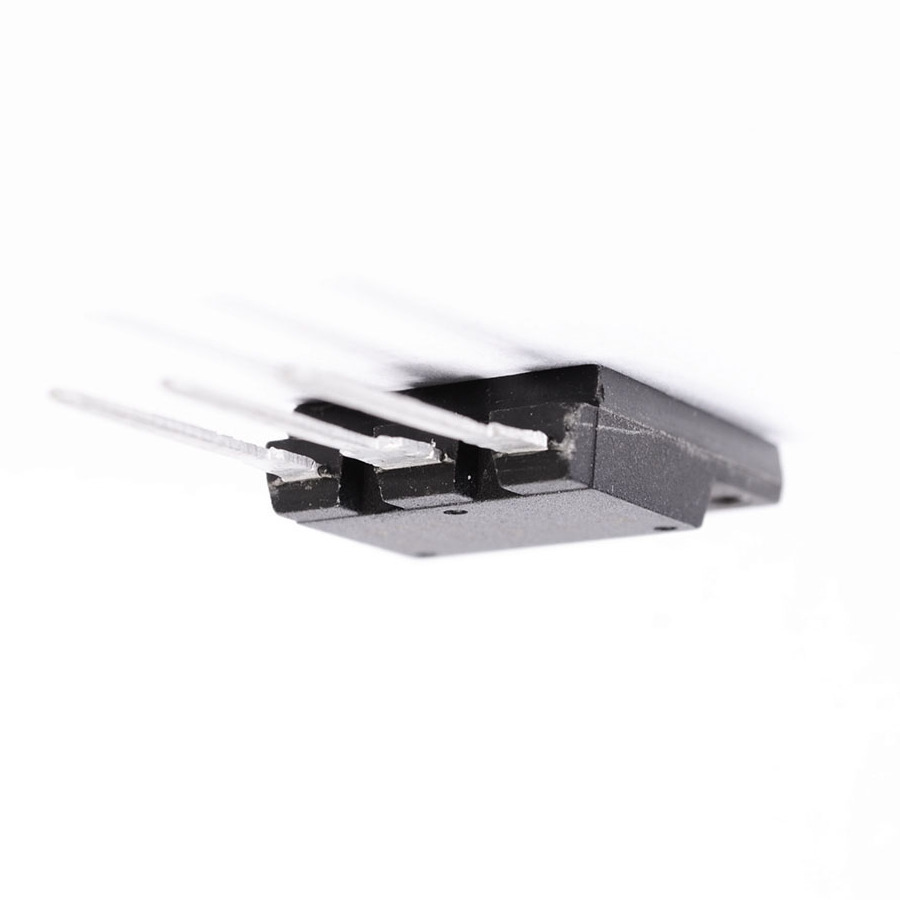

2SC3949 Transistor Silicon NPN CASE: TO218F MAKE: Fujitsu
Product specifications
Type Transistor Silicon NPN
Case TO218F
Manufacturer Fujitsu
Vbr CBO 850
Vbr CEO 500
Max. PD (W) 80
t(f) Max. (S) 300n
Max. hFE 30
Min hFE 10
Ic Max. (A) 15
@Ic (test) (A) 10
Icbo Max. @Vcb Max. (A) 100u
Polarity NPN
Tr Max. (s) 500n
Trans. Freq (Hz) Min. 20M
Oper. Temp (°C) Max. 150
@VCE (V) 5.0
Pinout Equivalence Number 3-15
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 80 W
Maximum Collector-Base Voltage |Vcb| 850 V
Maximum Collector-Emitter Voltage |Vce| 500 V
Maximum Collector Current |Ic max| 15 A
Max. Operating Junction Temperature (Tj) 125 °C
Forward Current Transfer Ratio (hFE), MIN 20
SKU 540385
