2SC3991L
View detailed images (4)

2SC3991L

SKU: 2SC3991L

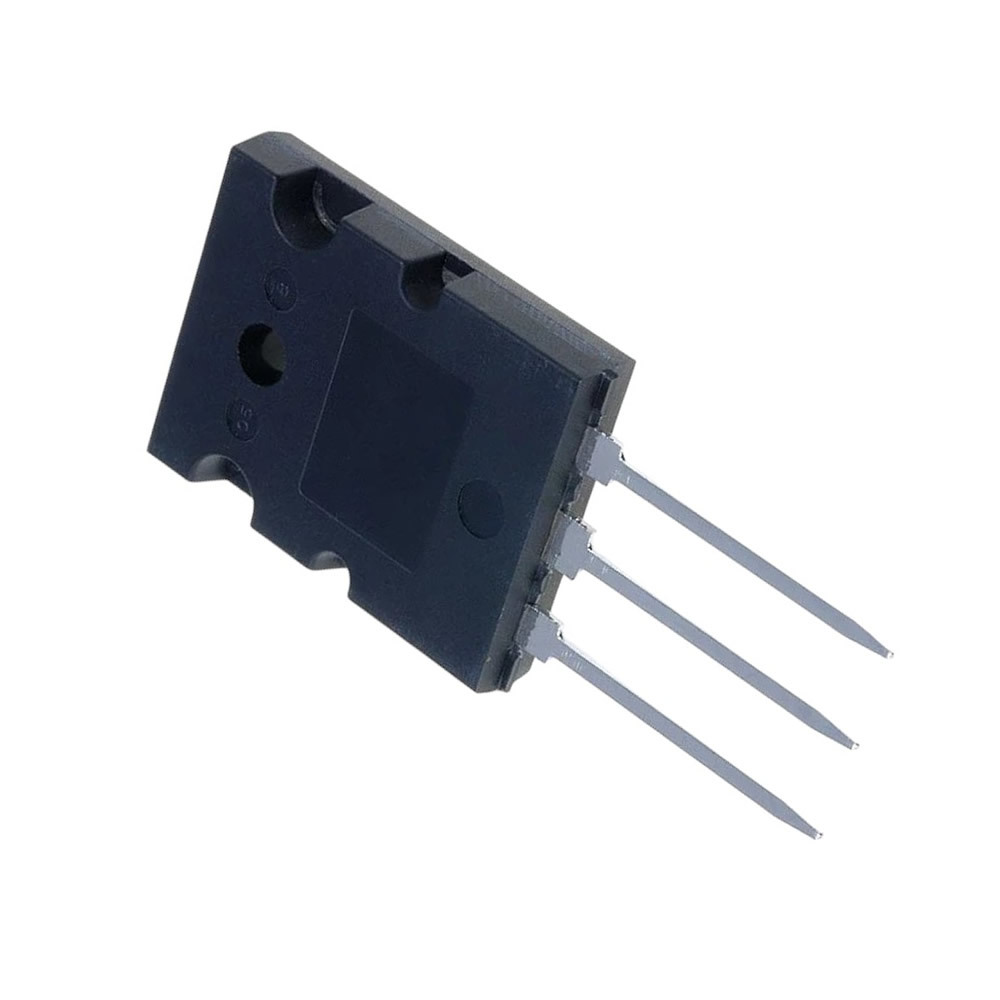

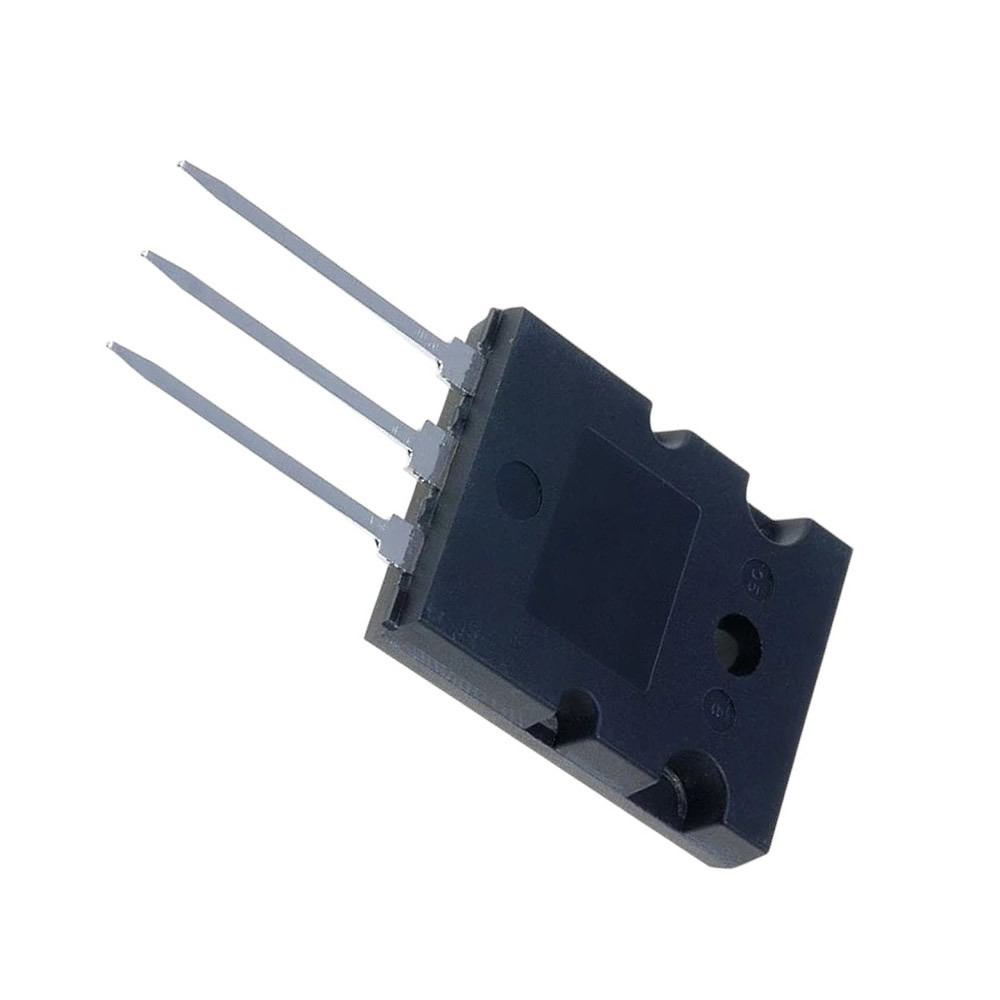

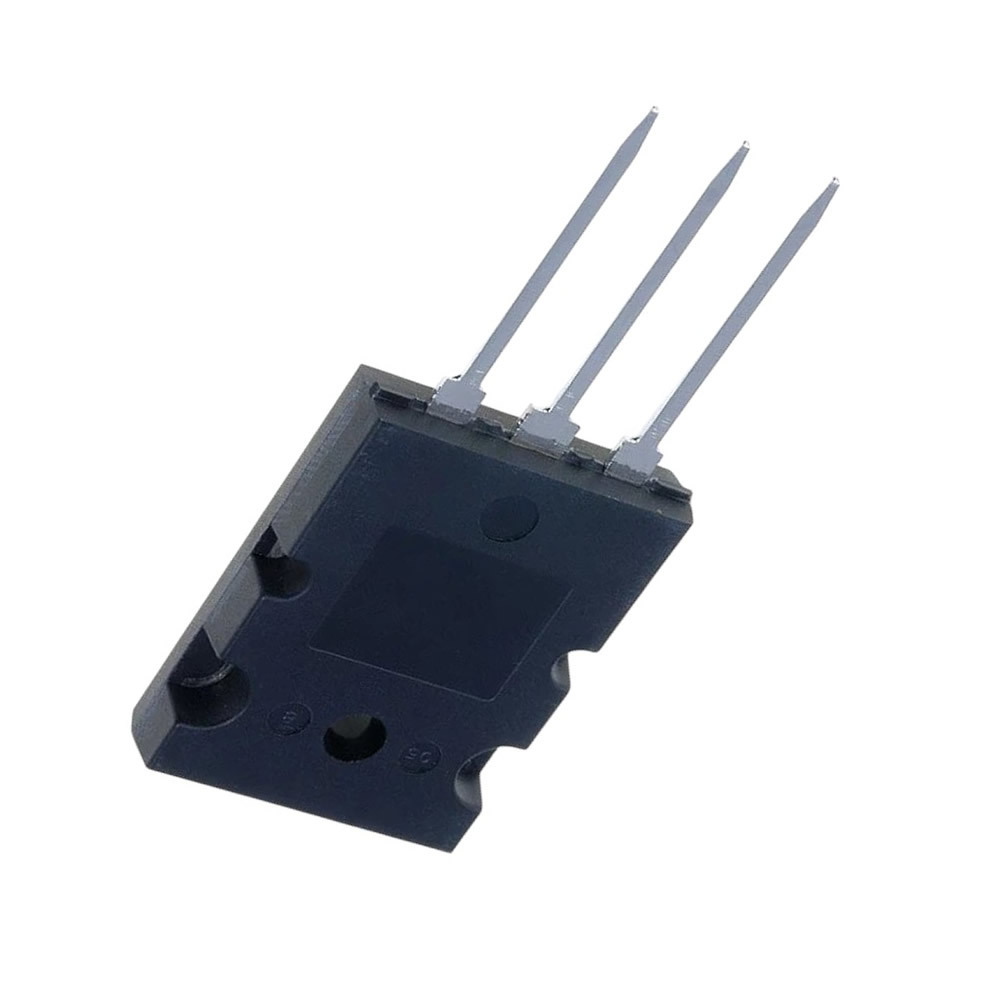

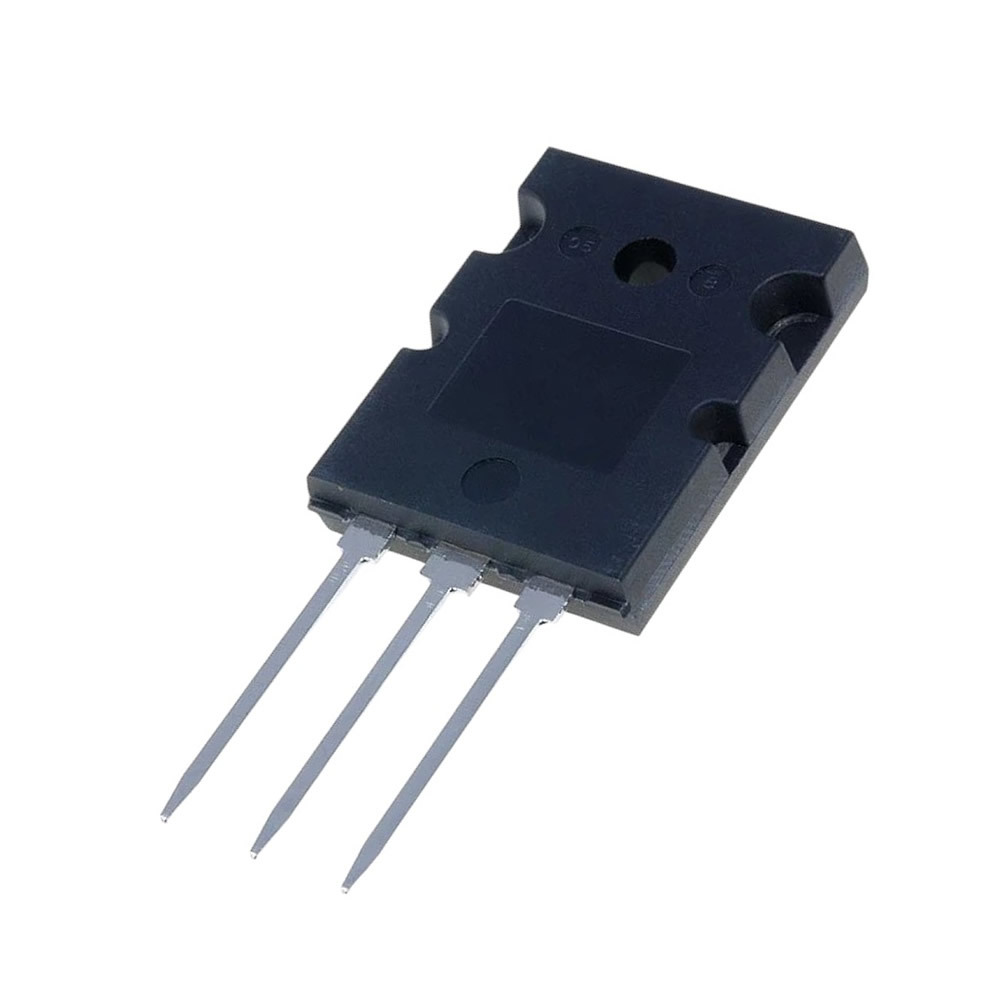

2SC3991L Transistor Silicon NPN CASE: TO264 MAKE: Sanyo Semiconductor
Product specifications
Type Transistor Silicon NPN
Case TO264
Manufacturer Sanyo Semiconductor
Vbr CBO 800
Vbr CEO 500
Max. PD (W) 300
t(f) Max. (S) 300n
Max. hFE 30
Min hFE 15
Ic Max. (A) 50
@Ic (test) (A) 4.8
Icbo Max. @Vcb Max. (A) 10u
Polarity NPN
Trans. Freq (Hz) Min. 18M
Oper. Temp (°C) Max. 150
@VCE (V) 5.0
Pinout Equivalence Number 3-15
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 300 W
Maximum Collector-Base Voltage |Vcb| 800 V
Maximum Collector-Emitter Voltage |Vce| 500 V
Maximum Emitter-Base Voltage |Veb| 7 V
Maximum Collector Current |Ic max| 50 A
Max. Operating Junction Temperature (Tj) 175 °C
Collector Capacitance (Cc) 215 pF
Transition Frequency (ft): 15 MHz
Forward Current Transfer Ratio (hFE), MIN 15
SKU 764391
