2SC3993L
View detailed images (4)

2SC3993L

SKU: 2SC3993L

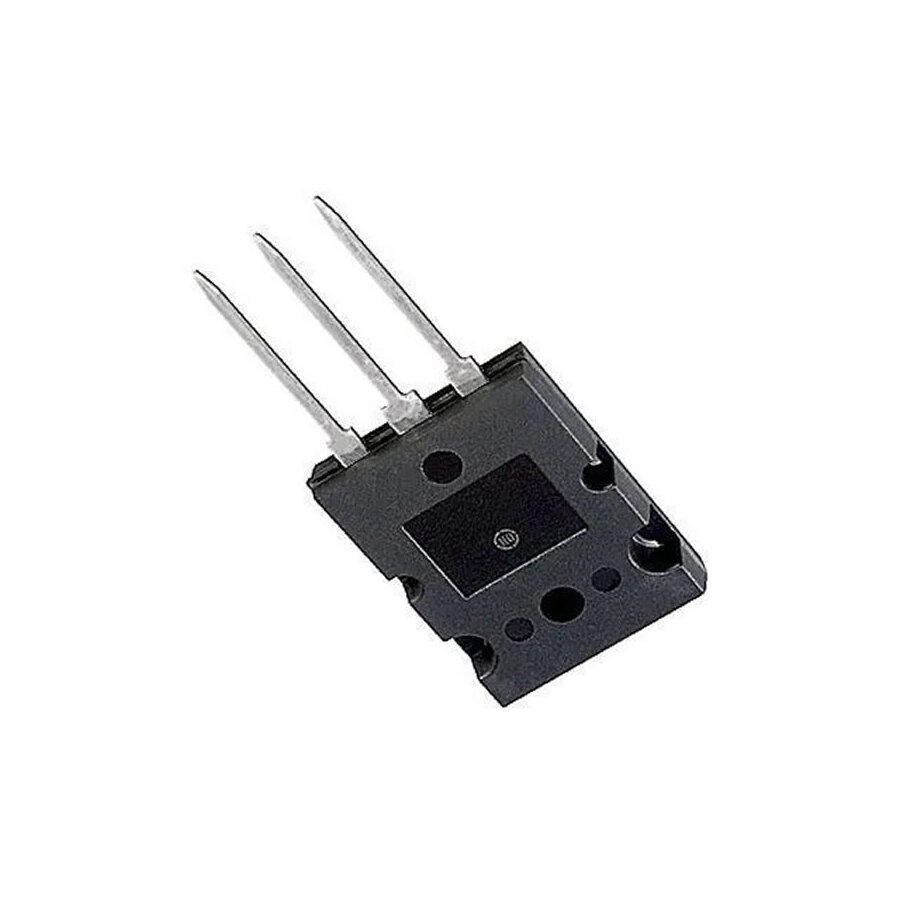

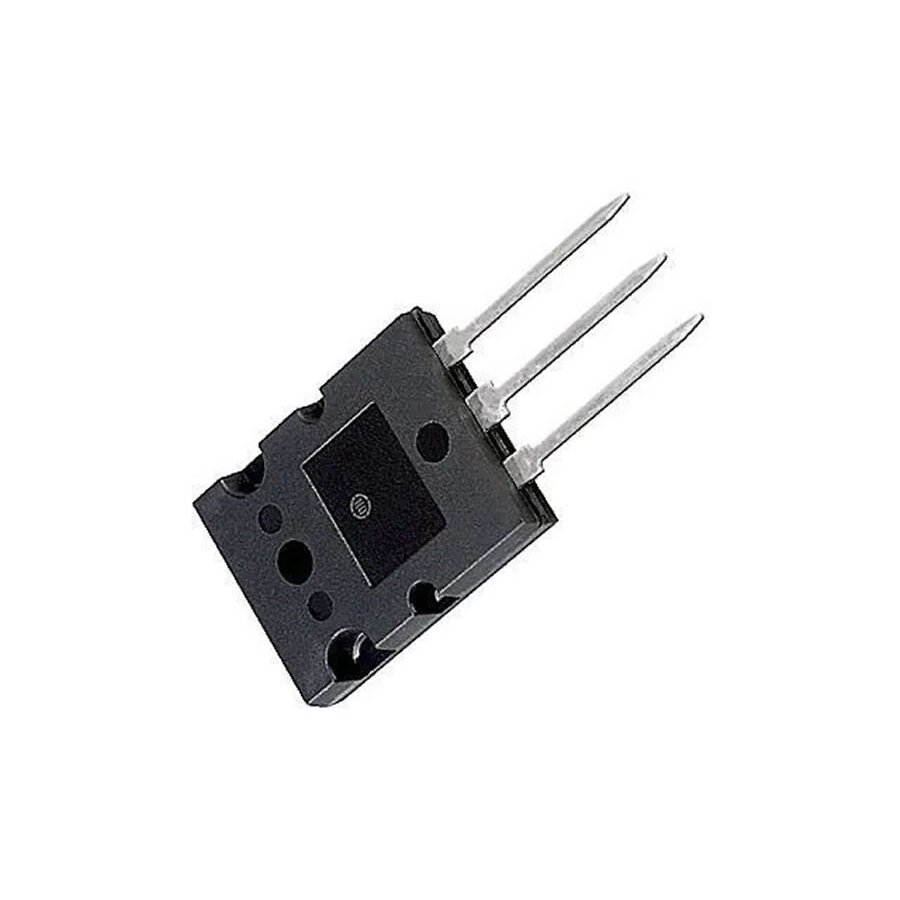

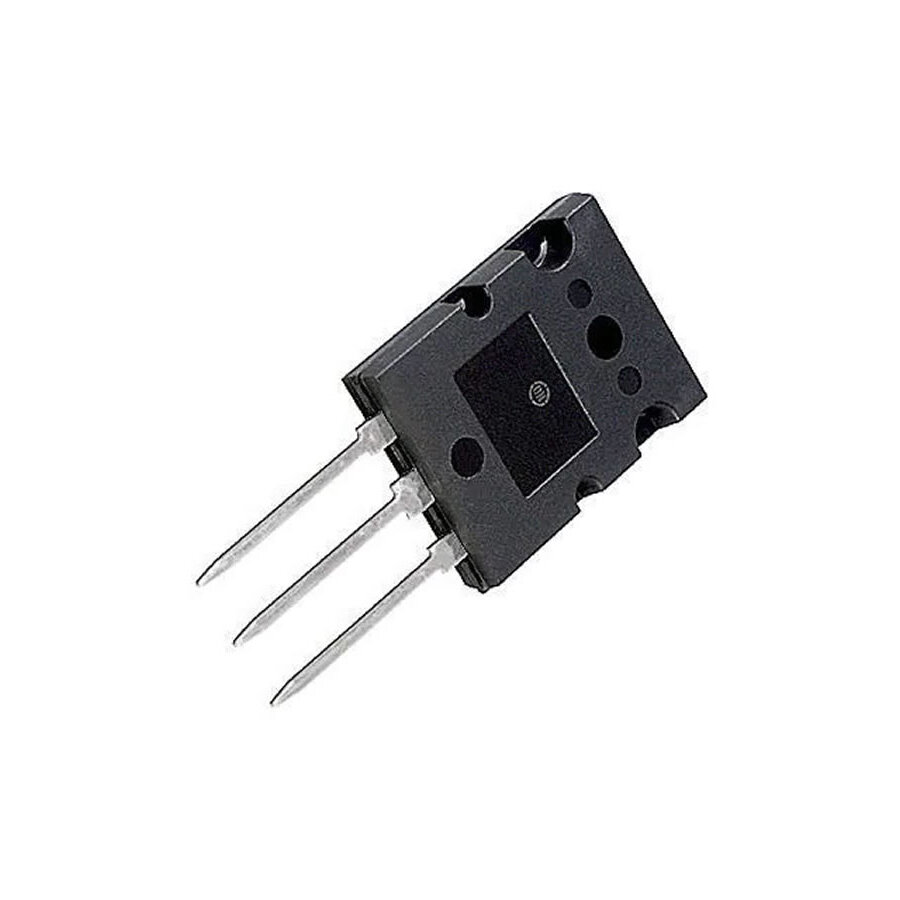

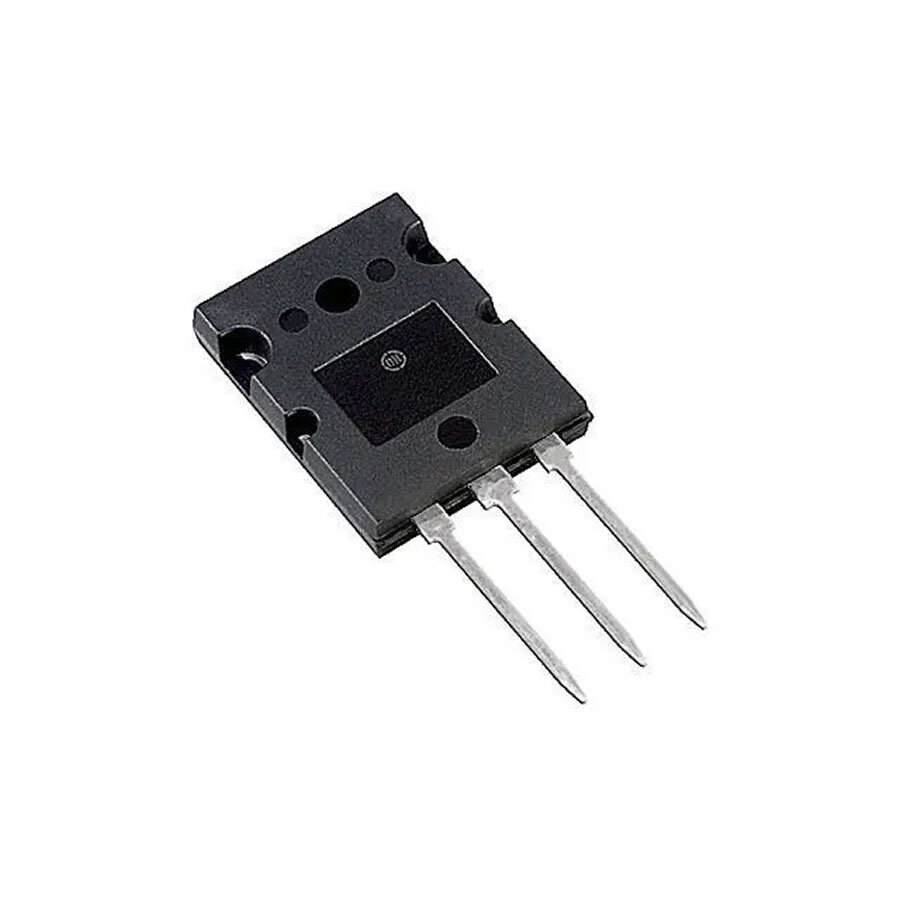

2SC3993L Transistor Silicon NPN CASE: SOT430 MAKE: Sanyo Semiconductor
Product specifications
Equivalent 2SC3993
Type Transistor Silicon NPN
Case SOT430
Manufacturer Sanyo Semiconductor
Vbr CBO 1.1k
Vbr CEO 800
Max. PD (W) 250
t(f) Max. (S) 300n
Max. hFE 30
Min hFE 15
Ic Max. (A) 16
@Ic (test) (A) 1.2
Icbo Max. @Vcb Max. (A) 10u
Polarity NPN
Tr Max. (s) 500n
Trans. Freq (Hz) Min. 15M
Oper. Temp (°C) Max. 150
@VCE (V) 5.0
Pinout Equivalence Number 3-10
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 250 W
Maximum Collector-Base Voltage |Vcb| 1100 V
Maximum Collector-Emitter Voltage |Vce| 800 V
Maximum Emitter-Base Voltage |Veb| 7 V
Maximum Collector Current |Ic max| 16 A
Max. Operating Junction Temperature (Tj) 125 °C
Collector Capacitance (Cc) 320 pF
Transition Frequency (ft): 15 MHz
Forward Current Transfer Ratio (hFE), MIN 15
SKU 572524
