2SC4049

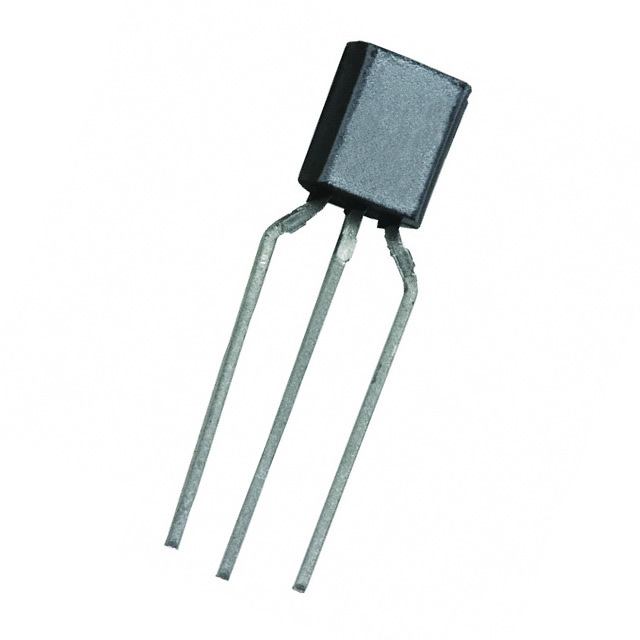

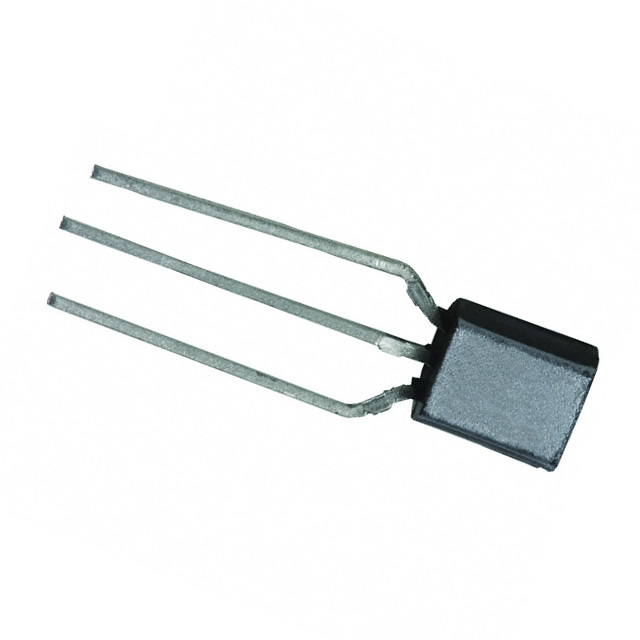

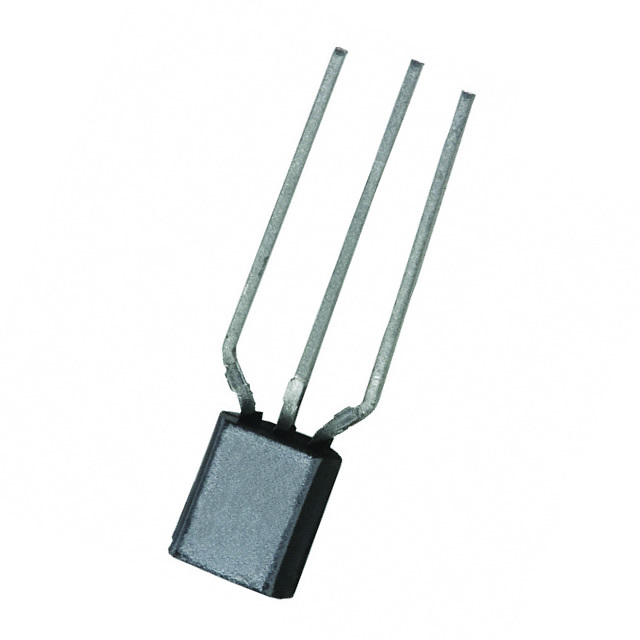

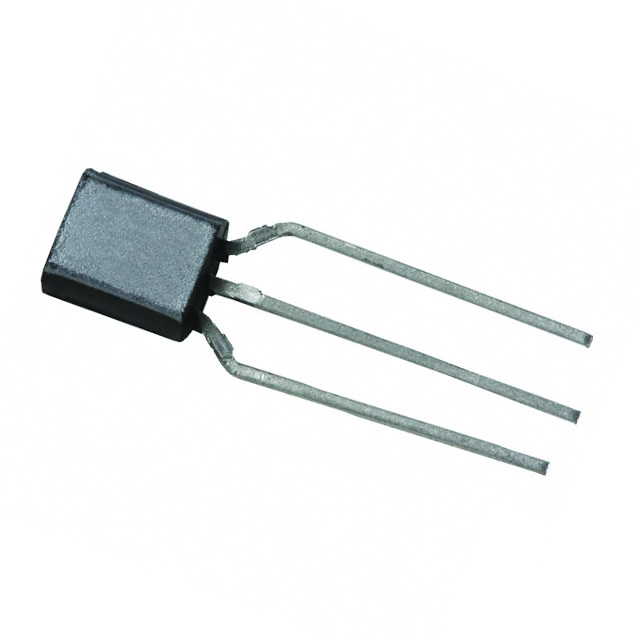

View detailed images (4)

2SC4049

SKU: 2SC4049
2SC4049 Transistor Silicon NPN - Case: TO92T Make: Sanyo Semiconductor
Price: £4.79
+ VAT 20% for UK purchases
£4.79
Qty
+ VAT 20% for UK purchases
  • 5 pieces in 1-2 Days
  • More pieces shipped in 14 days
Datasheet
2SC4049 Datasheet
Product specifications
Case TO92T
Type Transistor Silicon NPN
Manufacturer Sanyo Semiconductor
Min hFE 70
@Ic (test) (A) 5.0m
Icbo Max. @Vcb Max. (A) 100n
Mat. Silicon Logic
Polarity NPN
Mat. Struct. NPN
@VCE (V) 5.0
Pinout Equivalence Number 3-14
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.2 W
Maximum Collector-Base Voltage |Vcb| 50 V
Maximum Collector-Emitter Voltage |Vce| 50 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 0.1 A
Max. Operating Junction Temperature (Tj) 200 °C
Collector Capacitance (Cc) 3.7 pF
Transition Frequency (ft): 250 MHz
Forward Current Transfer Ratio (hFE), MIN 10
SKU 313363
