2SC4088
View detailed images (13)

2SC4088

SKU: 2SC4088

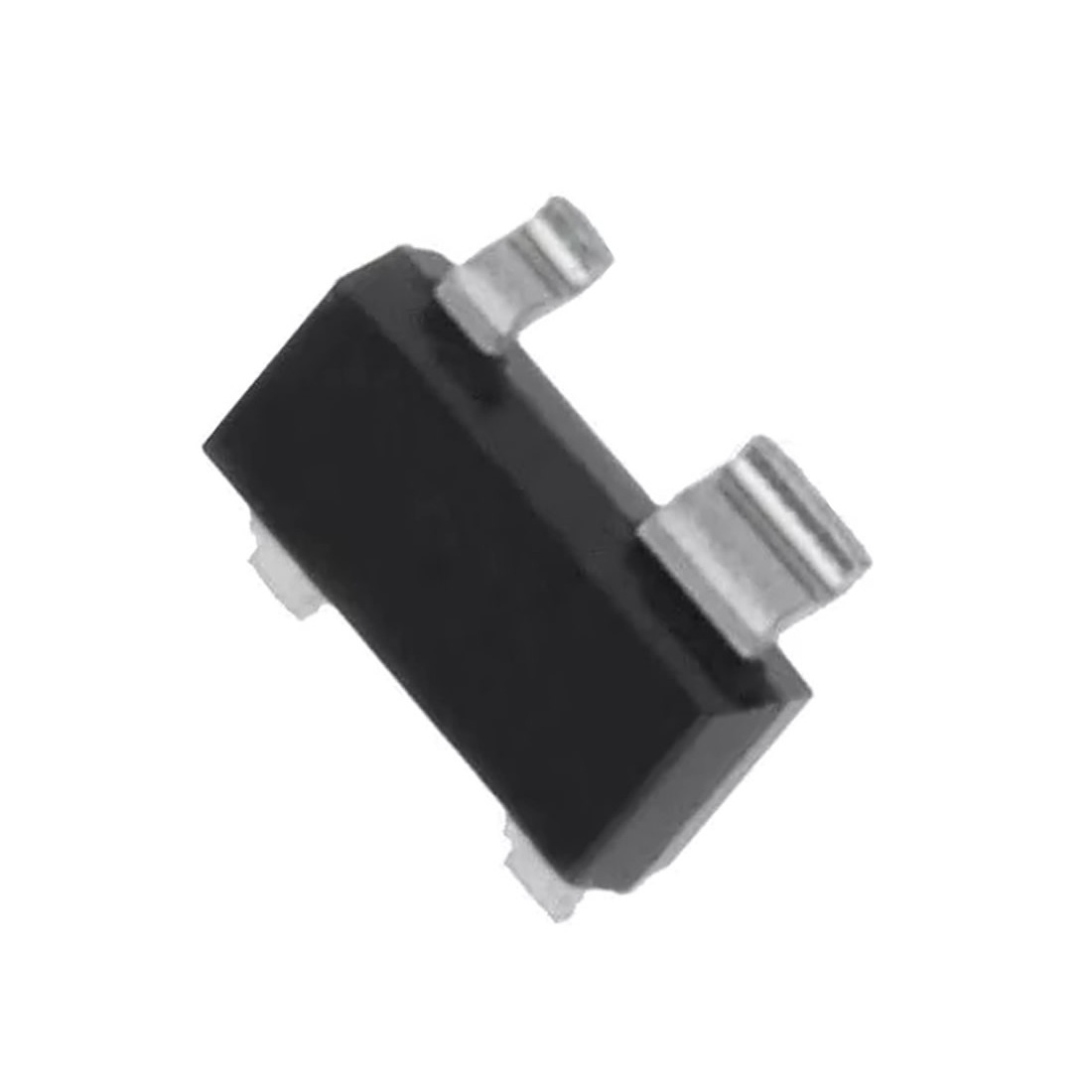

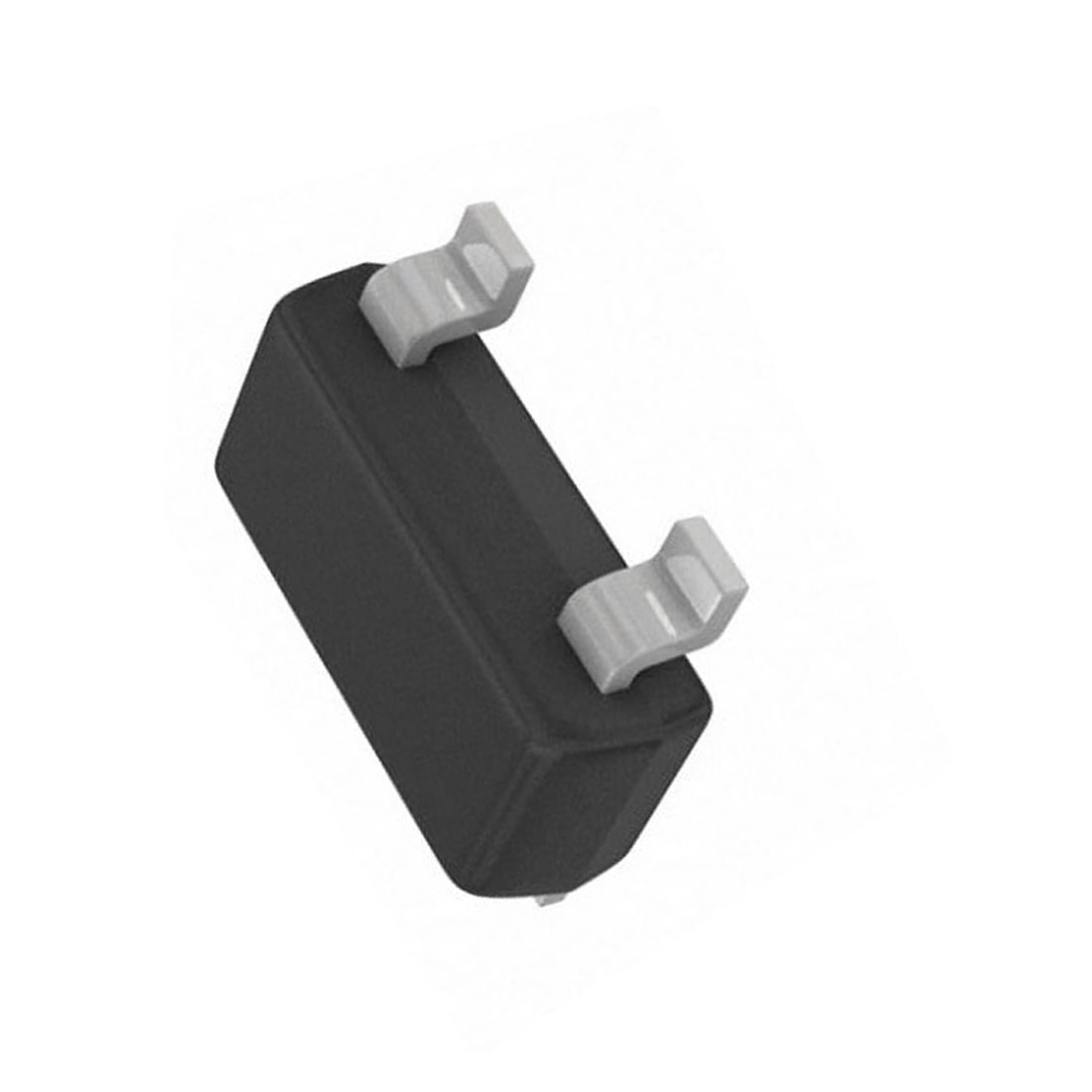

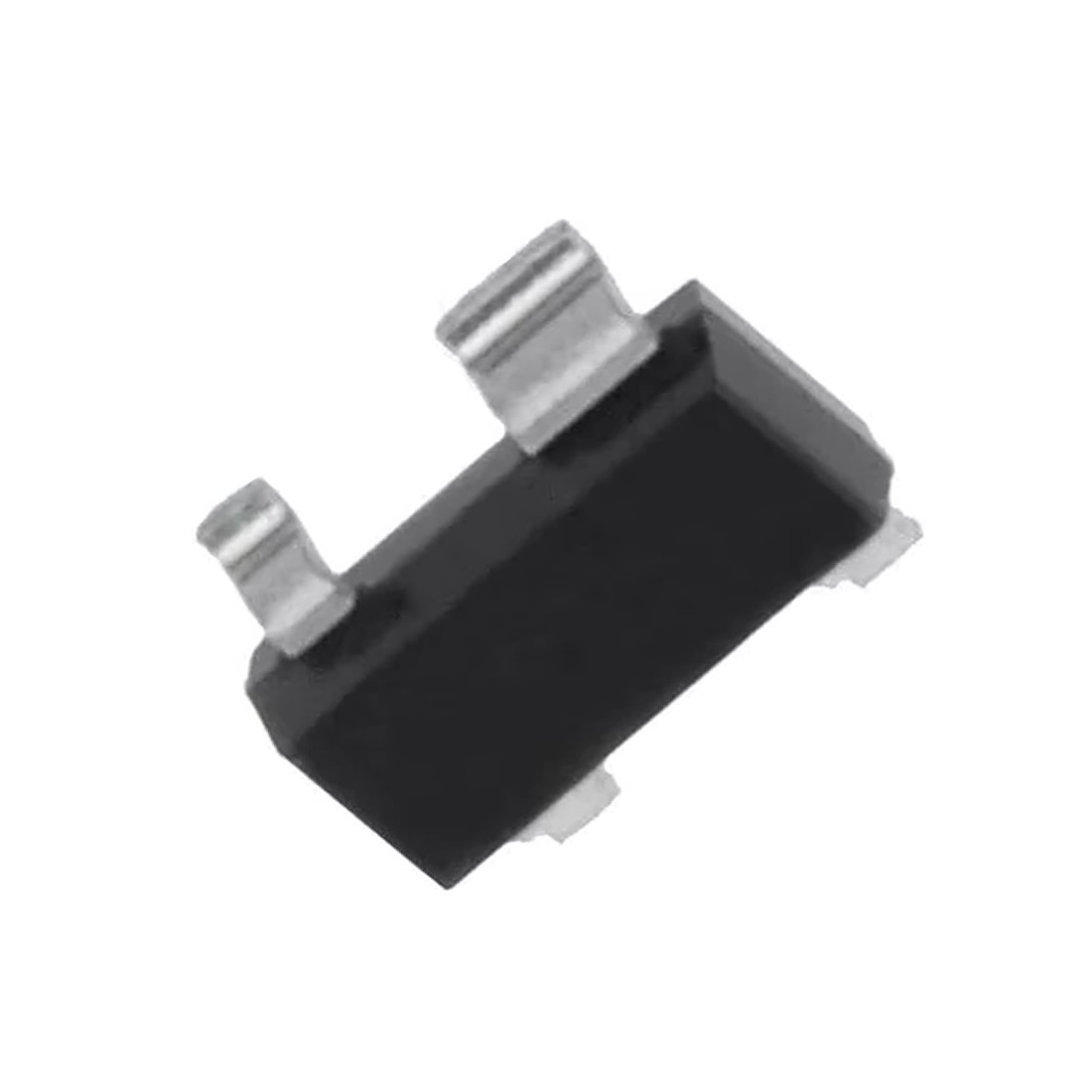

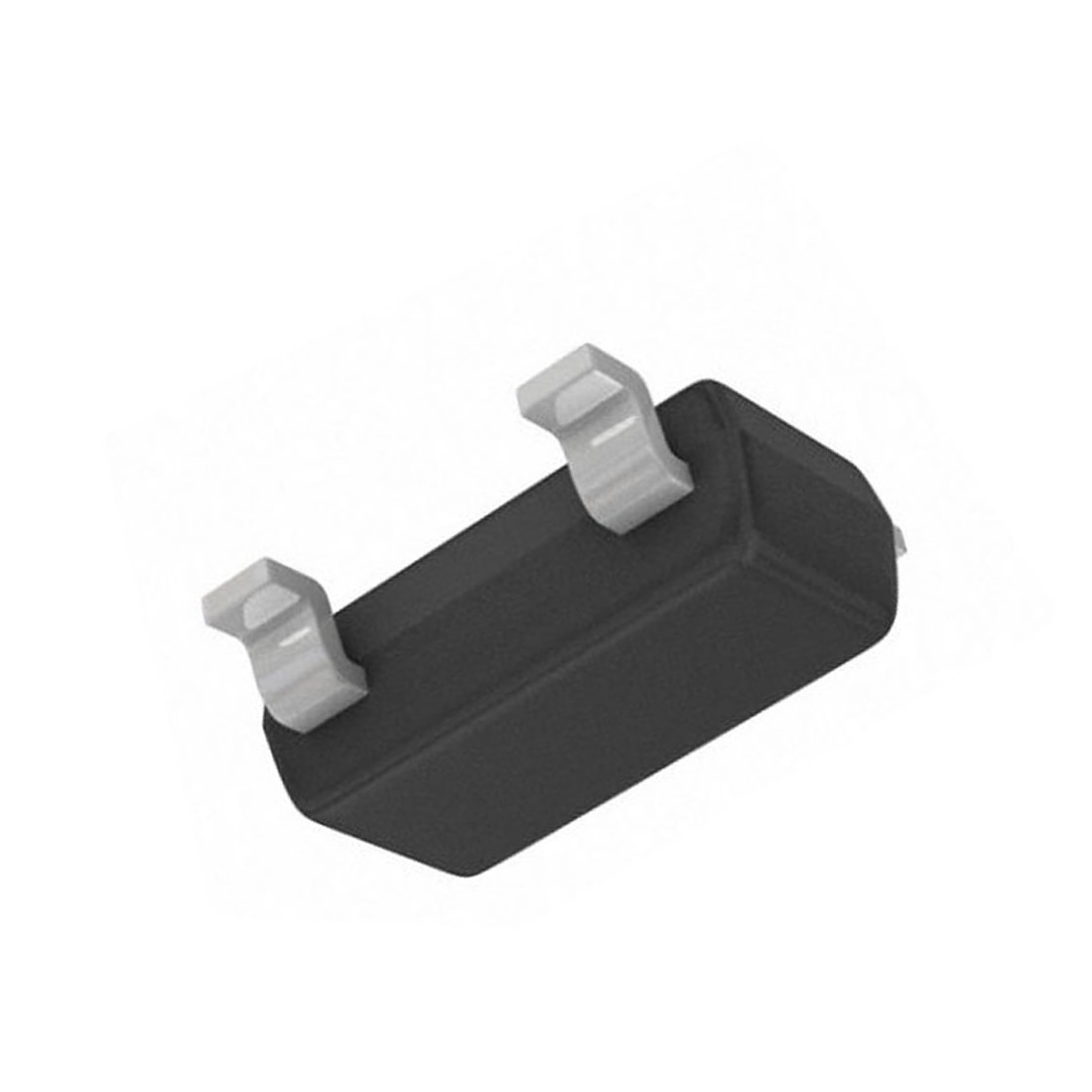

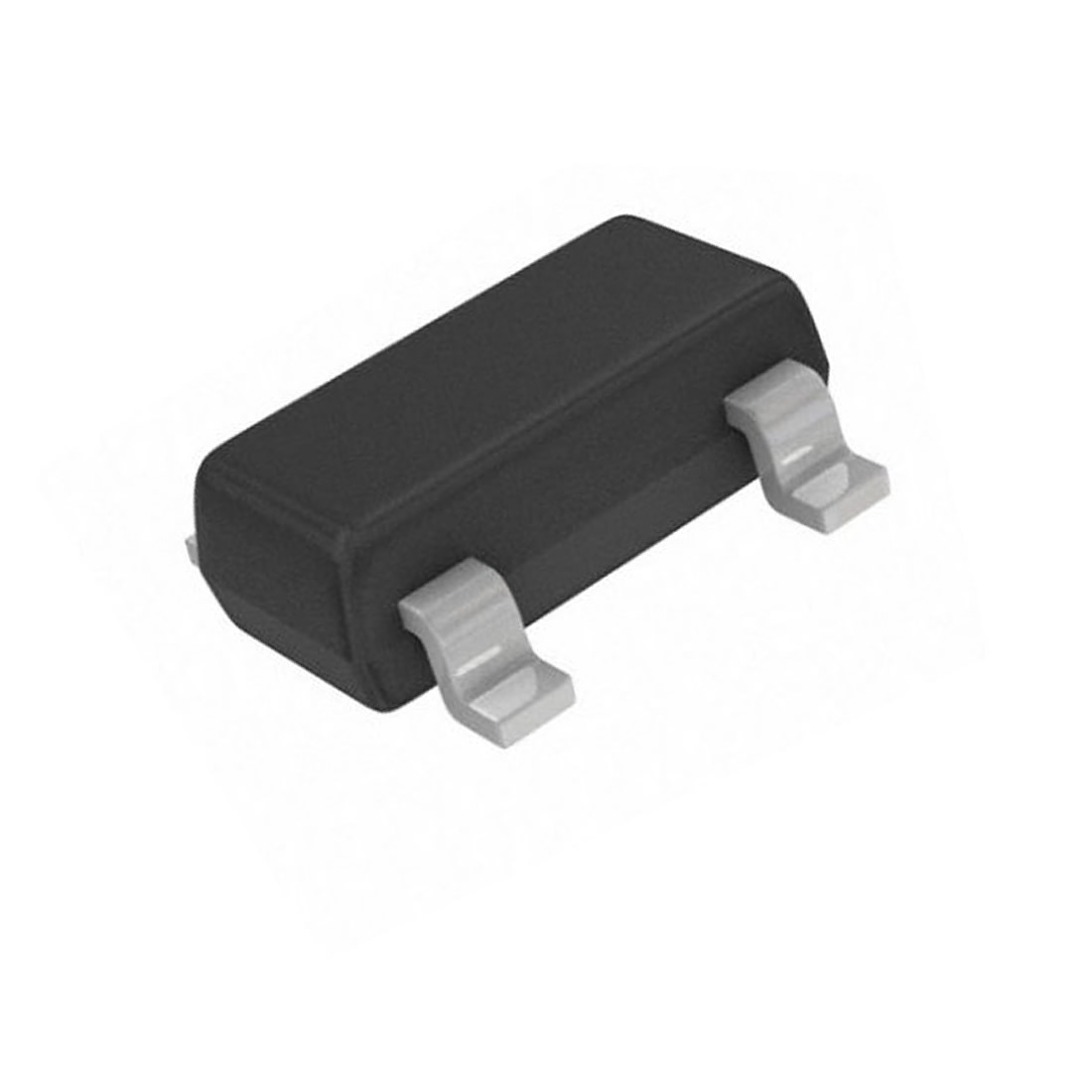

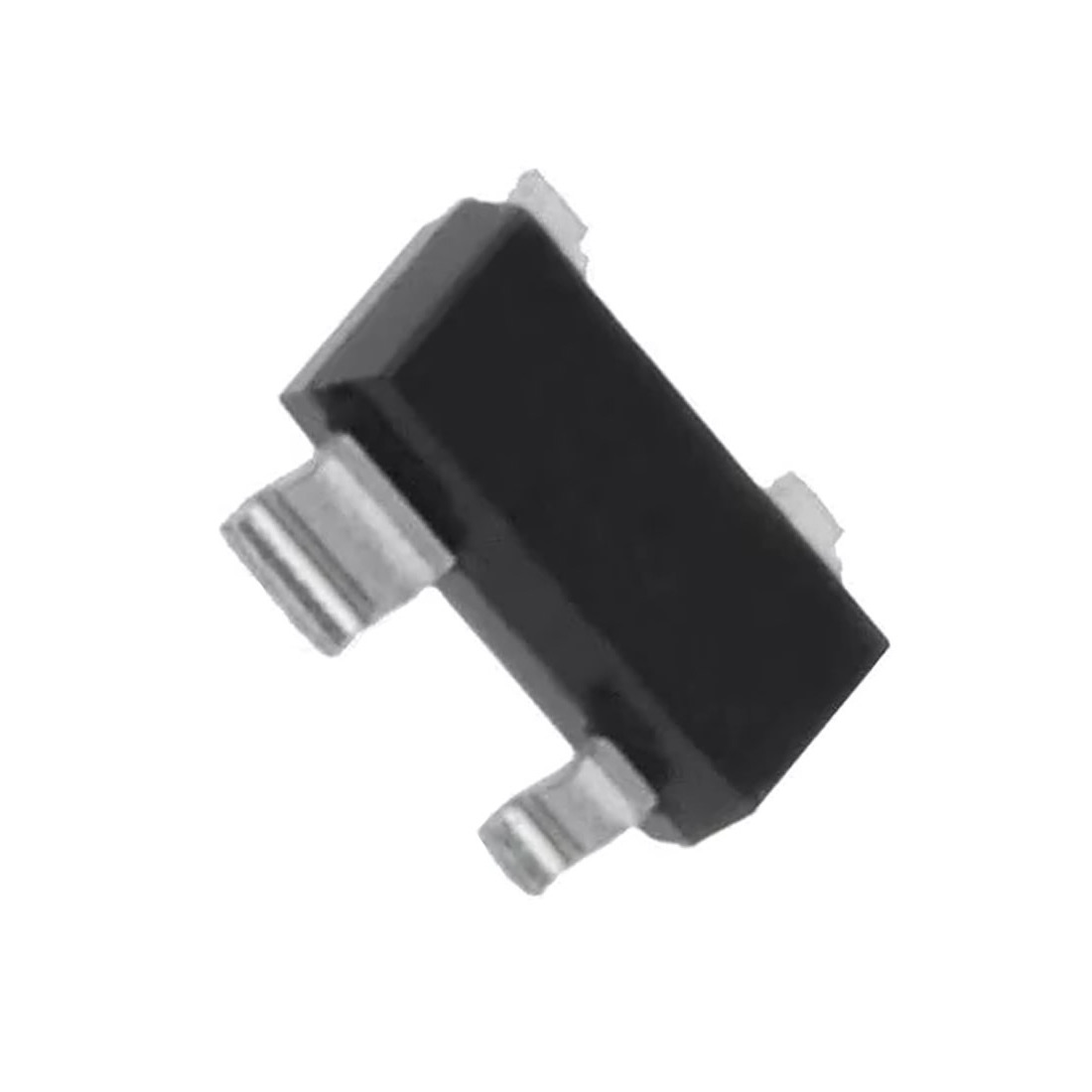

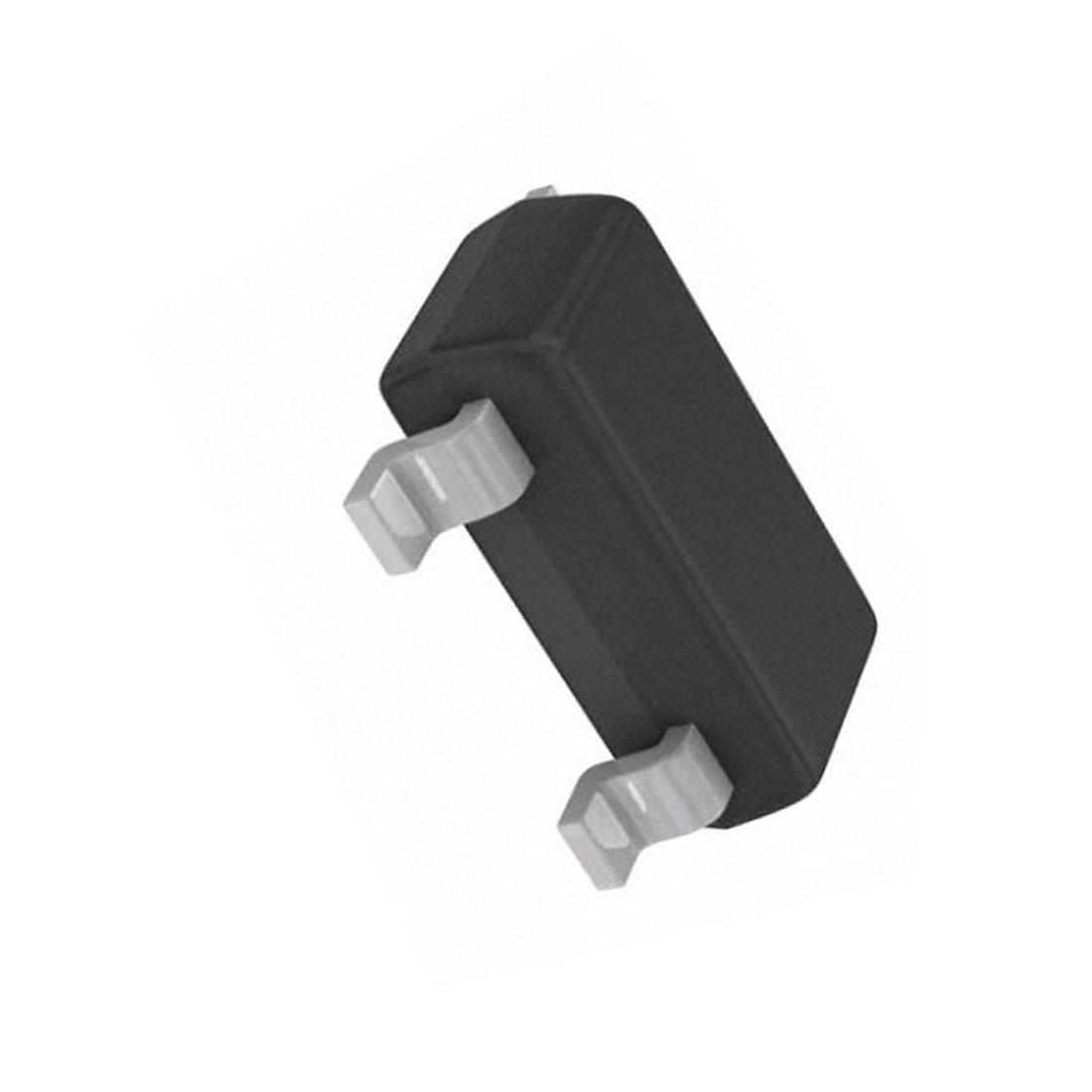

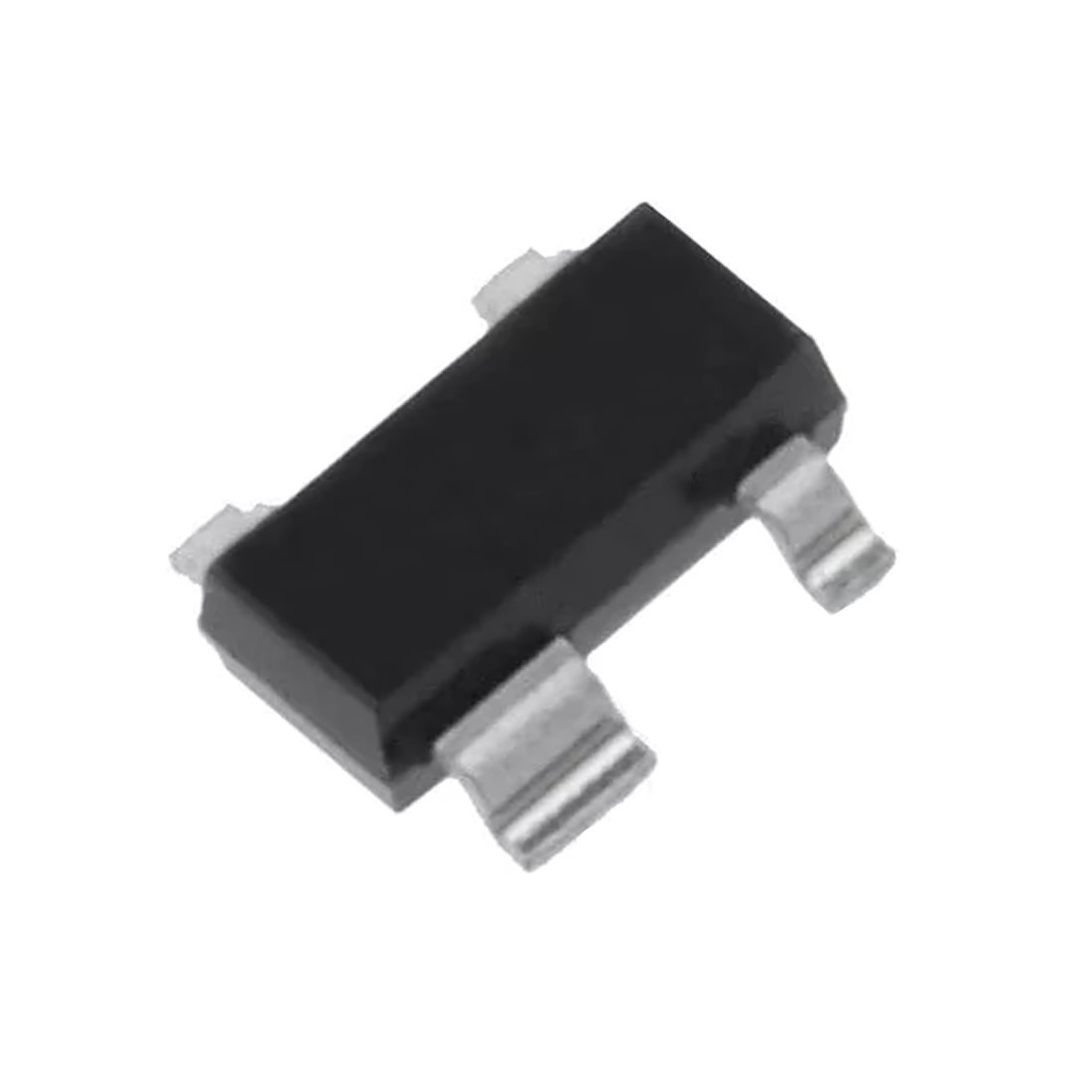

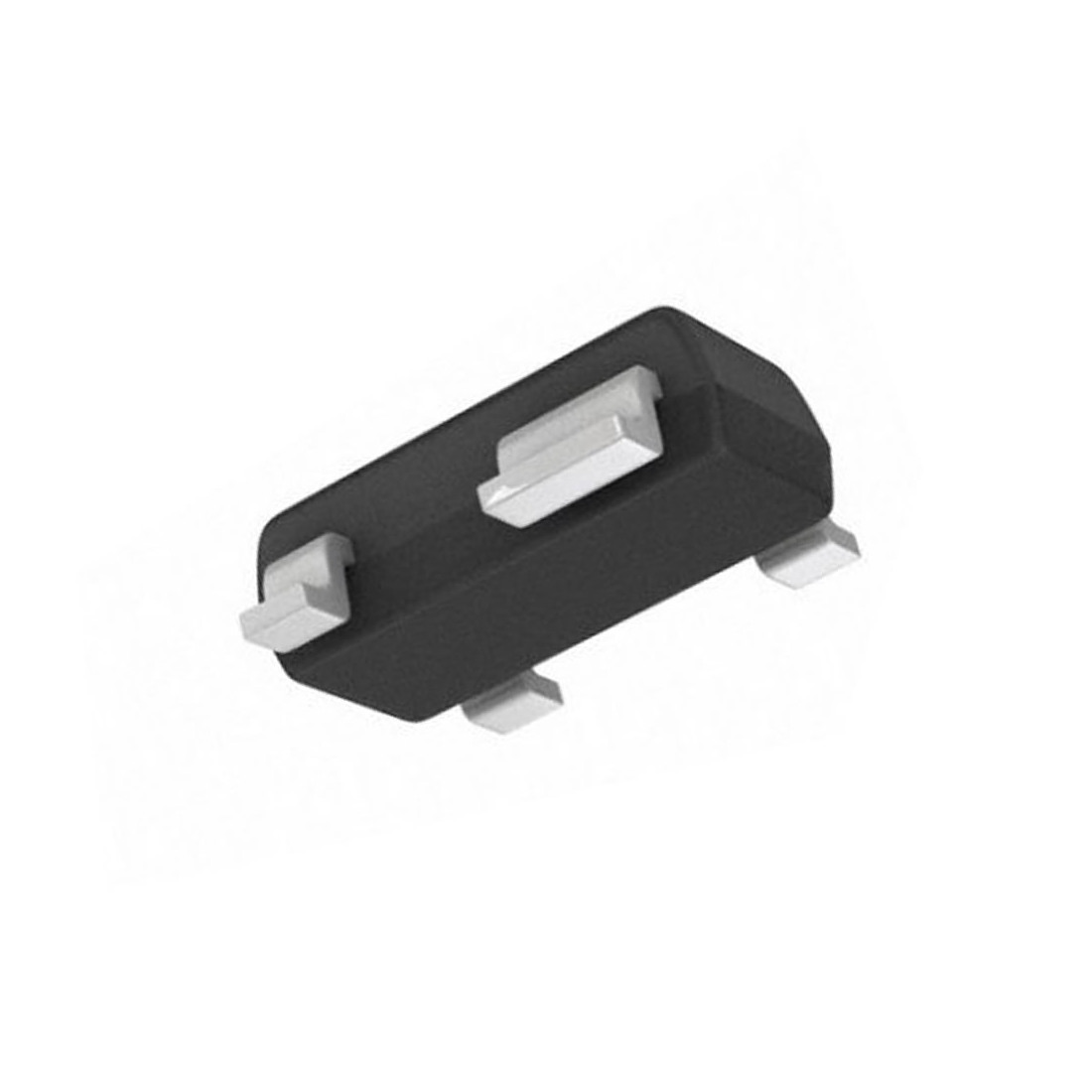

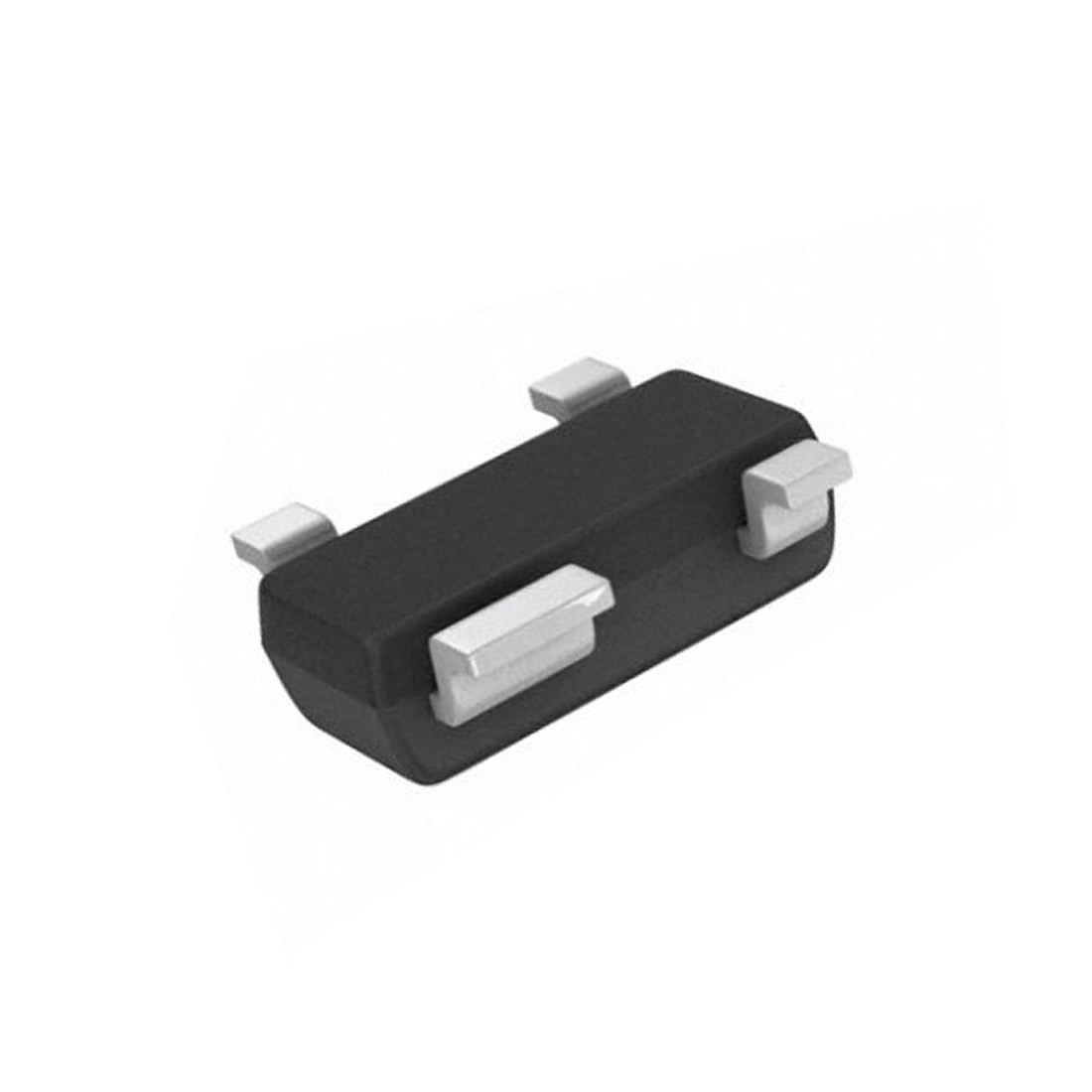

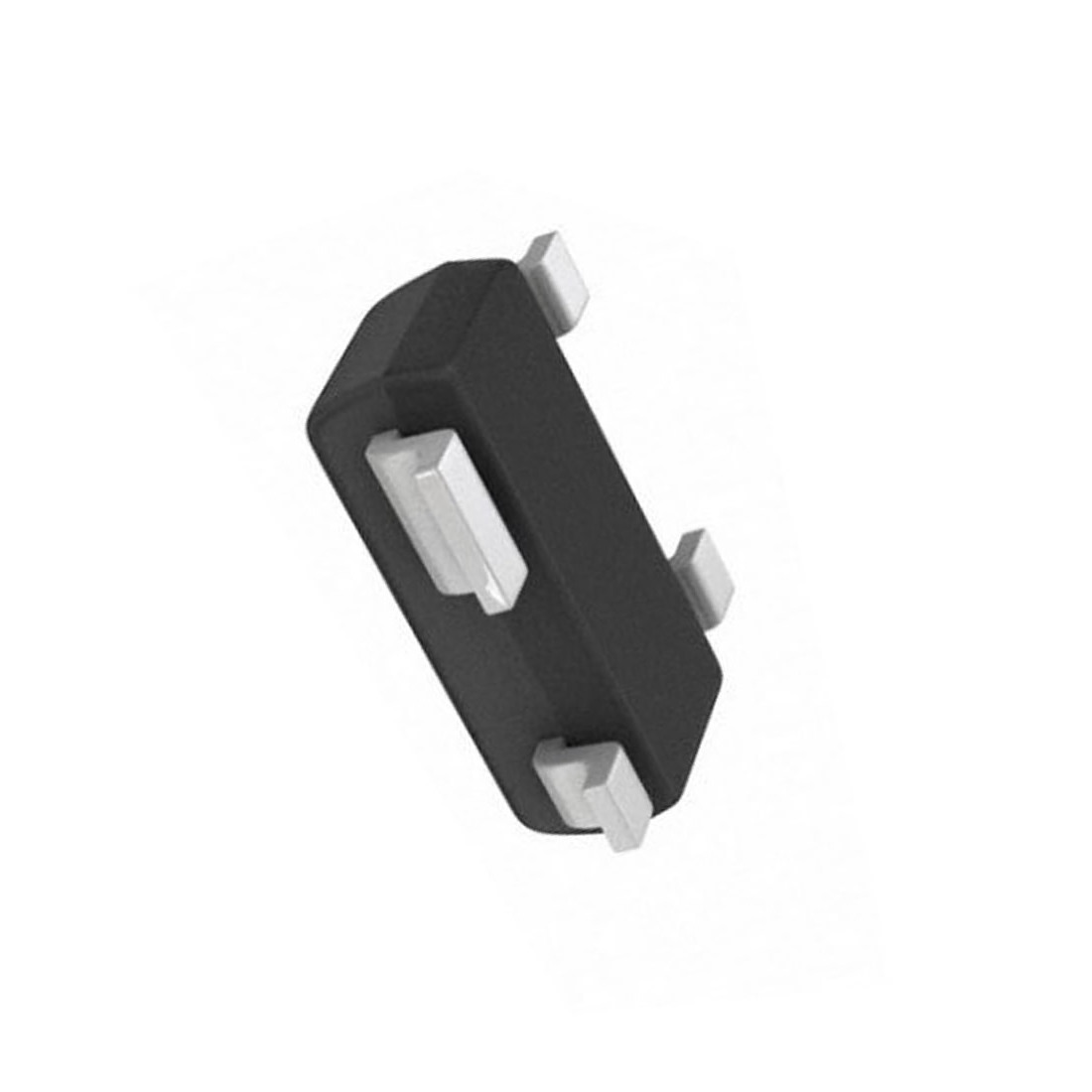

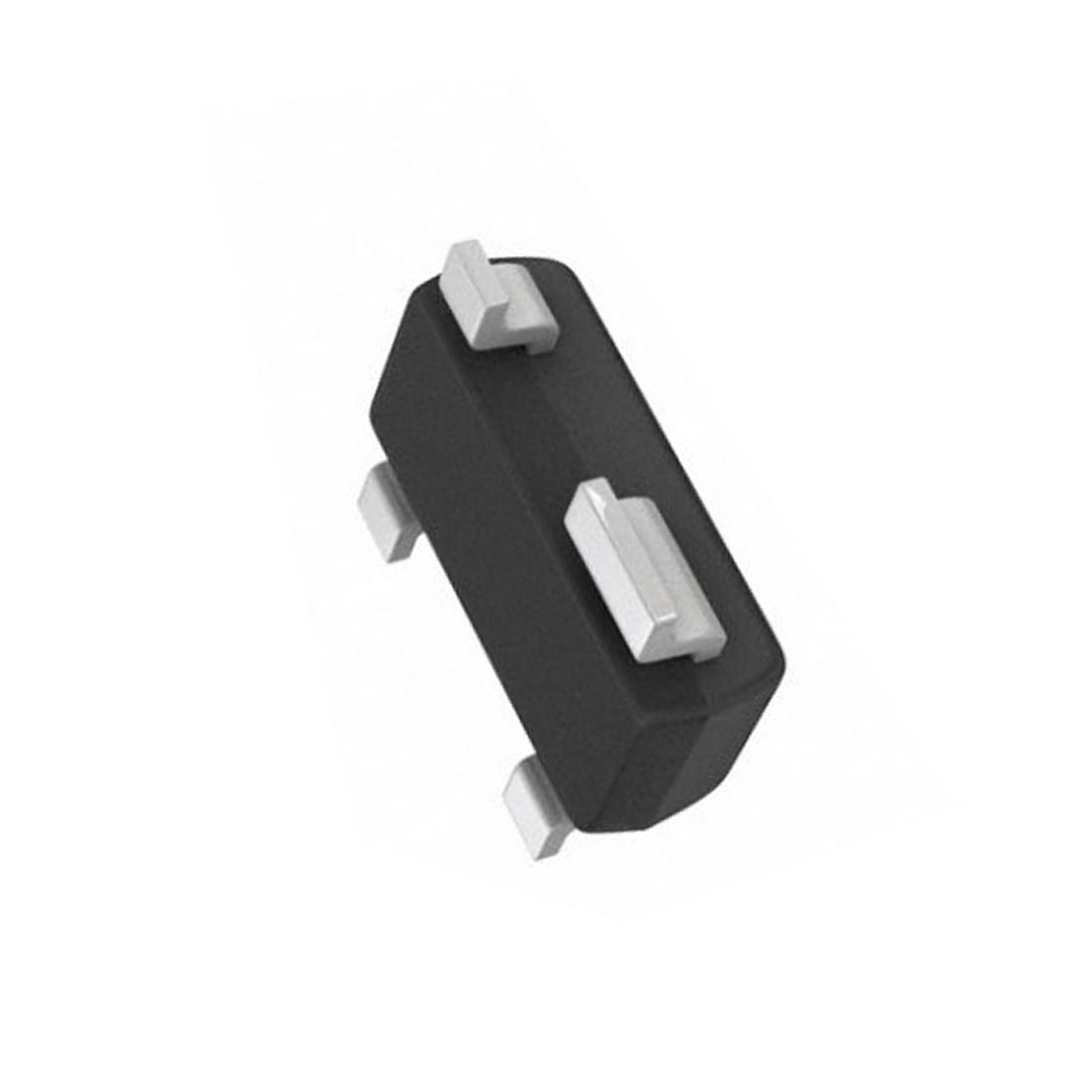

2SC4088 Transistor Silicon NPN CASE: SOT143R MAKE: NEC
Product specifications
Type Transistor Silicon NPN

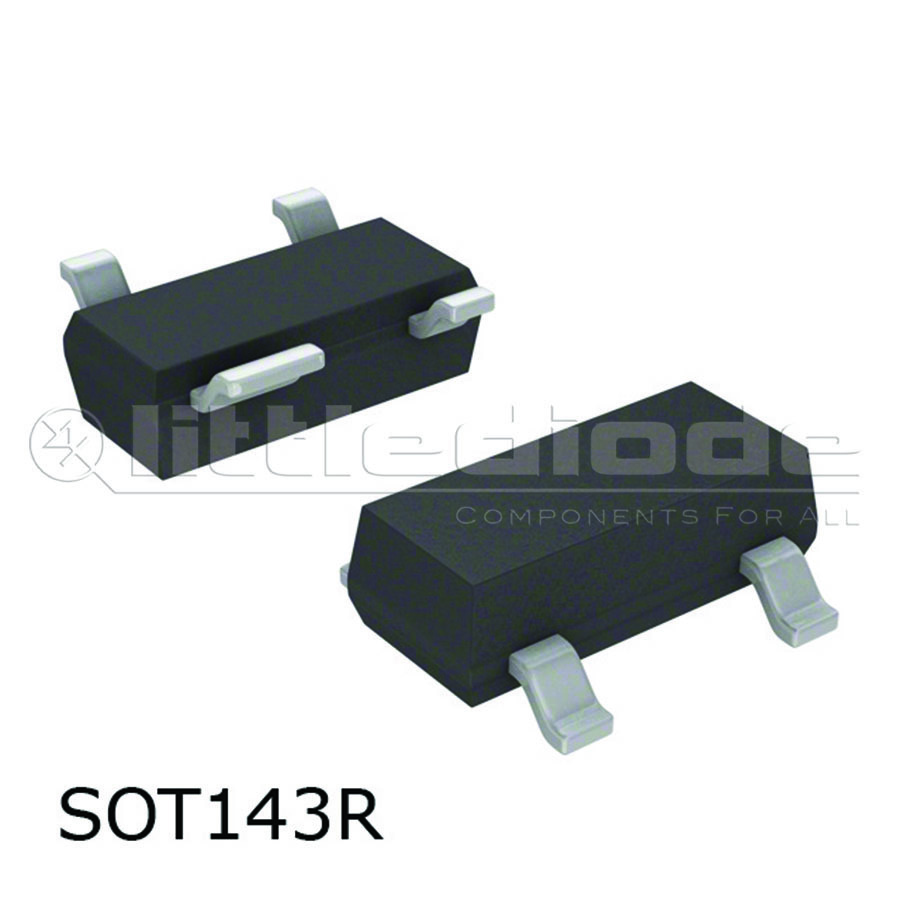

Case SOT143R
Manufacturer NEC
Vbr CBO 15
@Freq. (test) 1.0G
@Ic (A) 7.0m
@Ic (A) 1.0m
Mat. Silicon Logic
Noise Fig. 2.5
Oper. Gain Typ (S21) 8.5
f(osc) Max. (Hz) 4.0G-
Polarity NPN
PD Max. (W) 50m
S11 Deg. (Typ) 114
S11 Mag Typ. .32
S22 Deg. Typ. -16
S22 Mag Typ. 1.01
@VDS (VCE) (test) (V) 1.0
Coll. (or drain) Current Max. 5.0m
@Freq. (test) 1.0G
@VCE (test) 8.0
Oper. Temp (°C) Max. 150
Pinout Equivalence Number 4-127
Surface Mounted Yes/No YES
Maximum Collector Power Dissipation (Pc) 0.08 W
Maximum Collector-Base Voltage |Vcb| 15 V
Maximum Collector Current |Ic max| 0.005 A
Max. Operating Junction Temperature (Tj) 175 °C
Transition Frequency (ft): 4000 MHz
Forward Current Transfer Ratio (hFE), MIN 50
SKU 557098
