2SC4115S

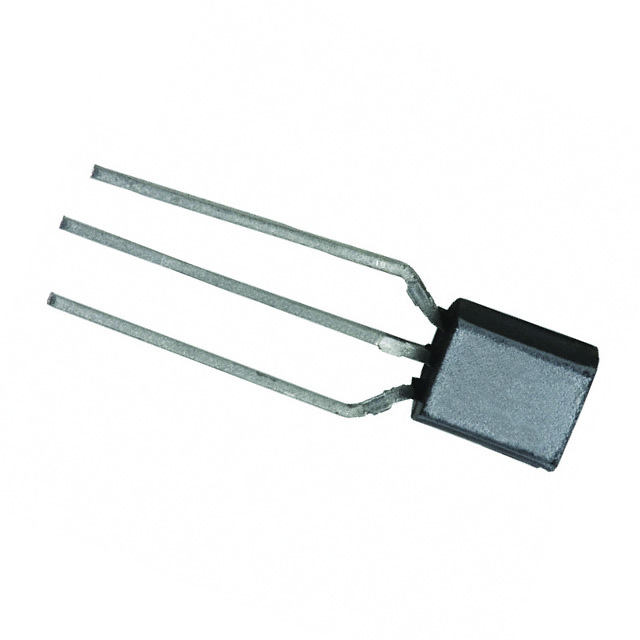

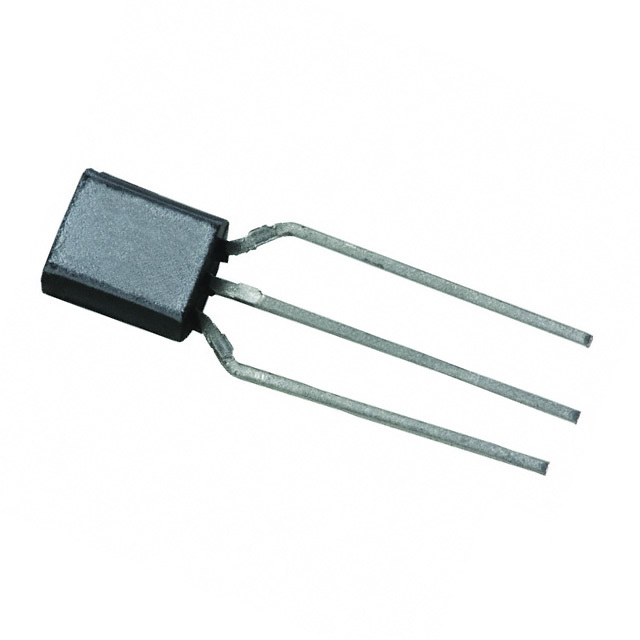

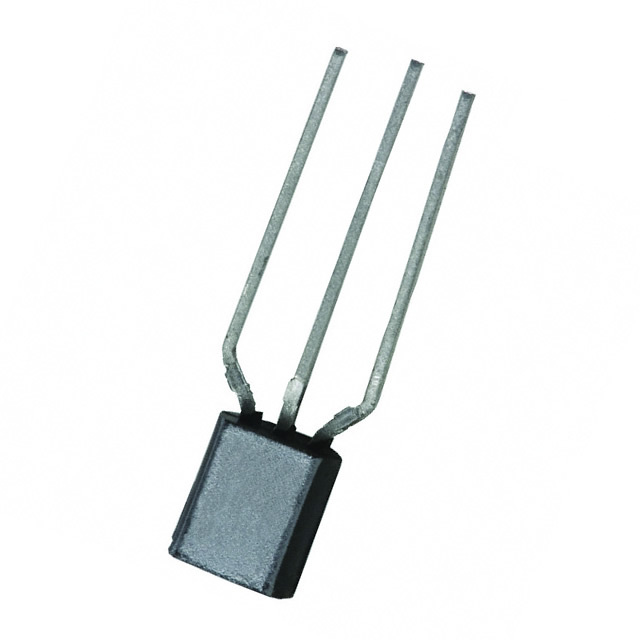

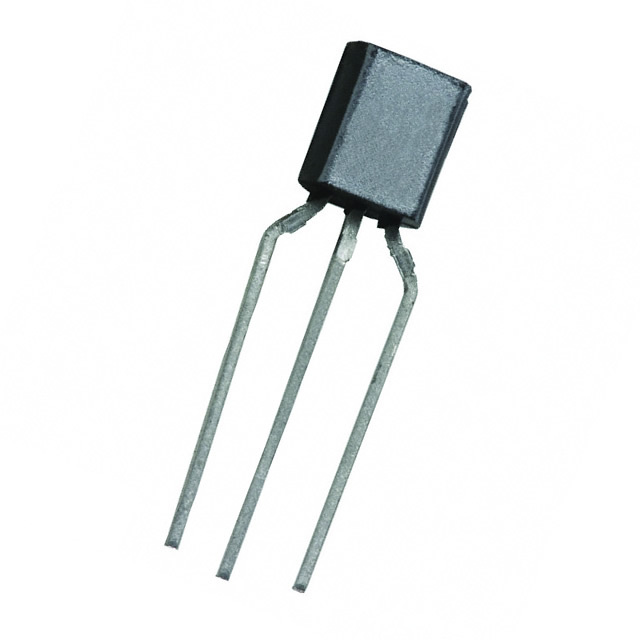

View detailed images (4)

2SC4115S

SKU: 2SC4115S
2SC4115S Transistor Silicon NPN CASE: TO92T MAKE: Rohm Semiconductor
Datasheet
2SC4115S Datasheet
Product specifications
Type Transistor Silicon NPN
Case TO92T
Manufacturer Rohm Semiconductor
Vbr CEO 20
Max. PD (W) 400m
hfe 120
Ic Max. (A) 2.0
Polarity NPN
@VCE (test) (V) 2.0
@Ic (A) 100m
Pinout Equivalence Number 3-10
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.3 W
Maximum Collector-Base Voltage |Vcb| 40 V
Maximum Collector-Emitter Voltage |Vce| 20 V
Maximum Emitter-Base Voltage |Veb| 6 V
Maximum Collector Current |Ic max| 3 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 25 pF
Transition Frequency (ft): 290 MHz
Forward Current Transfer Ratio (hFE), MIN 120
SKU 344372
