2SC4171
View detailed images (12)

2SC4171

SKU: 2SC4171

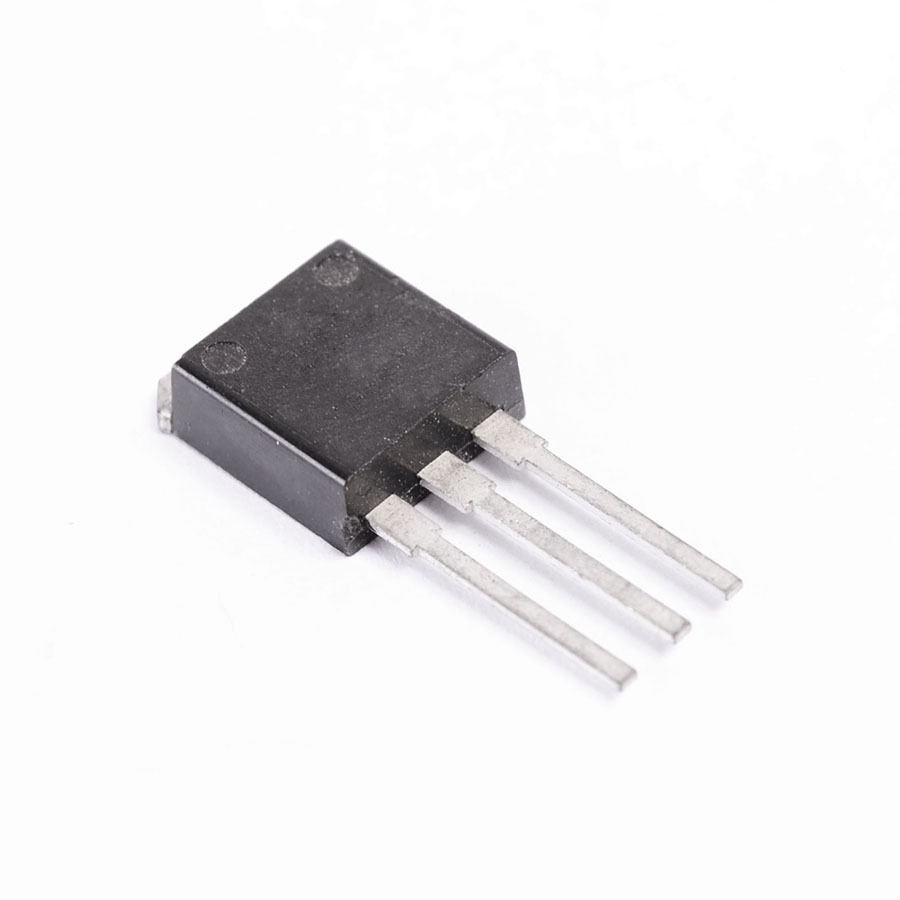

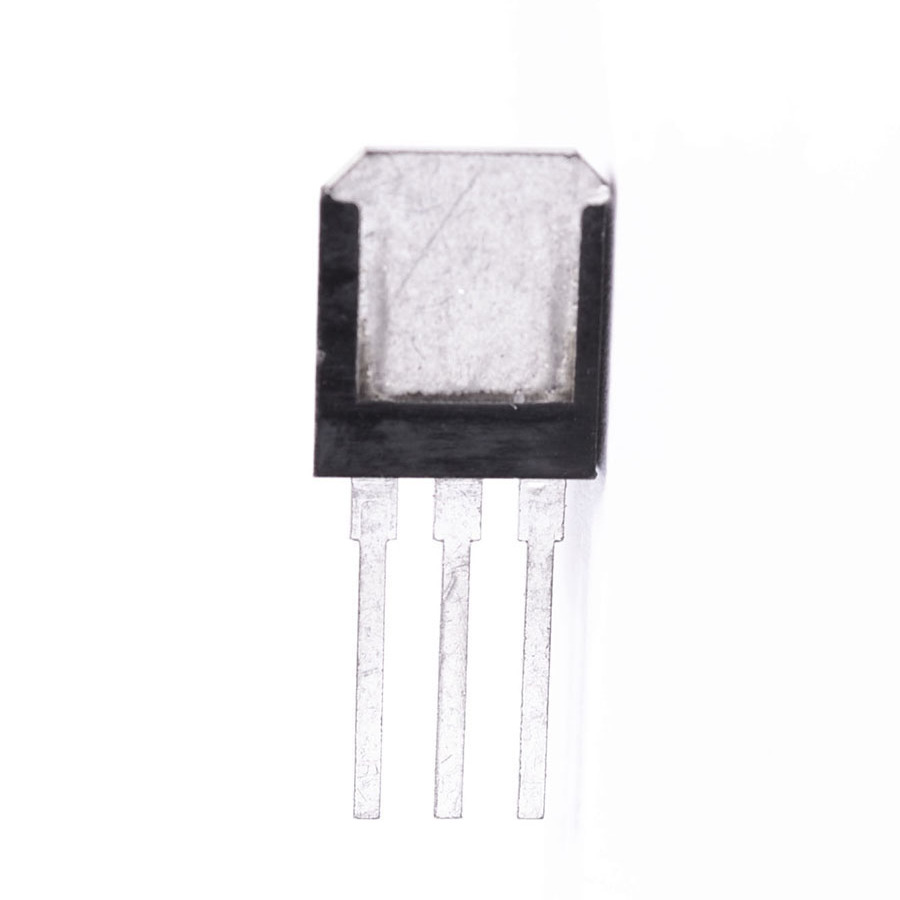

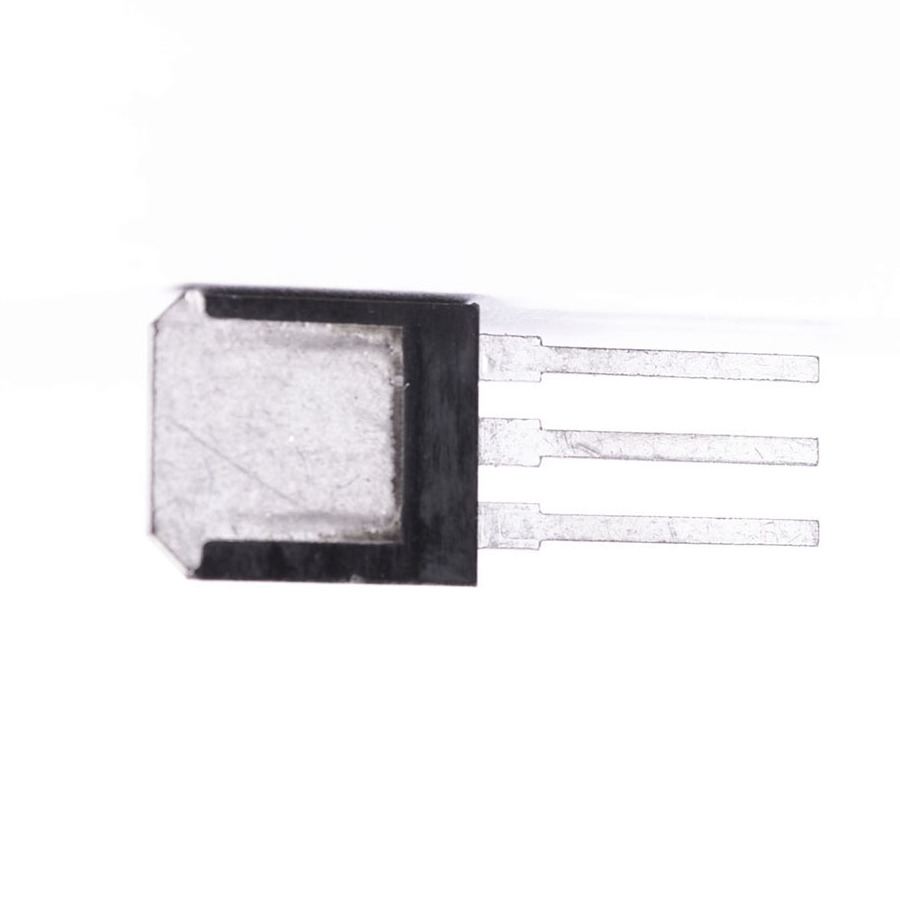

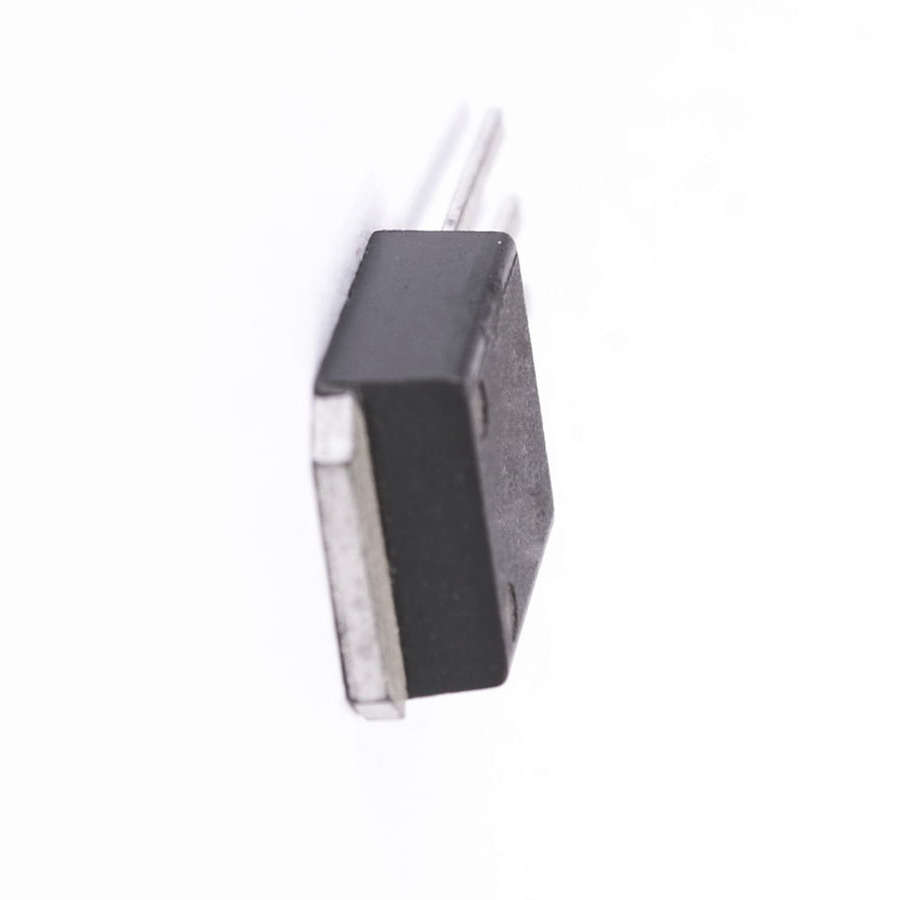

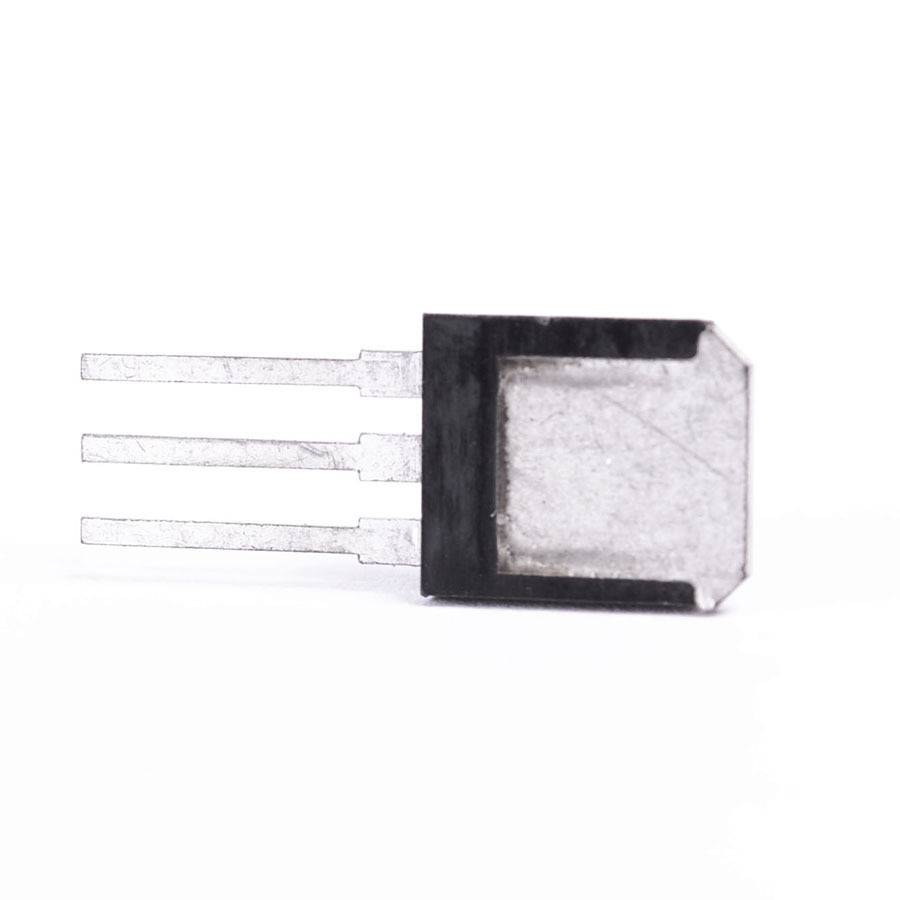

2SC4171 Transistor Silicon NPN CASE: TO262 MAKE: Sanyo Semiconductor
Datasheet
2SC4171 Datasheet
Product specifications
Equivalent 2SC4171N
Type Transistor Silicon NPN
Case TO262
Manufacturer Sanyo Semiconductor
Vbr CBO 800
Vbr CEO 500
Max. PD (W) 40
t(f) Max. (S) 1.0u
Max. hFE 50
Min hFE 15
Ic Max. (A) 3.0
@Ic (test) (A) 300m
Icbo Max. @Vcb Max. (A) 10u
Polarity NPN
Tr Max. (s) 1.0u
Trans. Freq (Hz) Min. 18M
Oper. Temp (°C) Max. 150
@VCE (V) 5.0
Pinout Equivalence Number 3-10
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 40 W
Maximum Collector-Base Voltage |Vcb| 800 V
Maximum Collector-Emitter Voltage |Vce| 500 V
Maximum Emitter-Base Voltage |Veb| 7 V
Maximum Collector Current |Ic max| 3 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 40 pF
Transition Frequency (ft): 18 MHz
Forward Current Transfer Ratio (hFE), MIN 15
SKU 344399
