2SC4177

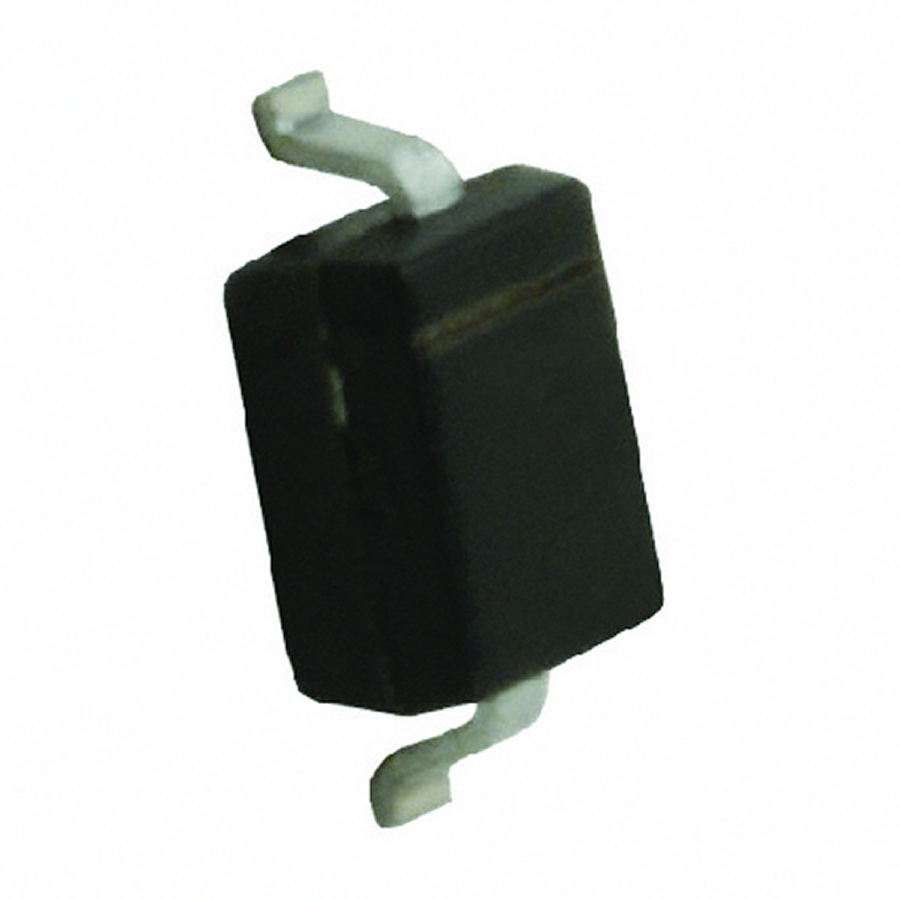

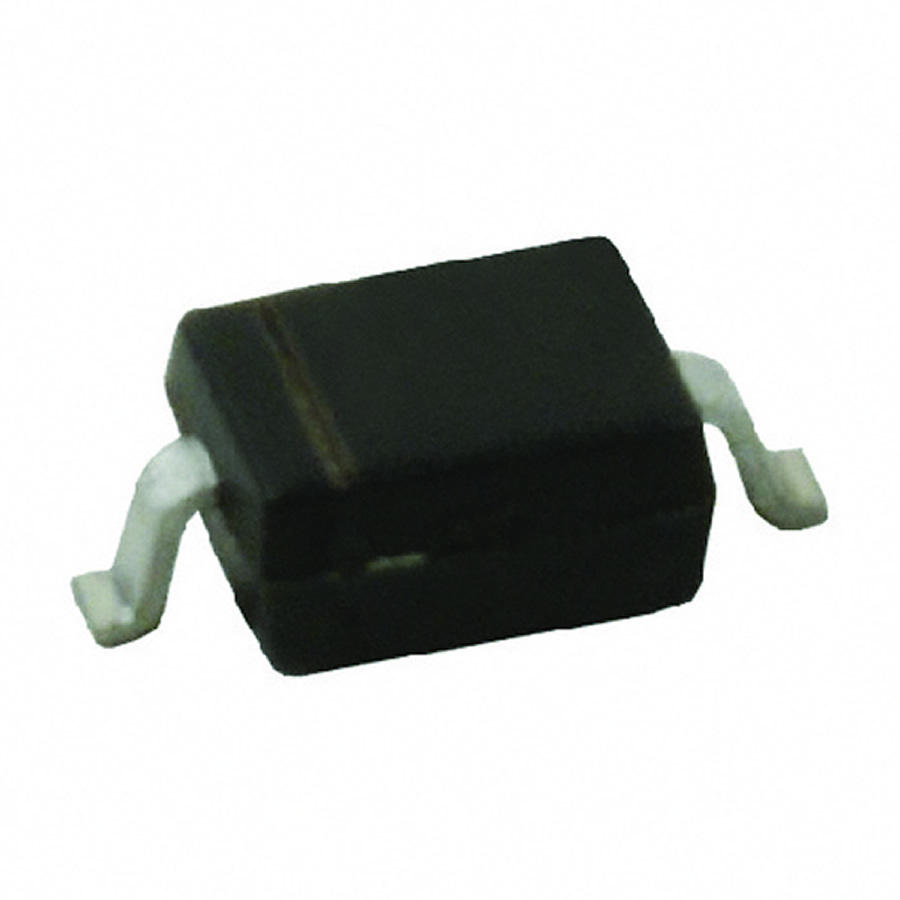

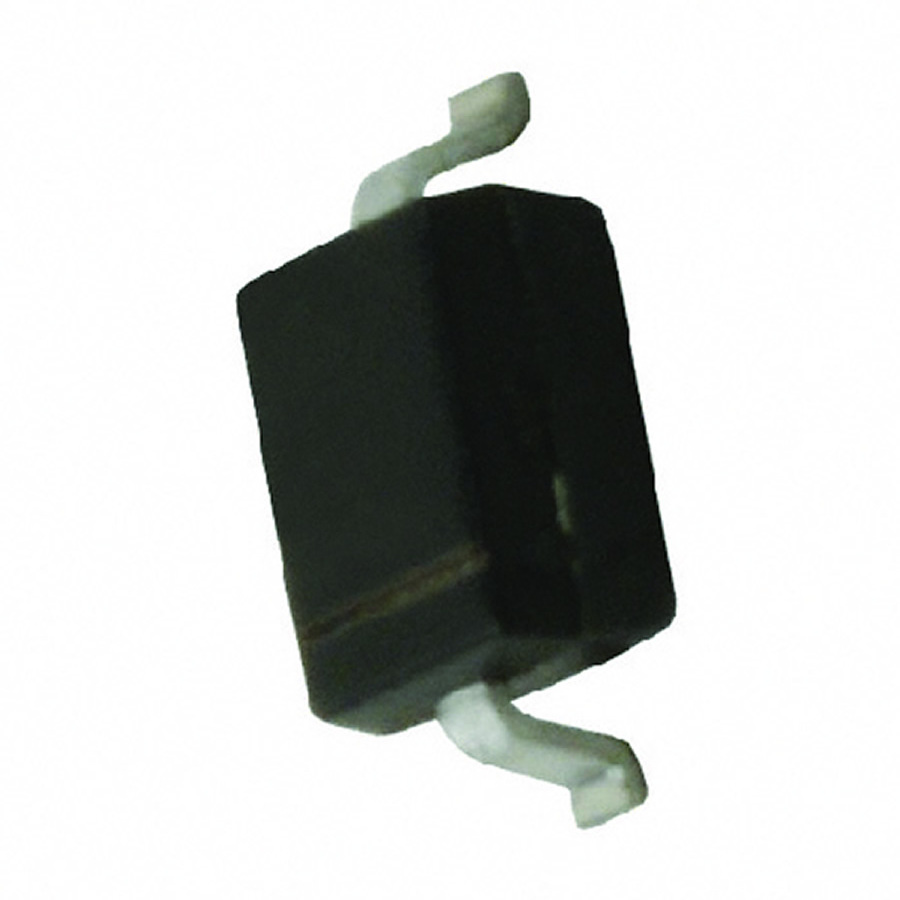

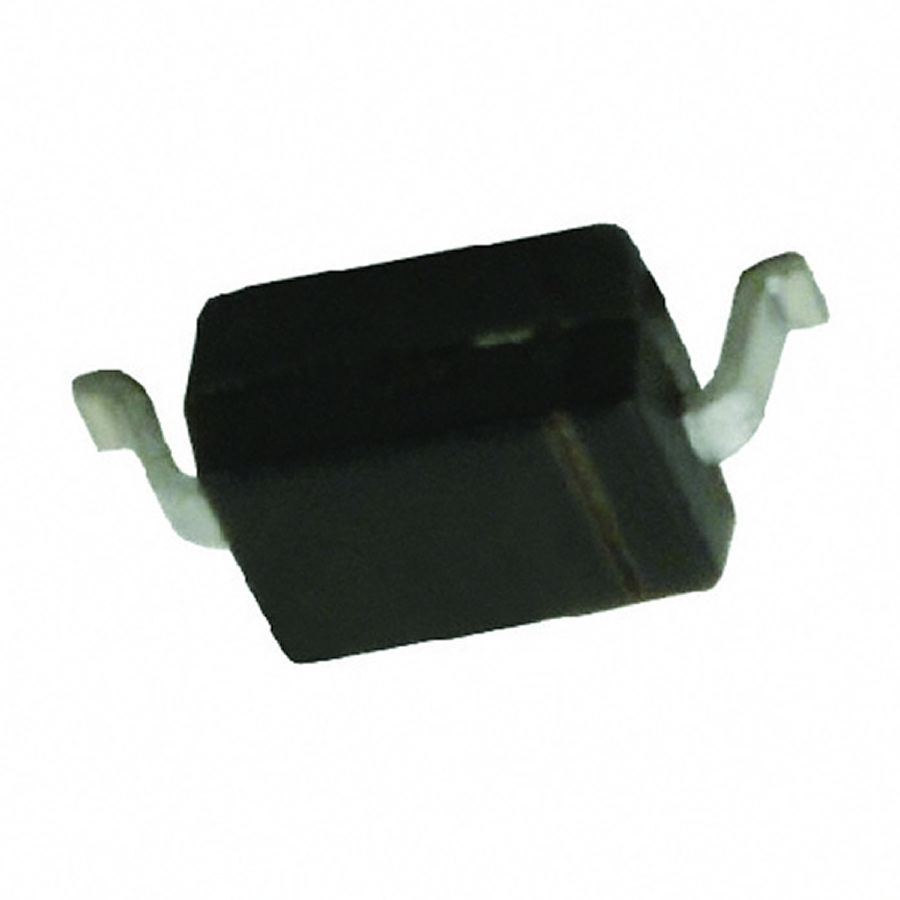

View detailed images (4)

2SC4177

SKU: 2SC4177
2SC4177 Transistor Silicon NPN CASE: SOD323 MAKE: NEC
Price:
£14.39 Inc. VAT (£11.99 Ex. VAT)
£14.39 Inc. VAT (£11.99 Ex. VAT)
Qty
  • More pieces shipped in 14 days
?
Datasheet
2SC4177 Datasheet
Product specifications
Type Transistor Silicon NPN
Case SOD323
Manufacturer NEC
Vbr CBO 60
Vbr CEO 50
Max. PD (W) 150m
C(ob) (F) 3.0p
hfe 90
Ic Max. (A) 100m
Icbo Max. @Vcb Max. (A) 100n
Polarity NPN
Trans. Freq (Hz) Min. 250M
@VCE (test) (V) 6.0
Oper. Temp (°C) Max. 150
@Ic (A) 1.0m
Pinout Equivalence Number 3-12
Surface Mounted Yes/No YES
Maximum Collector Power Dissipation (Pc) 0.15 W
Maximum Collector-Base Voltage |Vcb| 60 V
Maximum Collector Current |Ic max| 0.1 A
Max. Operating Junction Temperature (Tj) 125 °C
Transition Frequency (ft): 250 MHz
Forward Current Transfer Ratio (hFE), MIN 200
SMD Transistor Code L4_L5_L6_L7
SKU 344403
