2SC4296
View detailed images (12)

2SC4296

SKU: 2SC4296

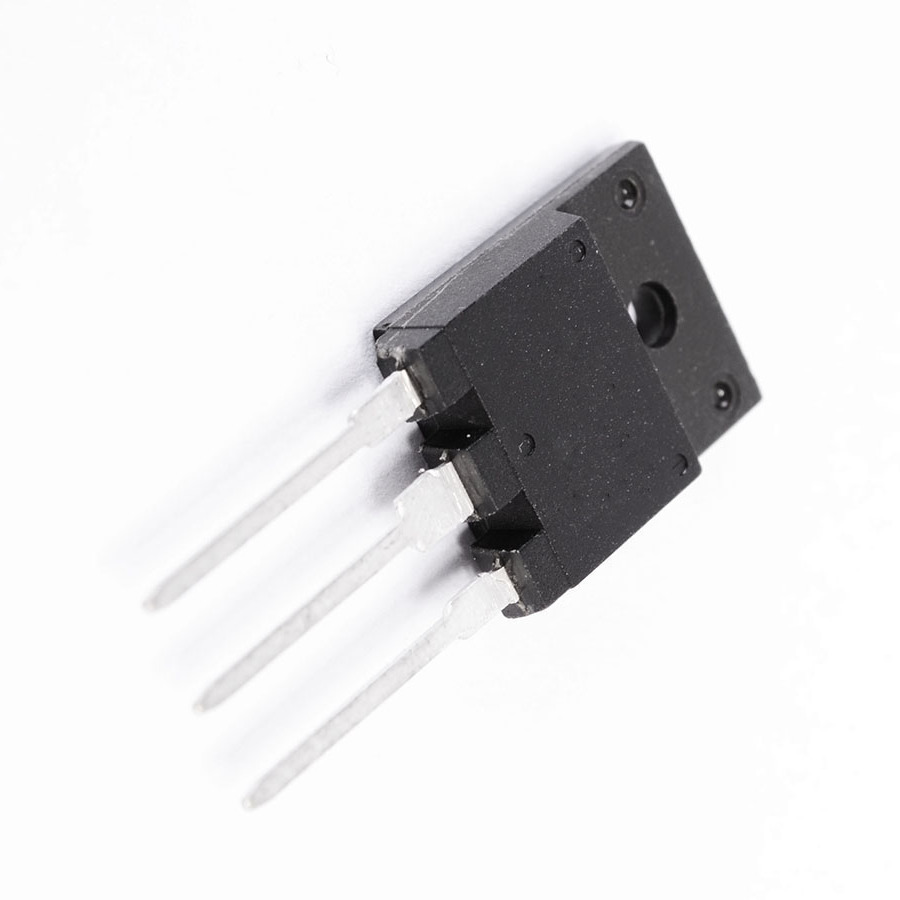

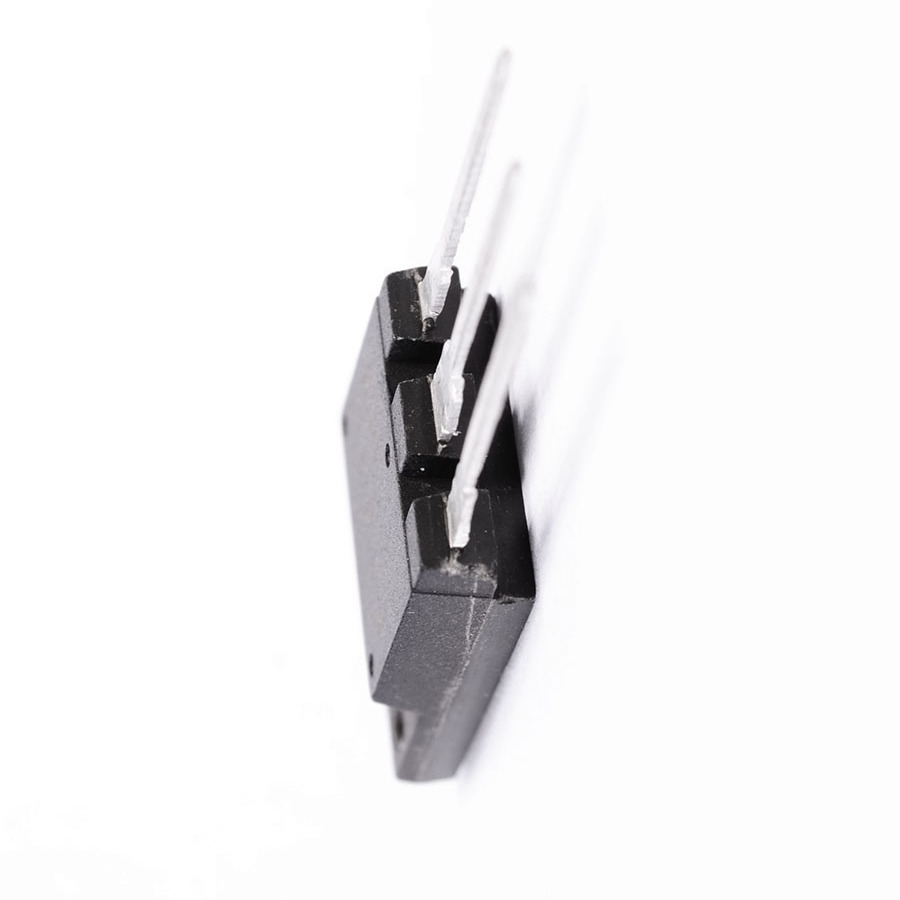

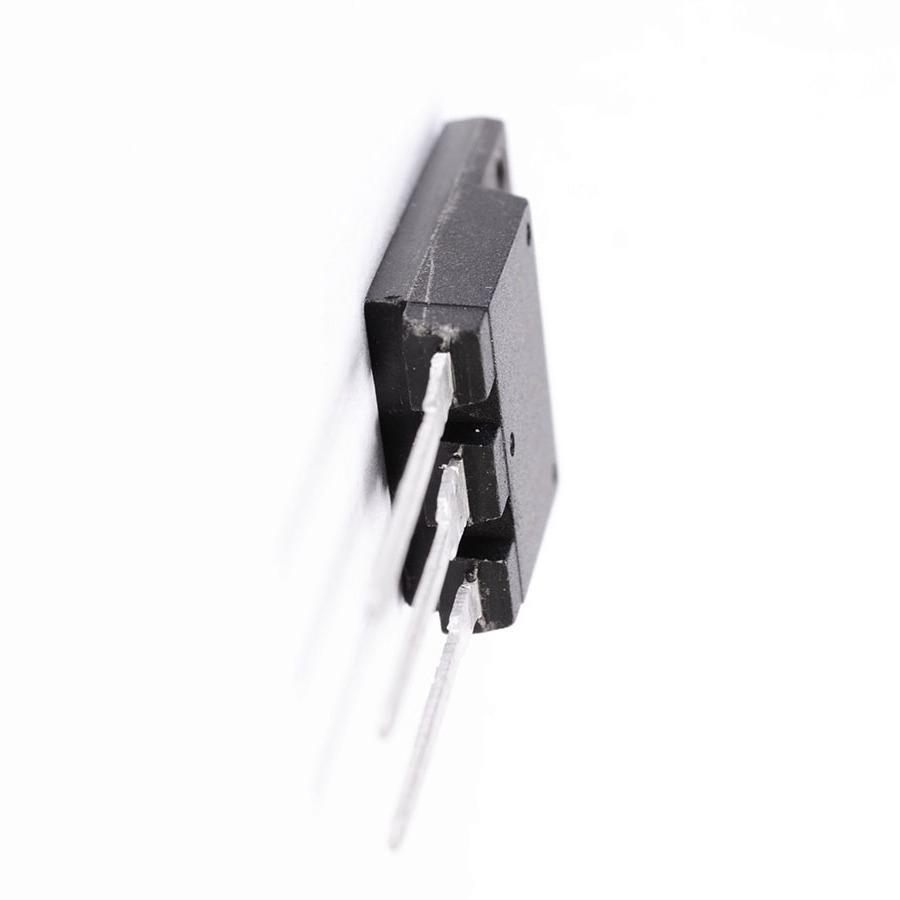

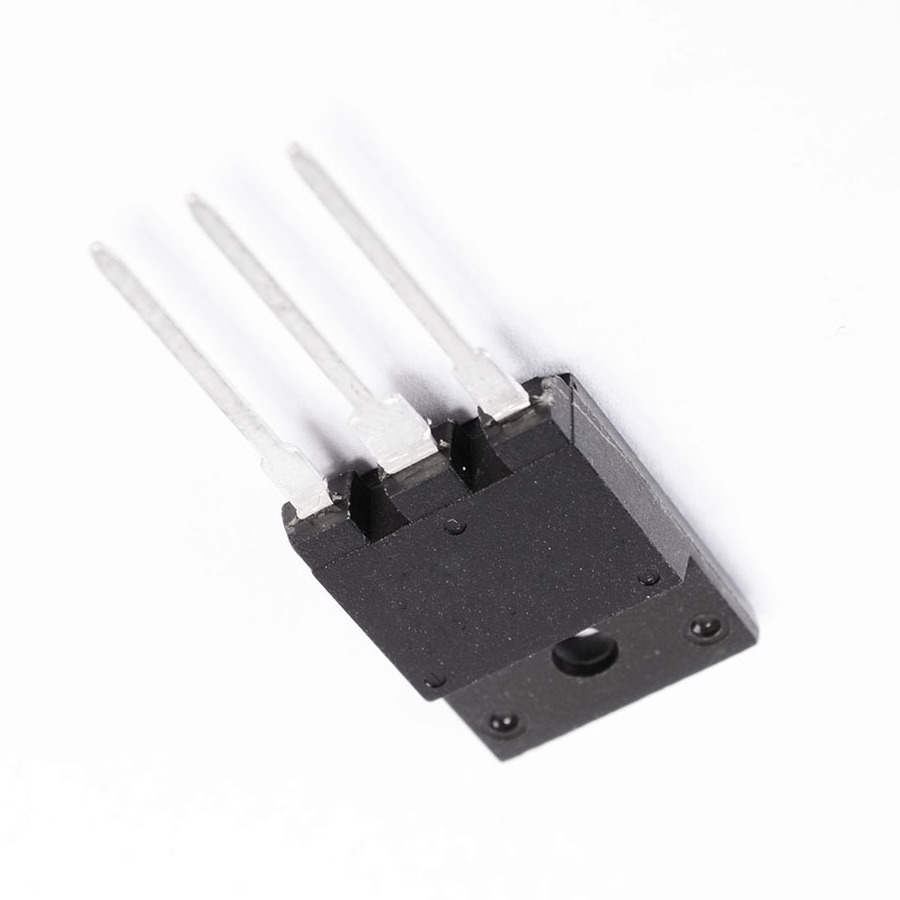

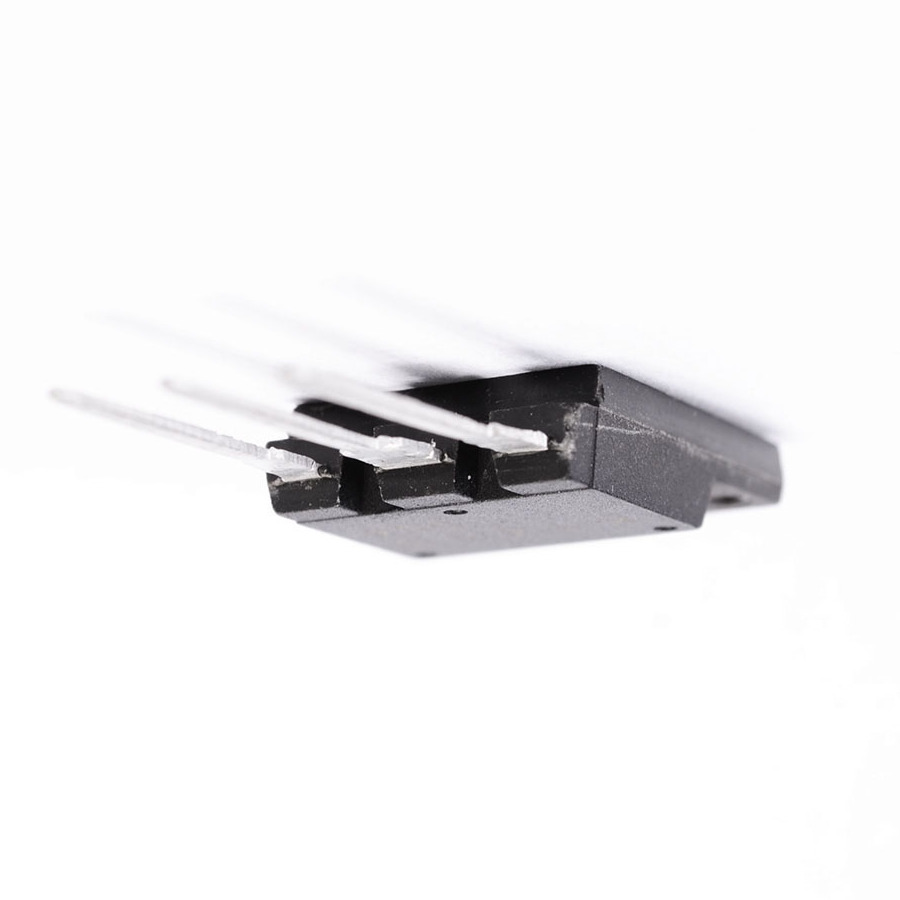

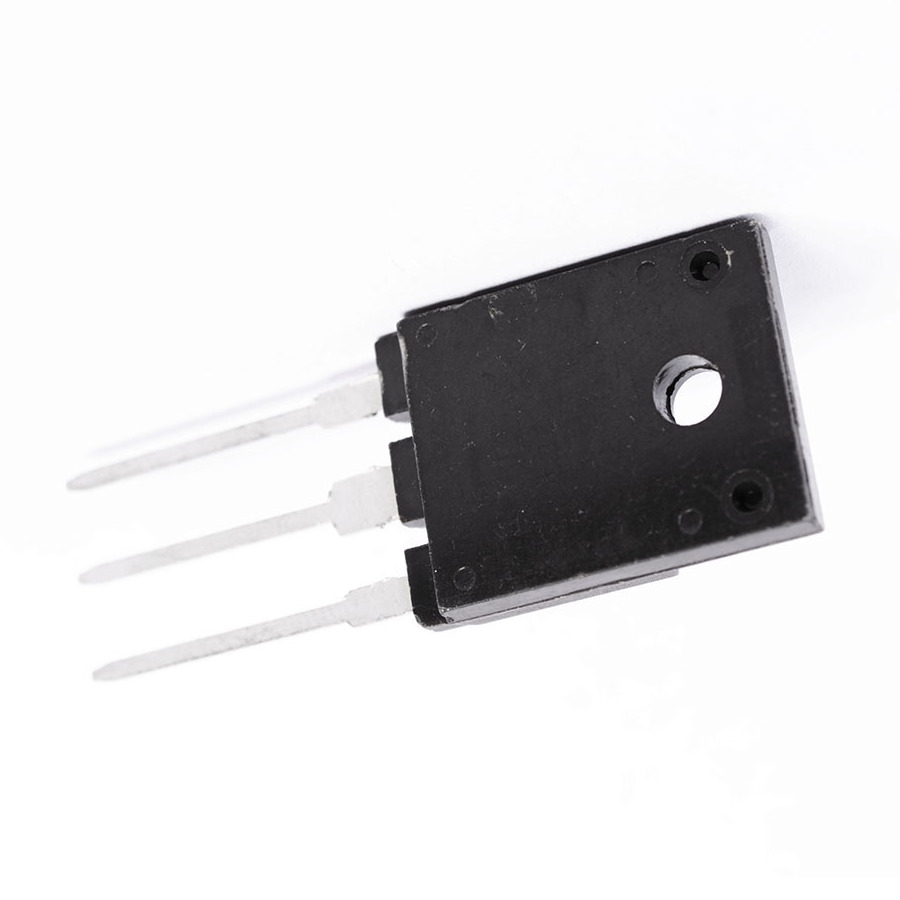

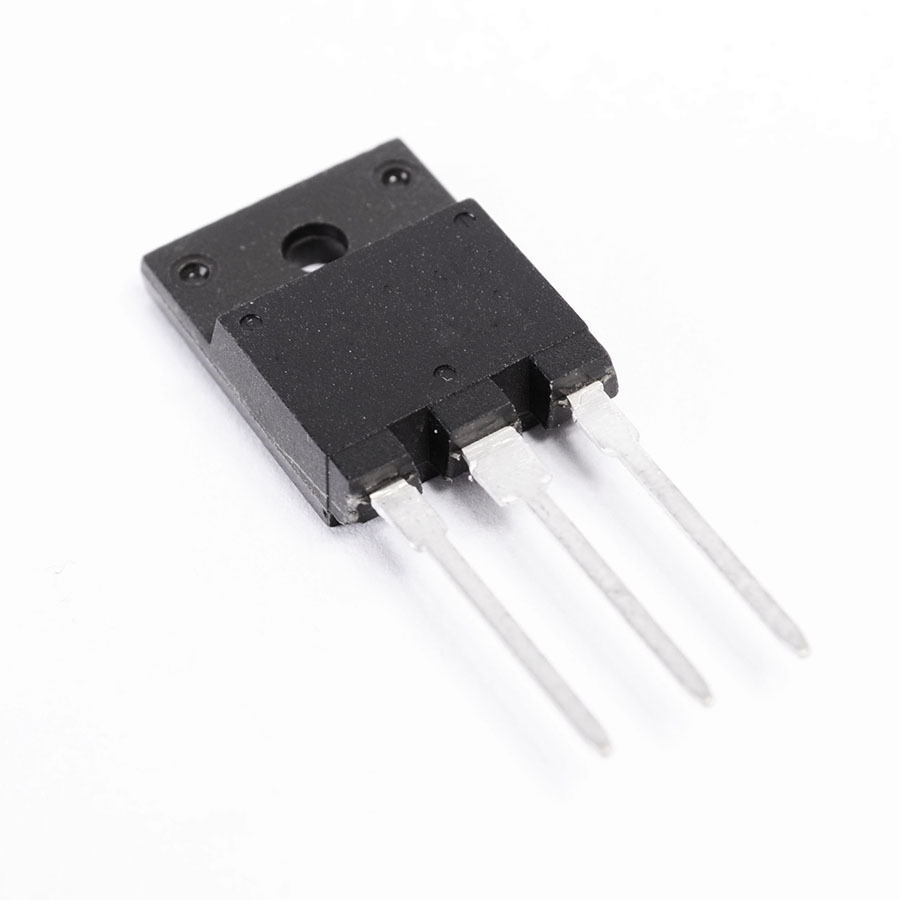

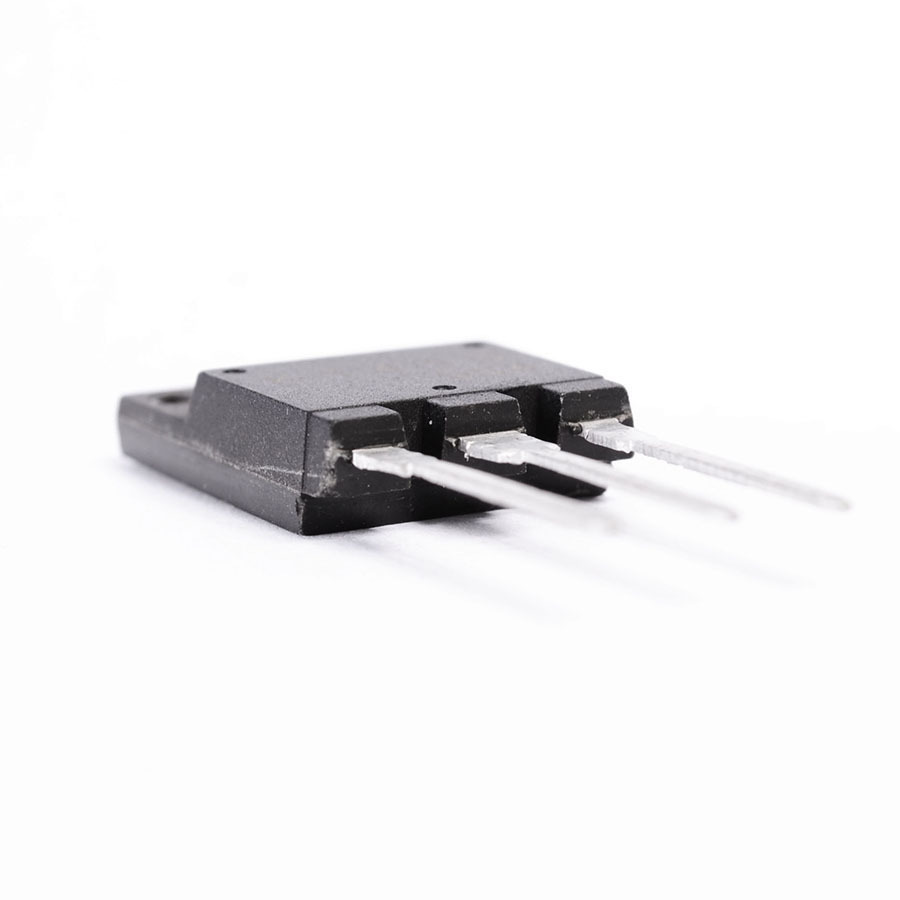

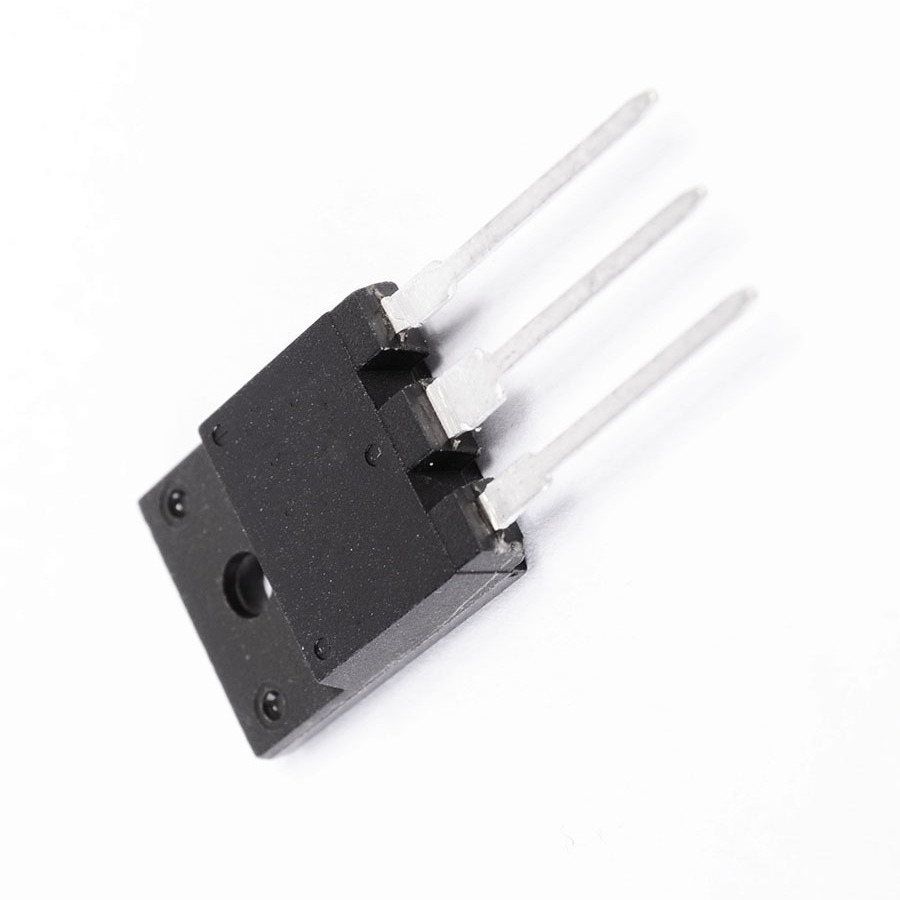

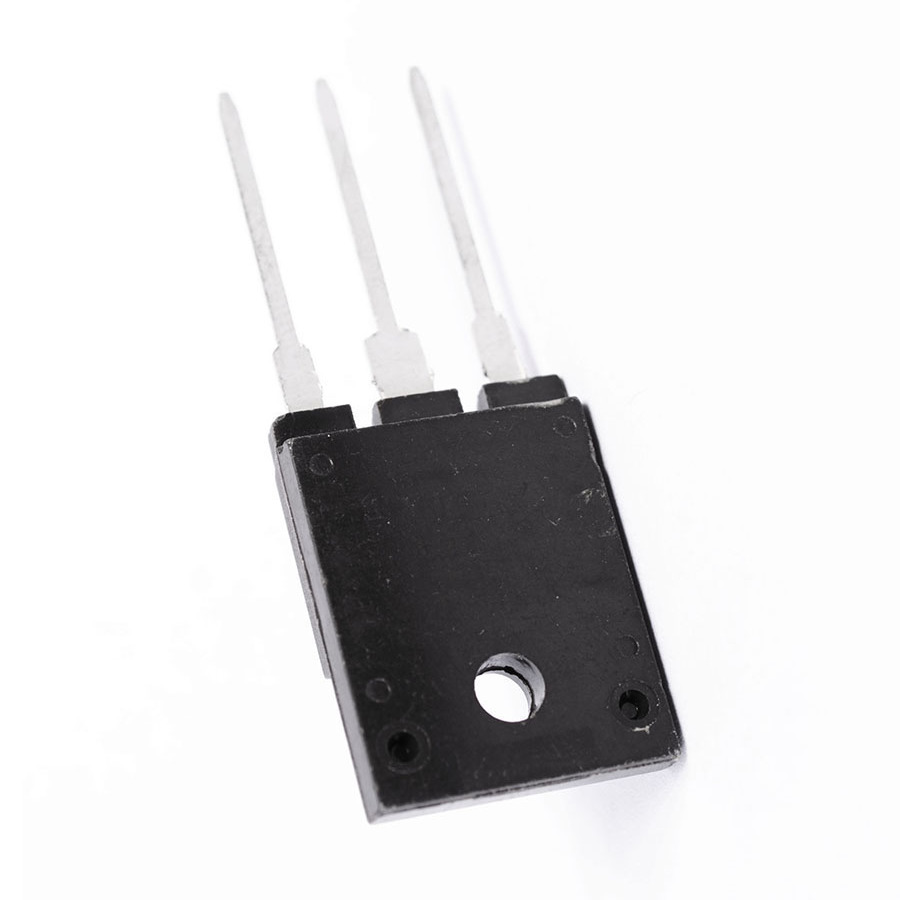

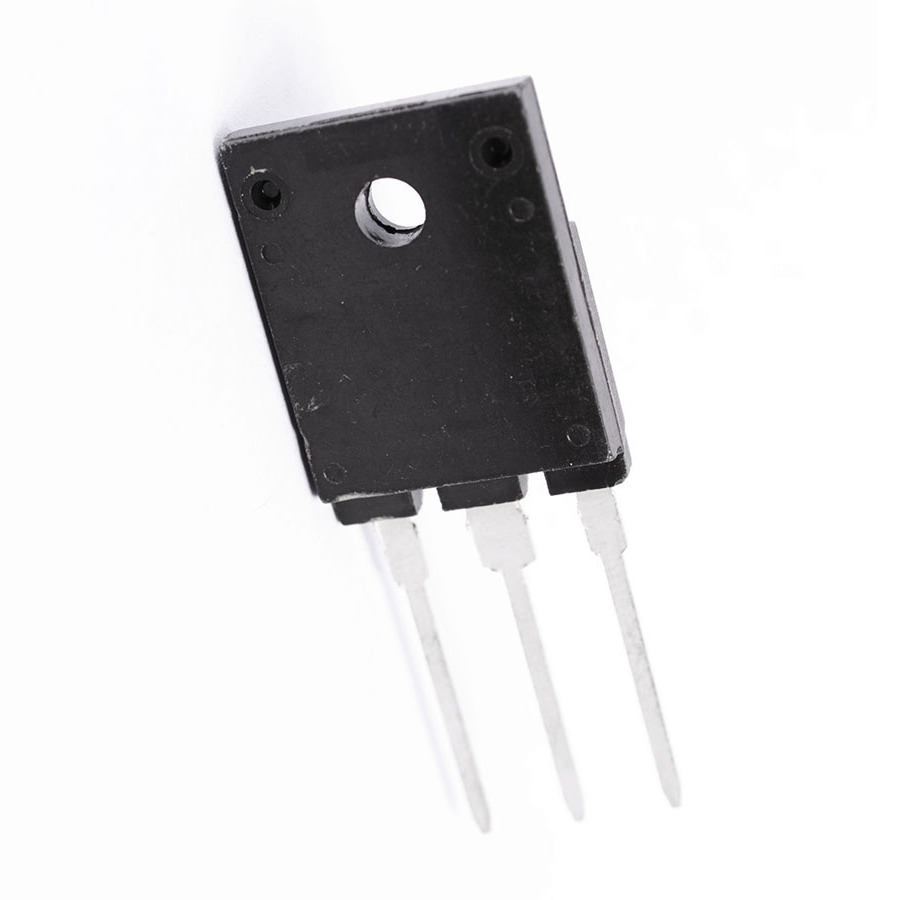

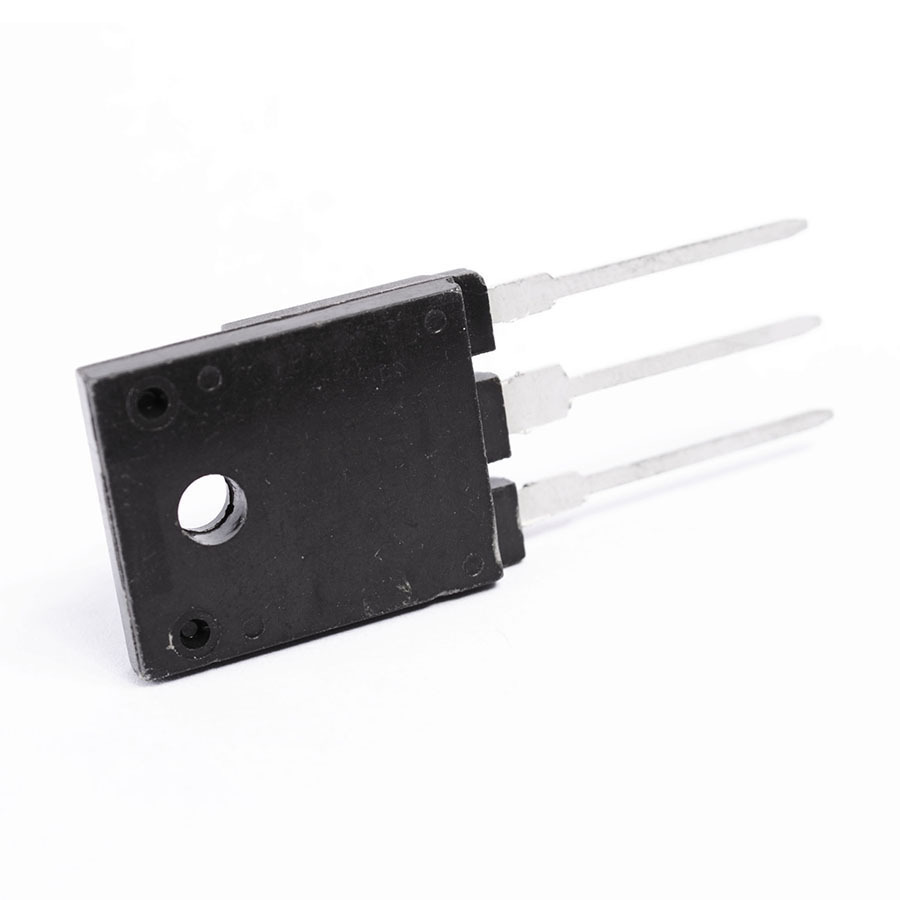

2SC4296 Transistor Silicon NPN CASE: TO218F MAKE: Sanken
Datasheet
2SC4296 Datasheet
Product specifications
Type Transistor Silicon NPN
Case TO218F
Manufacturer Sanken
Vbr CBO 500
Vbr CEO 400
Max. PD (W) 75
t(f) Max. (S) 500n
Min hFE 10
Ic Max. (A) 10
@Ic (test) (A) 6.0
Icbo Max. @Vcb Max. (A) 100u
Polarity NPN
Trans. Freq (Hz) Min. 10M
Oper. Temp (°C) Max. 150
@VCE (V) 4.0
Pinout Equivalence Number 3-15
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 75 W
Maximum Collector-Base Voltage |Vcb| 500 V
Maximum Collector-Emitter Voltage |Vce| 400 V
Maximum Collector Current |Ic max| 10 A
Max. Operating Junction Temperature (Tj) 175 °C
Forward Current Transfer Ratio (hFE), MIN 20
SKU 344472
