2SC4509
View detailed images (12)

2SC4509

SKU: 2SC4509

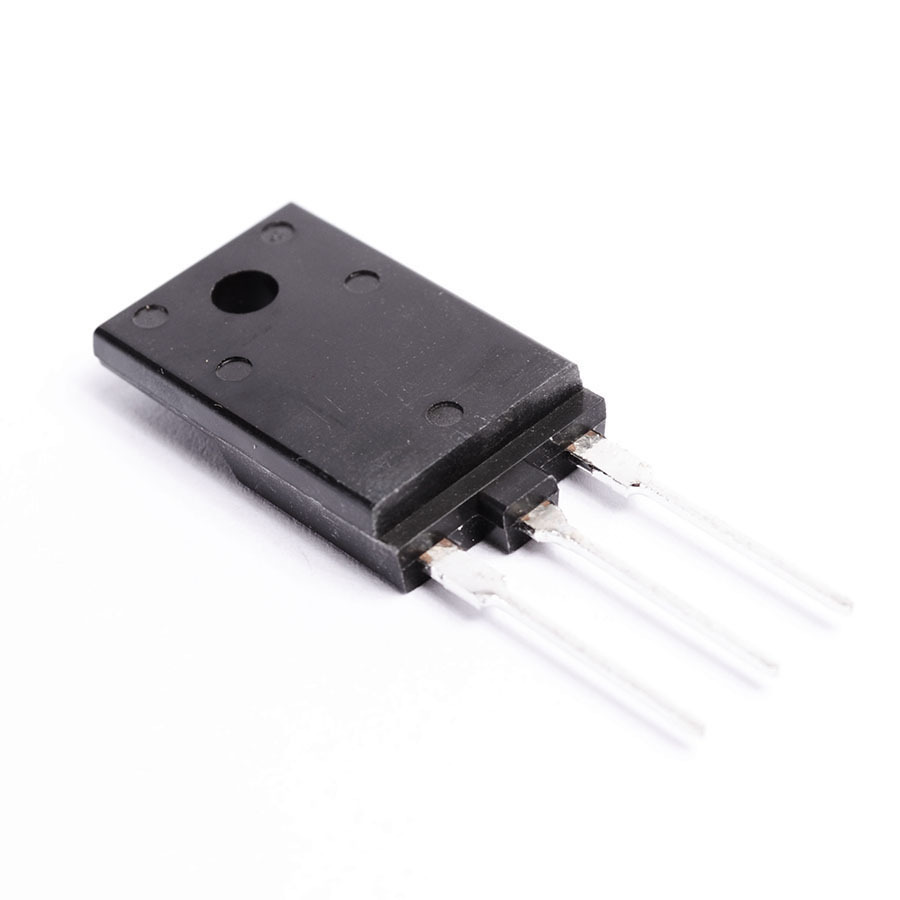

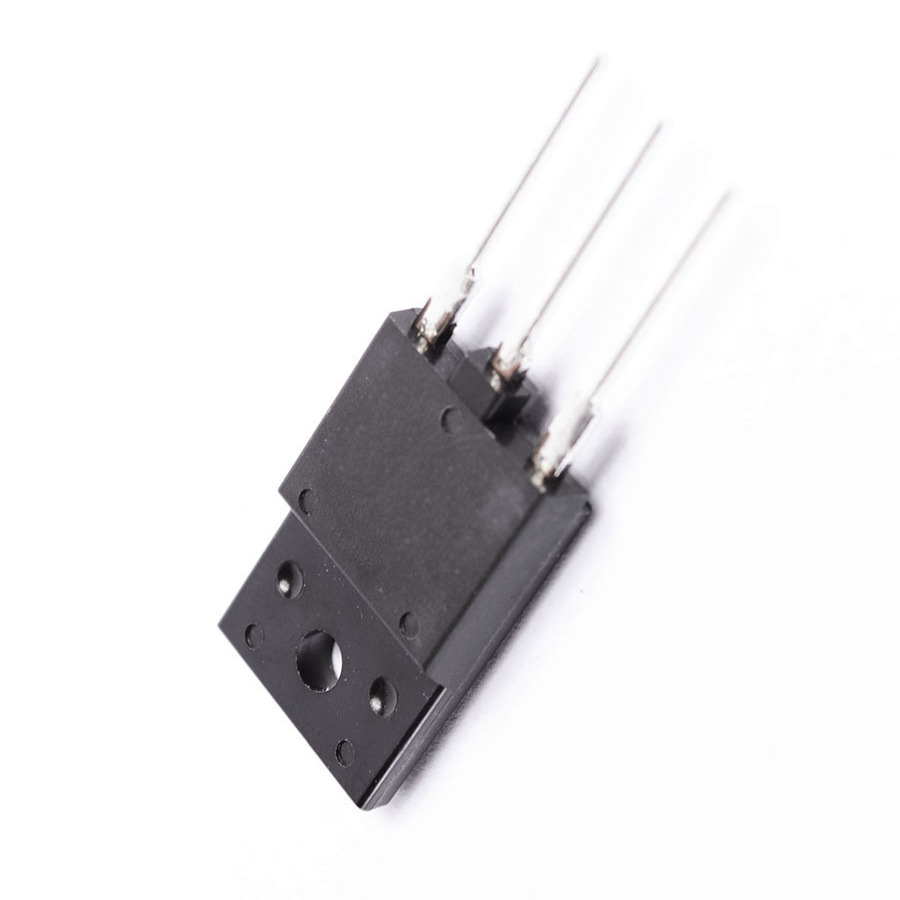

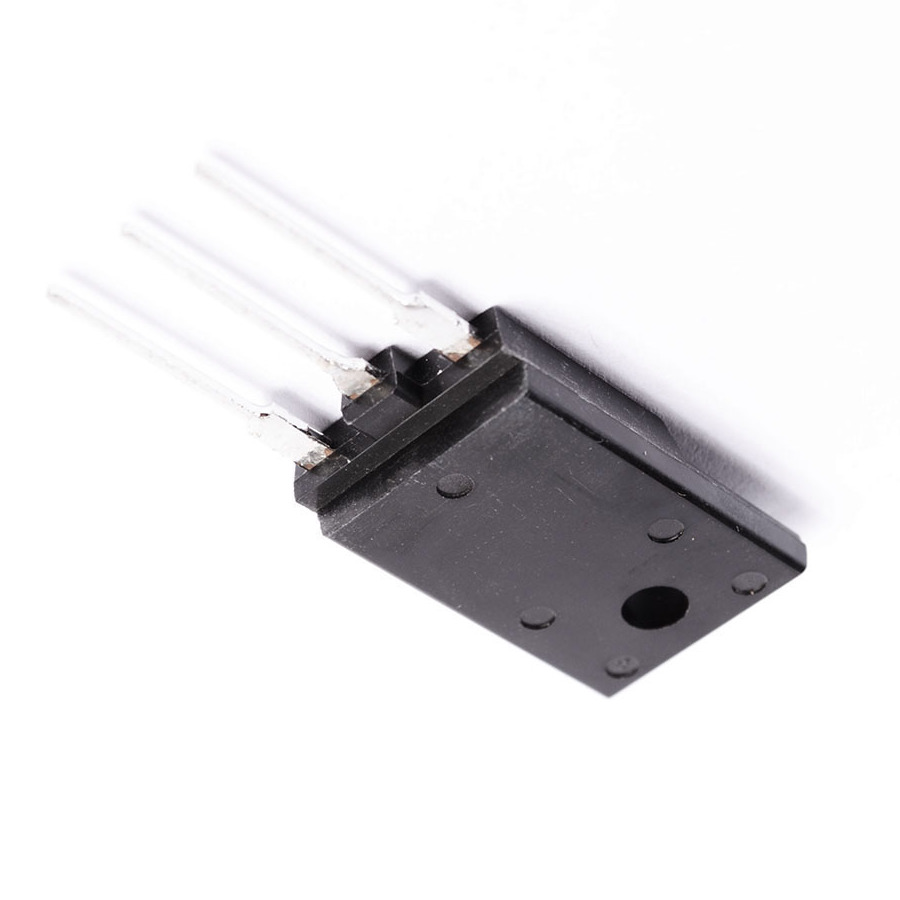

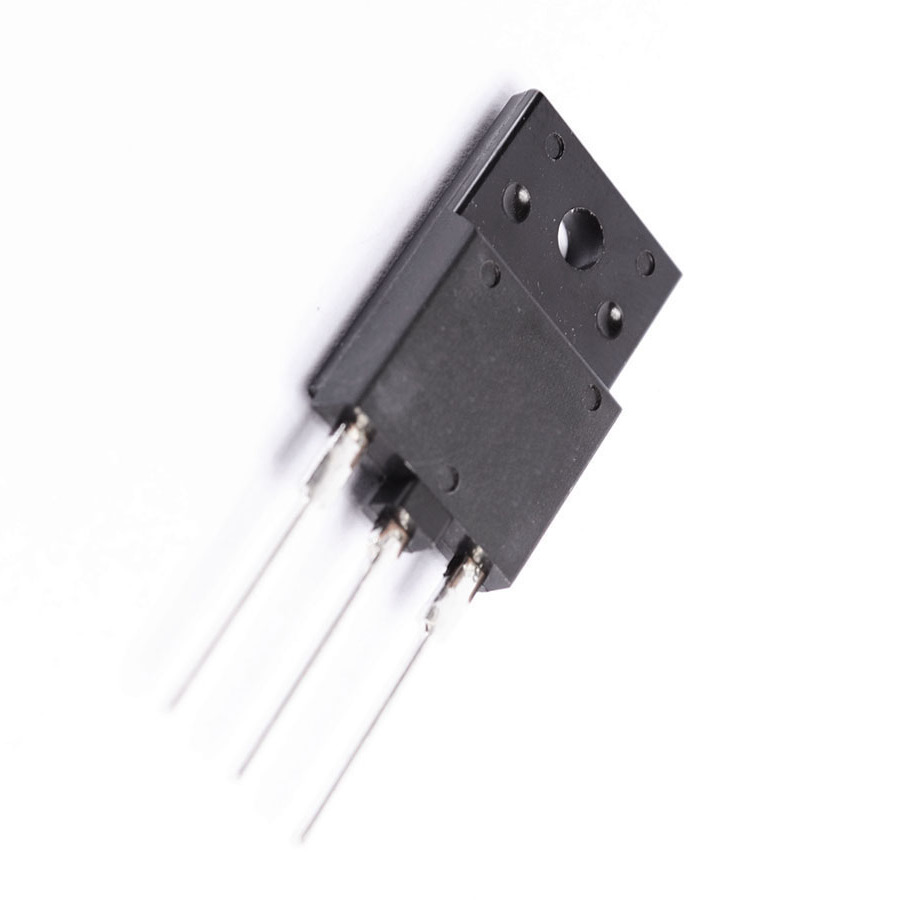

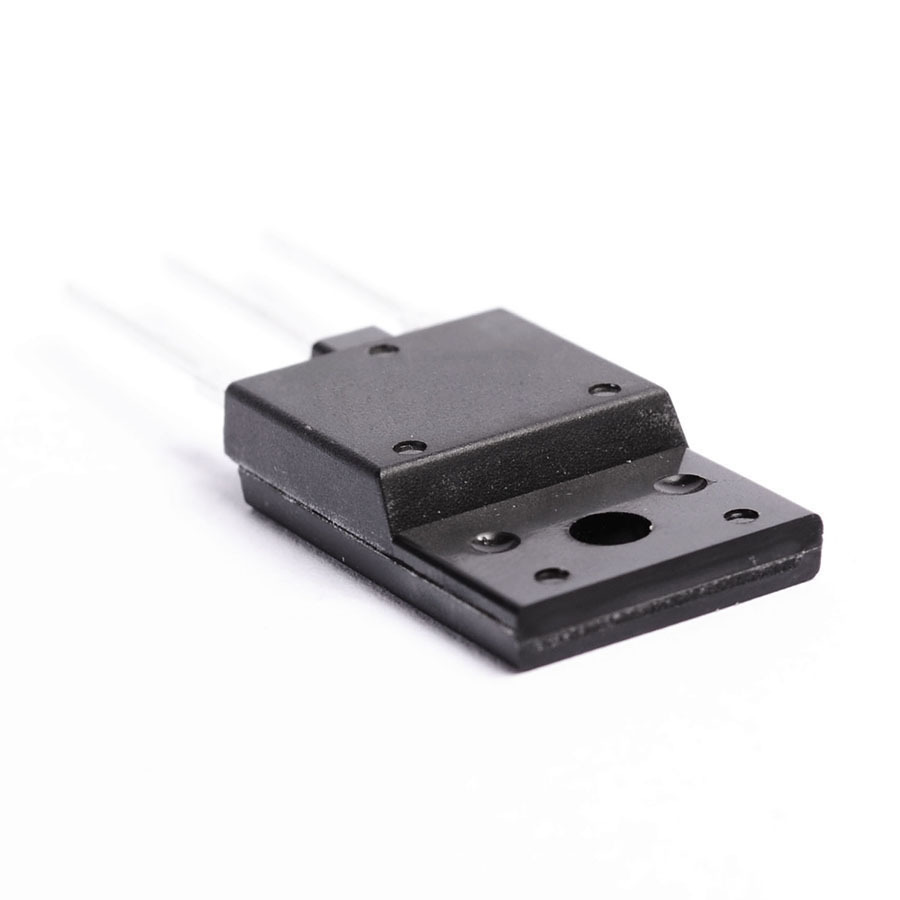

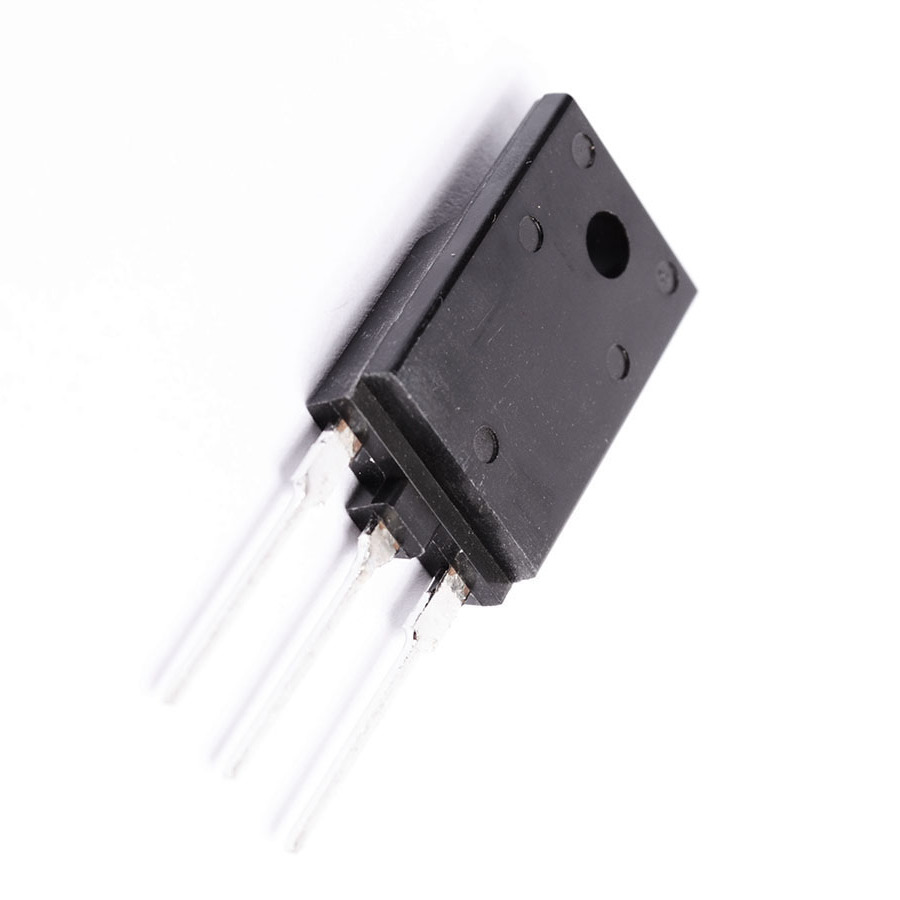

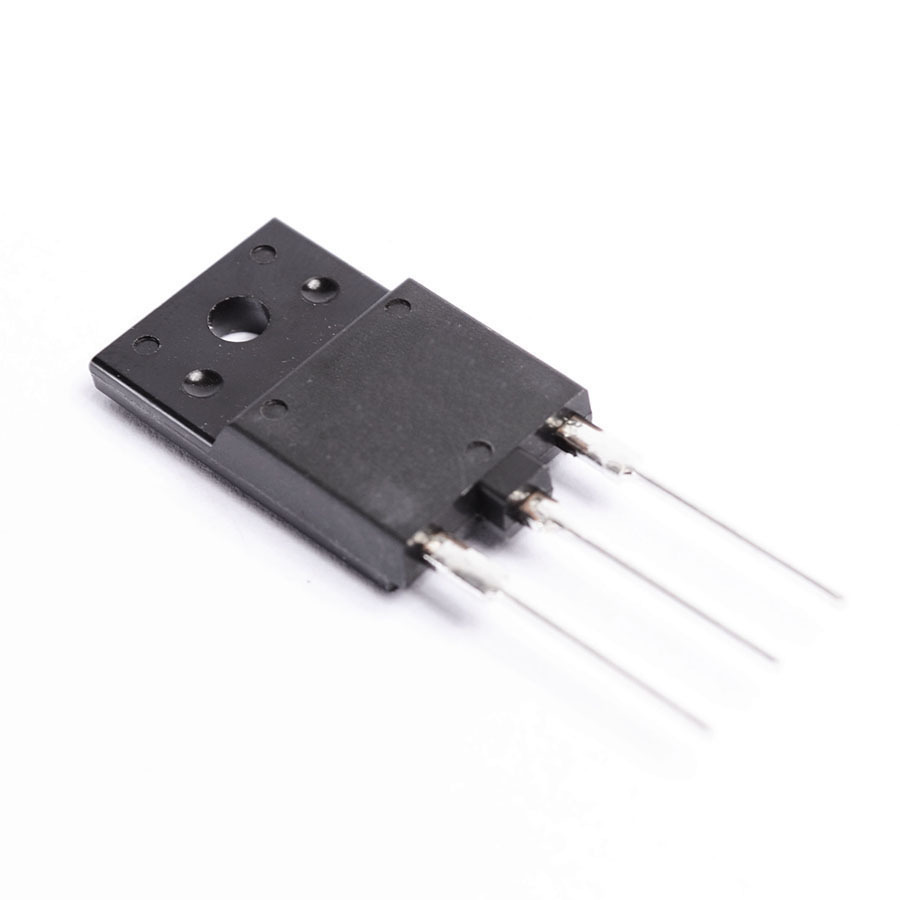

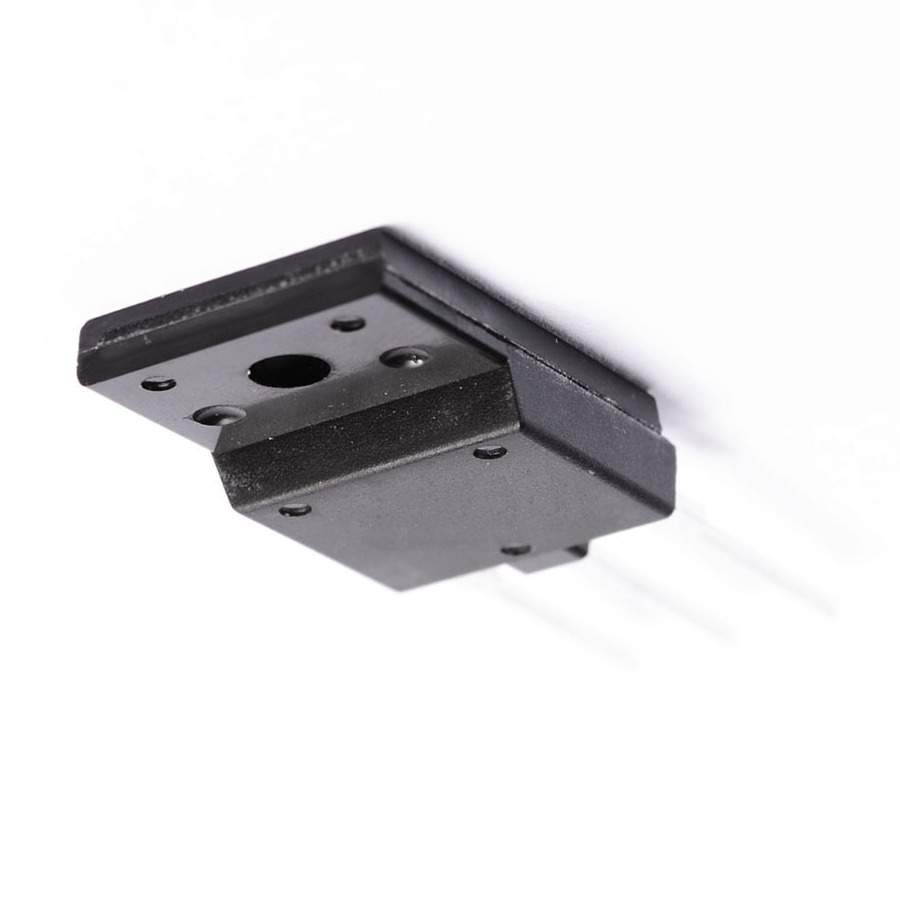

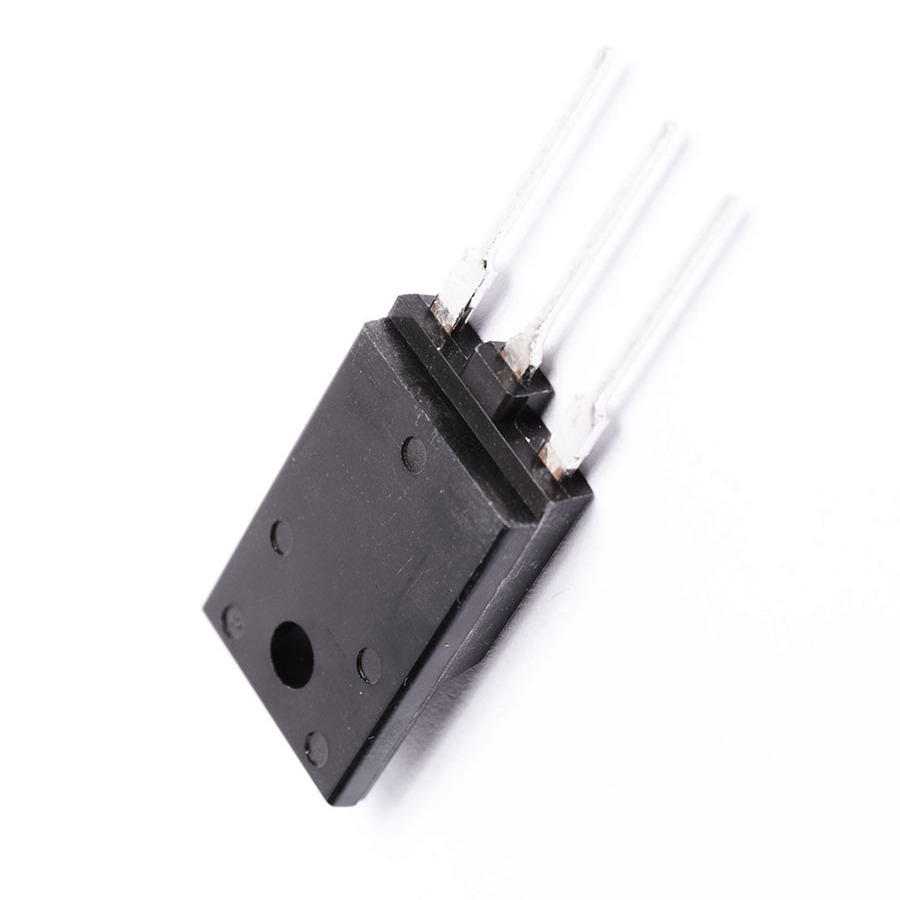

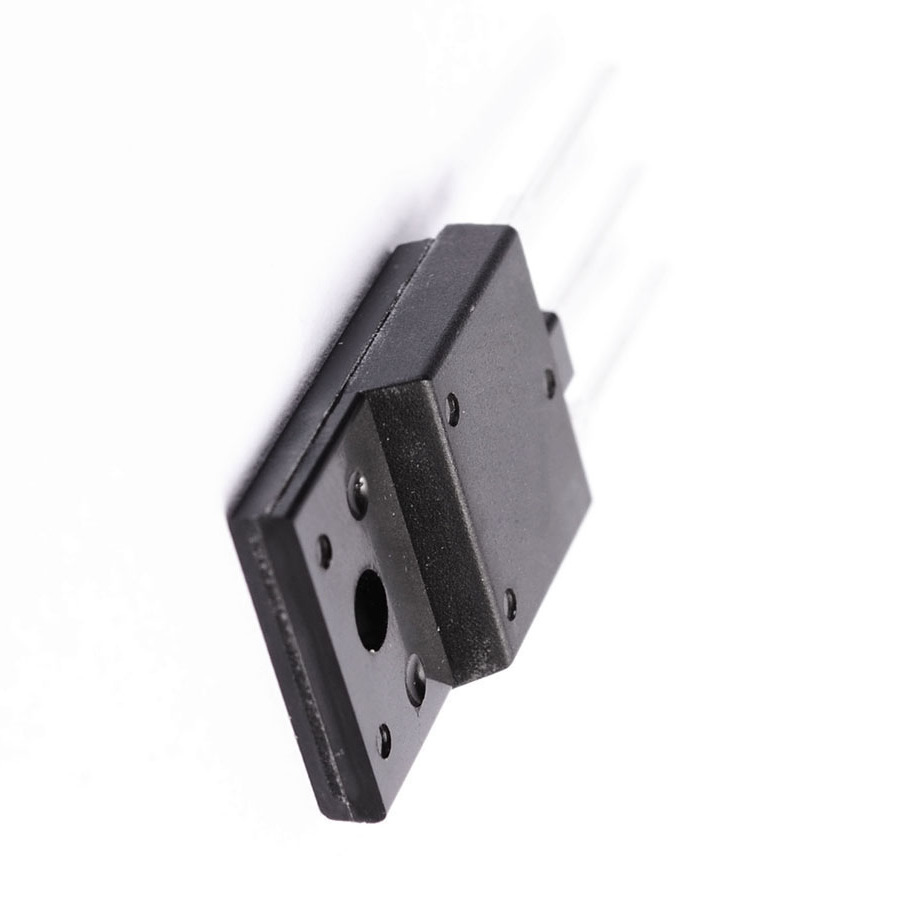

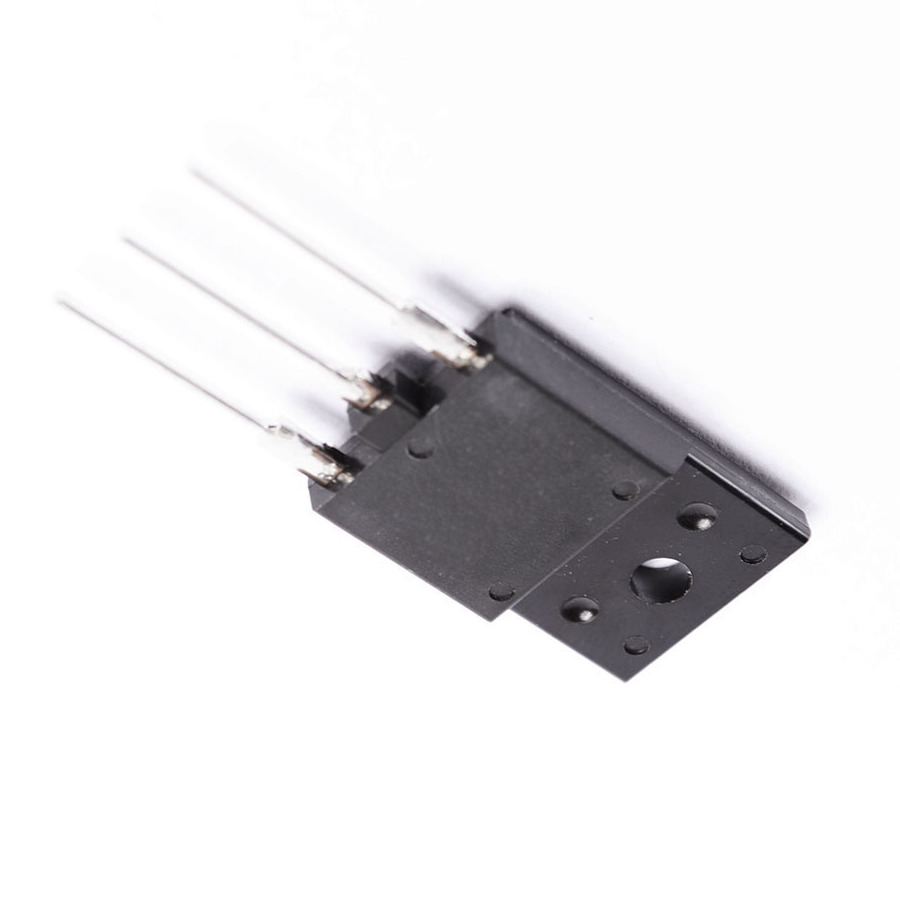

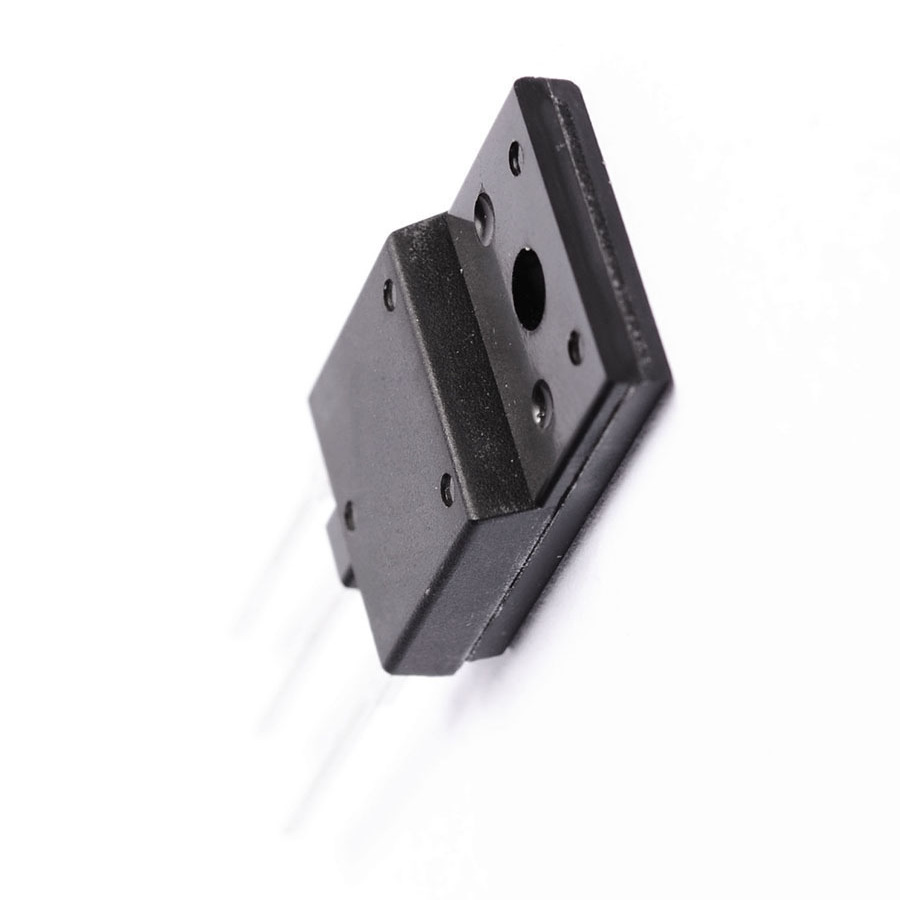

2SC4509 Transistor Silicon NPN CASE: TO3PF MAKE: Fuji Electric
Datasheet
2SC4509 Datasheet
Product specifications
Type Transistor Silicon NPN
Case TO3PF
Manufacturer Fuji Electric
Vbr CBO 500
Vbr CEO 400
Max. PD (W) 80
t(f) Max. (S) 500n
Min hFE 20
Ic Max. (A) 10
@Ic (test) (A) 4.0
Polarity NPN
@VCE (V) 5.0
Pinout Equivalence Number N/A
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 80 W
Maximum Collector-Base Voltage |Vcb| 500 V
Maximum Collector-Emitter Voltage |Vce| 400 V
Maximum Emitter-Base Voltage |Veb| 10 V
Maximum Collector Current |Ic max| 10 A
Forward Current Transfer Ratio (hFE), MIN 25
SKU 344591
