2SC4601

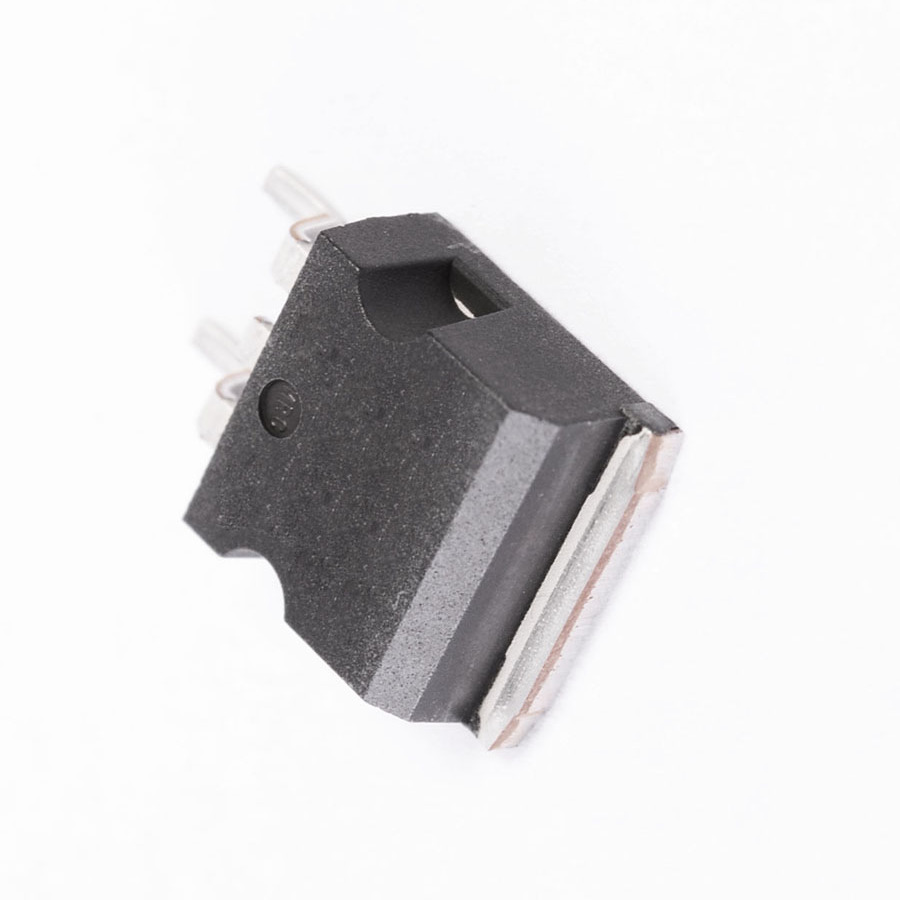

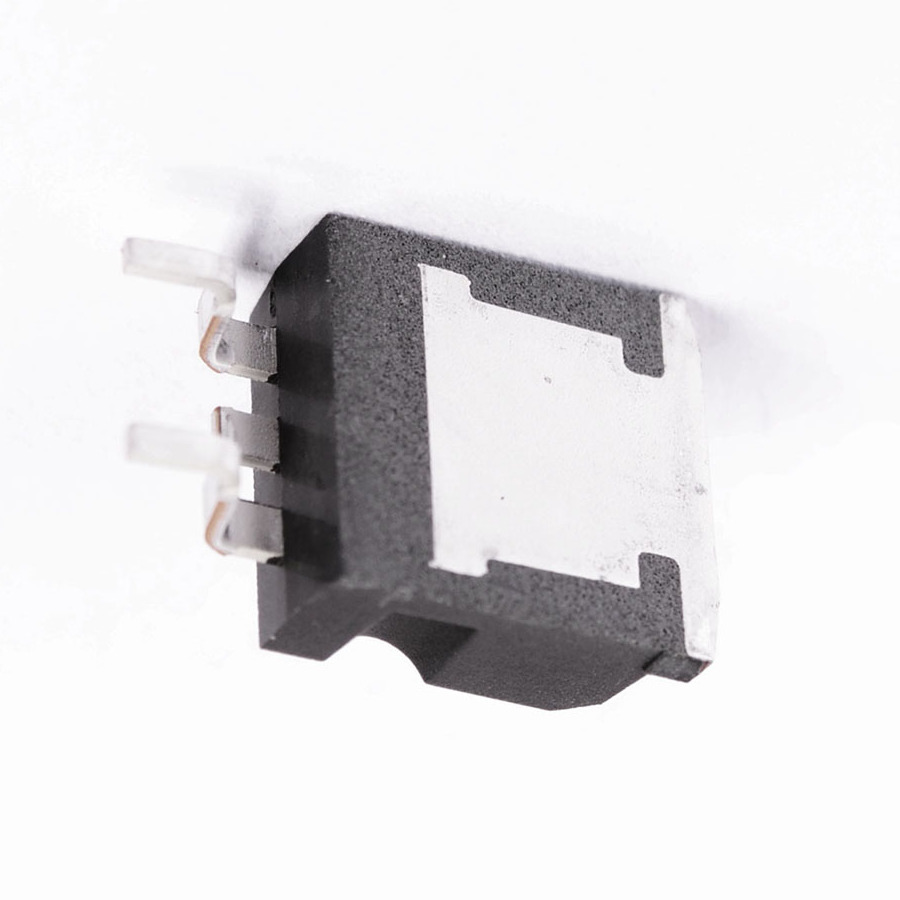

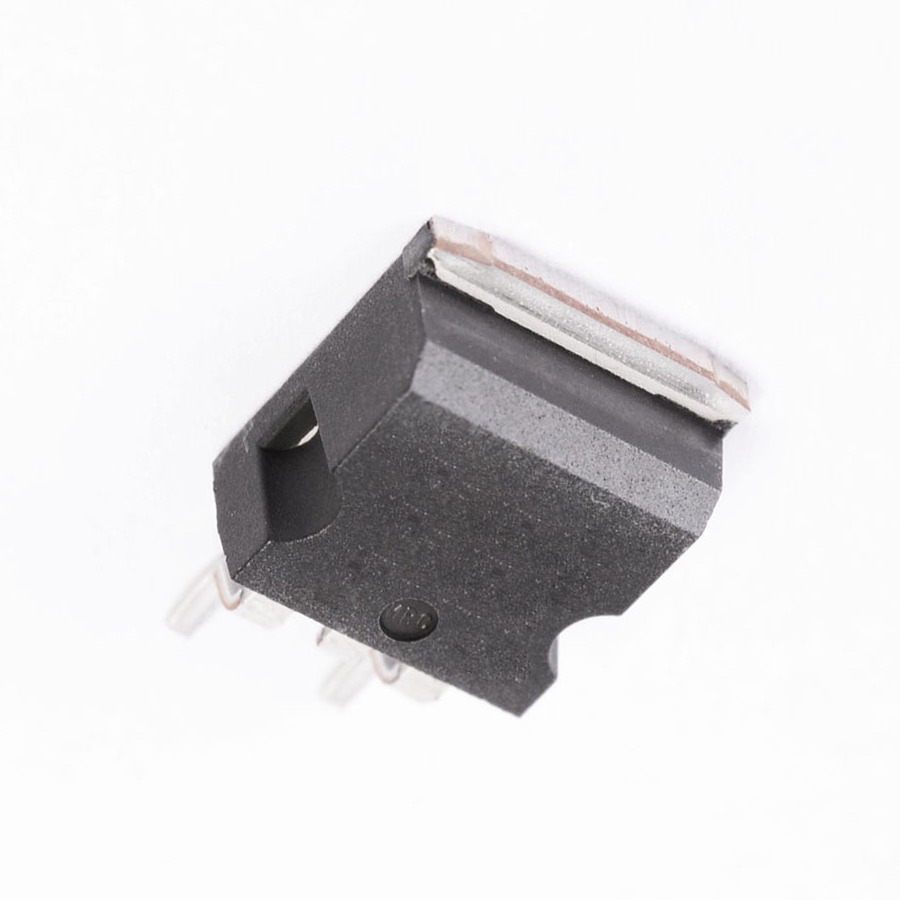

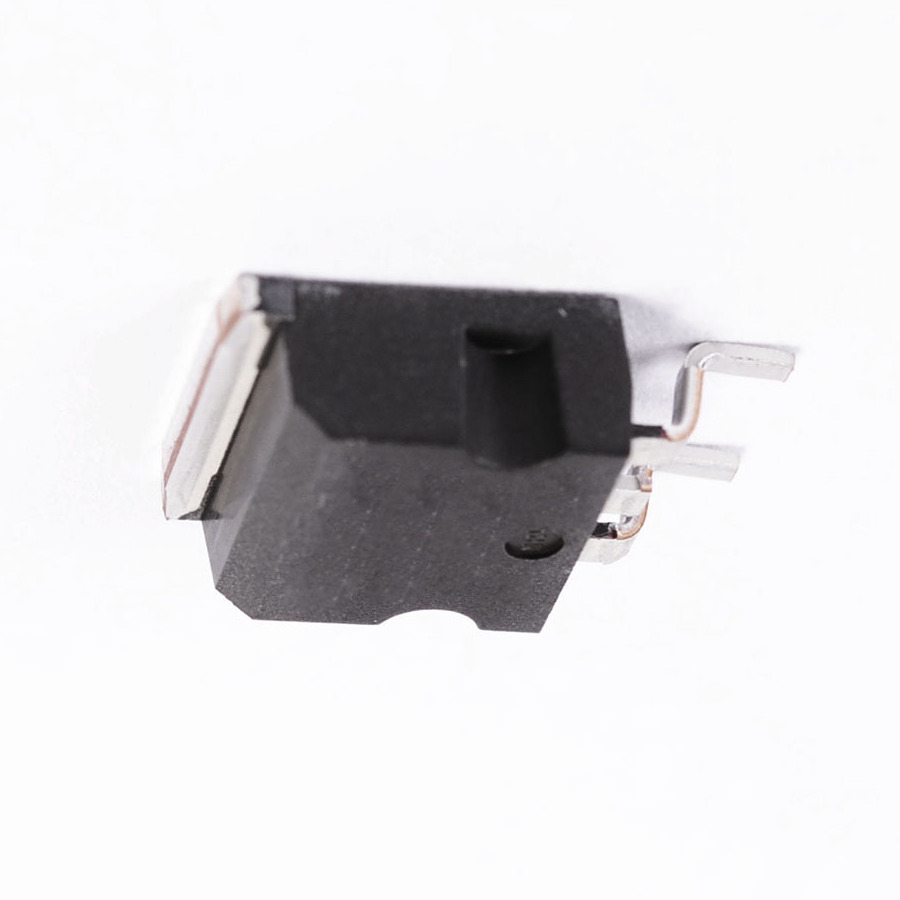

View detailed images (12)

2SC4601

SKU: 2SC4601
2SC4601 Transistor Silicon NPN CASE: TO263 MAKE: Sanyo Semiconductor
Datasheet
2SC4601 Datasheet
Product specifications
Type Transistor Silicon NPN
Case TO263
Manufacturer Sanyo Semiconductor
Vbr CBO 1.1k
Vbr CEO 800
Max. PD (W) 40
t(f) Max. (S) 300n
Max. hFE 40
Min hFE 10
Ic Max. (A) 1.5
@Ic (test) (A) 100m
Icbo Max. @Vcb Max. (A) 10u
Polarity NPN
Tr Max. (s) 500n
Trans. Freq (Hz) Min. 15M
Oper. Temp (°C) Max. 150
@VCE (V) 5.0
Pinout Equivalence Number 3-15
Surface Mounted Yes/No YES
Maximum Collector Power Dissipation (Pc) 40 W
Maximum Collector-Base Voltage |Vcb| 1100 V
Maximum Collector-Emitter Voltage |Vce| 800 V
Maximum Collector Current |Ic max| 1.5 A
Max. Operating Junction Temperature (Tj) 150 °C
Transition Frequency (ft): 15 MHz
Forward Current Transfer Ratio (hFE), MIN 200
SKU 344643
