2SC4754
View detailed images (12)

2SC4754

SKU: 2SC4754

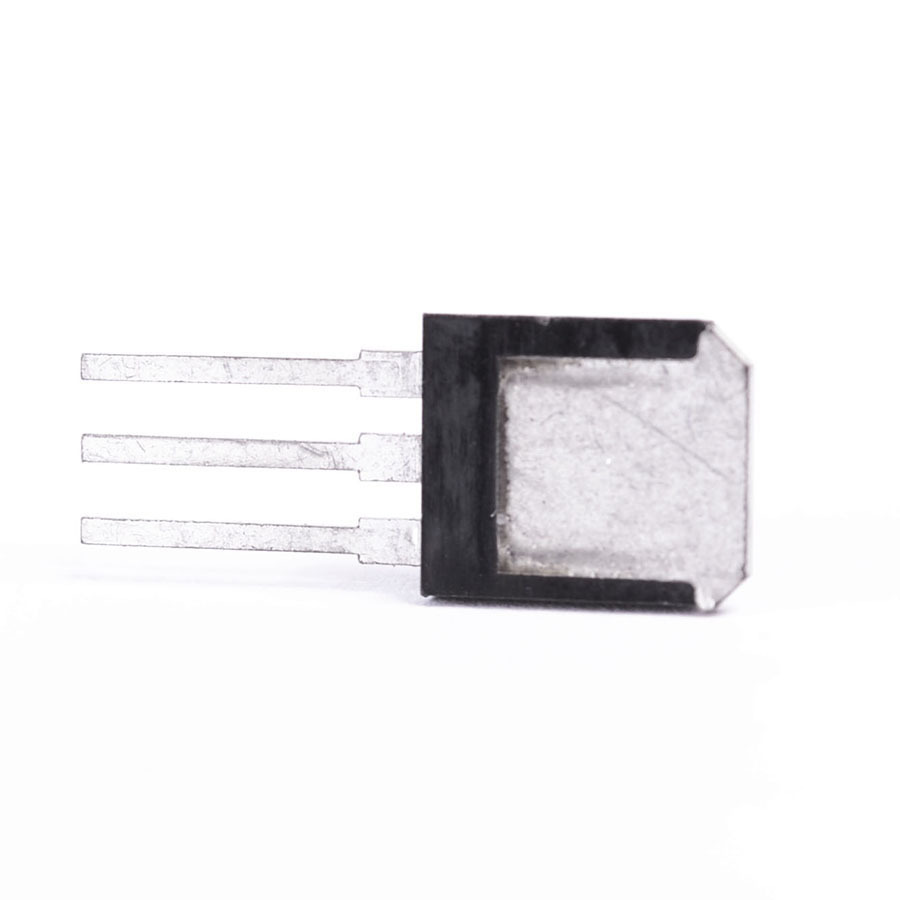

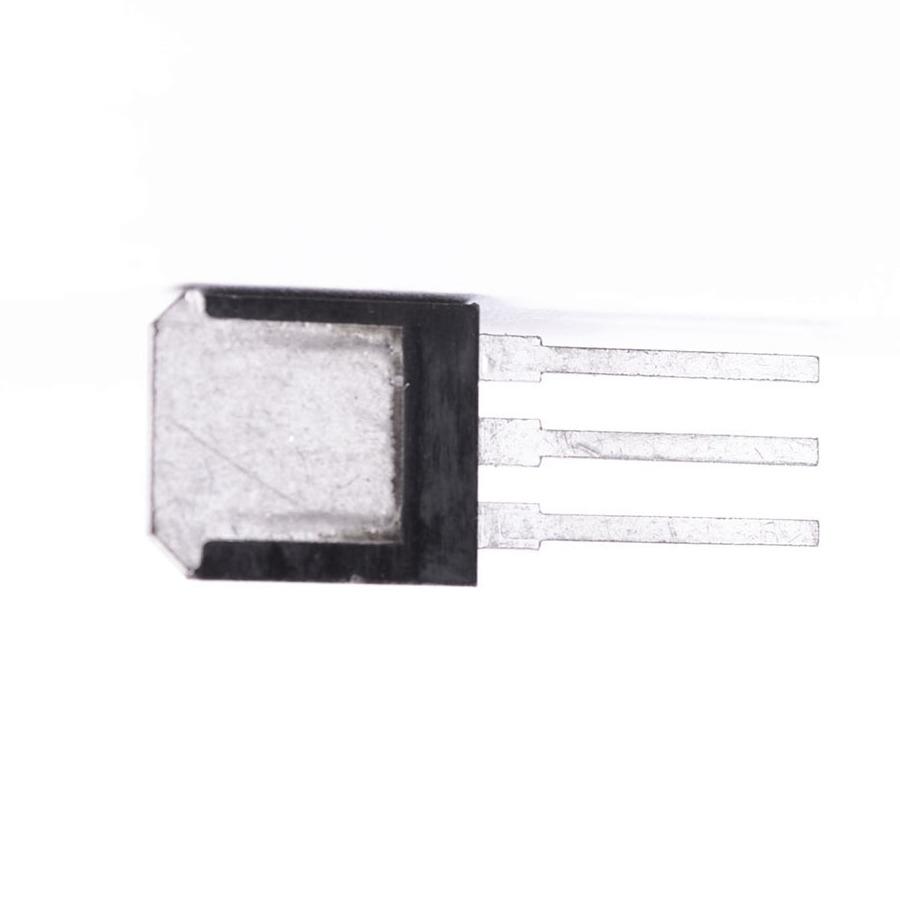

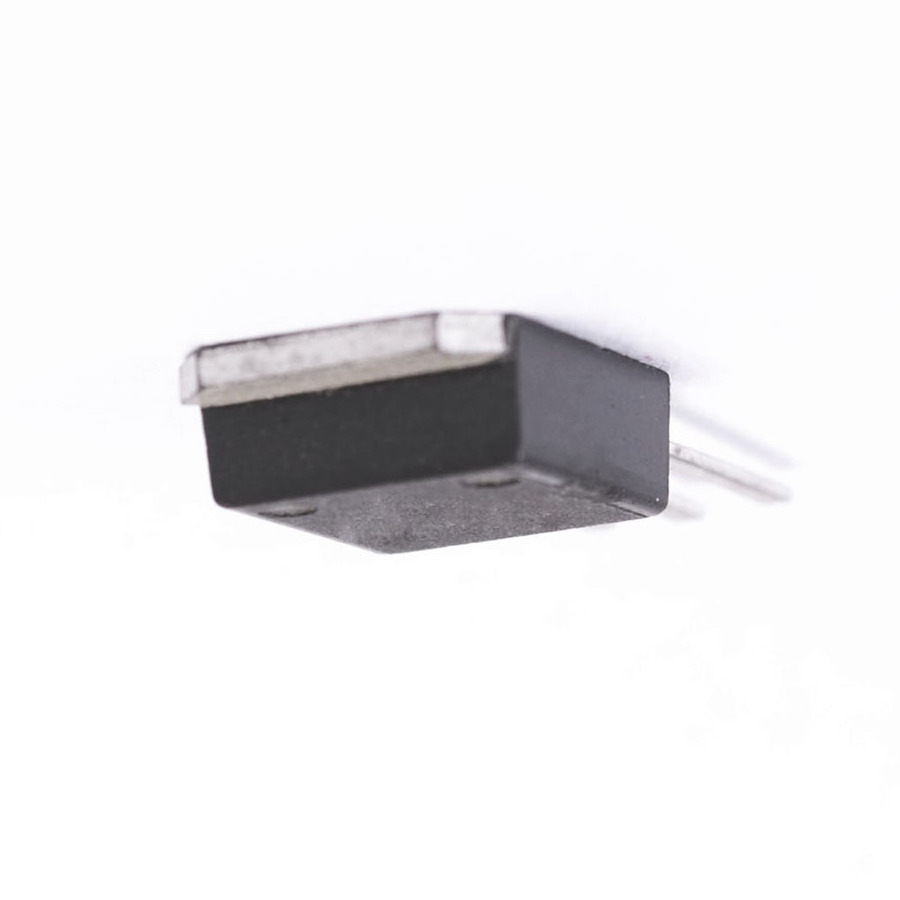

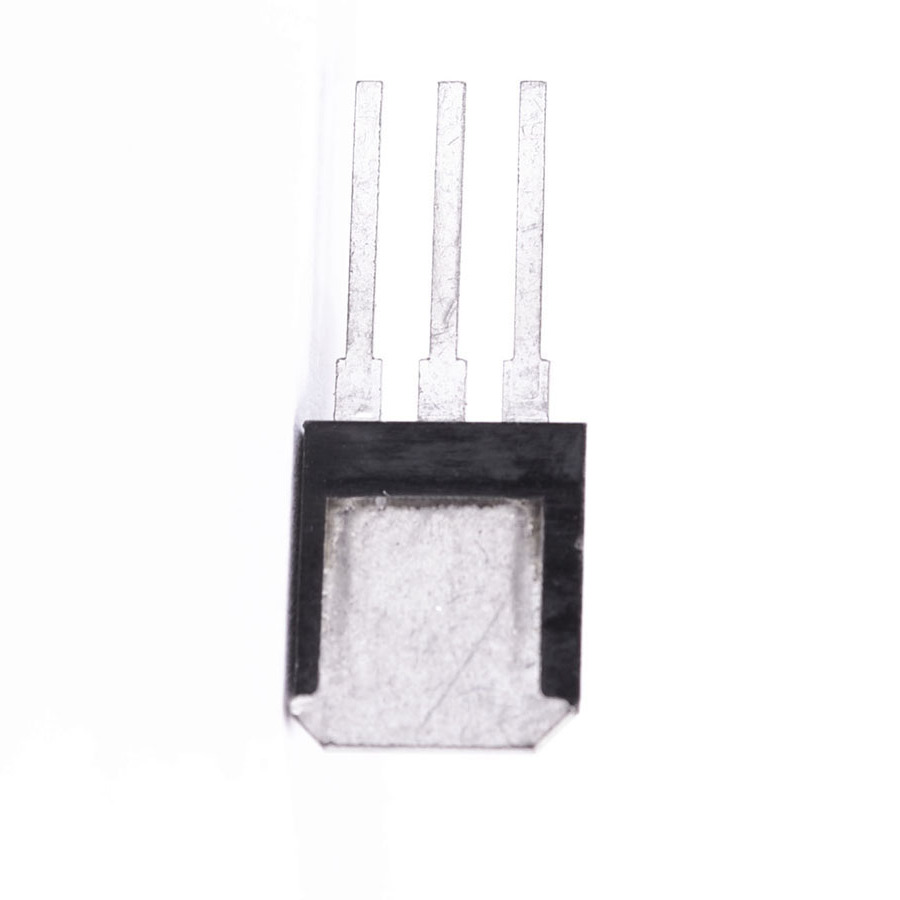

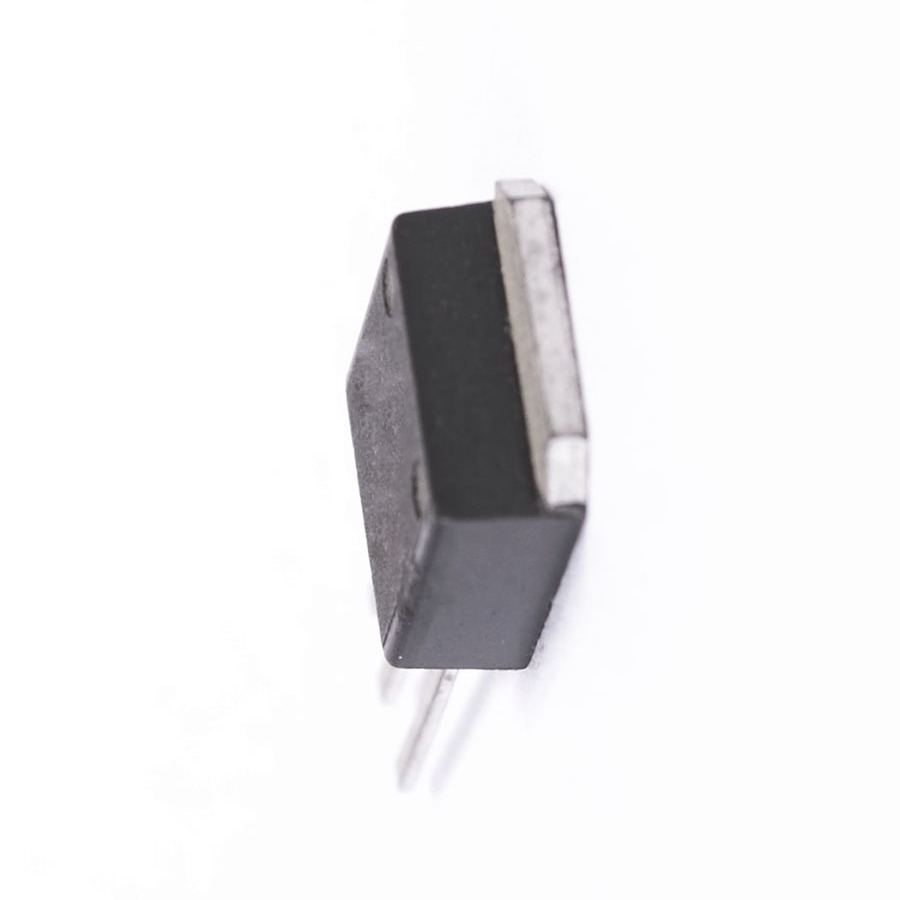

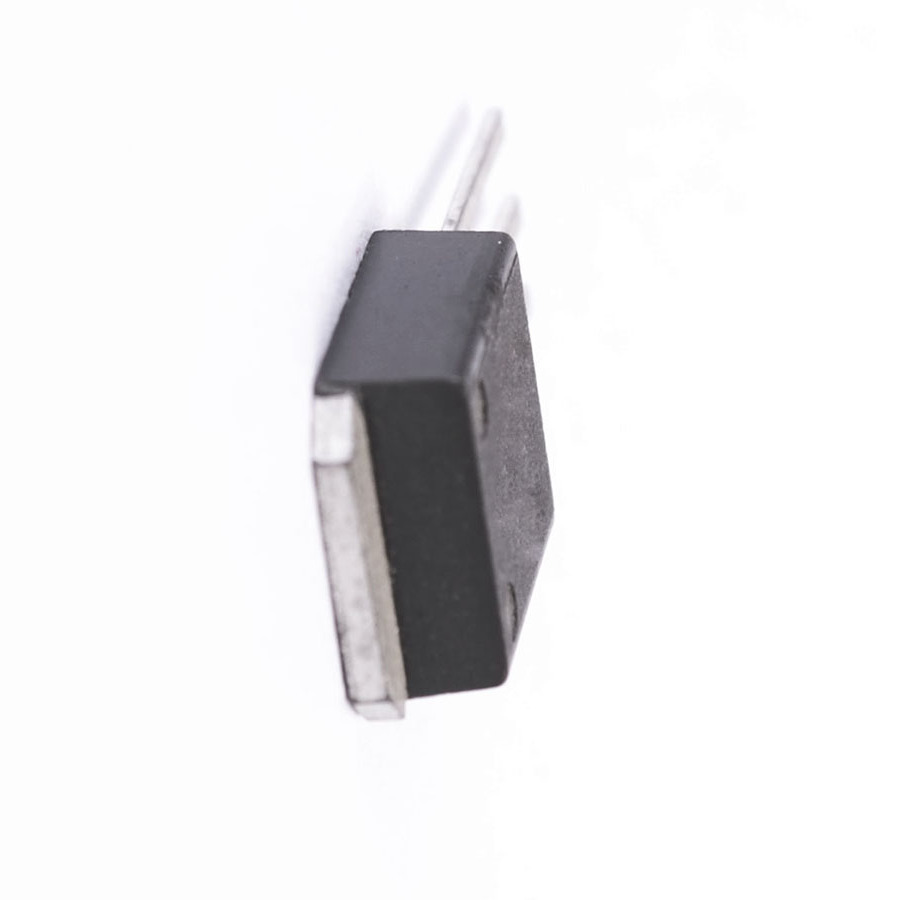

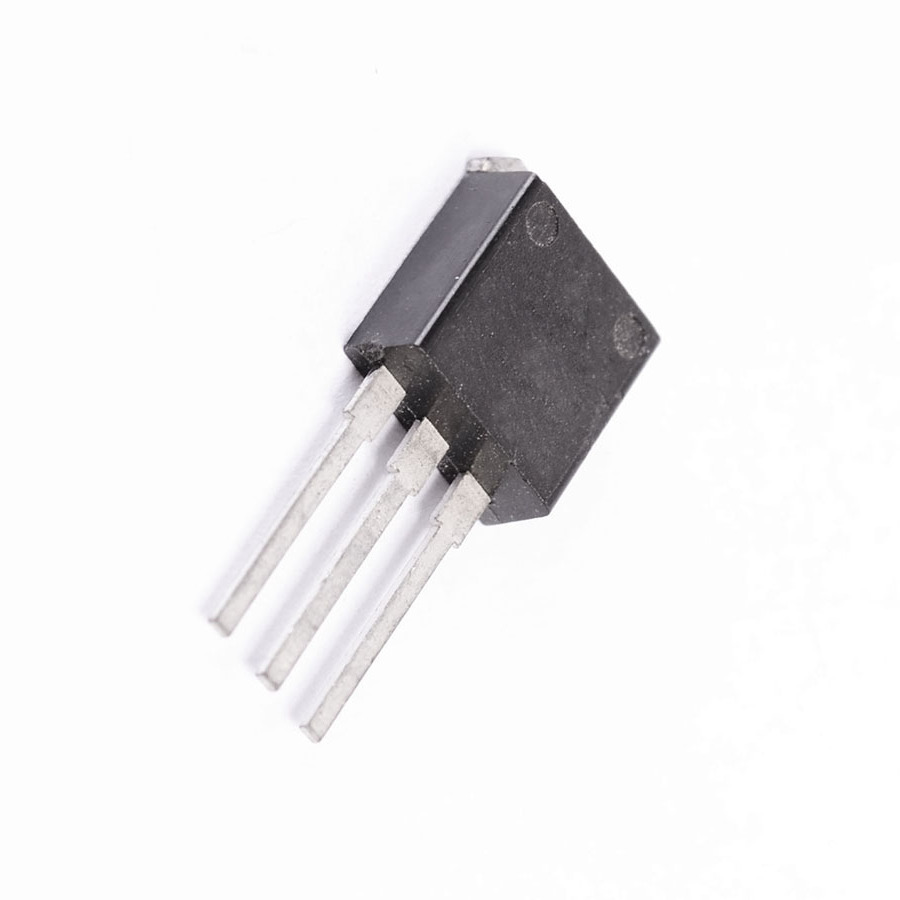

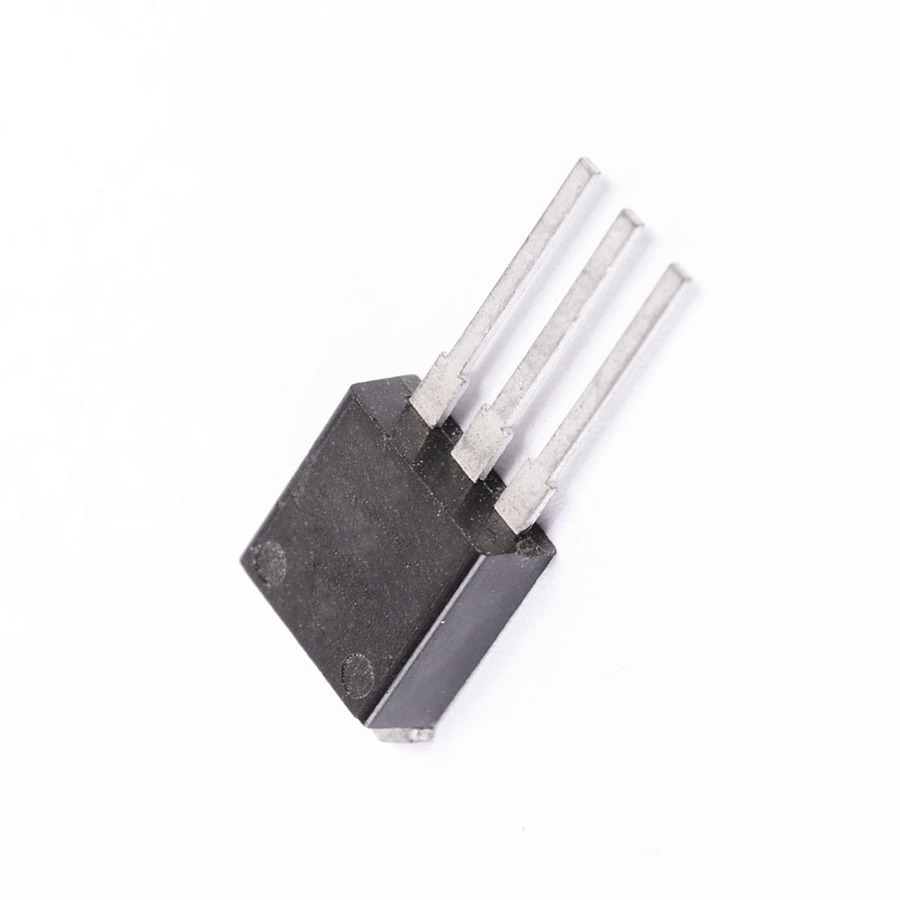

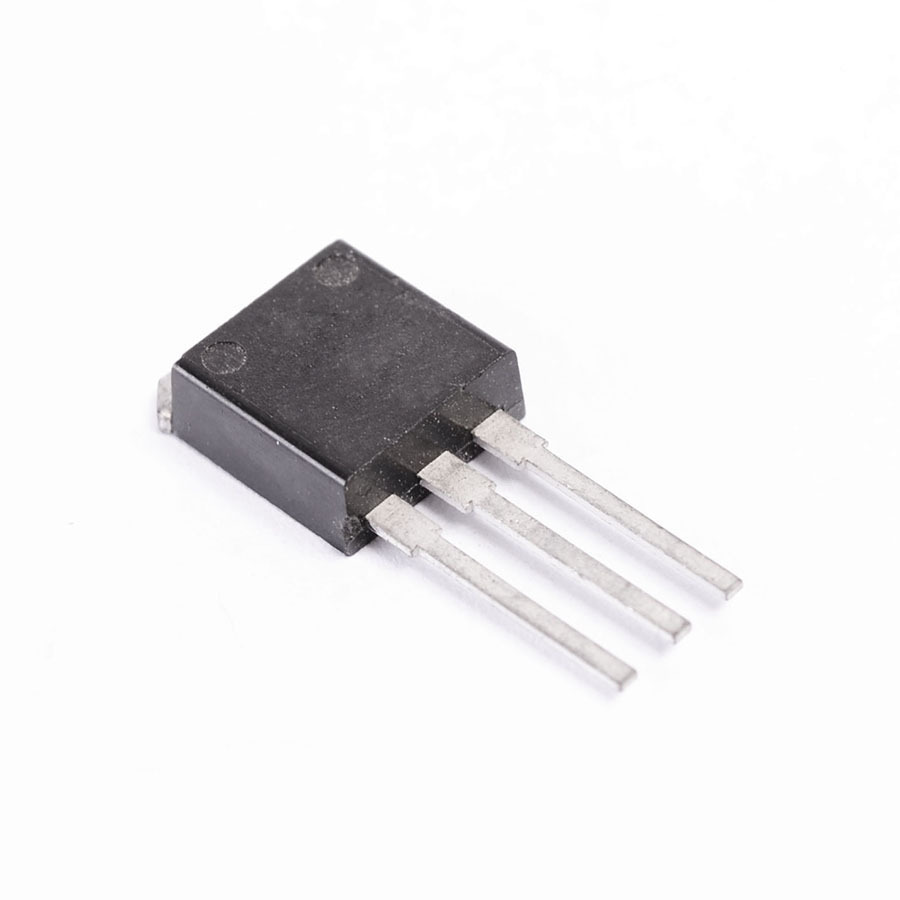

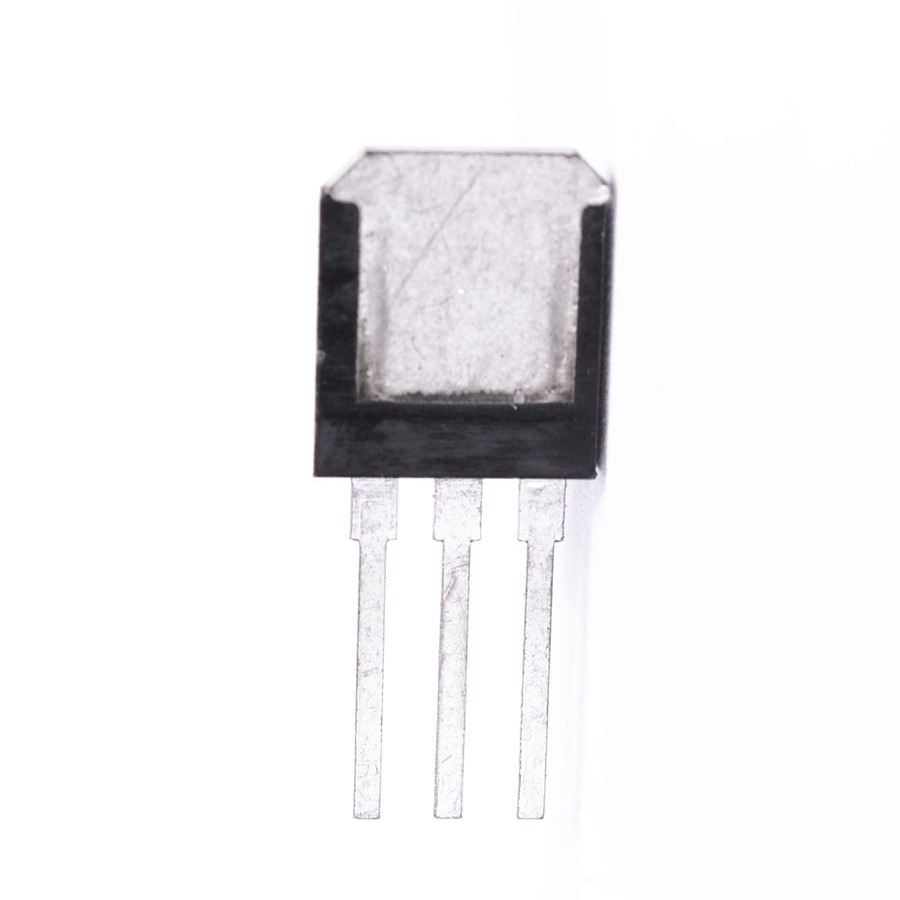

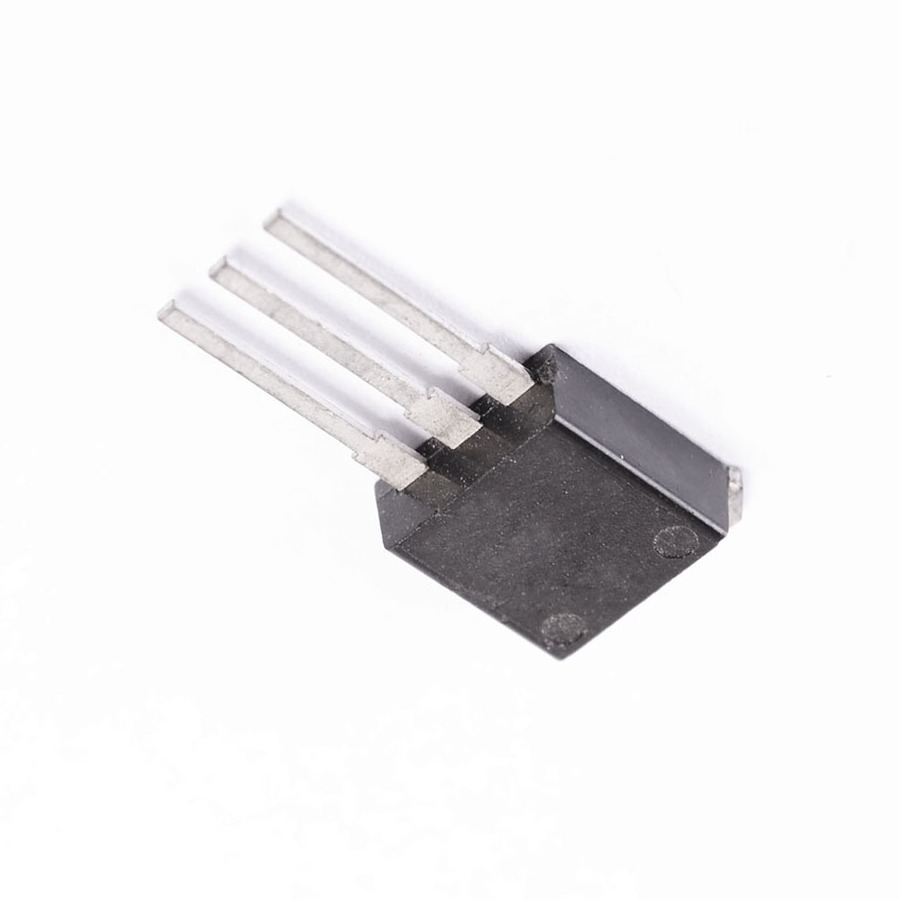

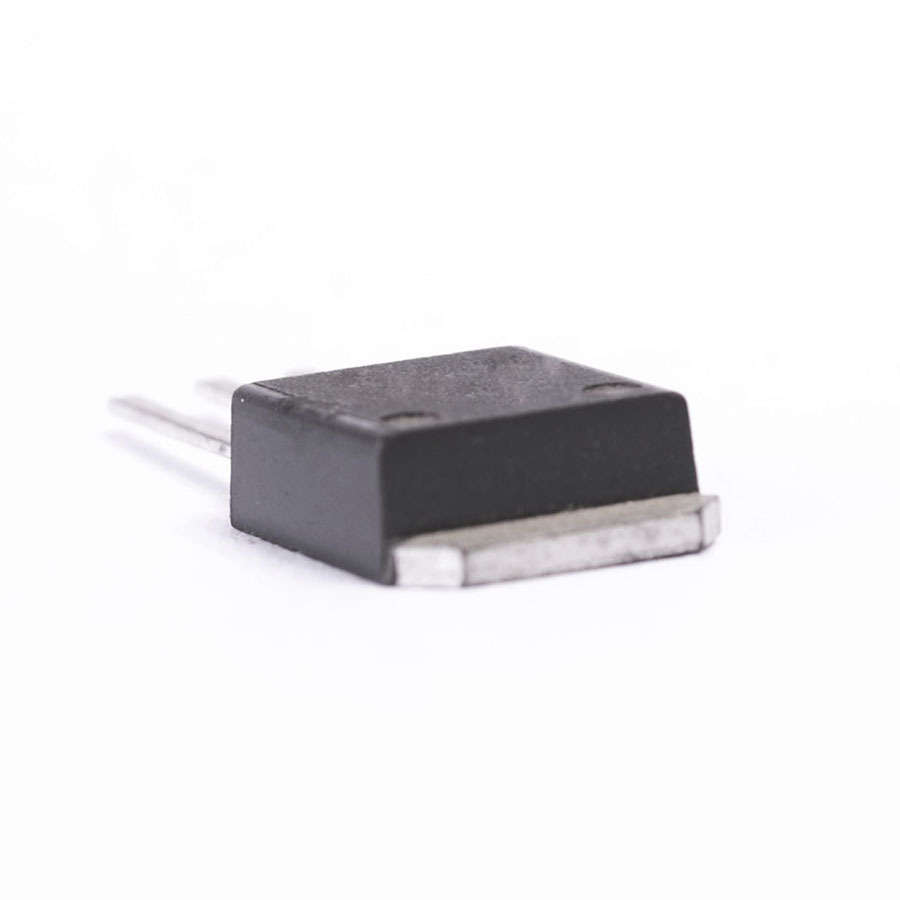

2SC4754 Transistor Silicon NPN CASE: TO262 MAKE: Toshiba
Datasheet
2SC4754 Datasheet
Product specifications
Type Transistor Silicon NPN
Case TO262
Manufacturer Toshiba
Polarity NPN
Maximum Collector Power Dissipation (Pc) 20 W
Maximum Collector-Base Voltage |Vcb| 600 V
Maximum Collector-Emitter Voltage |Vce| 400 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 2 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 175 pF
Transition Frequency (ft): 1 MHz
Forward Current Transfer Ratio (hFE), MIN 4
SKU 344756
