2SC4938
View detailed images (12)

2SC4938

SKU: 2SC4938

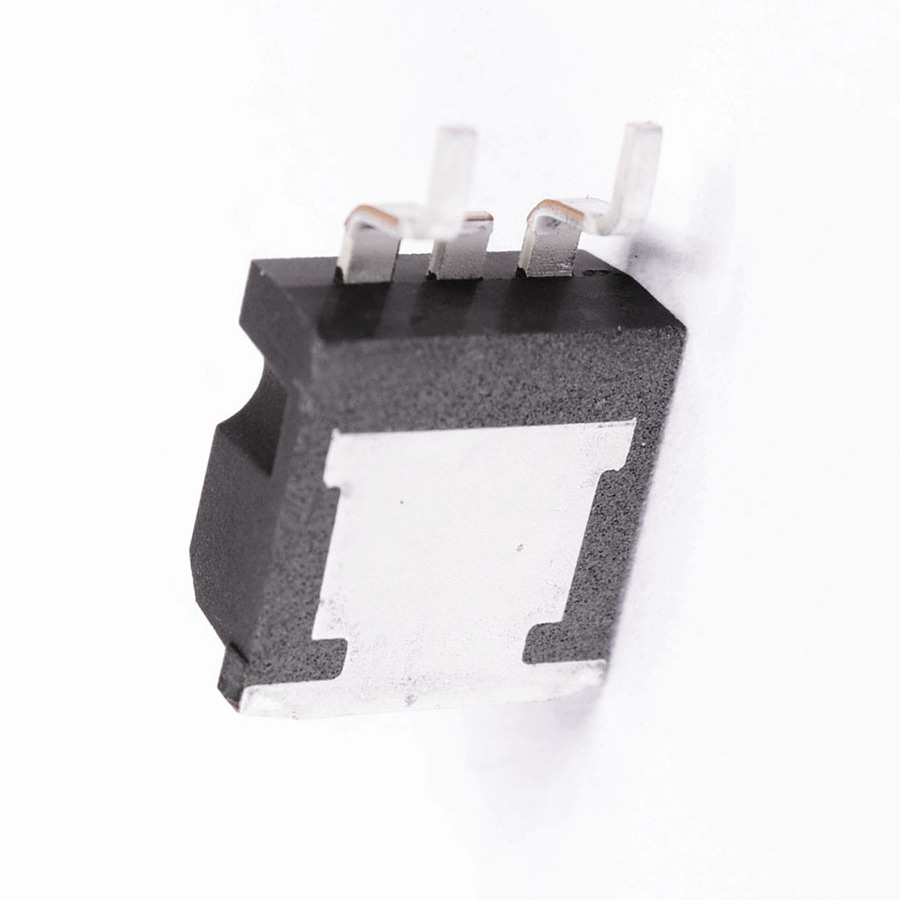

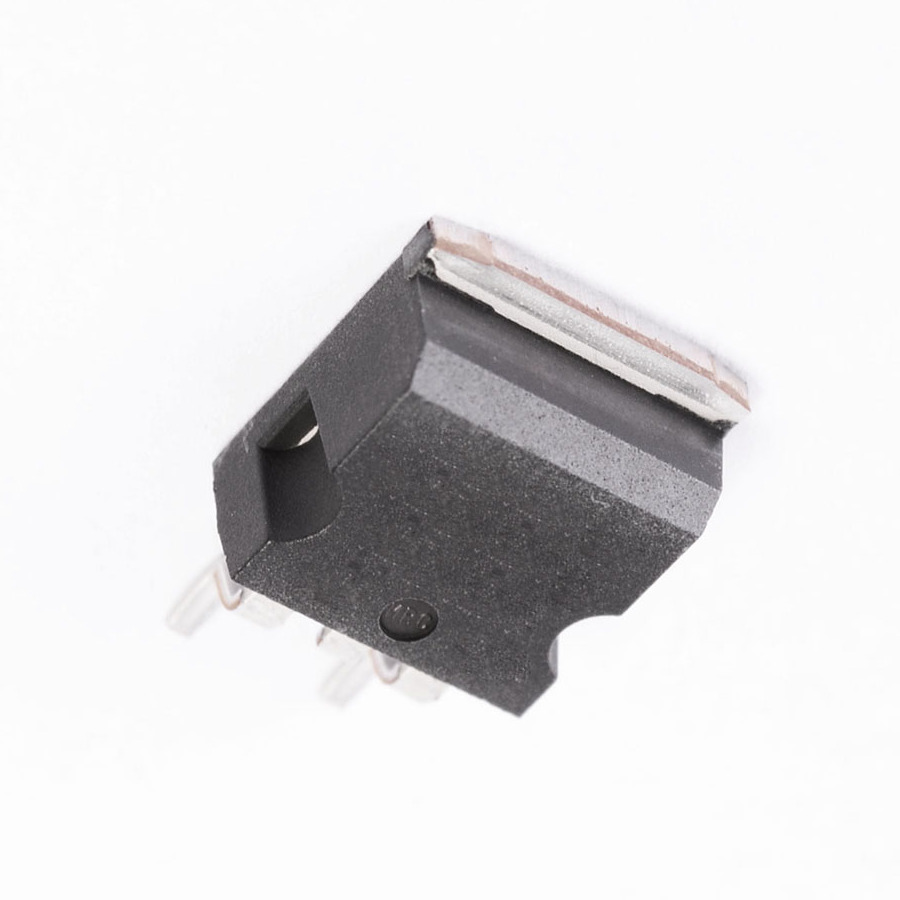

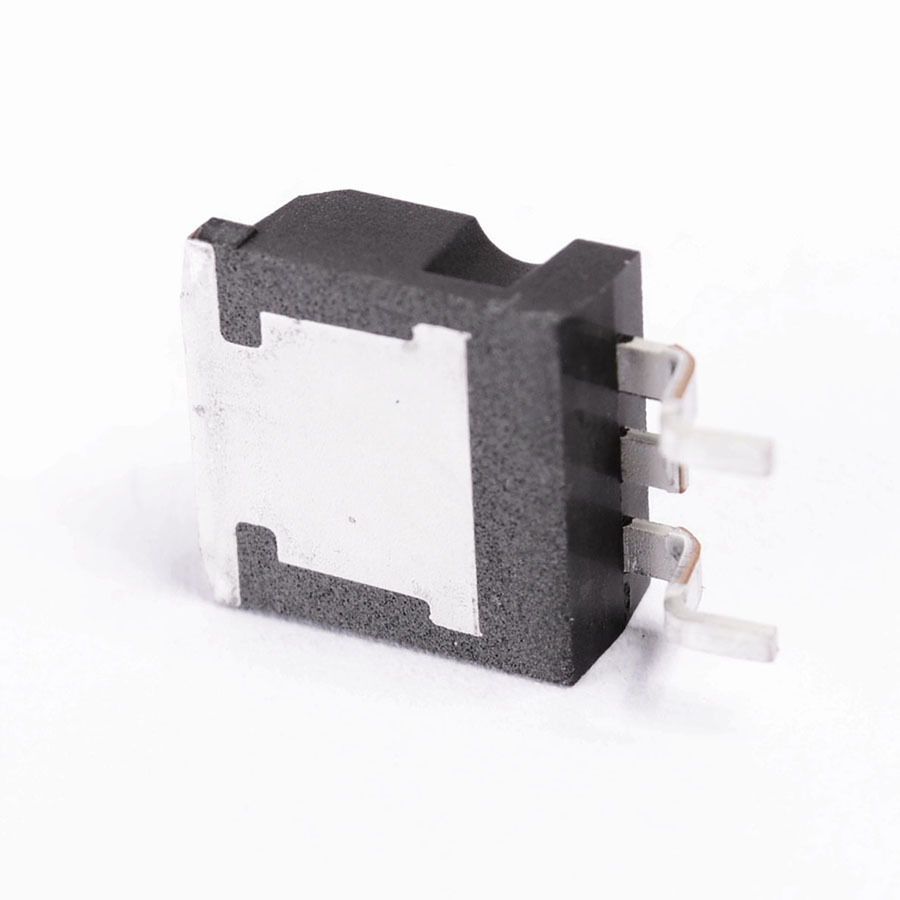

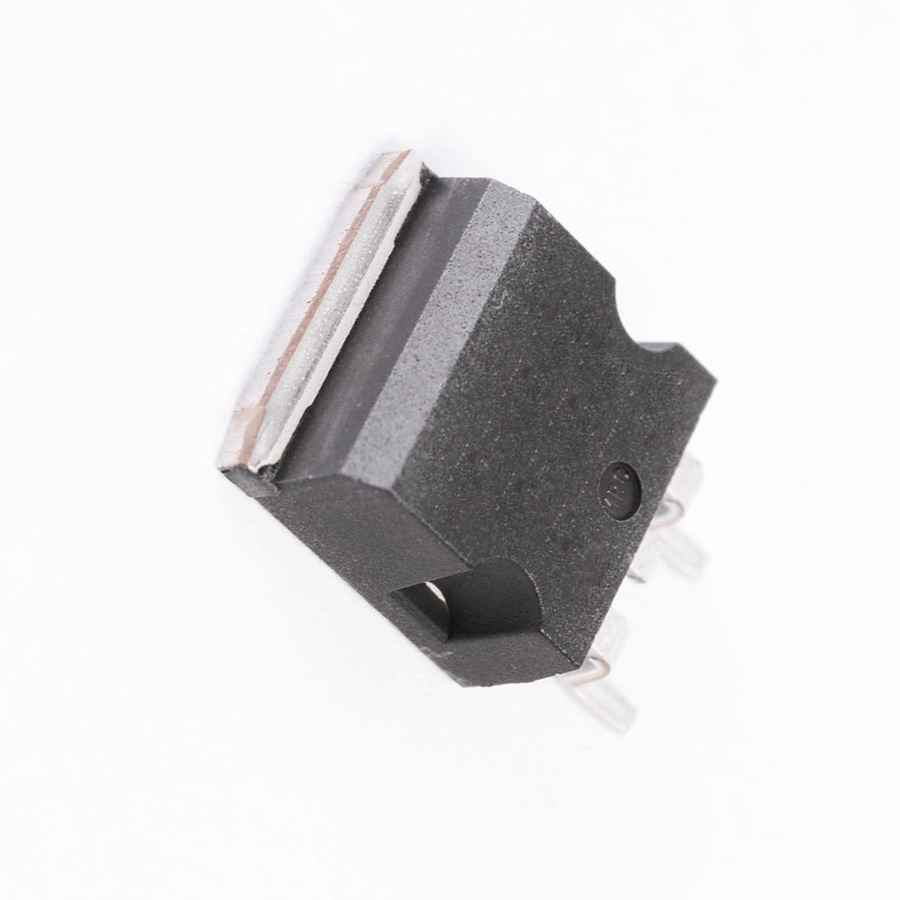

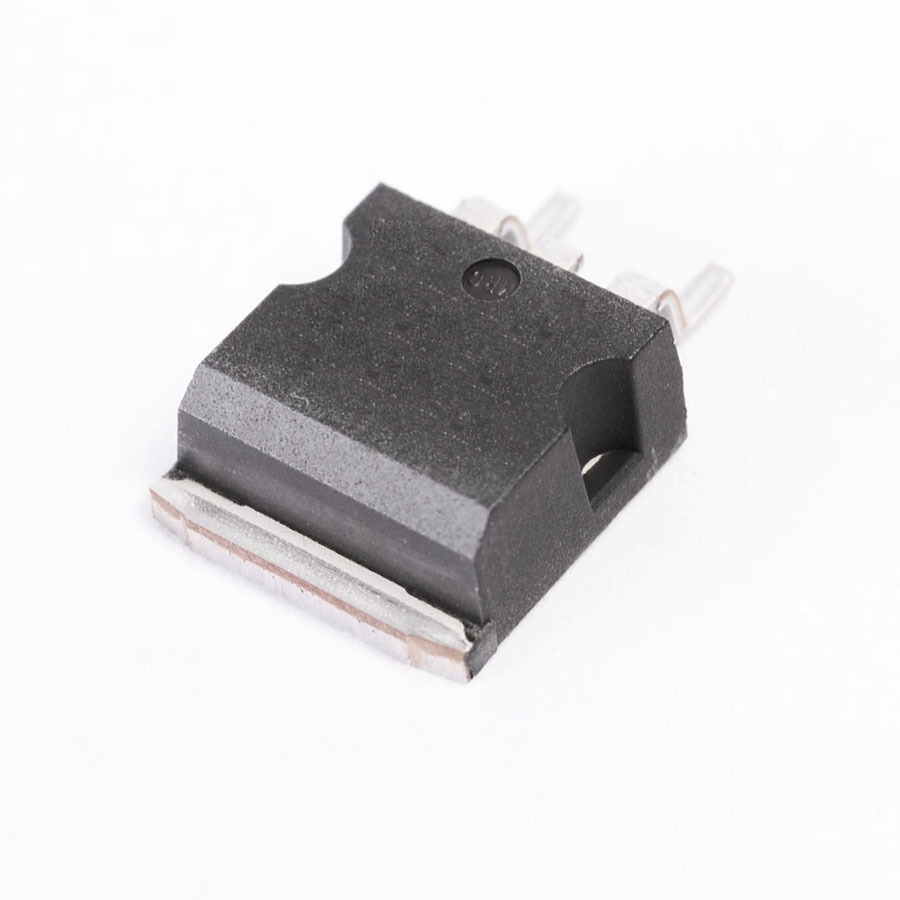

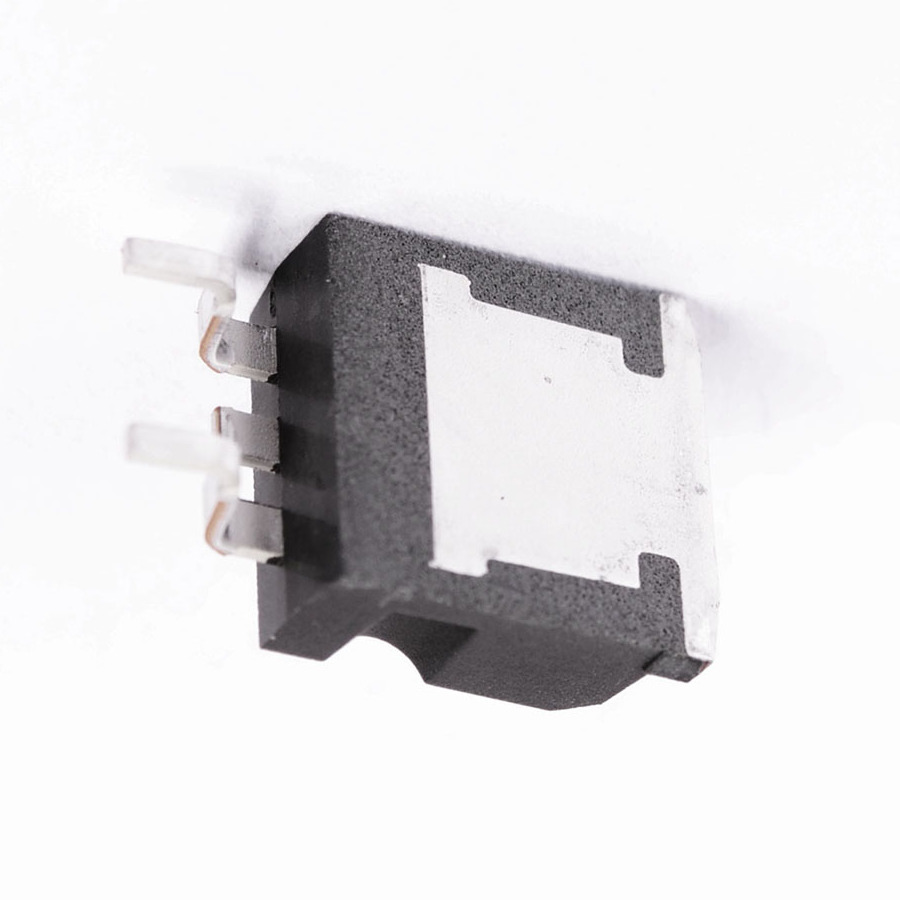

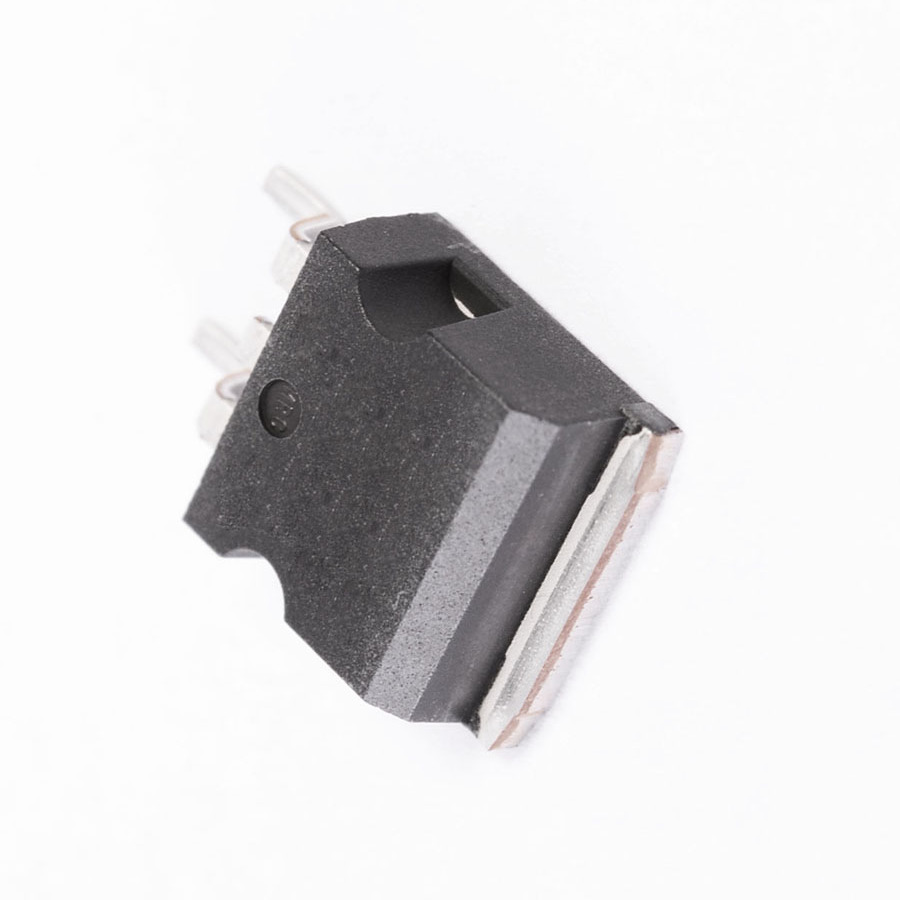

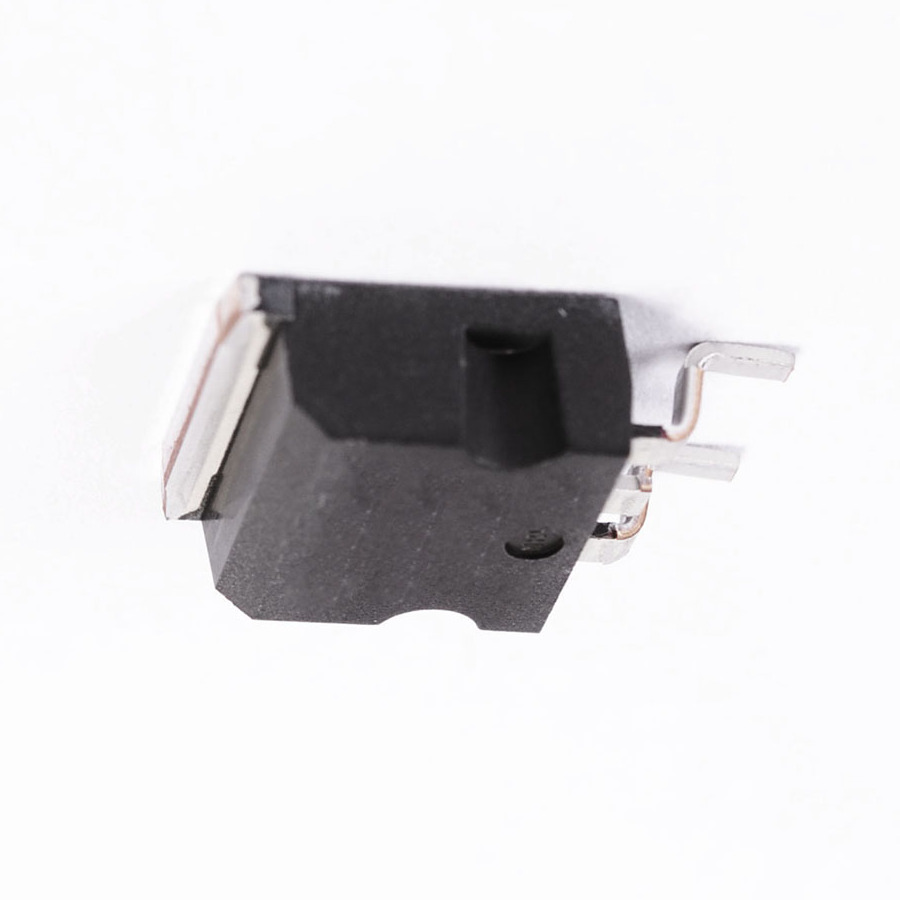

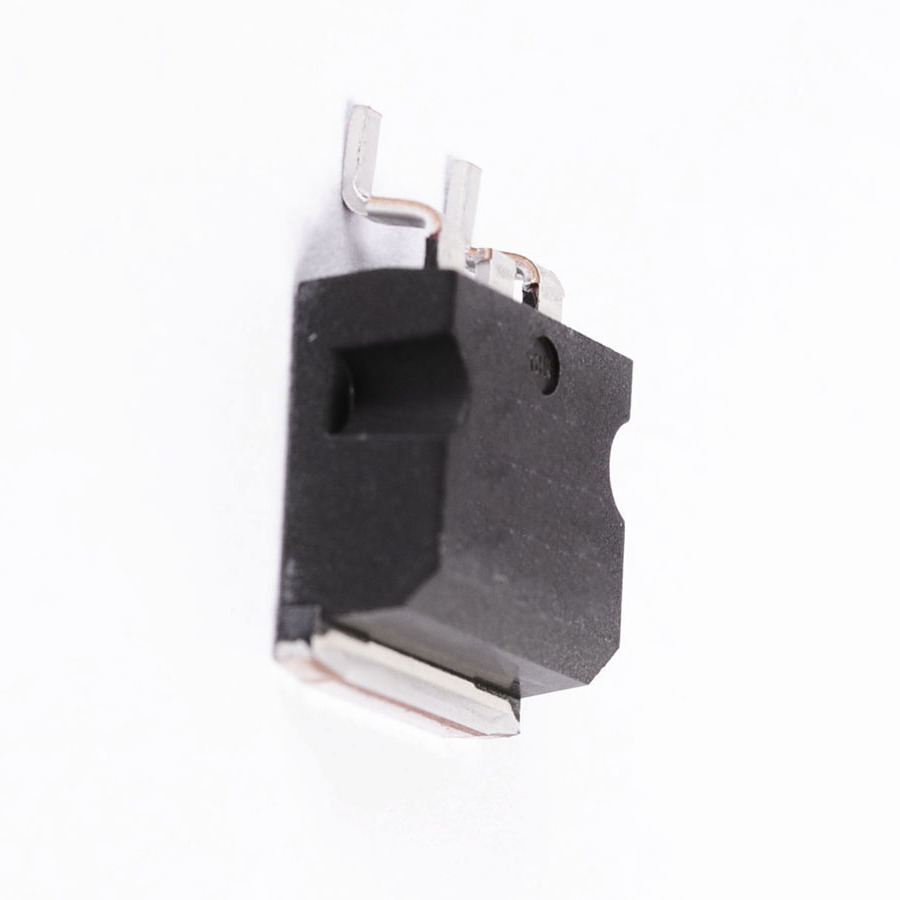

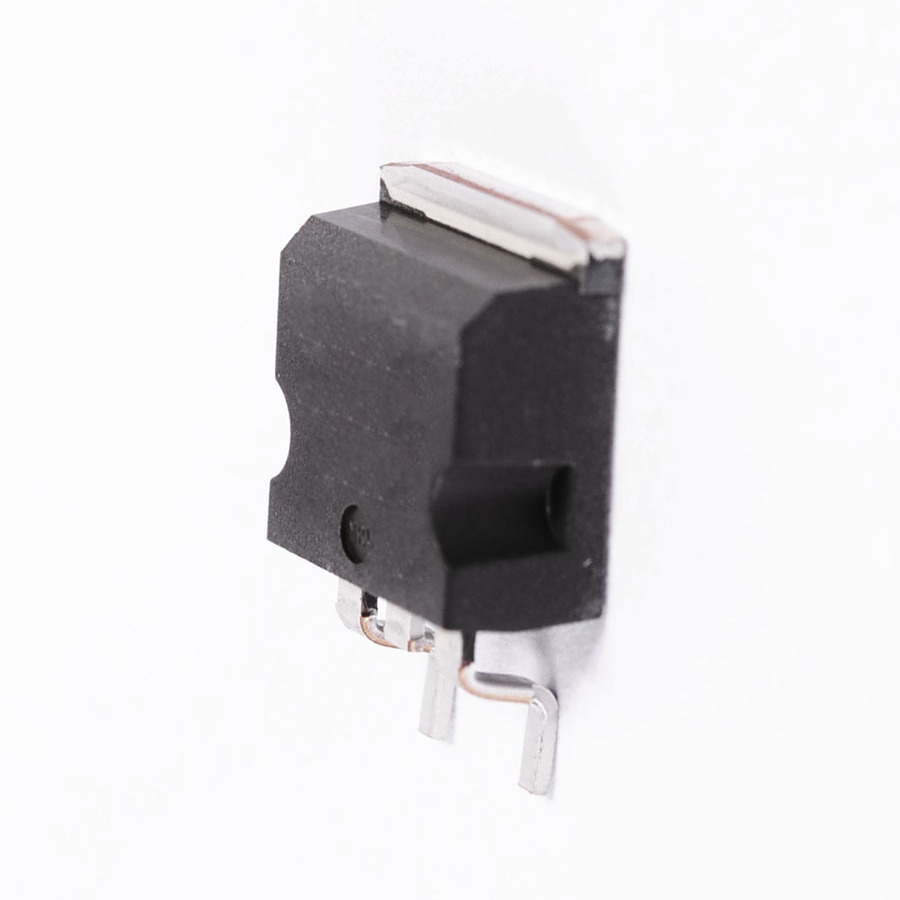

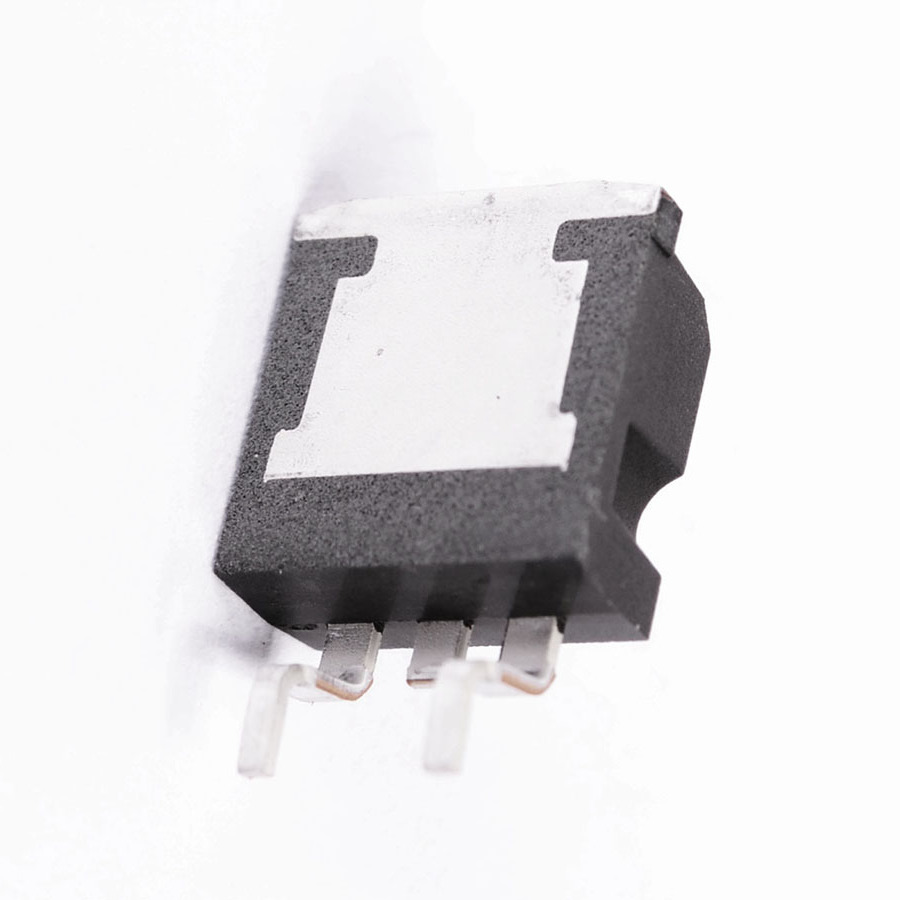

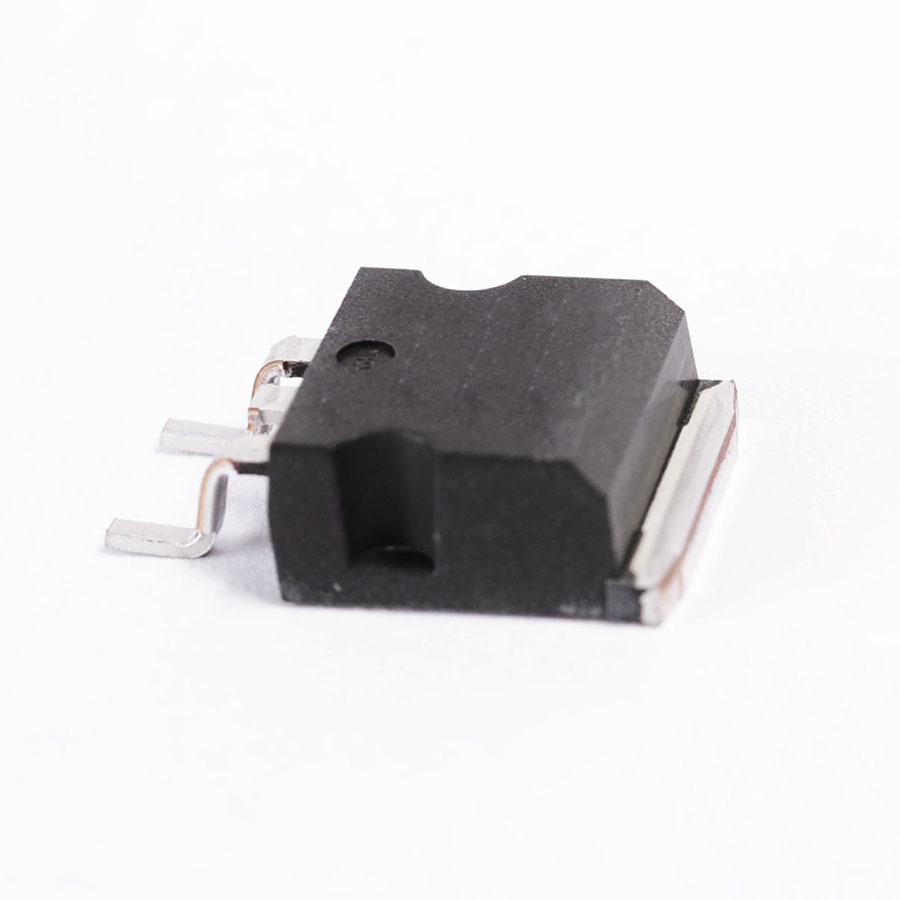

2SC4938 Transistor Silicon NPN CASE: TO263 MAKE: Rohm Semiconductor
Datasheet
2SC4938 Datasheet
Product specifications
Type Transistor Silicon NPN
Case TO263
Manufacturer Rohm Semiconductor
Vbr CEO 400
Max. PD (W) 35
Max. hFE 50
Min hFE 16
Ic Max. (A) 5
@Ic (test) (A) 3m
Polarity NPN
@VCE (V) 5
Pinout Equivalence Number 3-15
Surface Mounted Yes/No YES
Maximum Collector Power Dissipation (Pc) 35 W
Maximum Collector-Base Voltage |Vcb| 400 V
Maximum Collector-Emitter Voltage |Vce| 400 V
Maximum Emitter-Base Voltage |Veb| 7 V
Maximum Collector Current |Ic max| 5 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 80 pF
Transition Frequency (ft): 15 MHz
Forward Current Transfer Ratio (hFE), MIN 25
SMD Transistor Code TL
SKU 344840
