2SC5015
View detailed images (4)

2SC5015

SKU: 2SC5015

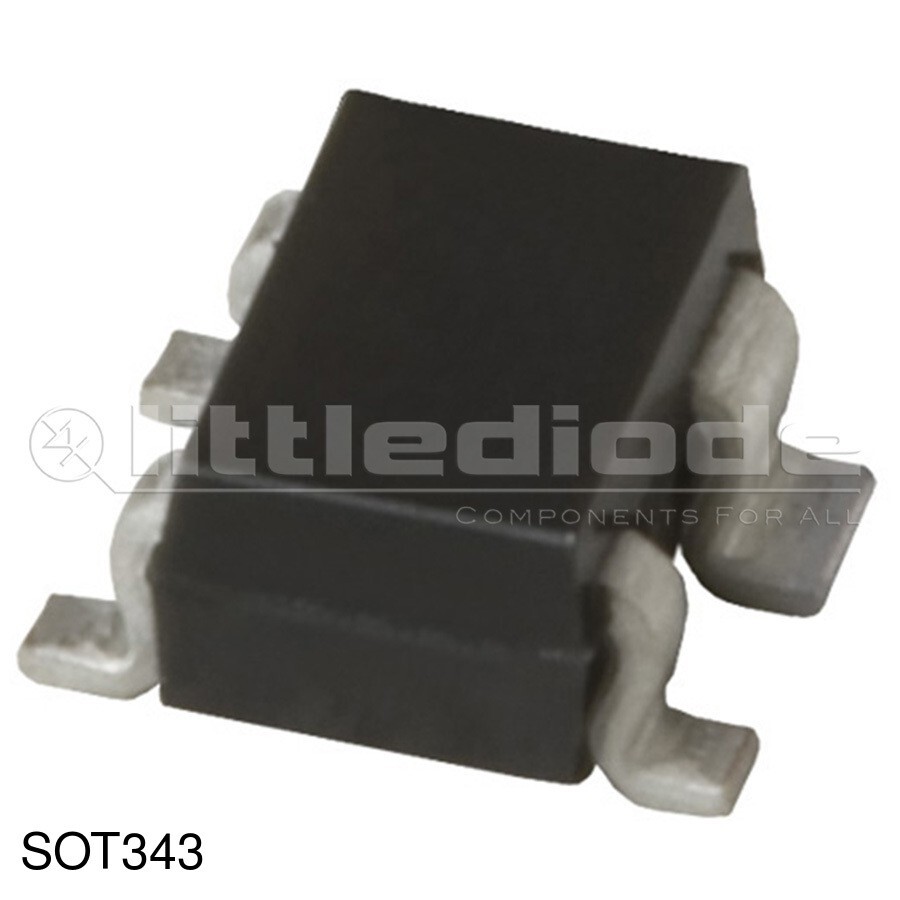

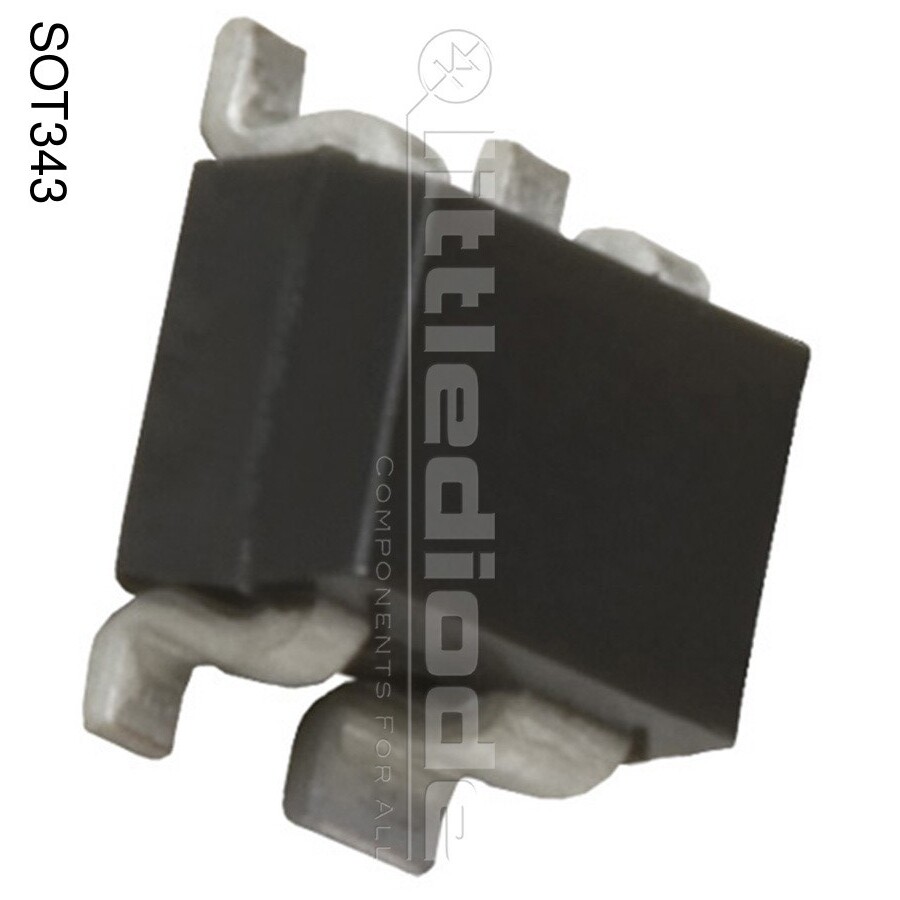

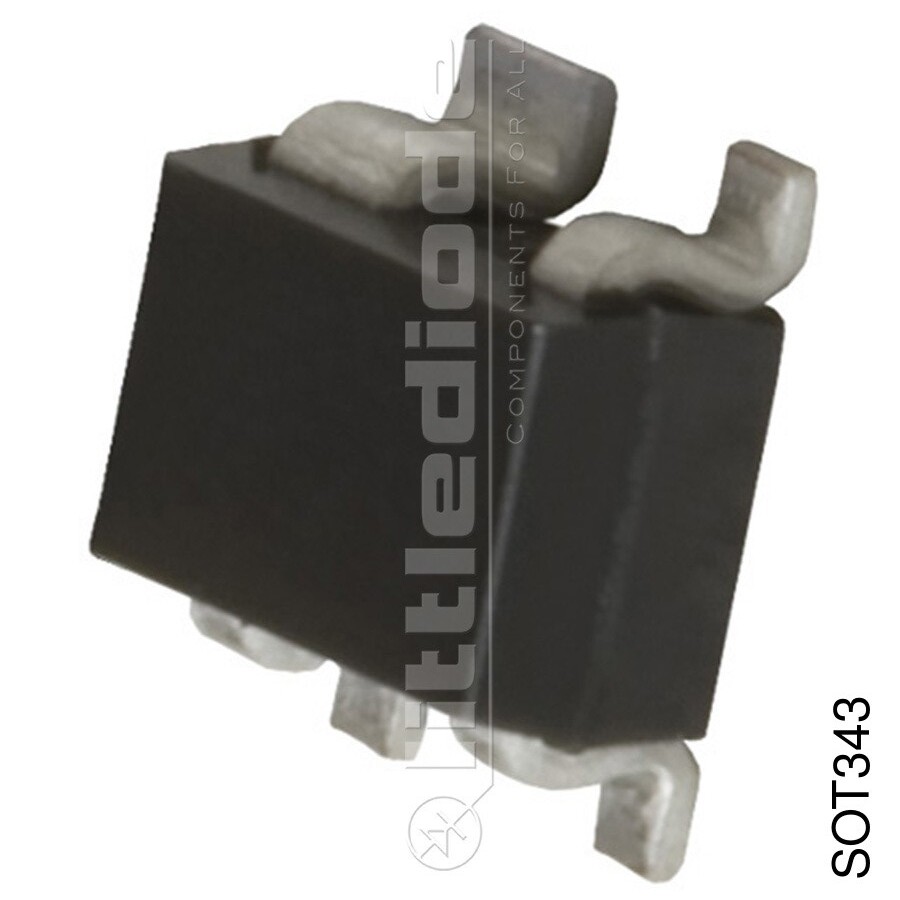

2SC5015 Transistor Silicon NPN CASE: SOT343 MAKE: NEC
Datasheet
2SC5015 Datasheet
Product specifications
Type Transistor Silicon NPN
Case SOT343
Manufacturer NEC
Polarity NPN
Maximum Collector Power Dissipation (Pc) 0.15 W
Maximum Collector-Base Voltage |Vcb| 9 V
Maximum Collector-Emitter Voltage |Vce| 6 V
Maximum Emitter-Base Voltage |Veb| 2 V
Maximum Collector Current |Ic max| 0.03 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 0.3 pF
Transition Frequency (ft): 12000 MHz
Forward Current Transfer Ratio (hFE), MIN 75
SMD Transistor Code T83
SKU 344886
