2SC5169
View detailed images (9)

2SC5169

SKU: 2SC5169

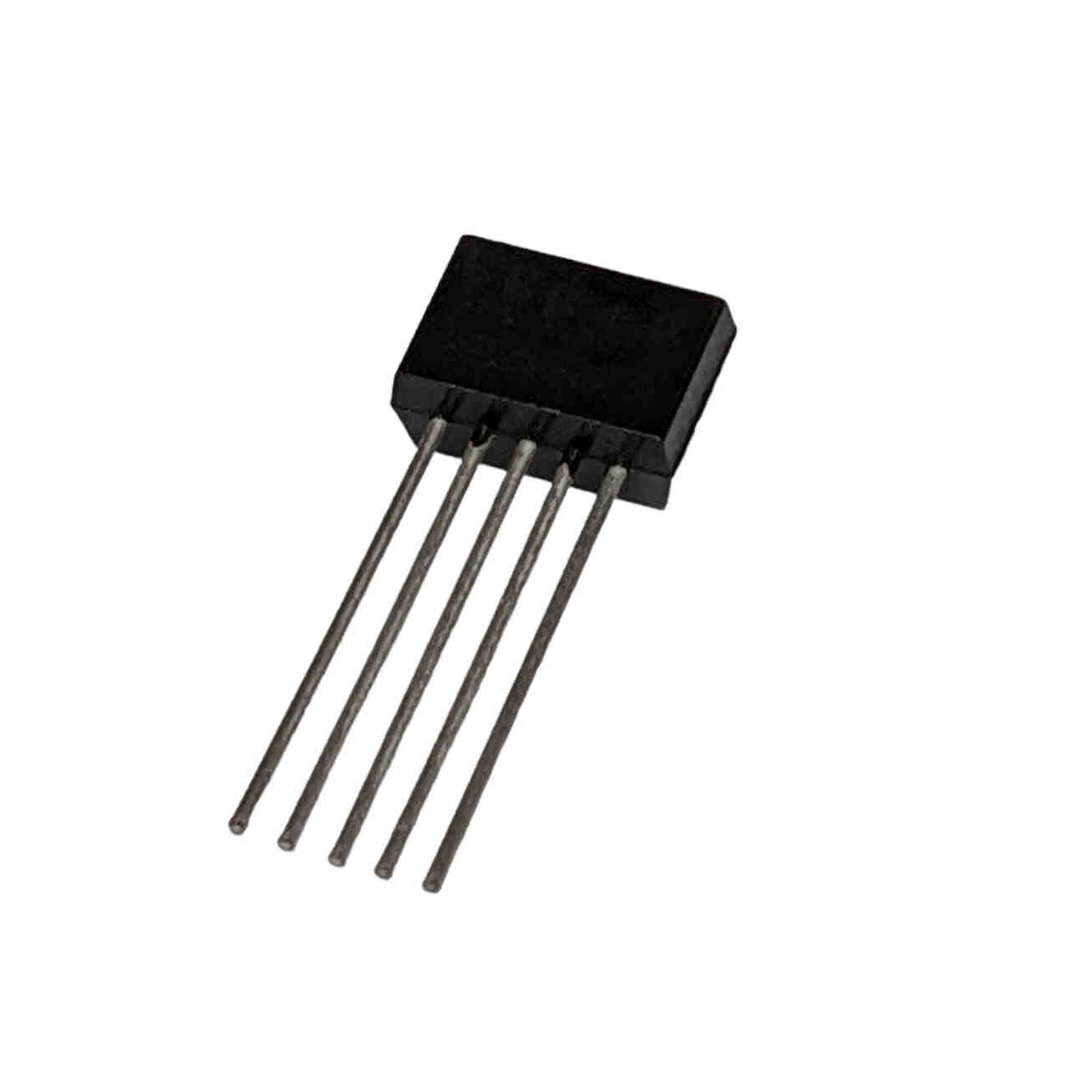

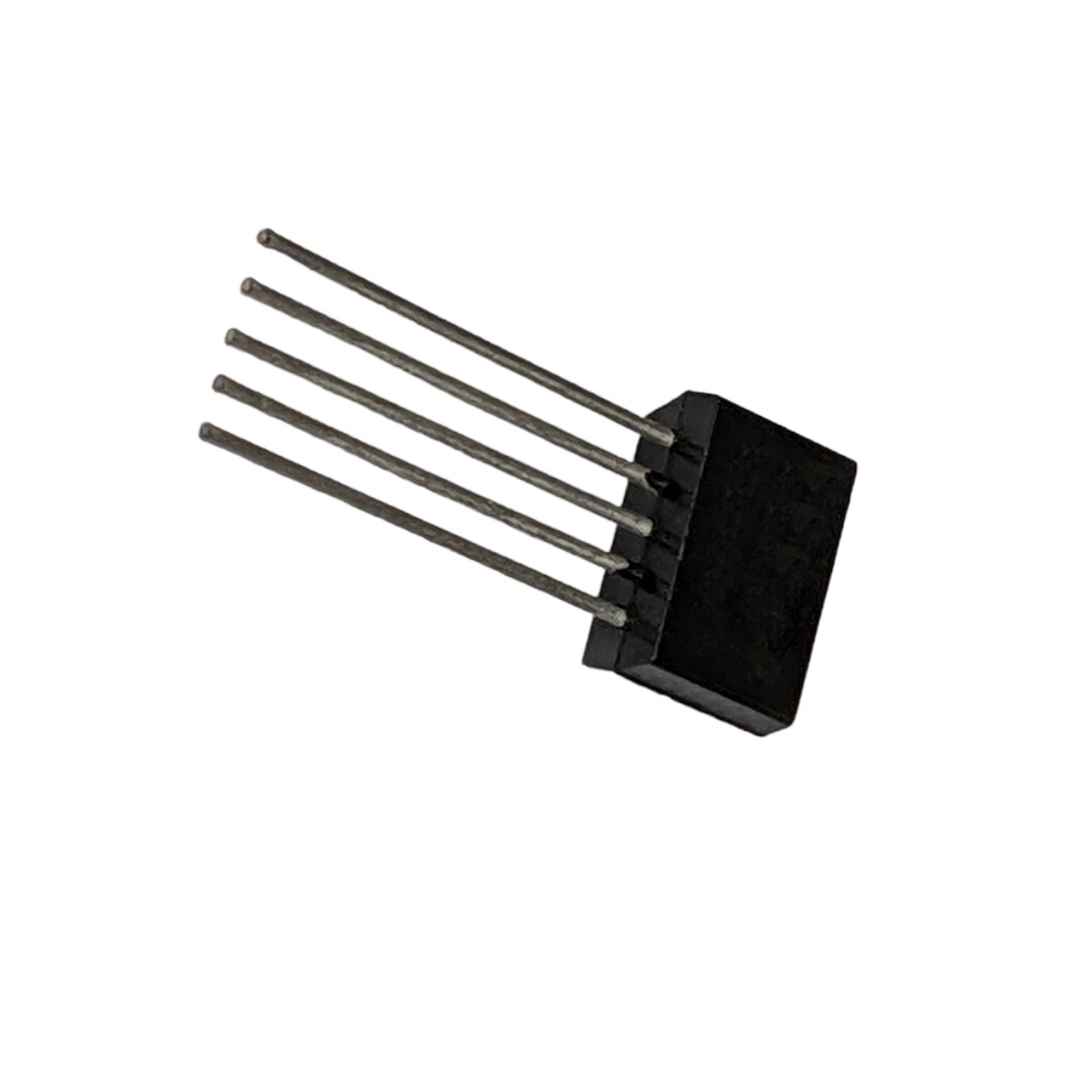

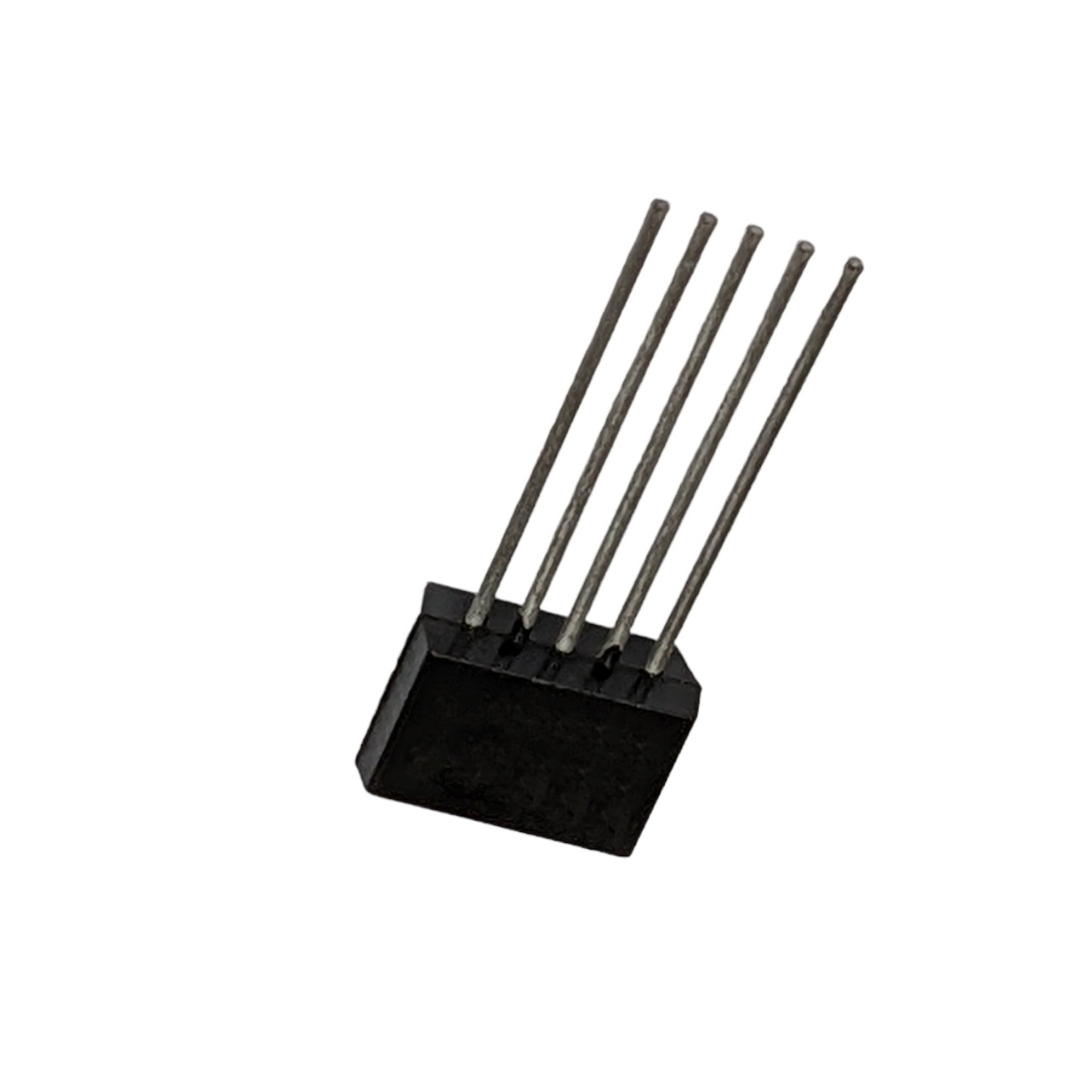

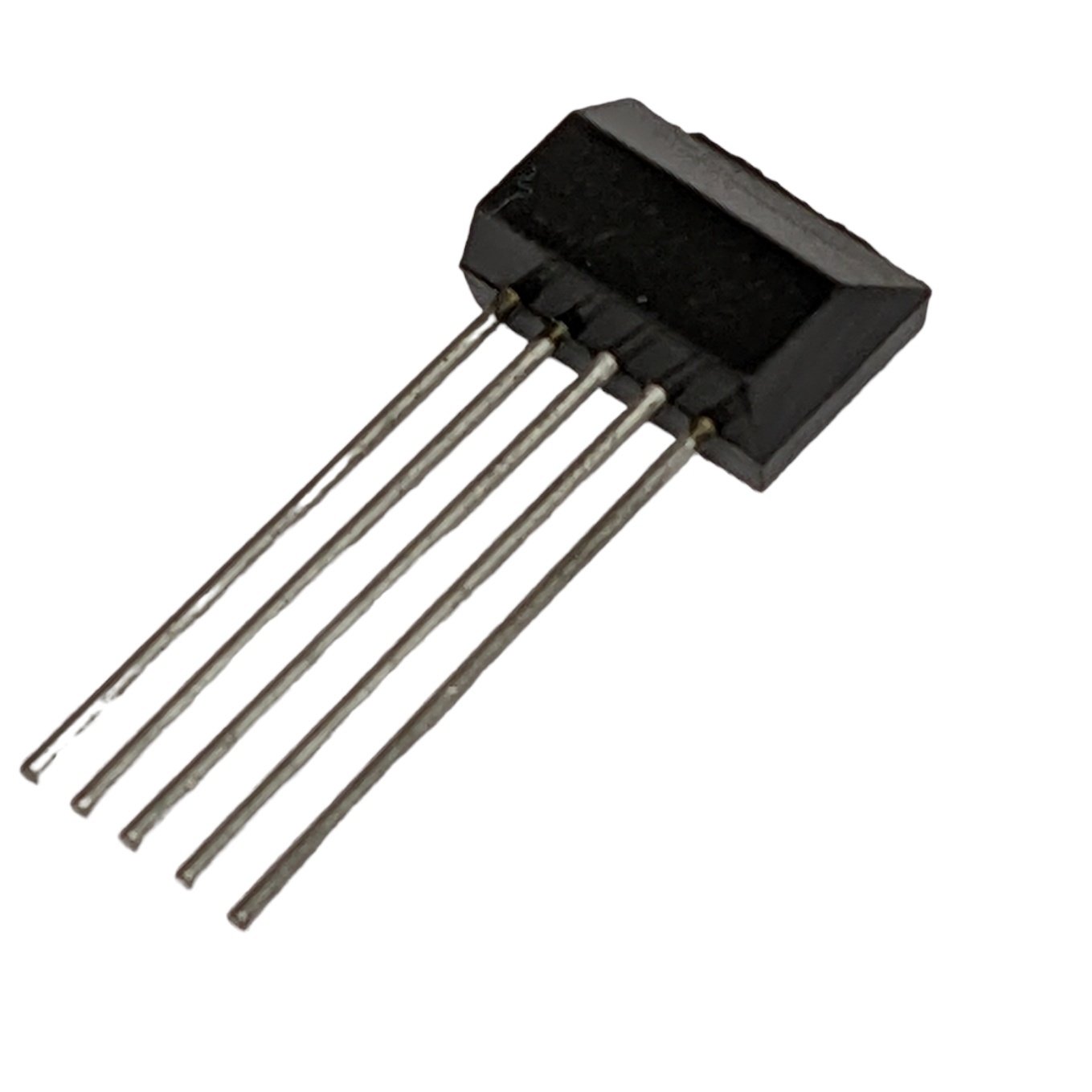

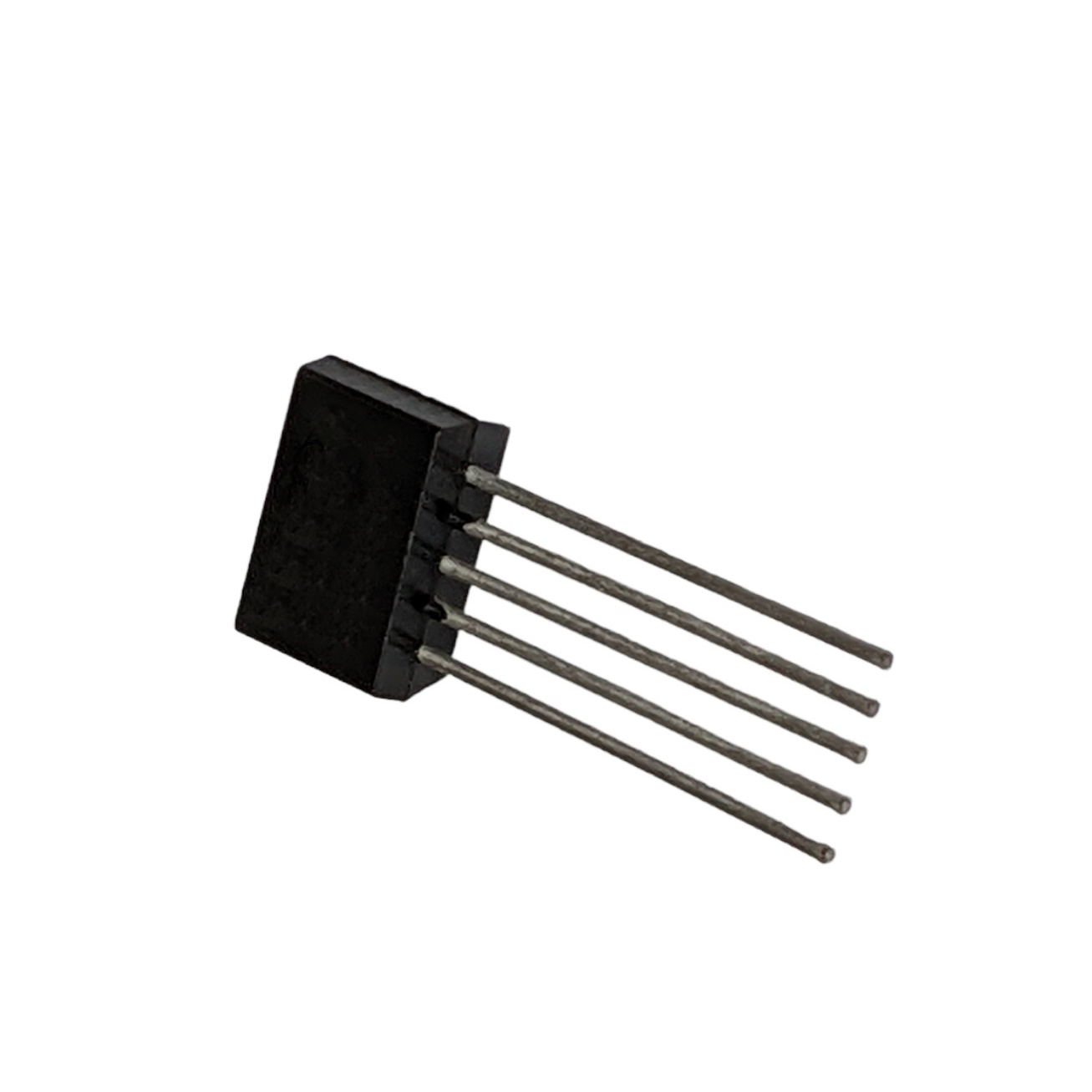

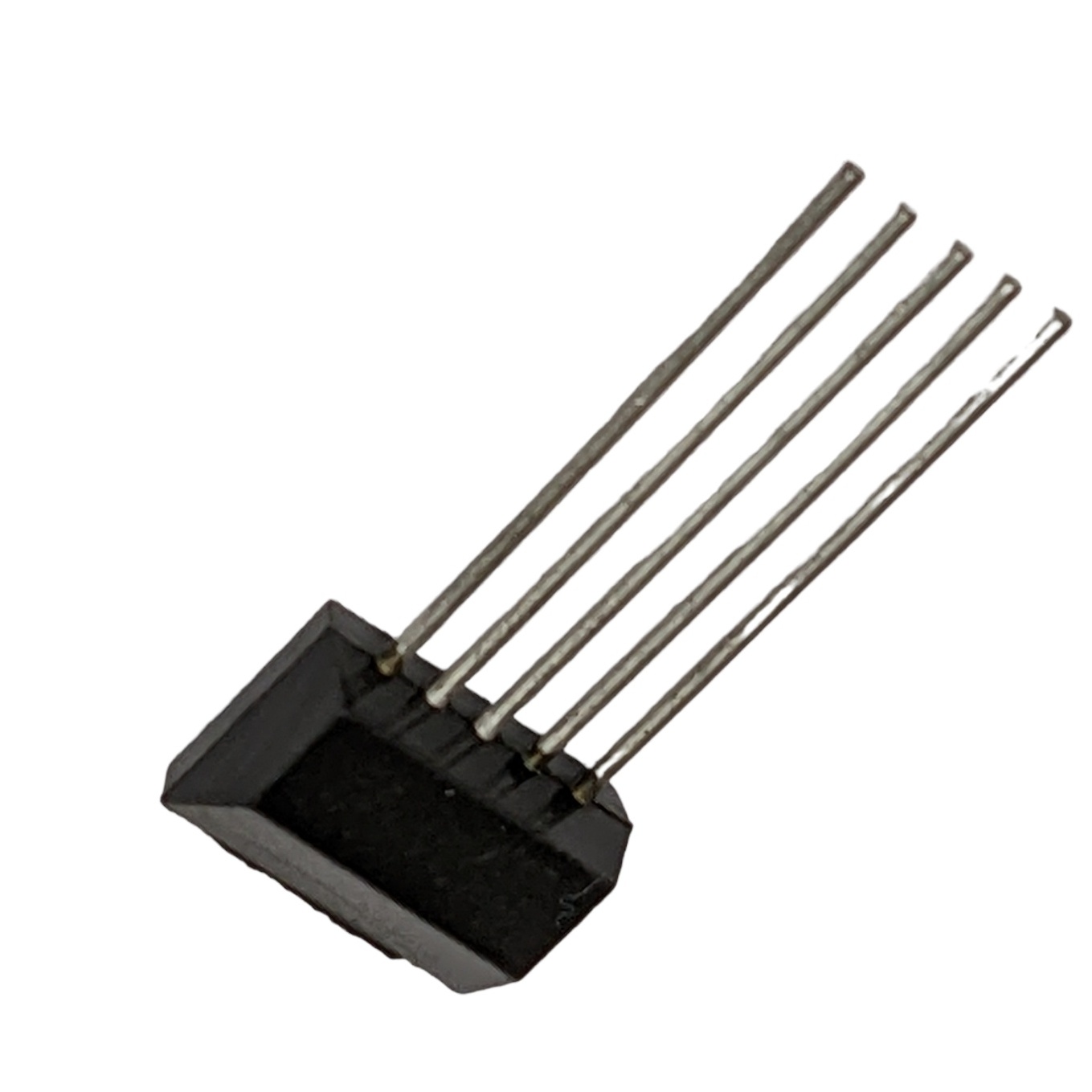

2SC5169 Transistor Silicon NPN CASE: SIP5 MAKE: Mitsubishi
Datasheet
2SC5169 Datasheet
Product specifications
Type Transistor Silicon NPN
Case SIP5
Manufacturer Mitsubishi
Polarity NPN
Maximum Collector Power Dissipation (Pc) 0.2 W
Maximum Collector-Base Voltage |Vcb| 100 V
Maximum Collector-Emitter Voltage |Vce| 100 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 0.05 A
Max. Operating Junction Temperature (Tj) 125 °C
Collector Capacitance (Cc) 1.8 pF
Transition Frequency (ft): 150 MHz
Forward Current Transfer Ratio (hFE), MIN 250
SKU 344975
