2SC5228
View detailed images (13)

2SC5228

SKU: 2SC5228

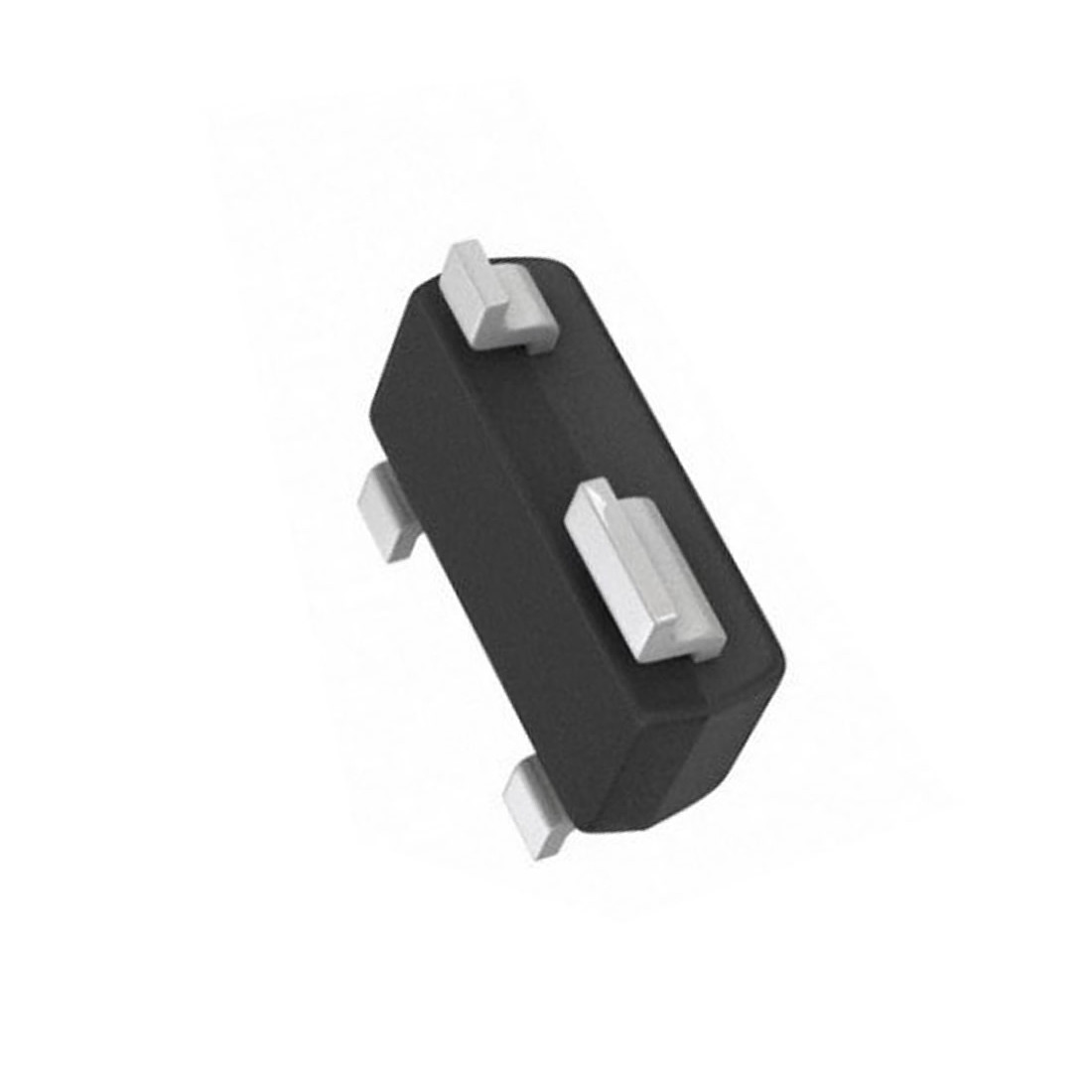

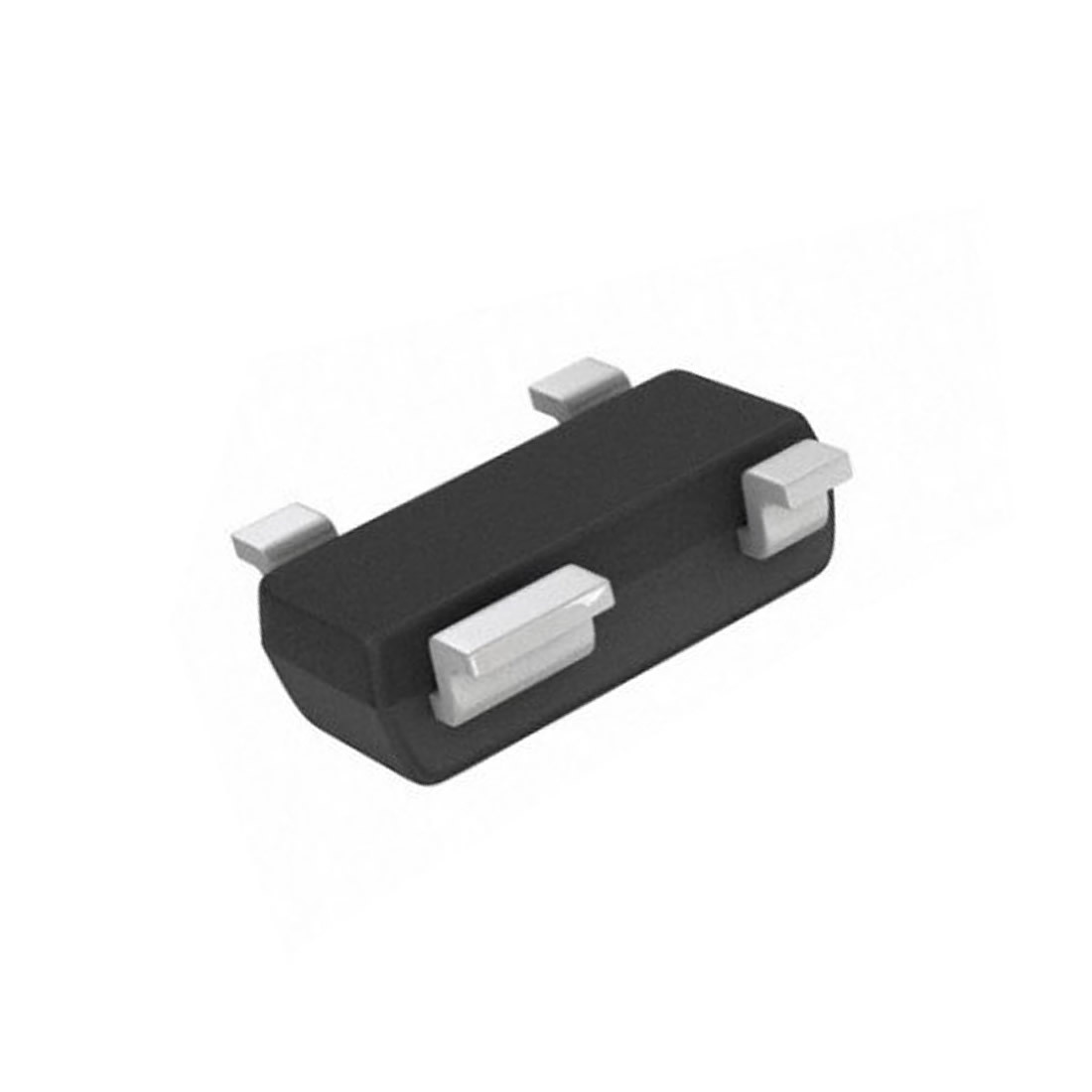

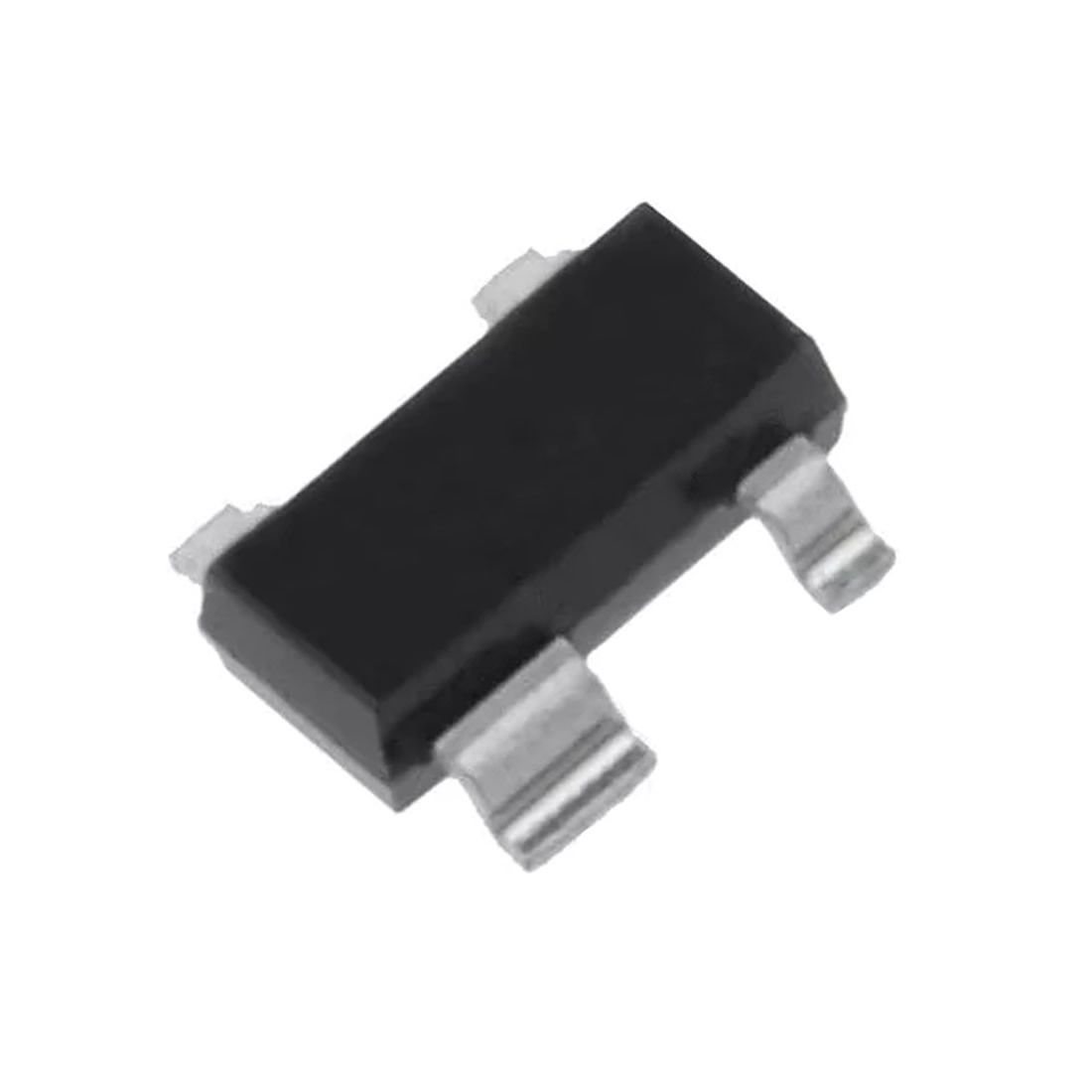

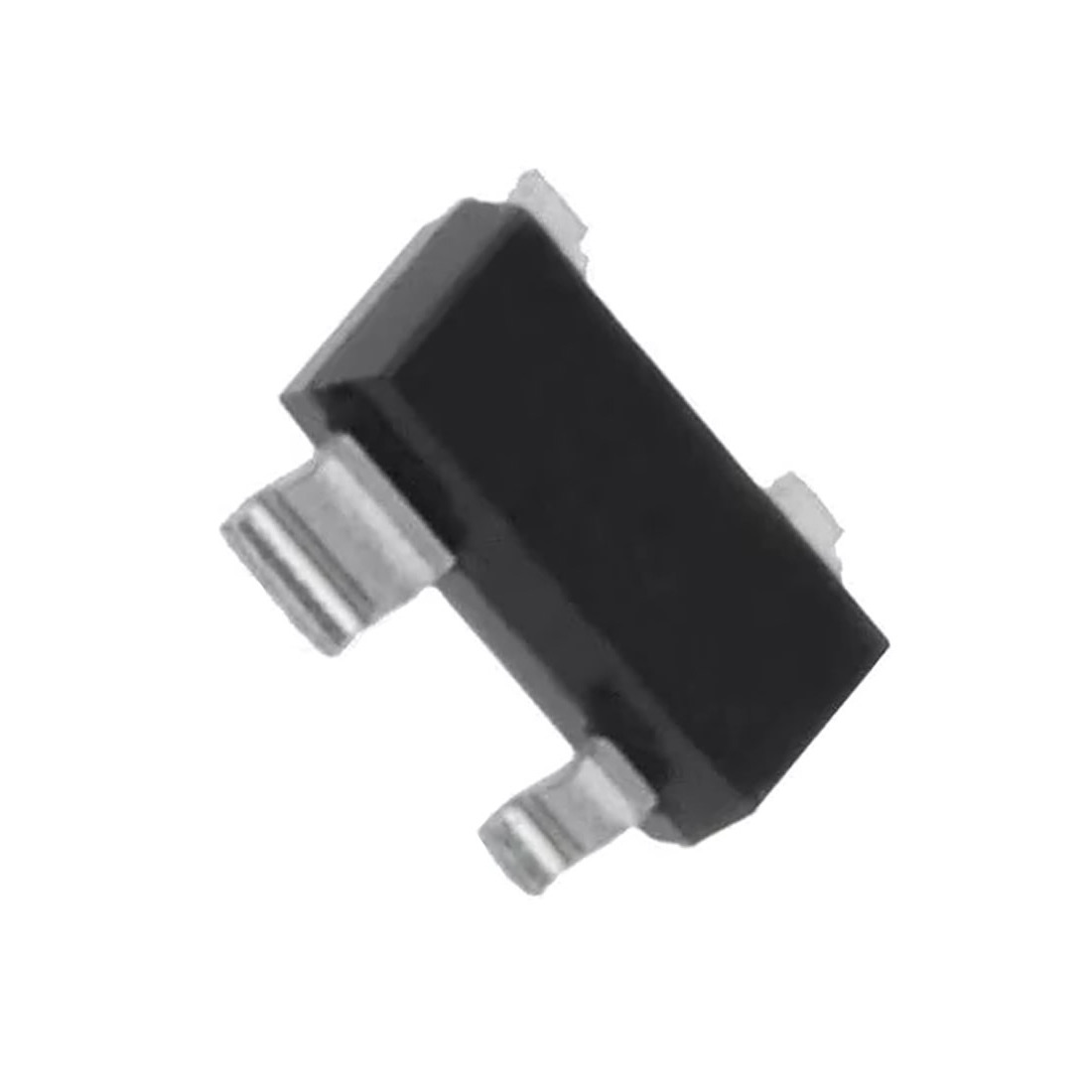

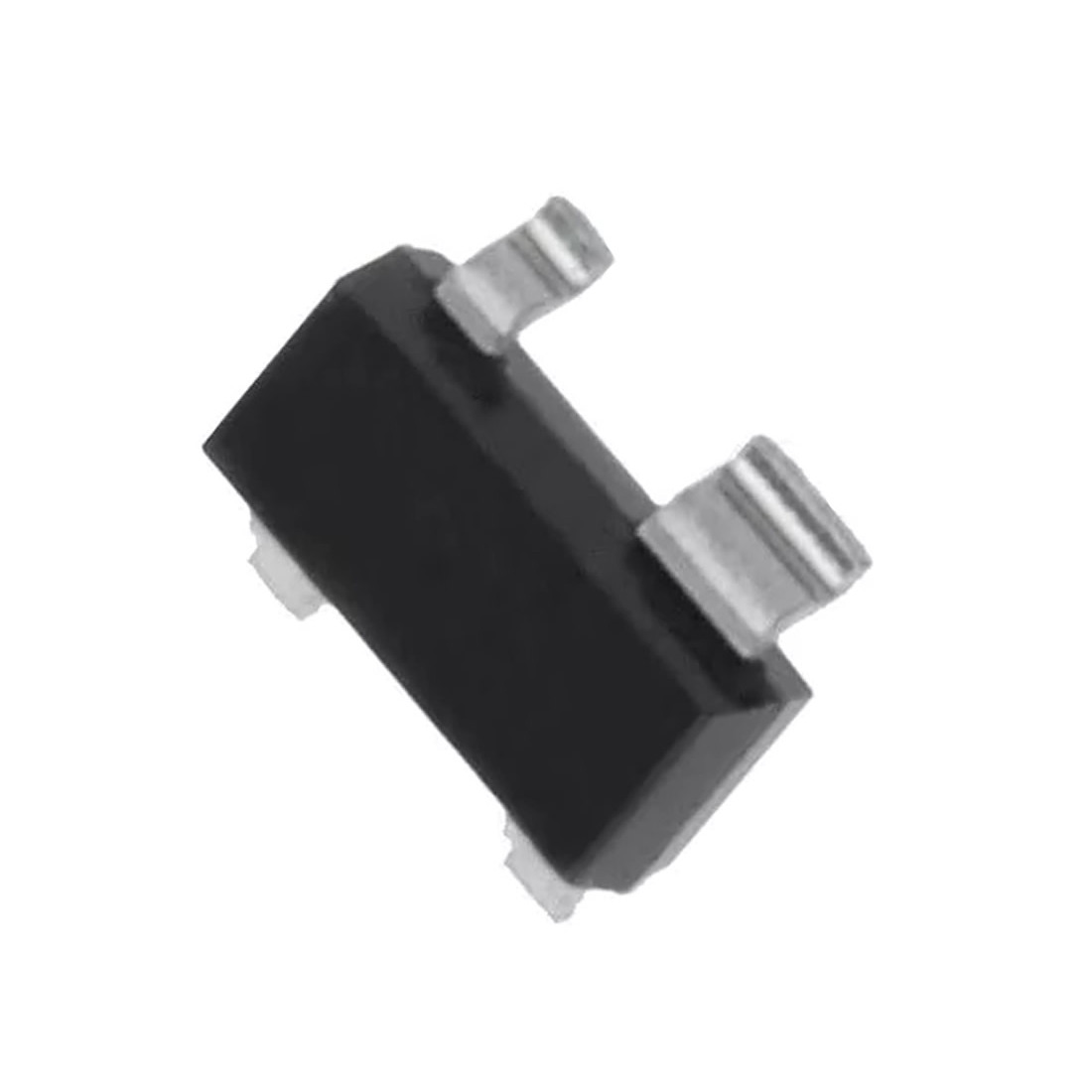

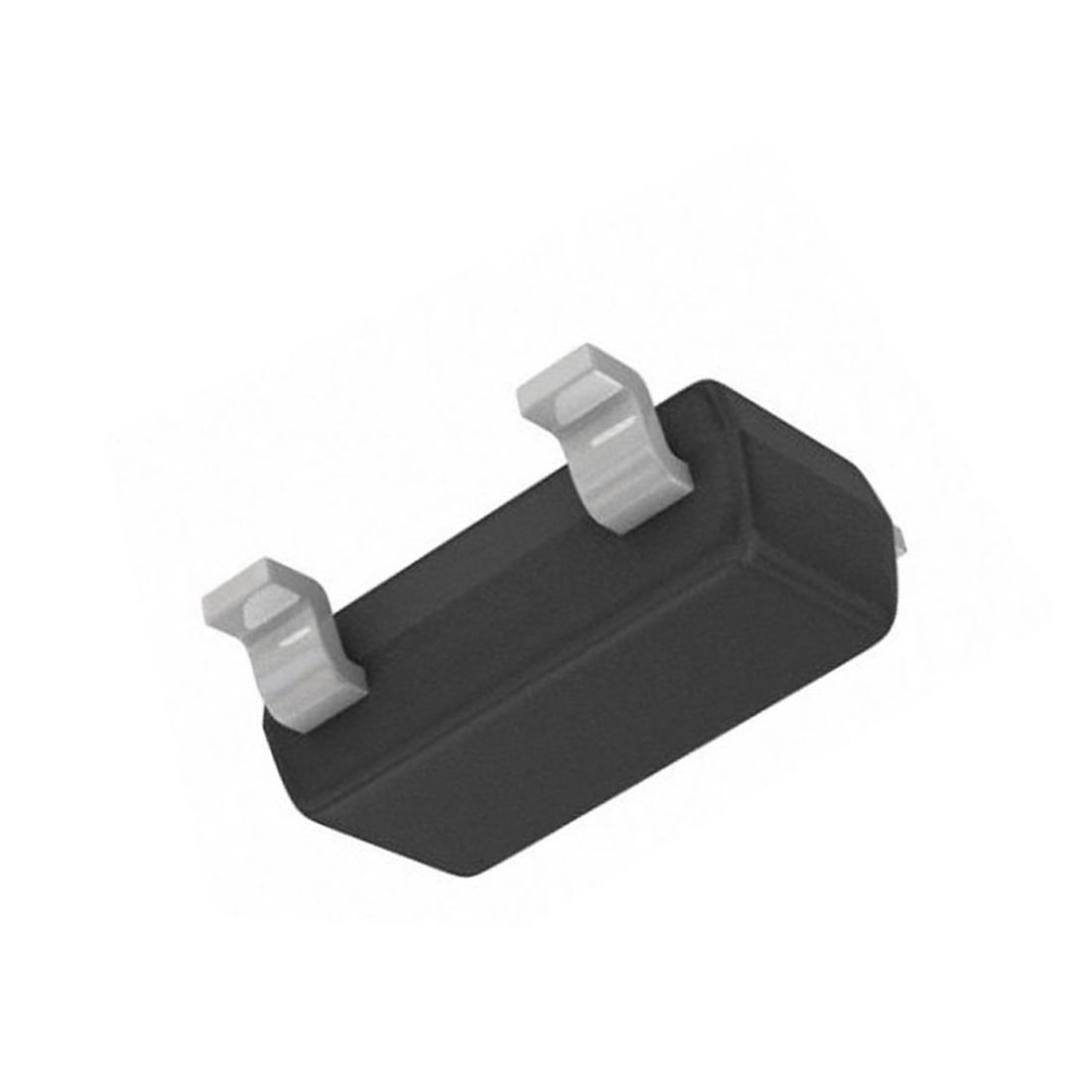

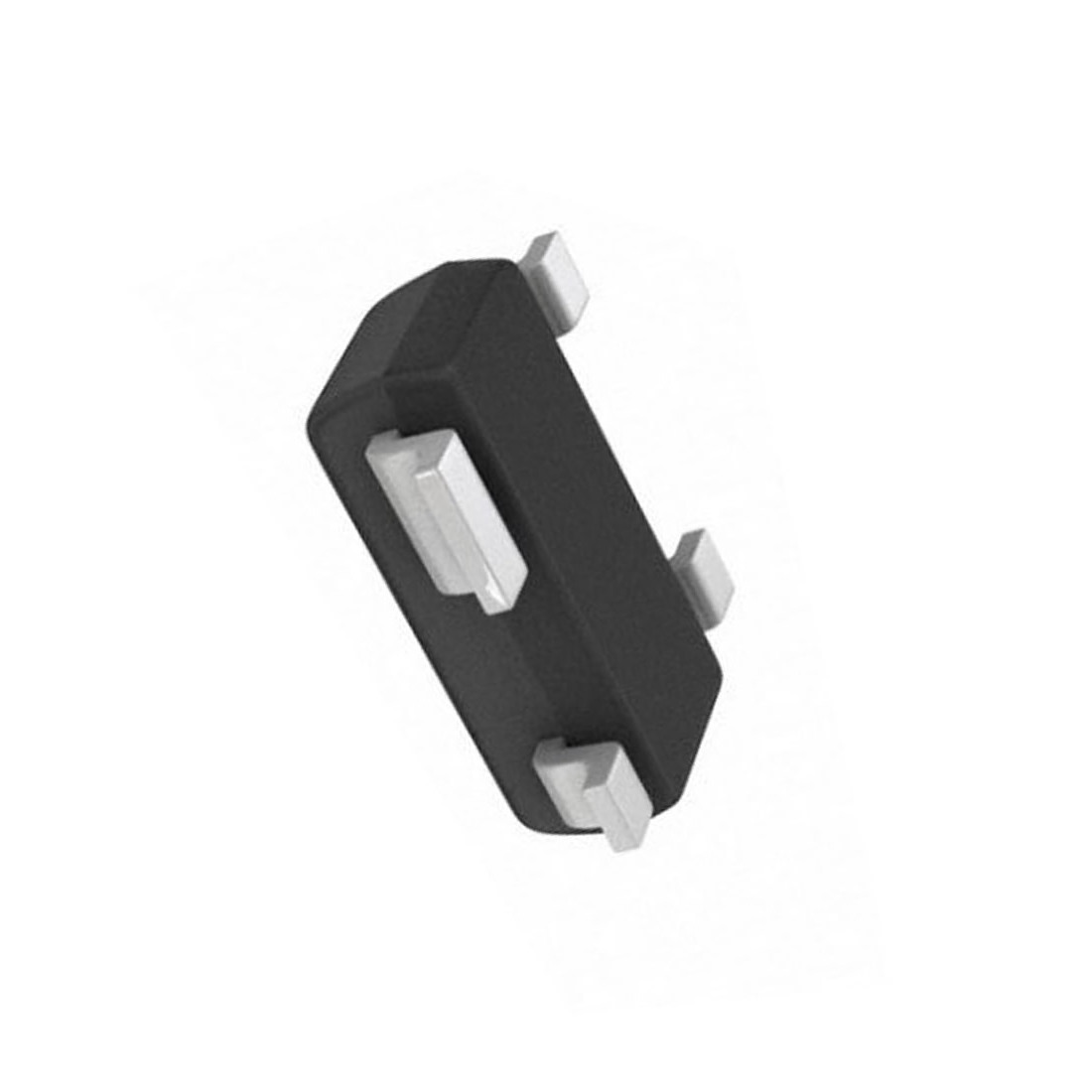

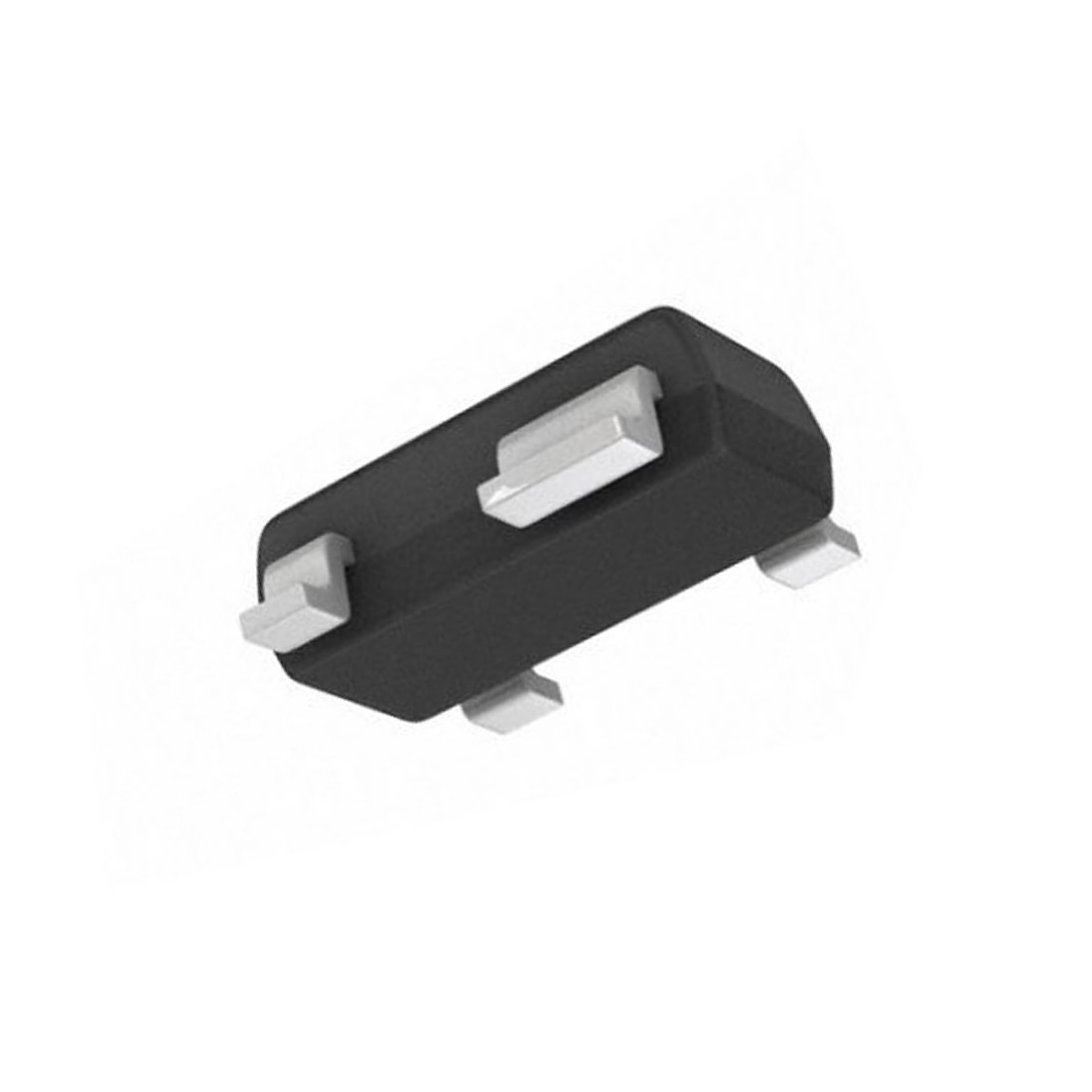

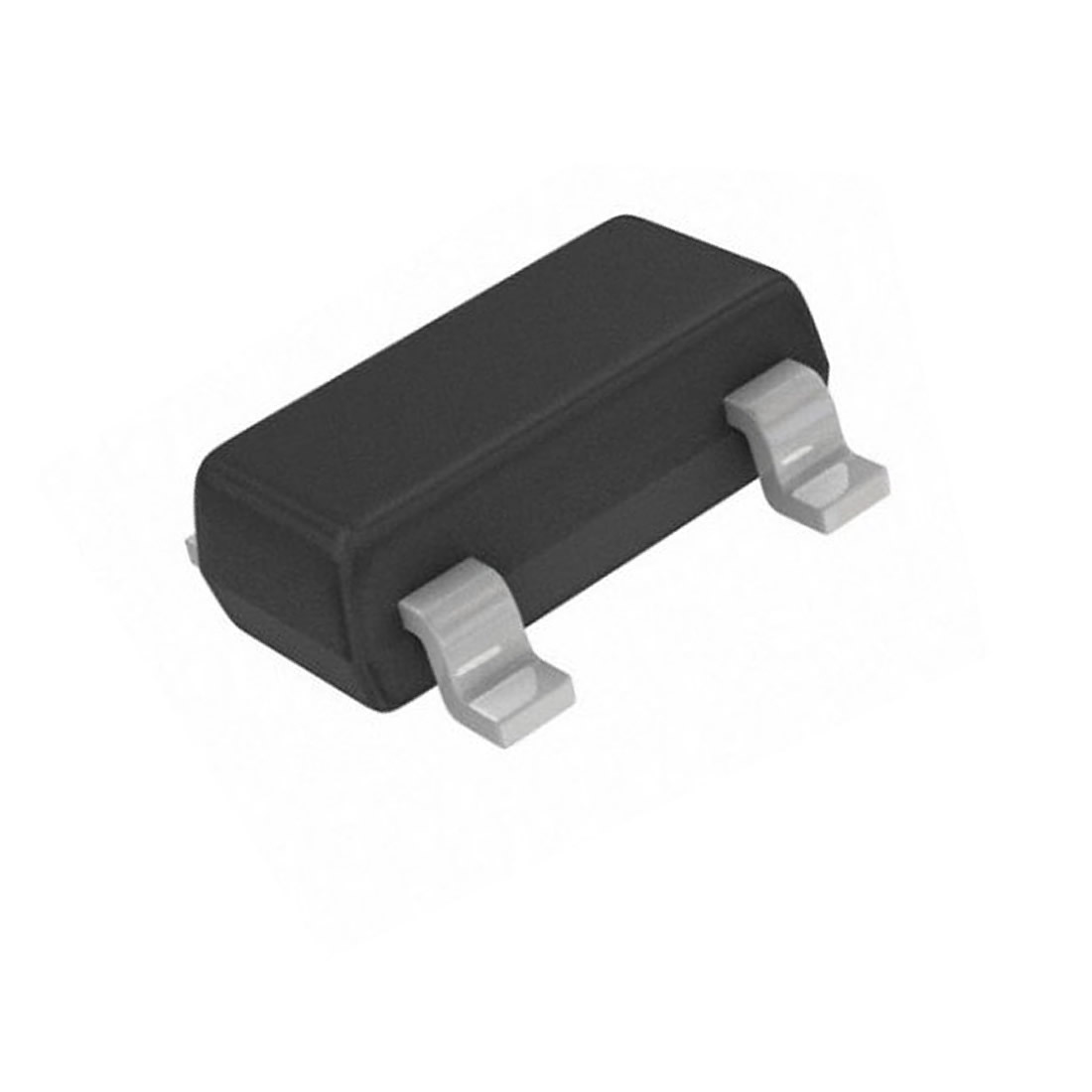

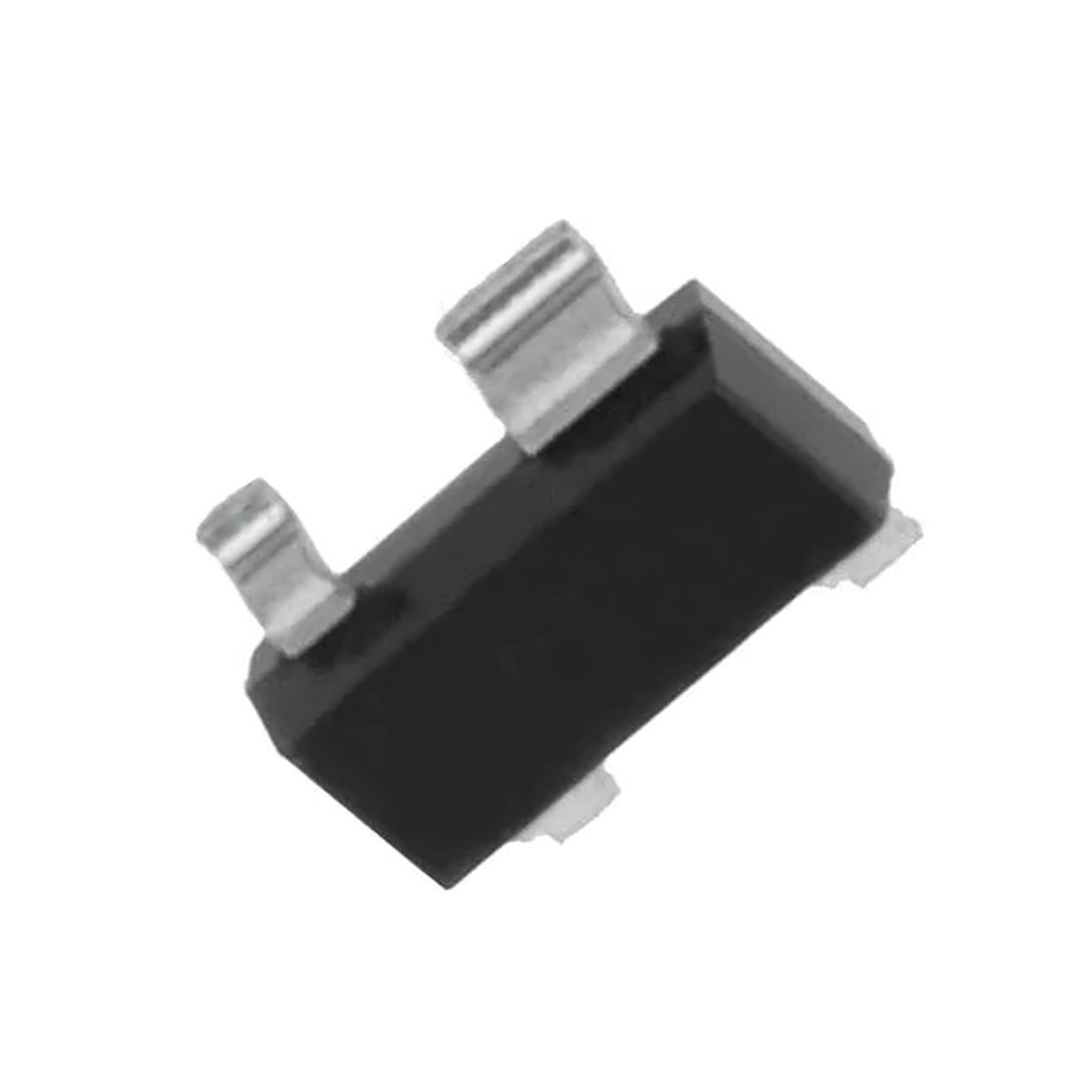

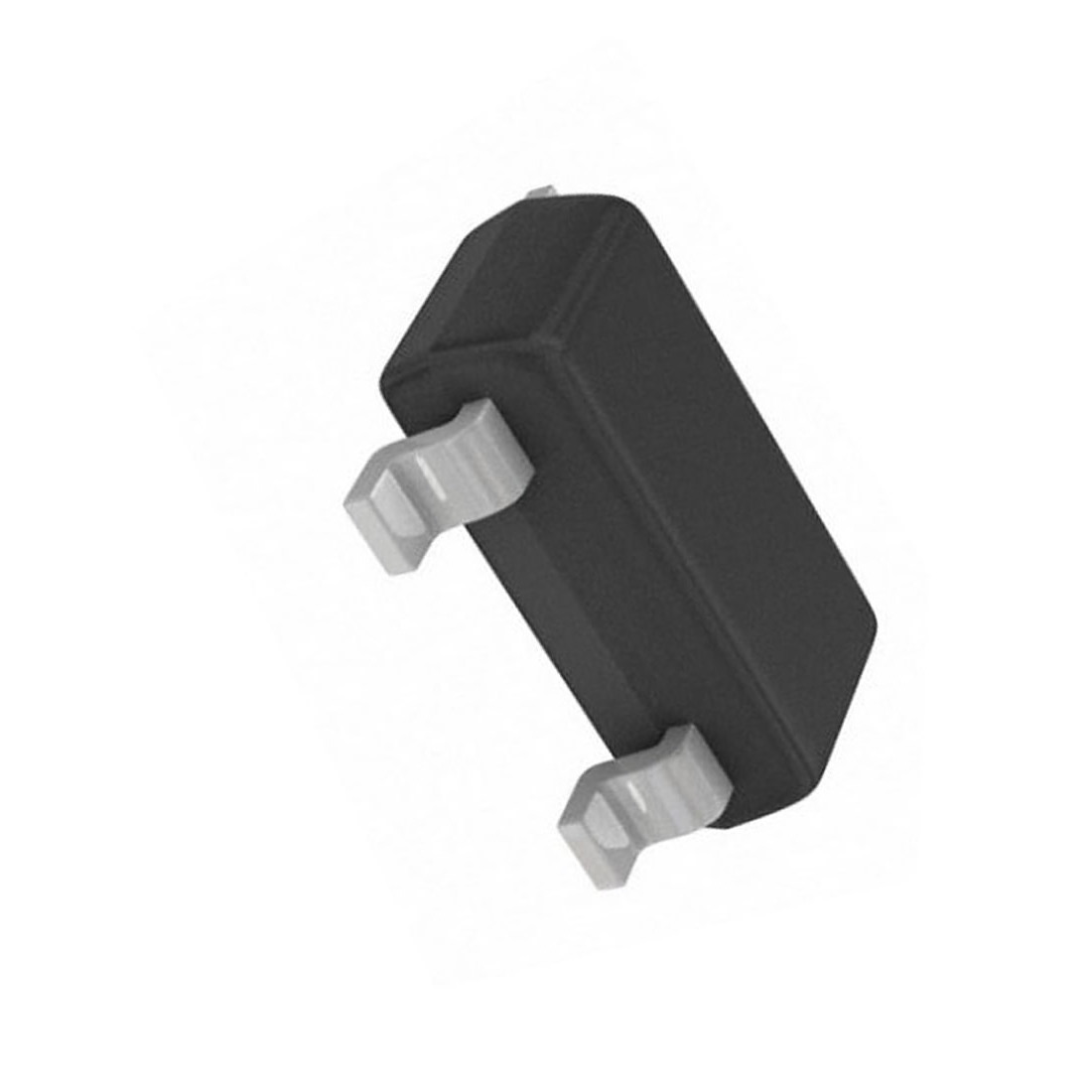

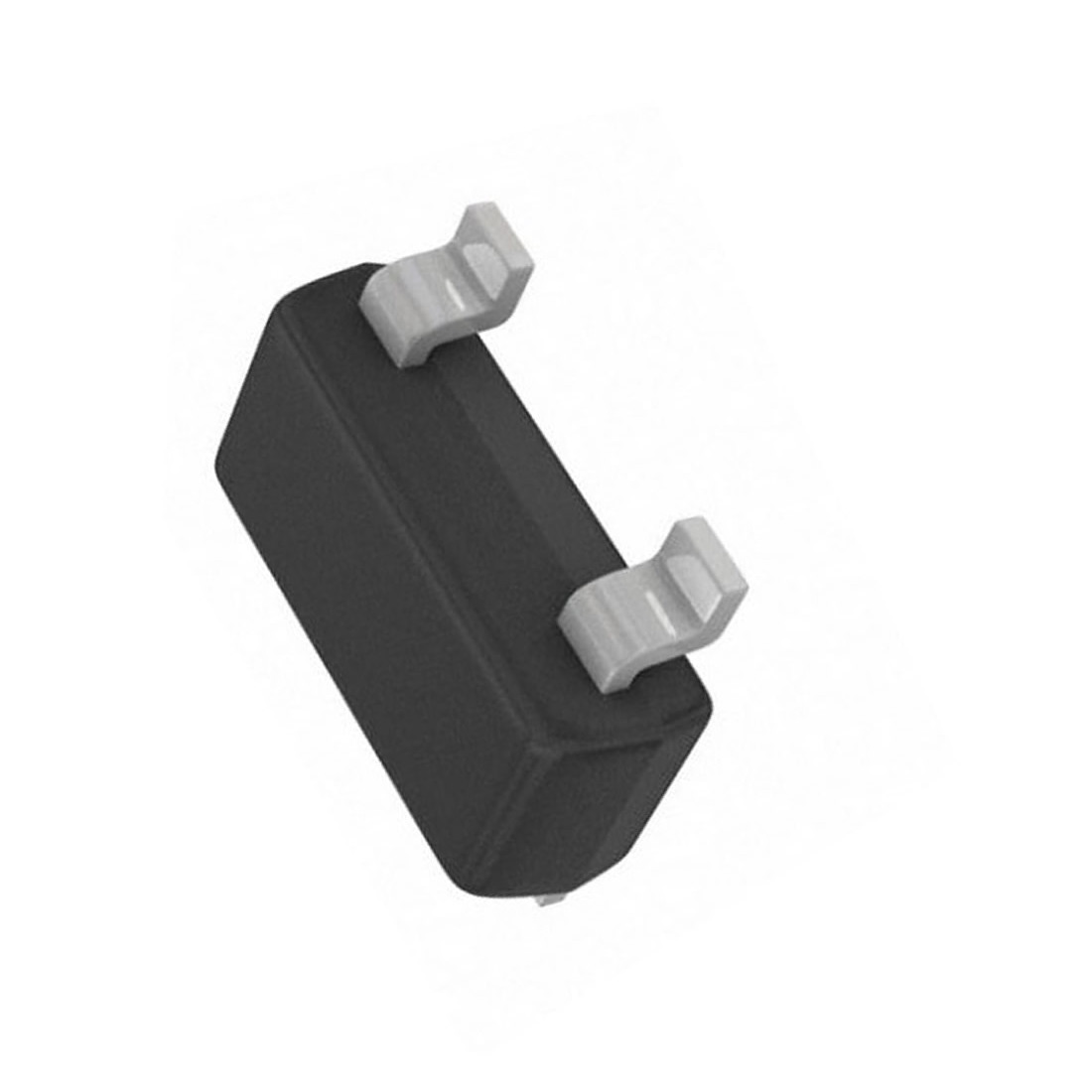

2SC5228 Transistor Silicon NPN CASE: SOT143R MAKE: Sanyo Semiconductor
Datasheet
2SC5228 Datasheet
Product specifications
Type Transistor Silicon NPN

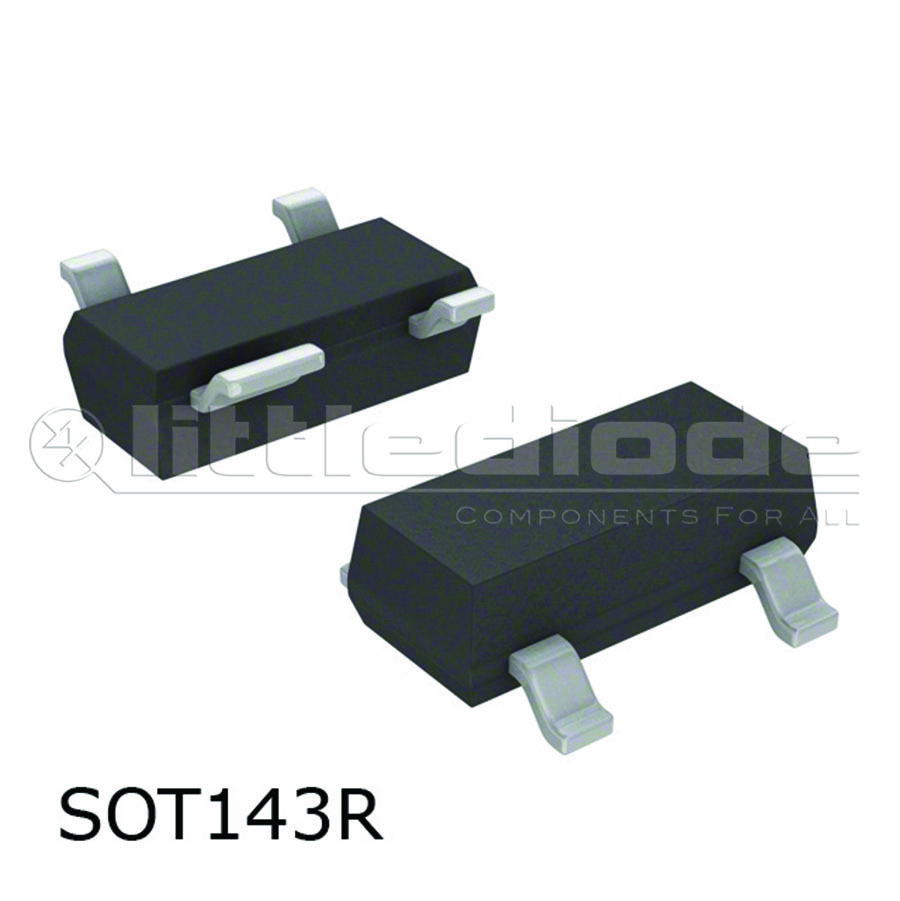

Case SOT143R
Manufacturer Sanyo Semiconductor
Polarity NPN
Maximum Collector Power Dissipation (Pc) 0.2 W
Maximum Collector-Base Voltage |Vcb| 20 V
Maximum Collector-Emitter Voltage |Vce| 10 V
Maximum Emitter-Base Voltage |Veb| 2 V
Maximum Collector Current |Ic max| 0.07 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 0.75 pF
Transition Frequency (ft): 5000 MHz
Forward Current Transfer Ratio (hFE), MIN 60
SMD Transistor Code LN3_LN4_LN5
SKU 344998
