2SC5244A
View detailed images (4)

2SC5244A

SKU: 2SC5244A

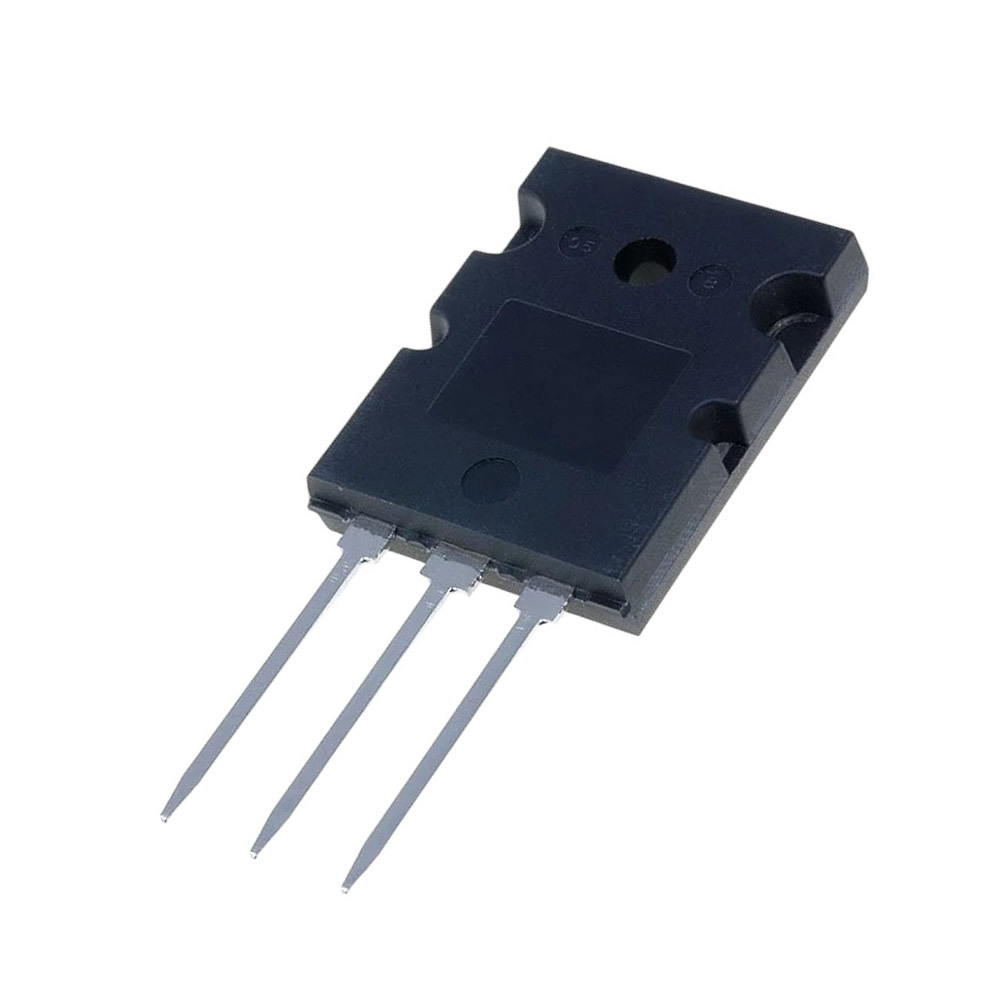

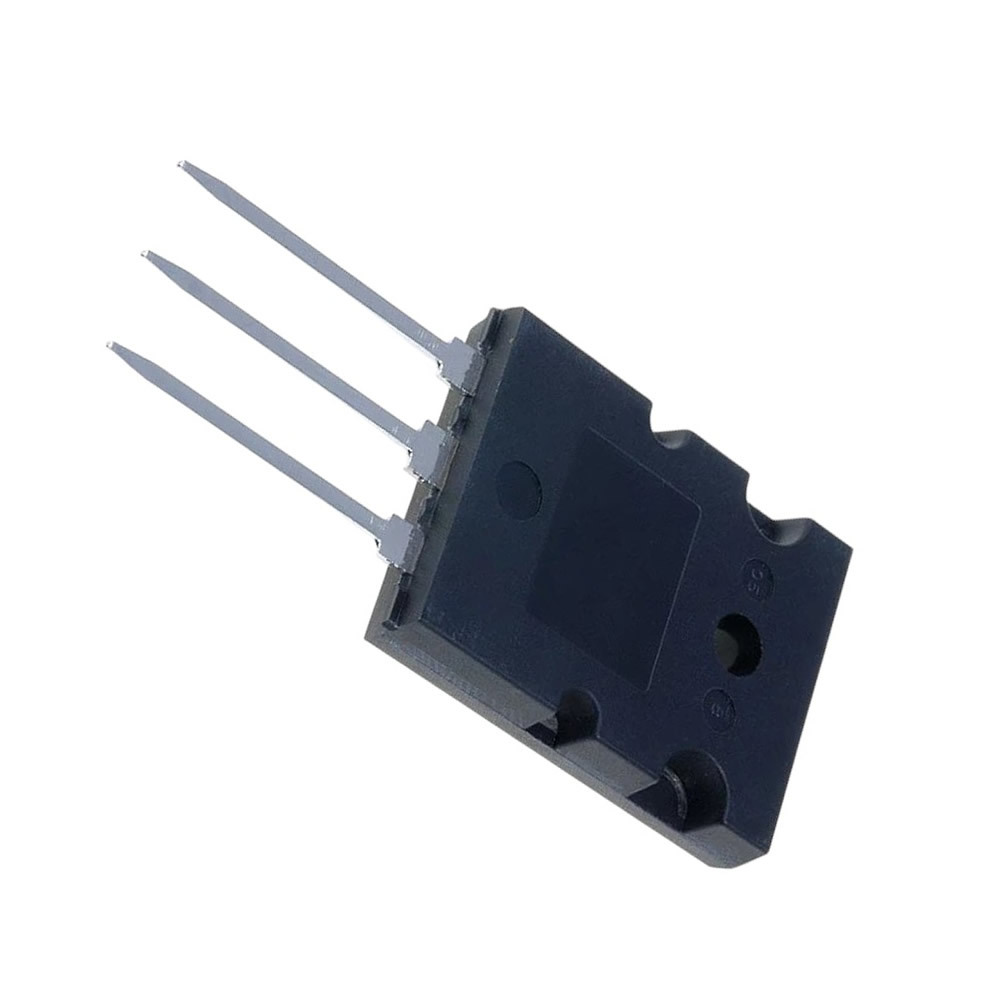

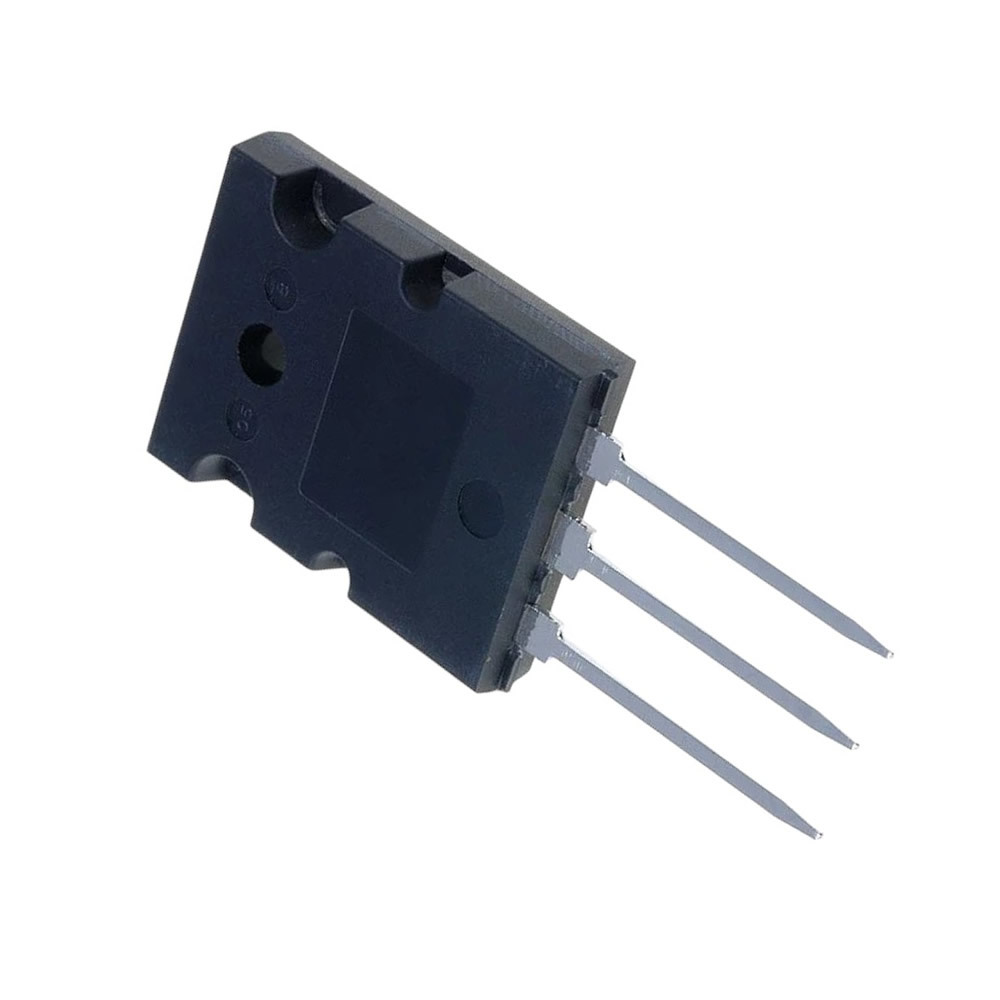

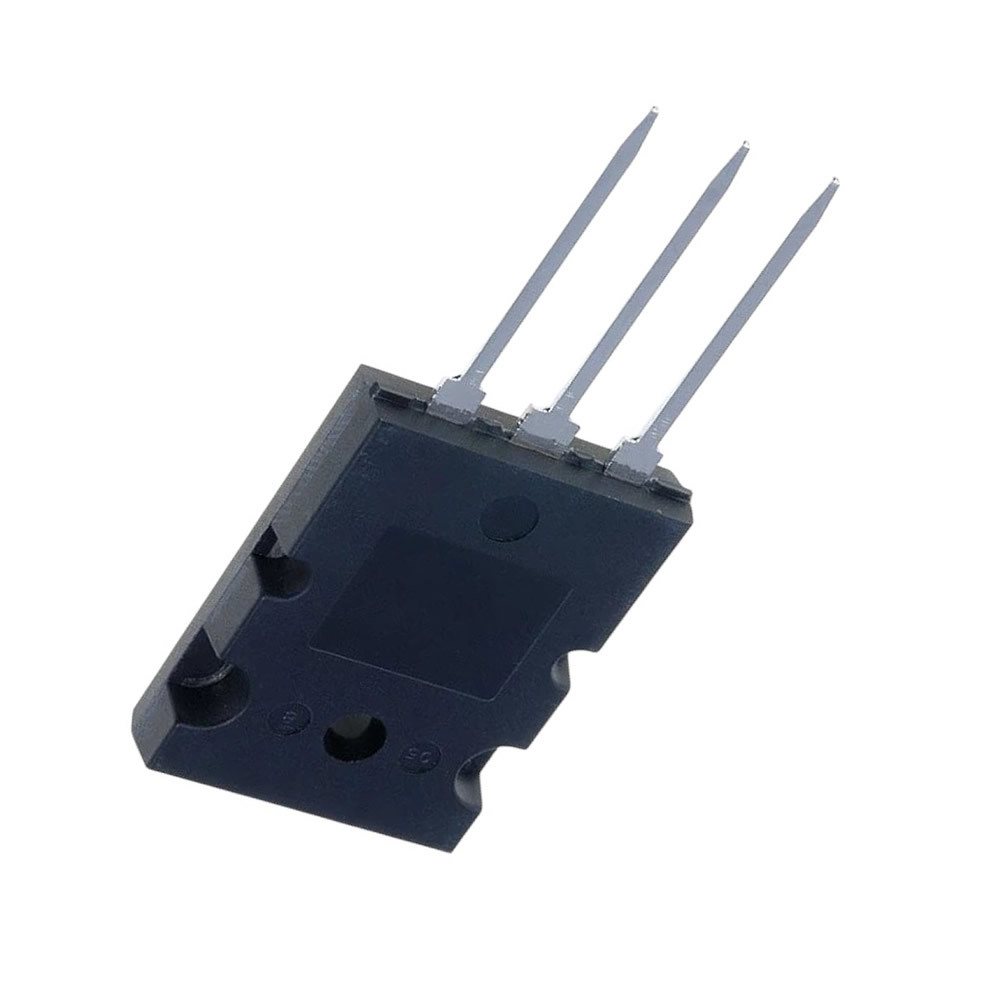

2SC5244A Transistor Silicon NPN CASE: TO264 MAKE: Generic
Datasheet
2SC5244A Datasheet
Product specifications
Type Transistor Silicon NPN
Case TO264
Manufacturer Panasonic
Polarity NPN
Maximum Collector Power Dissipation (Pc) 200 W
Maximum Collector-Base Voltage |Vcb| 1600 V
Maximum Collector-Emitter Voltage |Vce| 1600 V
Maximum Emitter-Base Voltage |Veb| 6 V
Maximum Collector Current |Ic max| 30 A
Max. Operating Junction Temperature (Tj) 150 °C
Transition Frequency (ft): 3 MHz
Forward Current Transfer Ratio (hFE), MIN 5
SKU 20656
