2SC5323
View detailed images (13)

2SC5323

SKU: 2SC5323

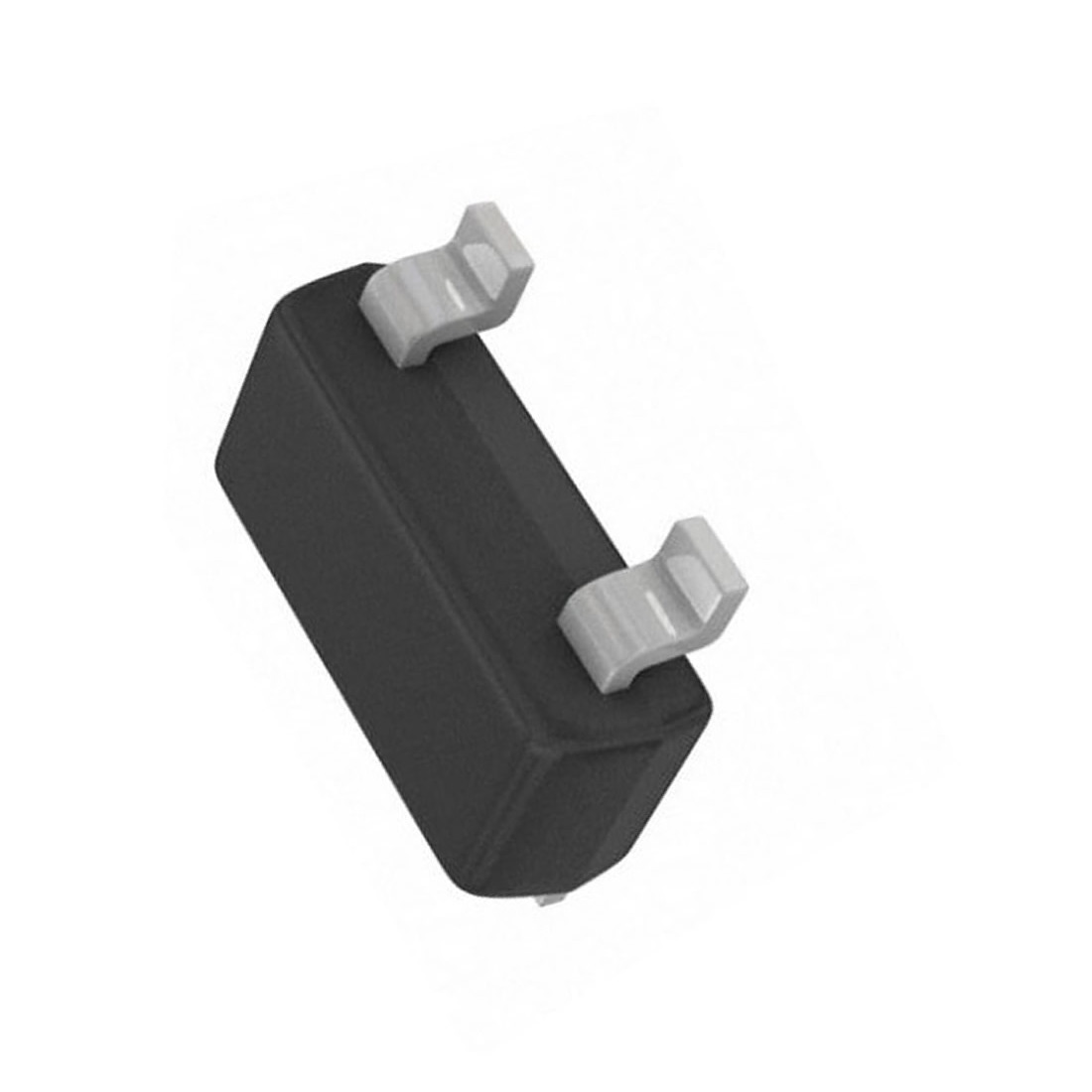

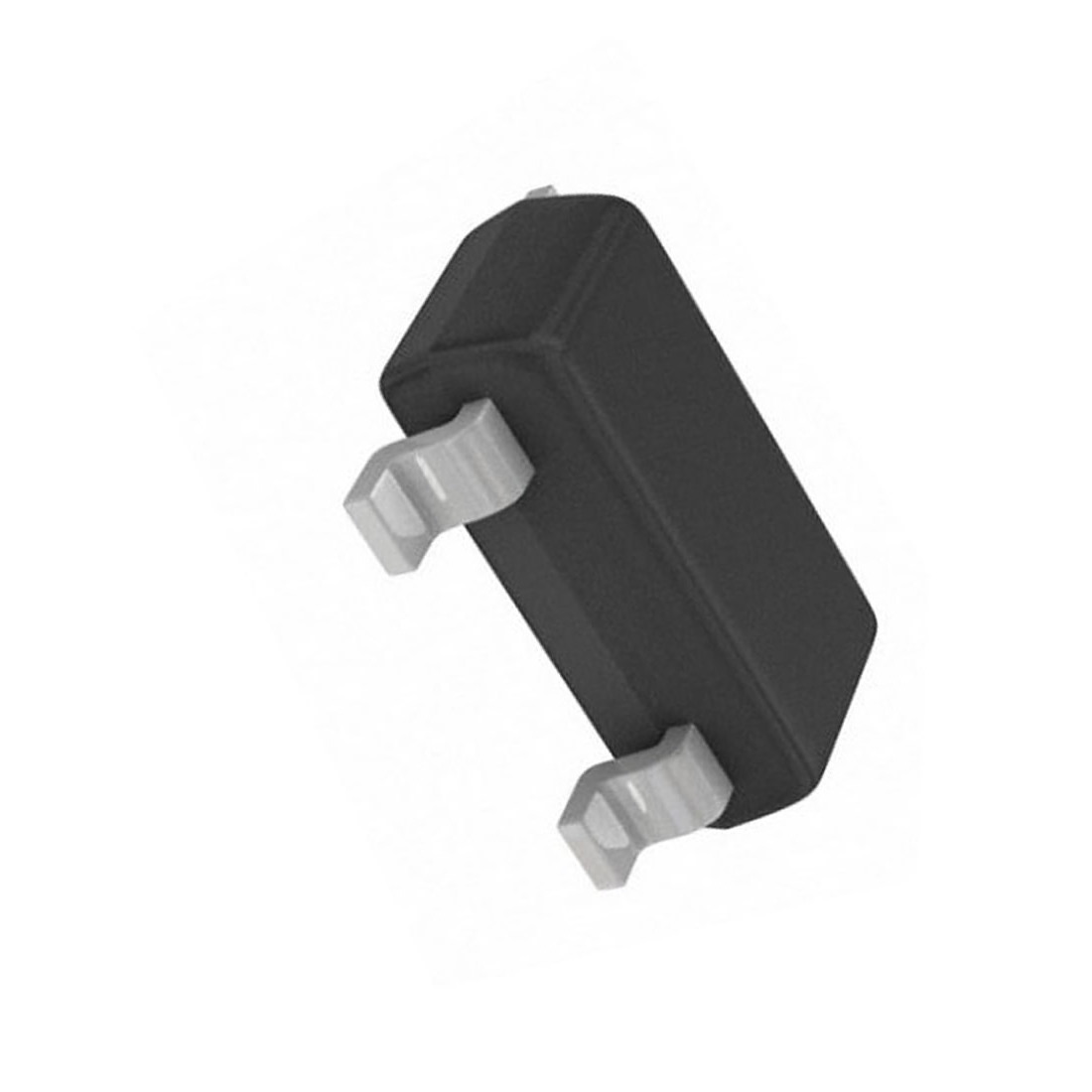

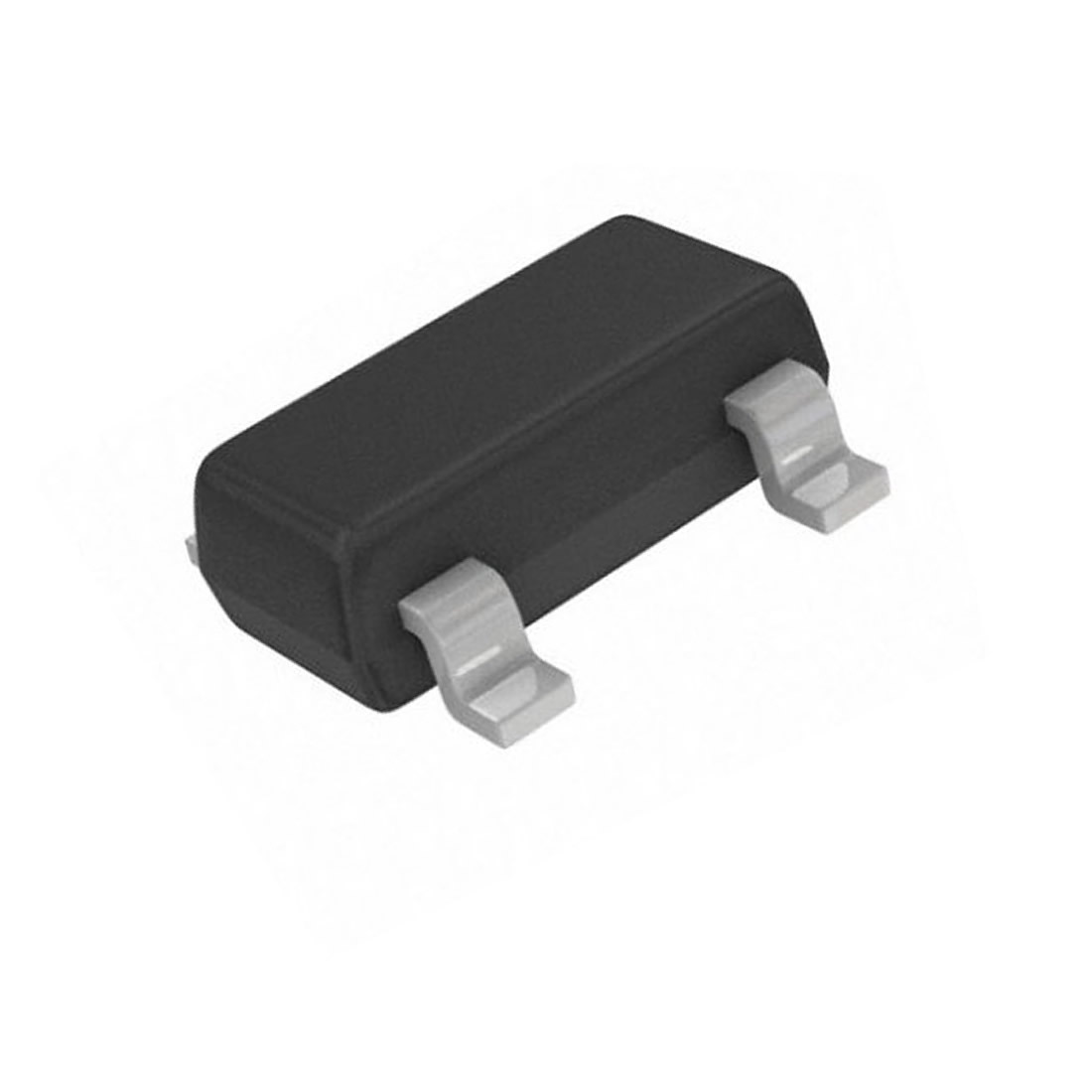

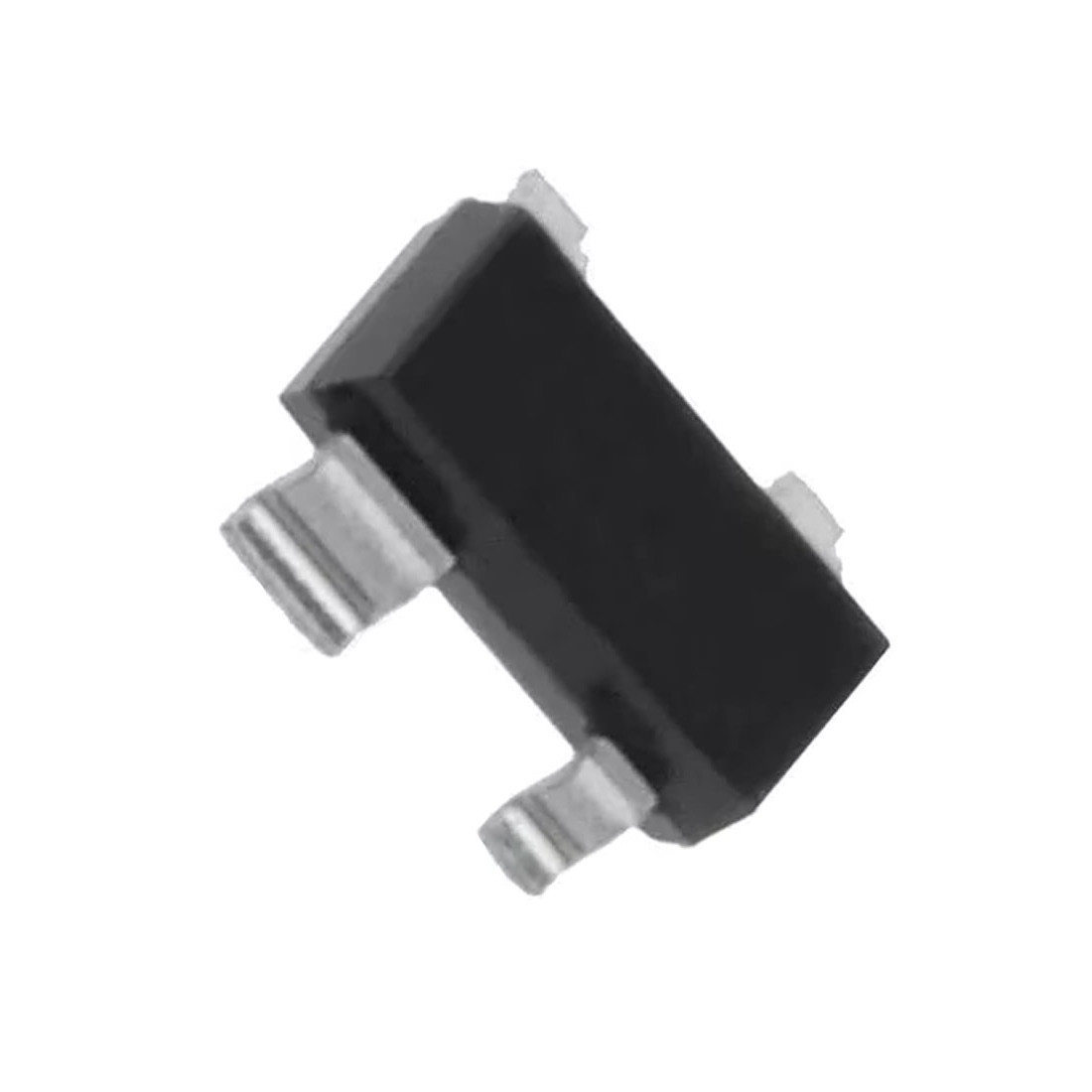

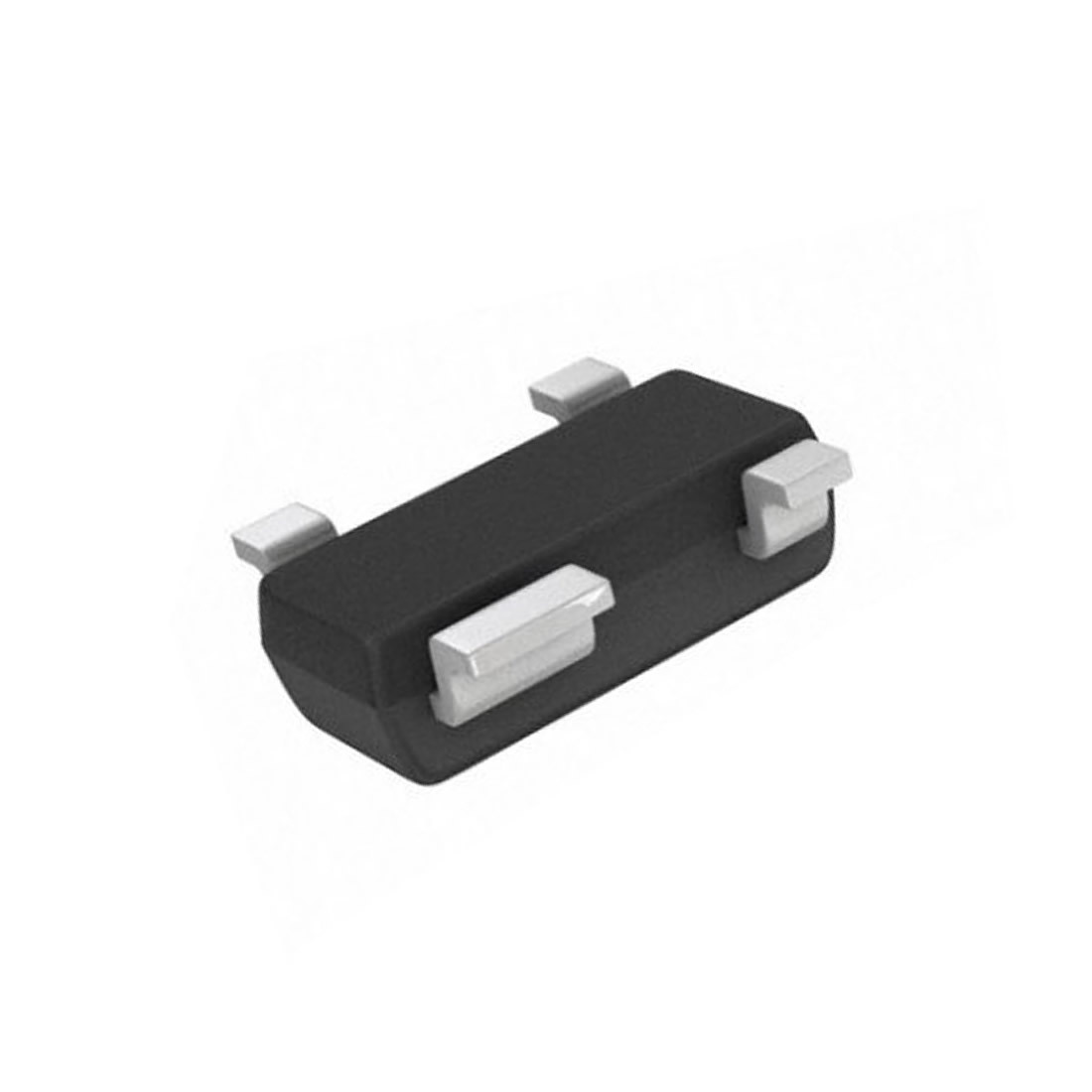

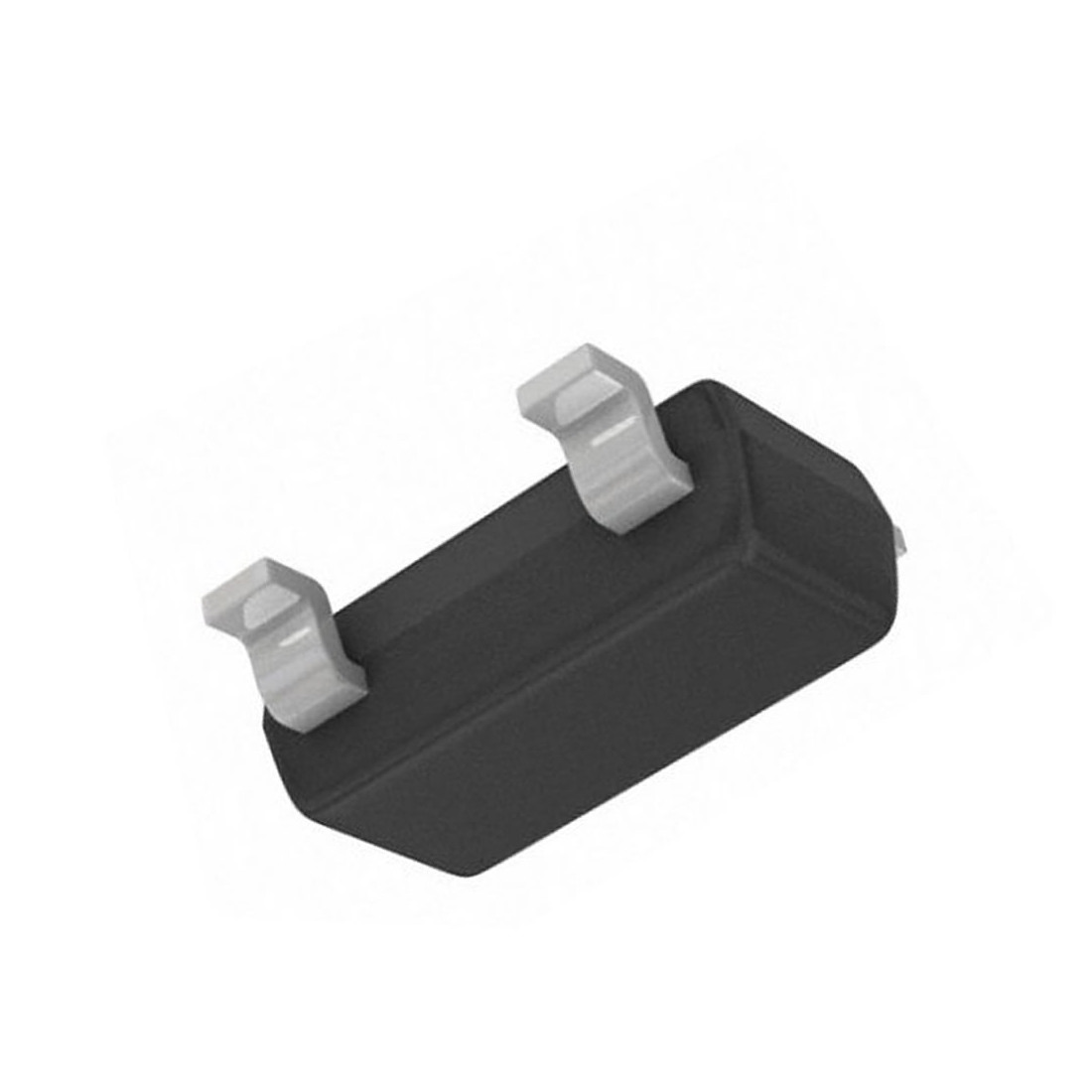

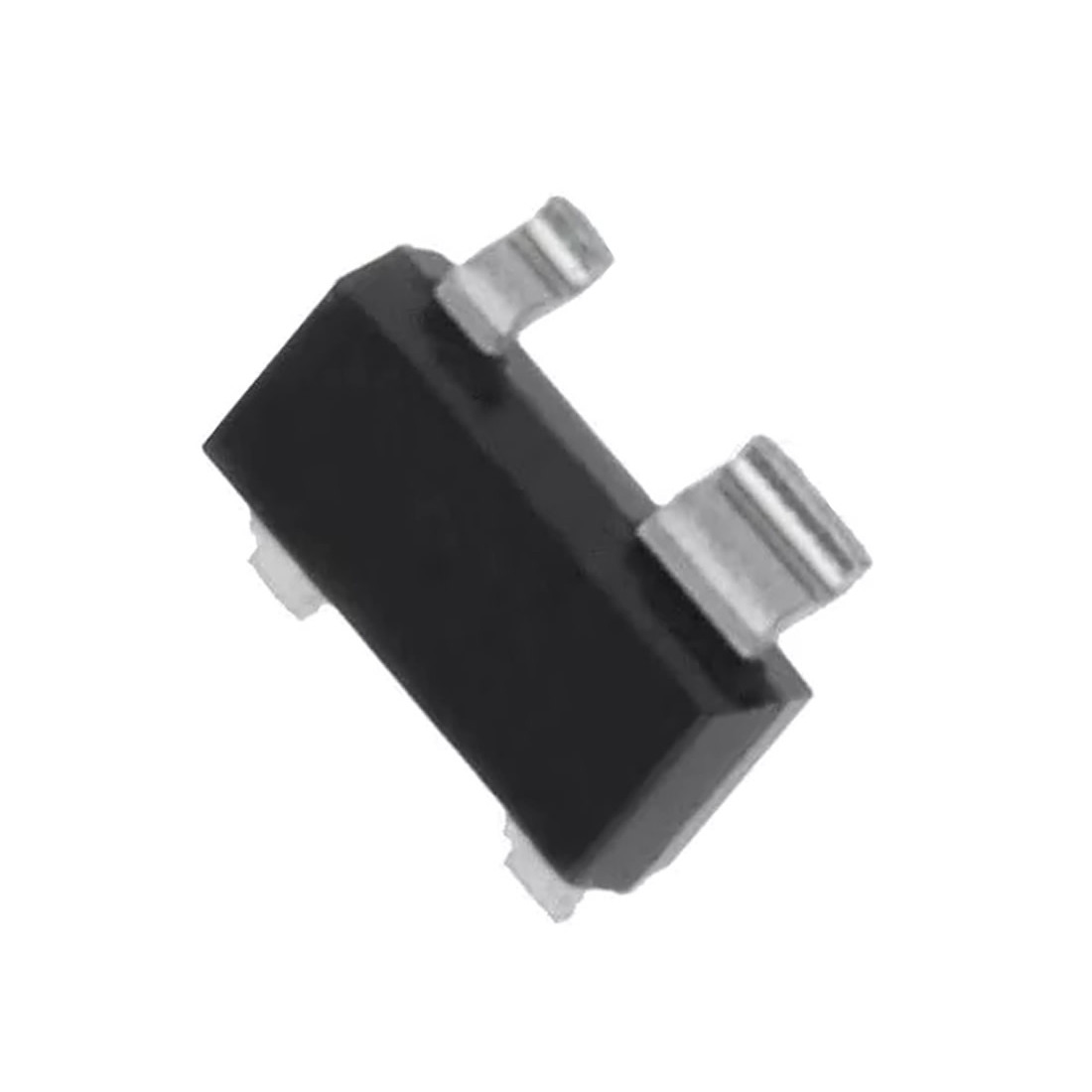

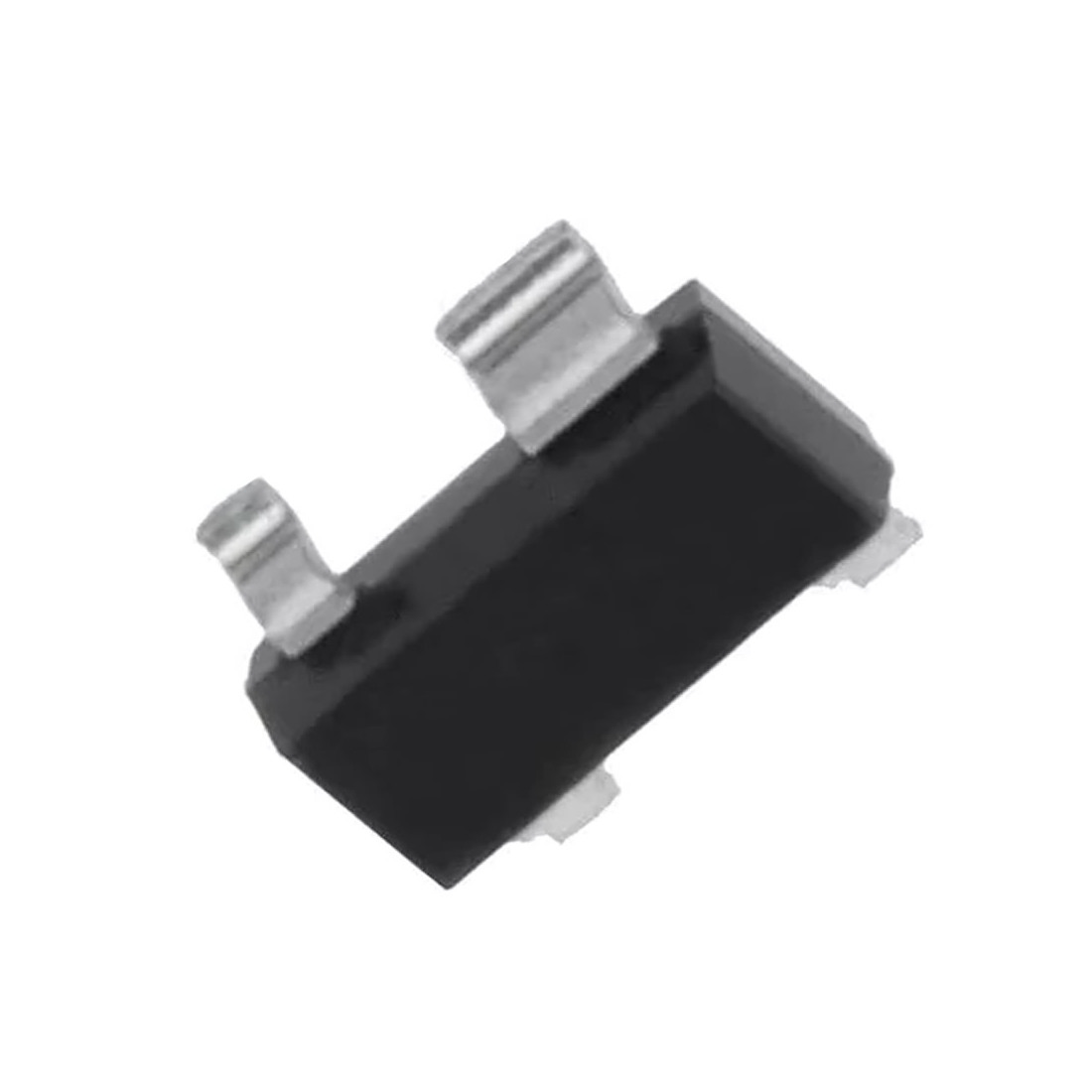

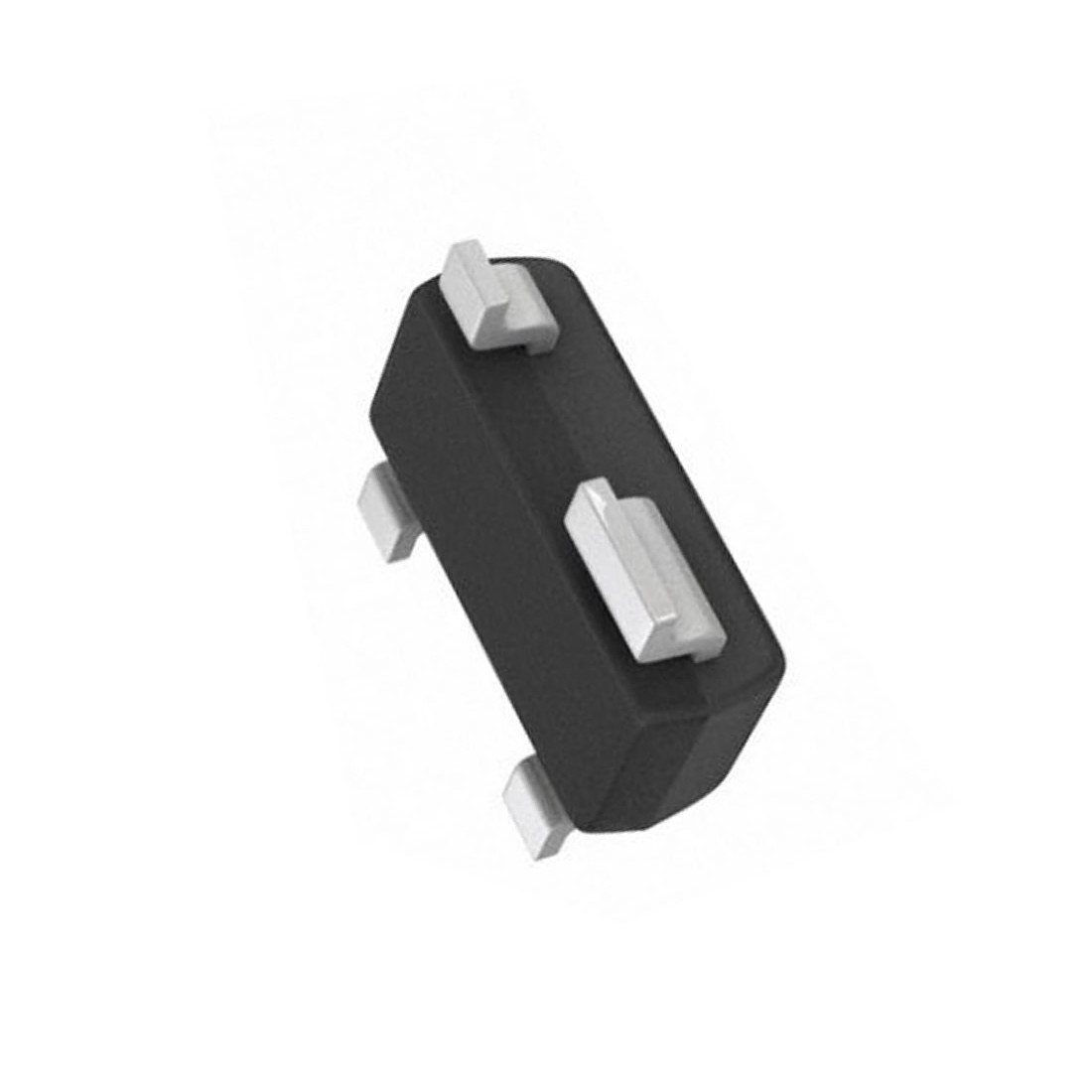

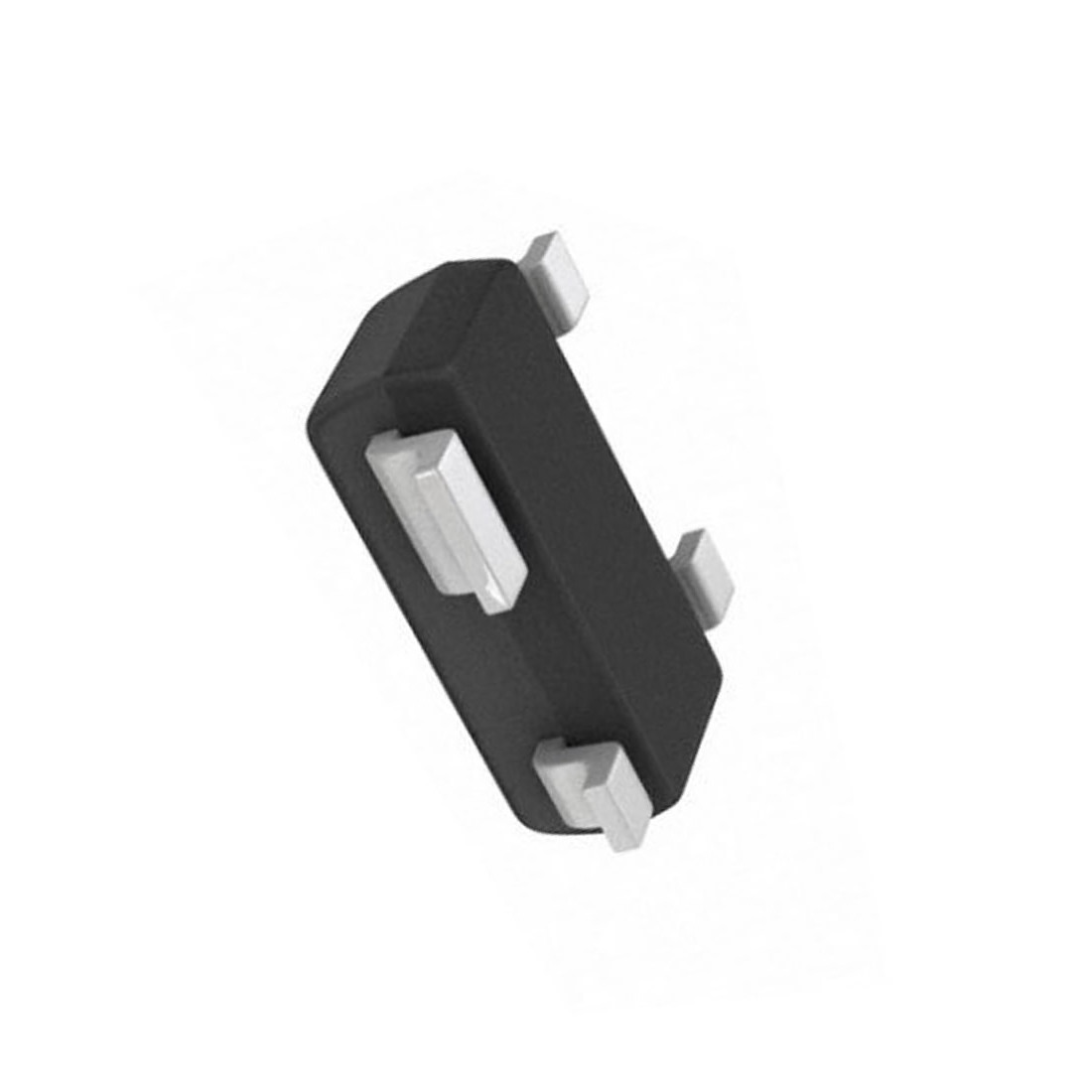

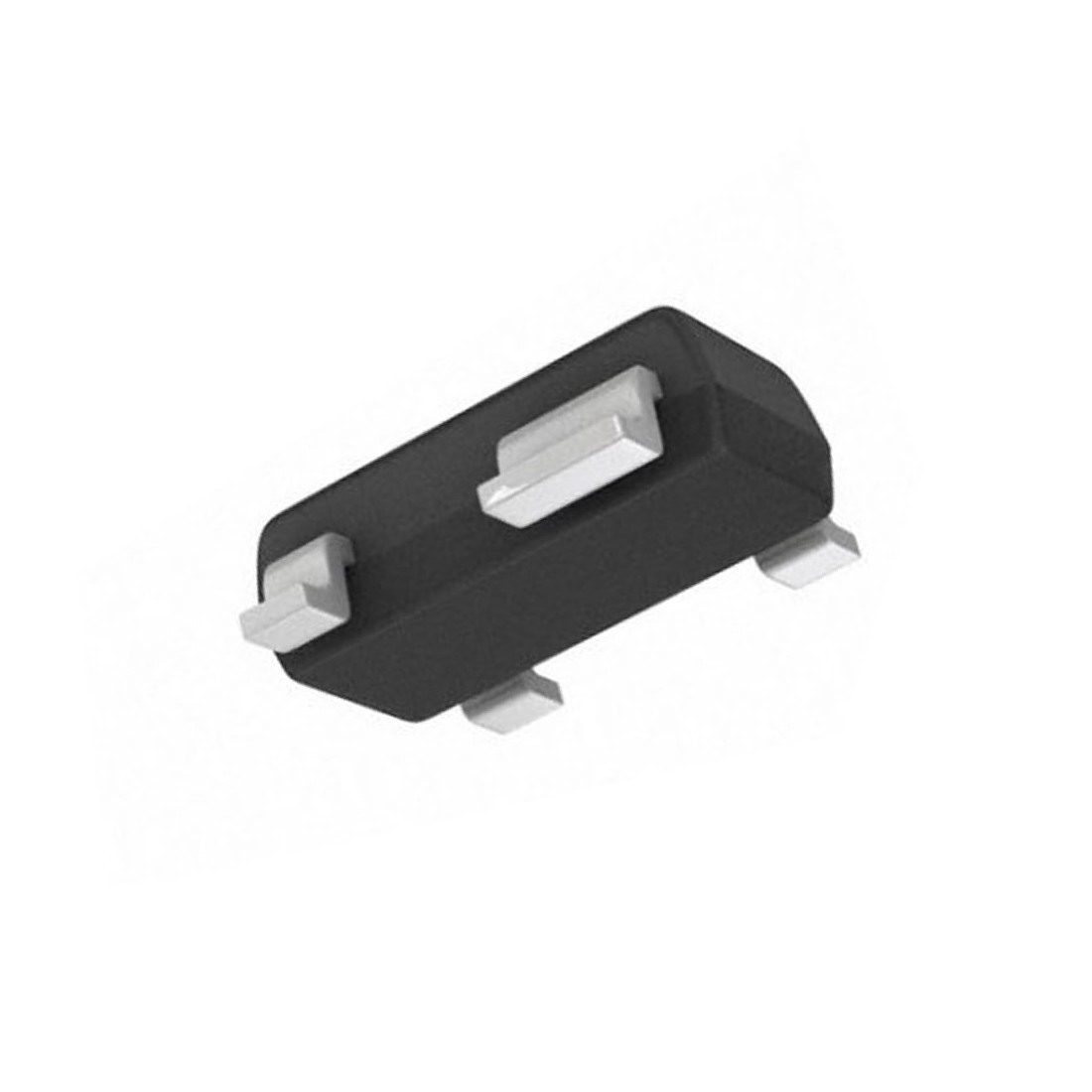

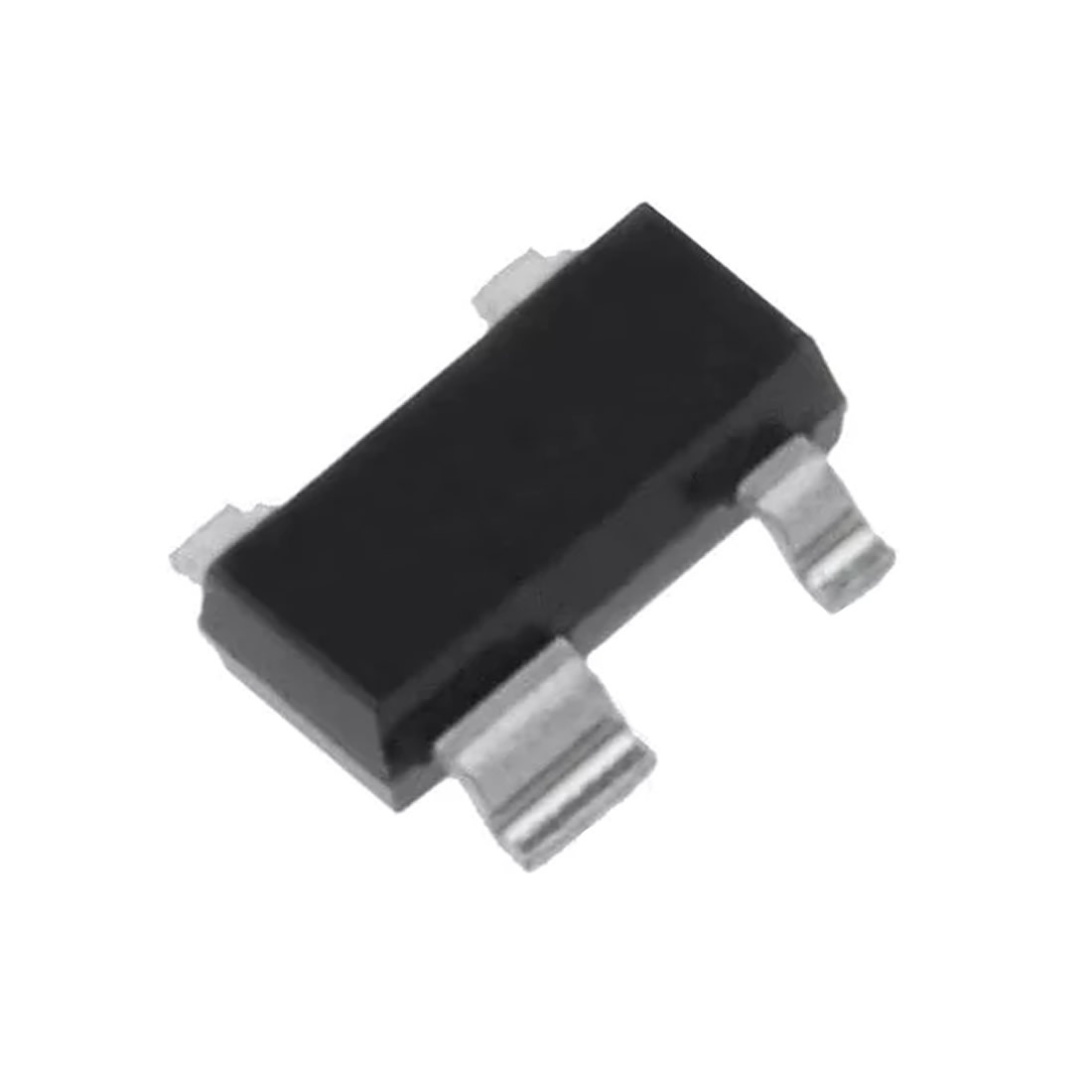

2SC5323 Transistor Silicon NPN CASE: SOT143R MAKE: Toshiba
Datasheet
2SC5323 Datasheet
Product specifications
Type Transistor Silicon NPN

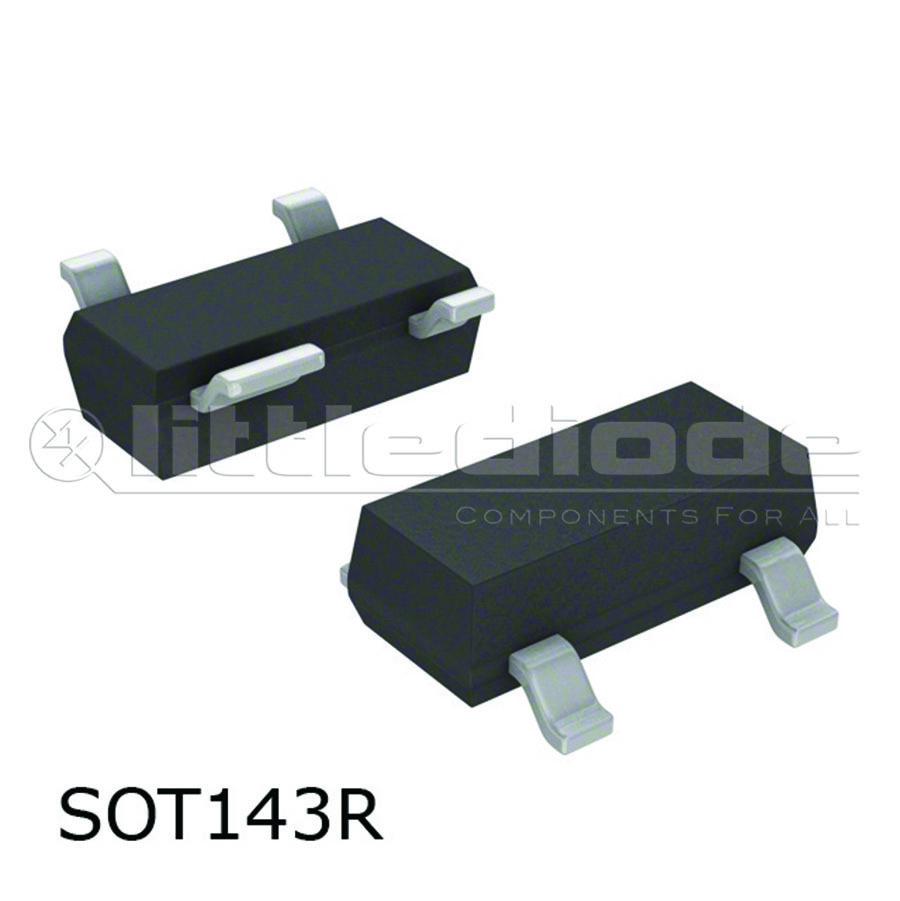

Case SOT143R
Manufacturer Toshiba
Polarity NPN
Maximum Collector Power Dissipation (Pc) 0.15 W
Maximum Collector-Base Voltage |Vcb| 8 V
Maximum Collector-Emitter Voltage |Vce| 5 V
Maximum Emitter-Base Voltage |Veb| 1.5 V
Maximum Collector Current |Ic max| 0.01 A
Max. Operating Junction Temperature (Tj) 125 °C
Collector Capacitance (Cc) 0.35 pF
Transition Frequency (ft): 13000 MHz
Forward Current Transfer Ratio (hFE), MIN 50
SMD Transistor Code MU
SKU 345060
