2SC5361

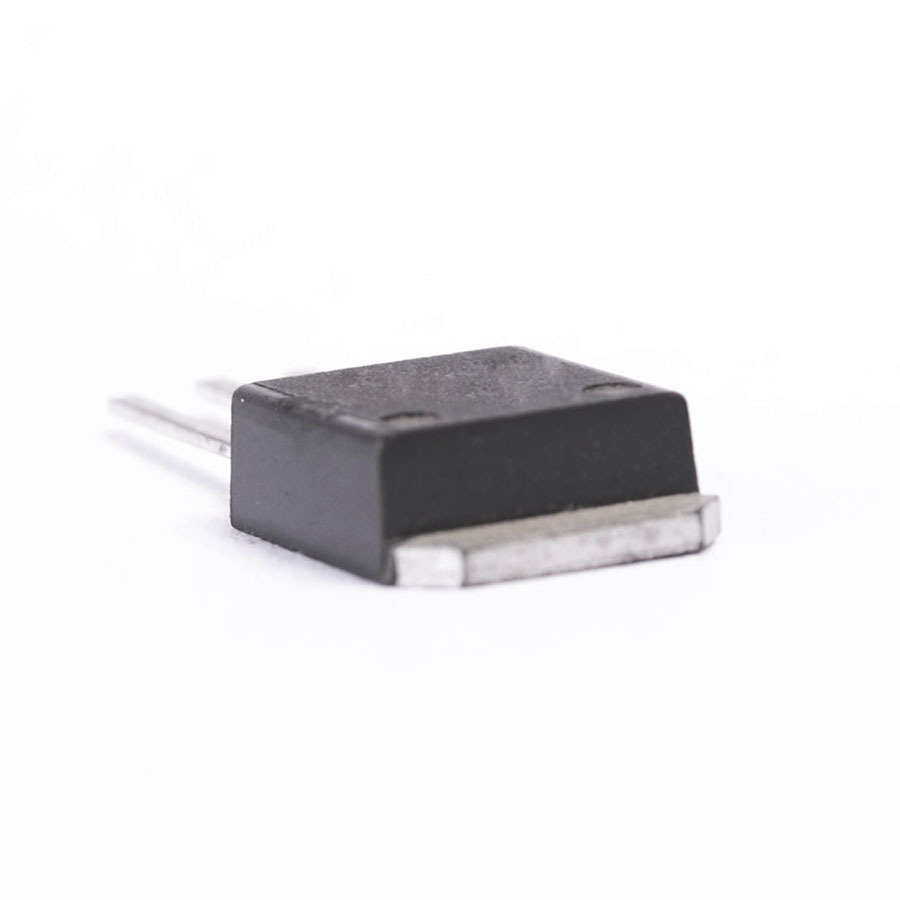

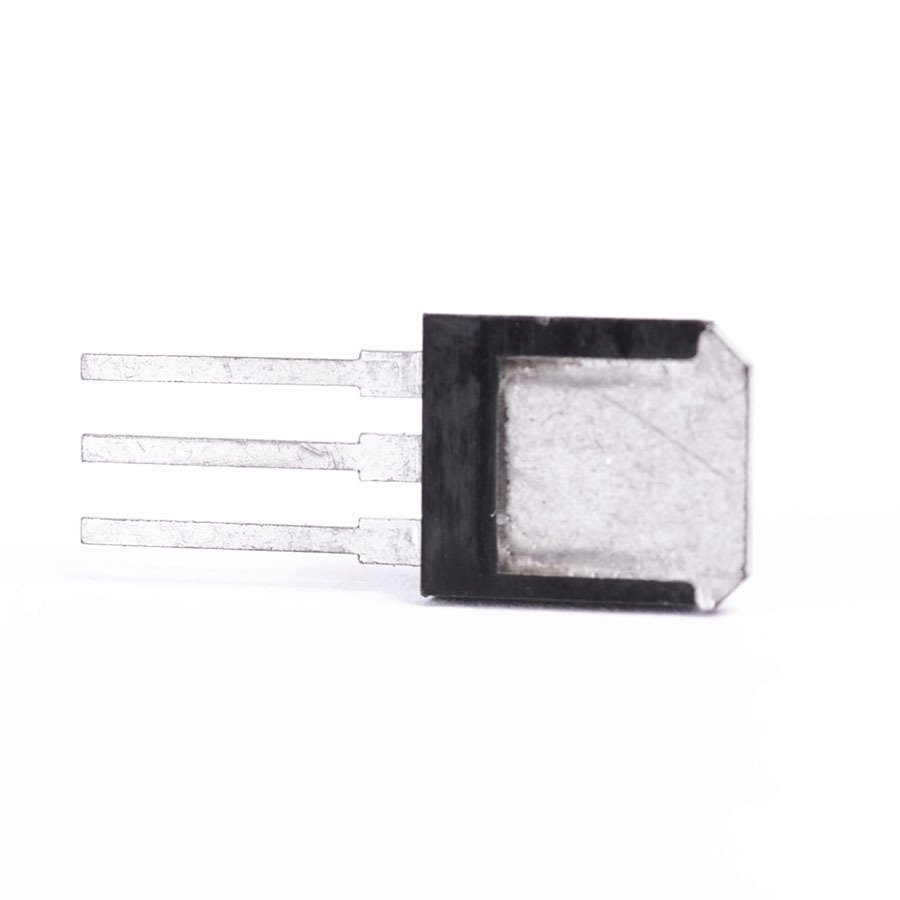

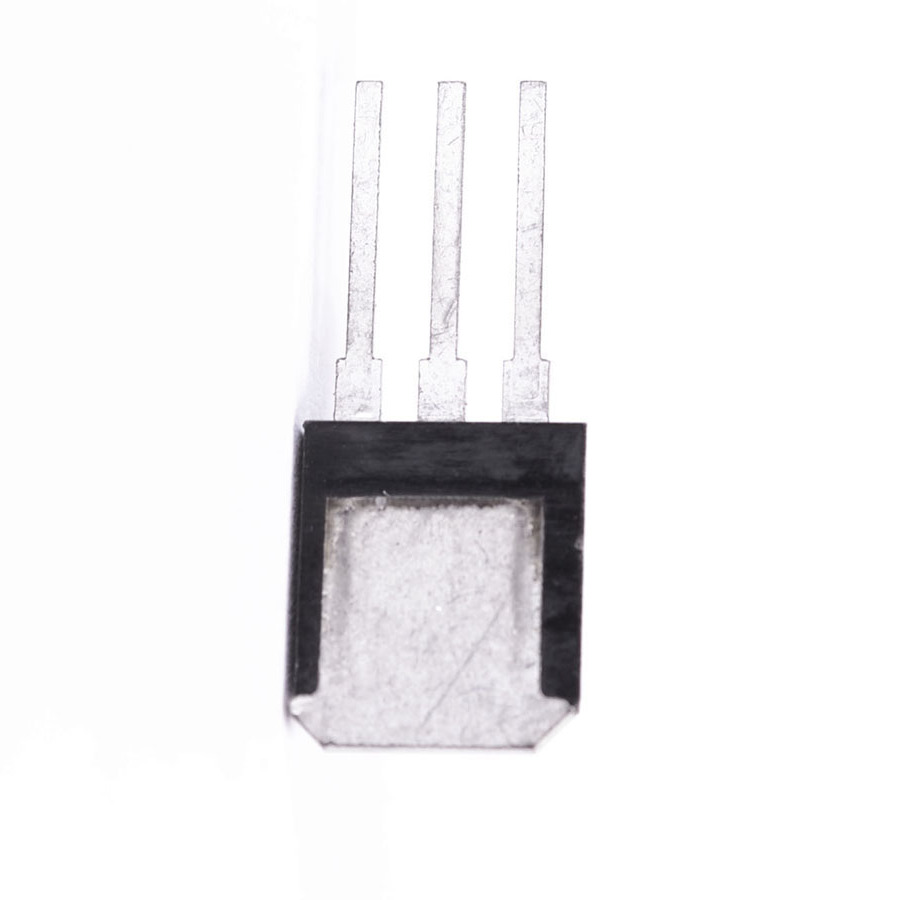

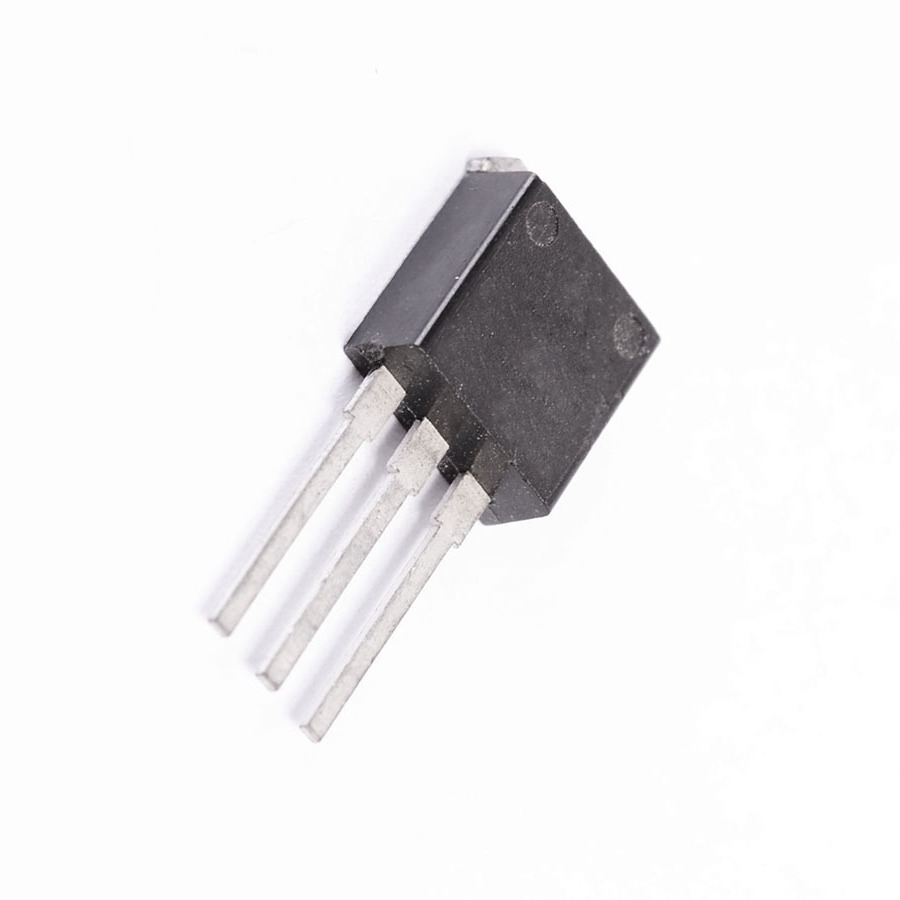

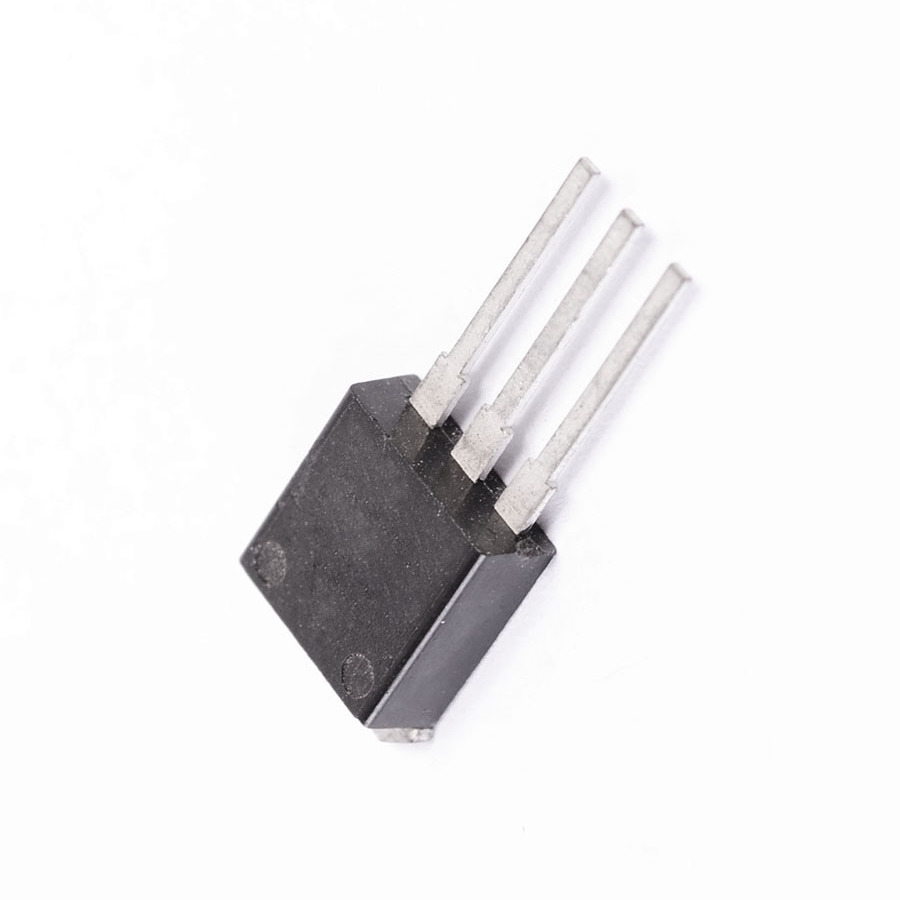

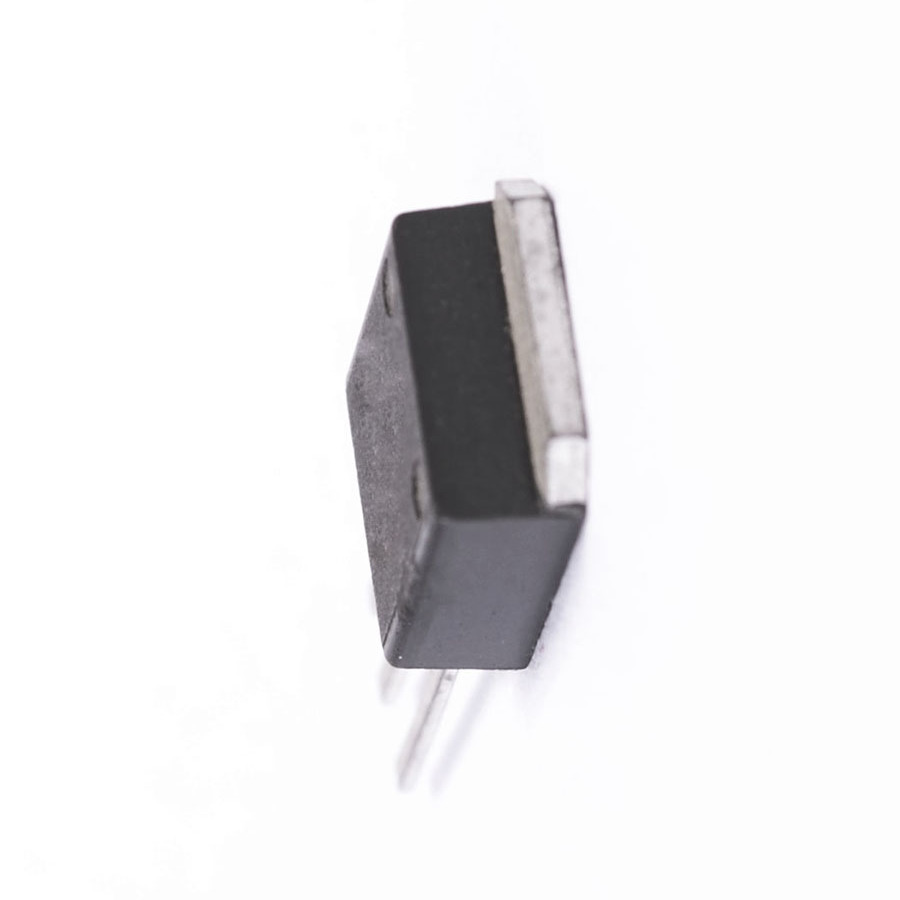

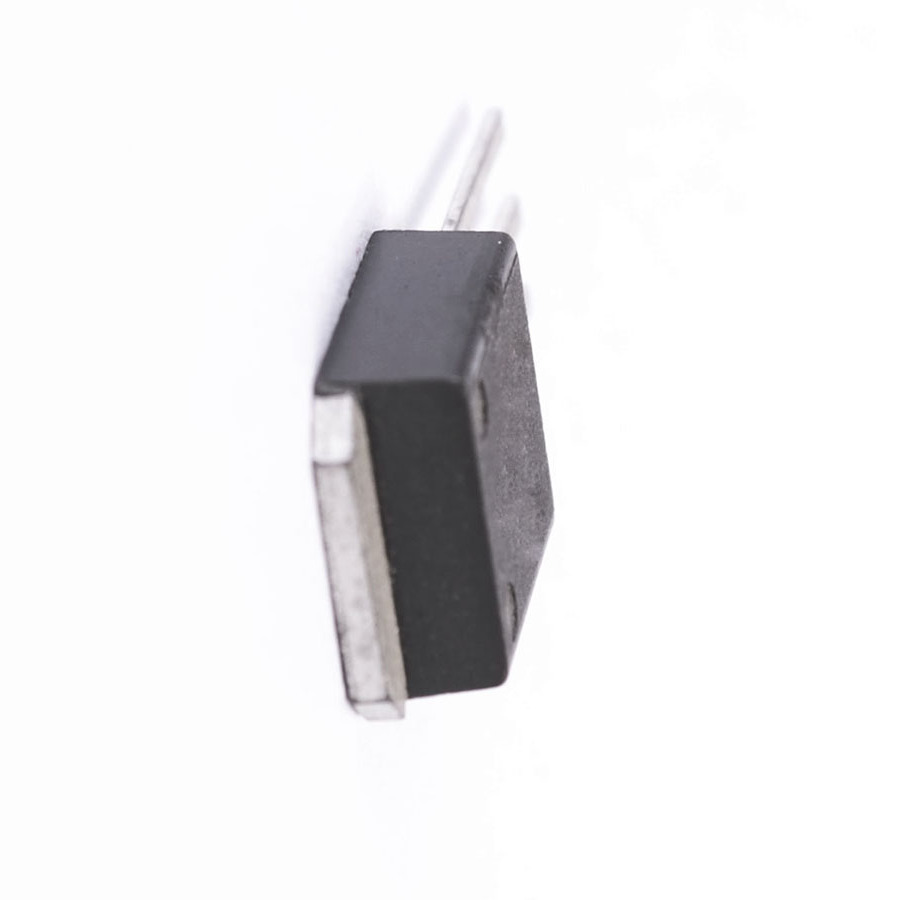

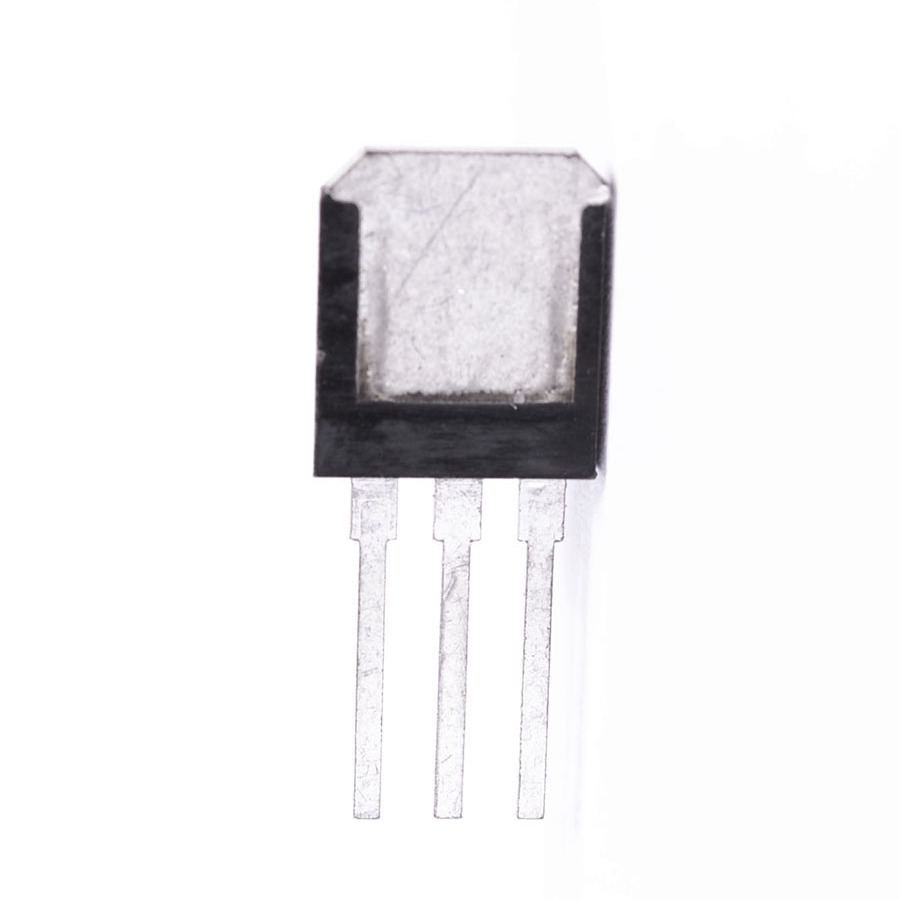

View detailed images (12)

2SC5361

SKU: 2SC5361

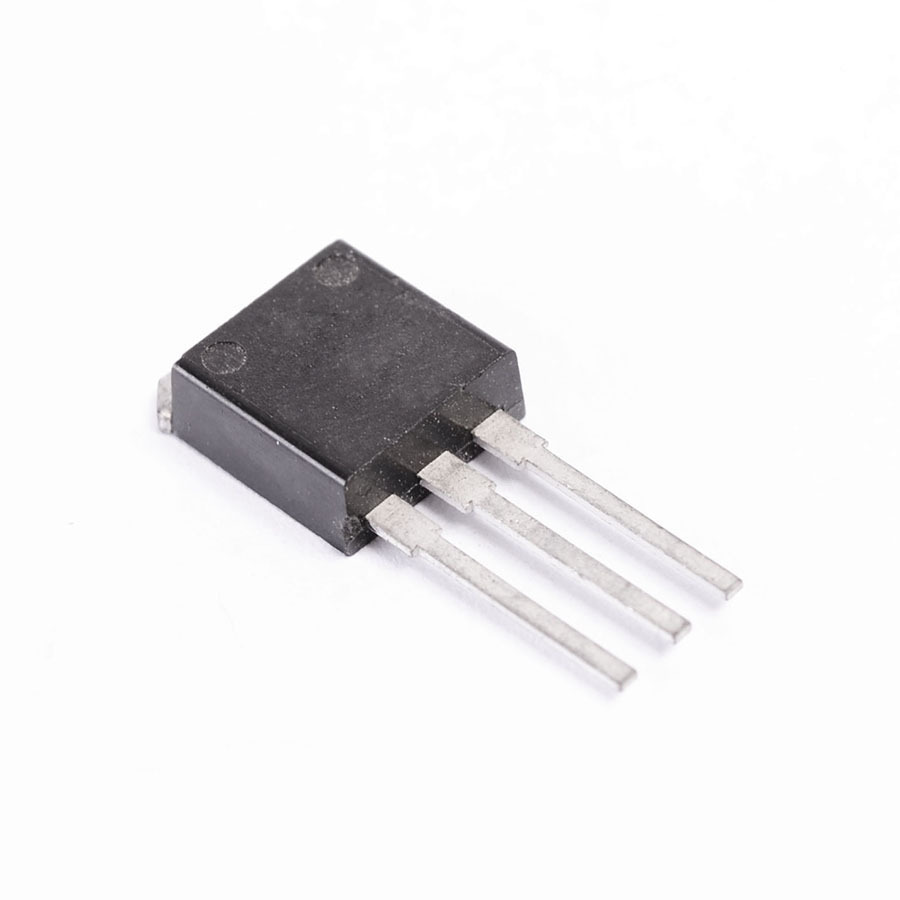

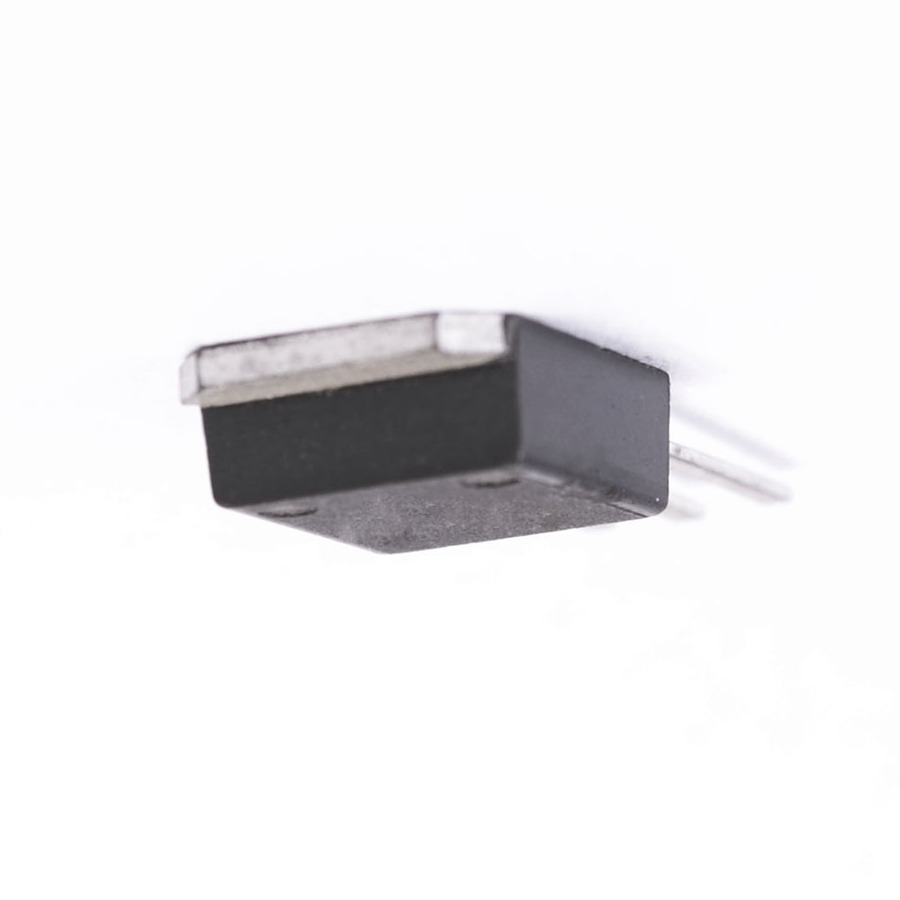

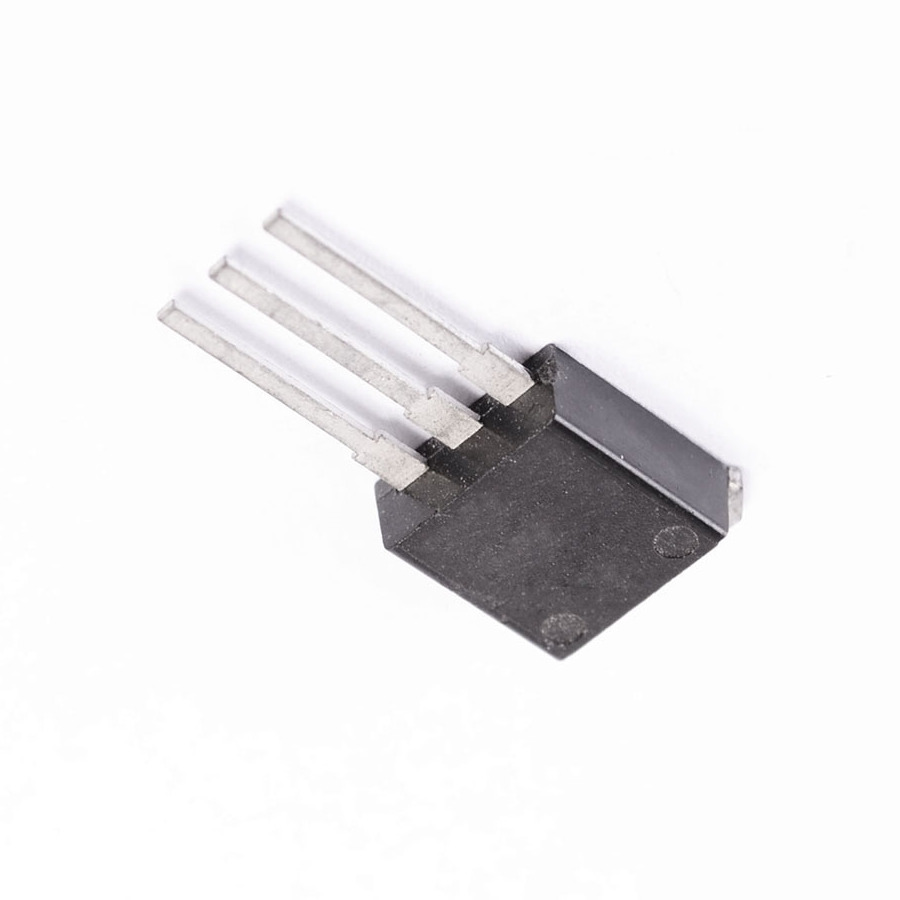

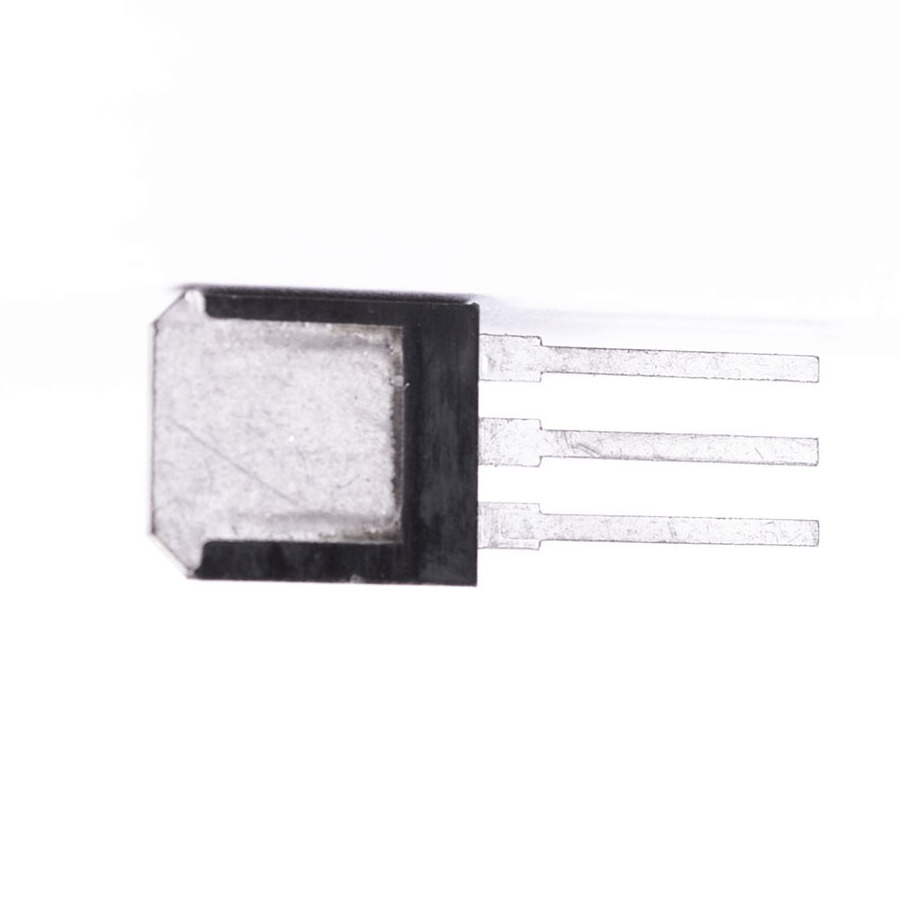

2SC5361 Transistor Silicon NPN CASE: TO262 MAKE: Toshiba
Datasheet
2SC5361 Datasheet
Product specifications
Type Transistor Silicon NPN
Case TO262
Manufacturer Toshiba
Polarity NPN
Maximum Collector Power Dissipation (Pc) 40 W
Maximum Collector-Base Voltage |Vcb| 900 V
Maximum Collector-Emitter Voltage |Vce| 800 V
Maximum Emitter-Base Voltage |Veb| 7 V
Maximum Collector Current |Ic max| 3 A
Max. Operating Junction Temperature (Tj) 150 °C
Forward Current Transfer Ratio (hFE), MIN 15
SKU 345077
