2SC539
View detailed images (9)

2SC539

SKU: 2SC539

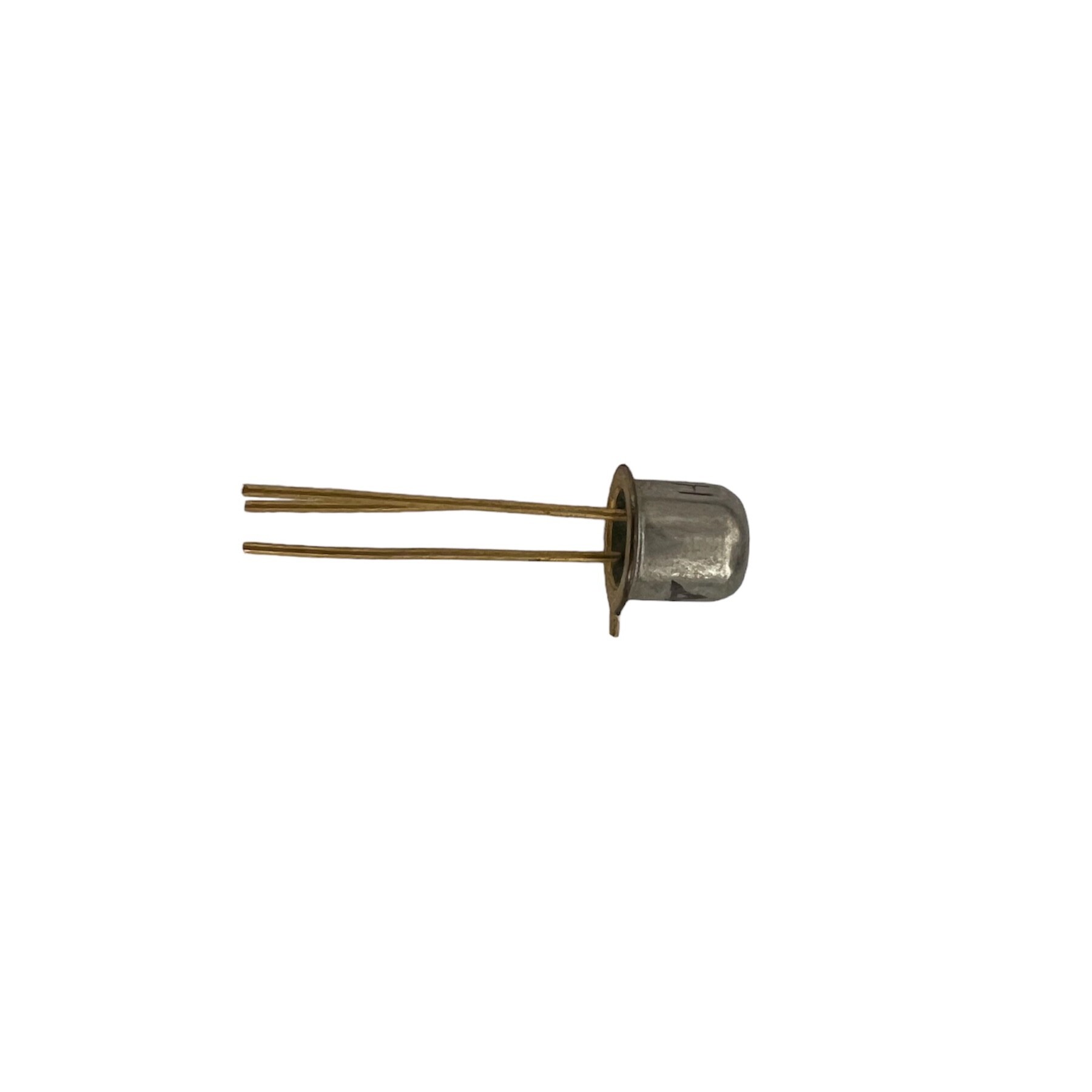

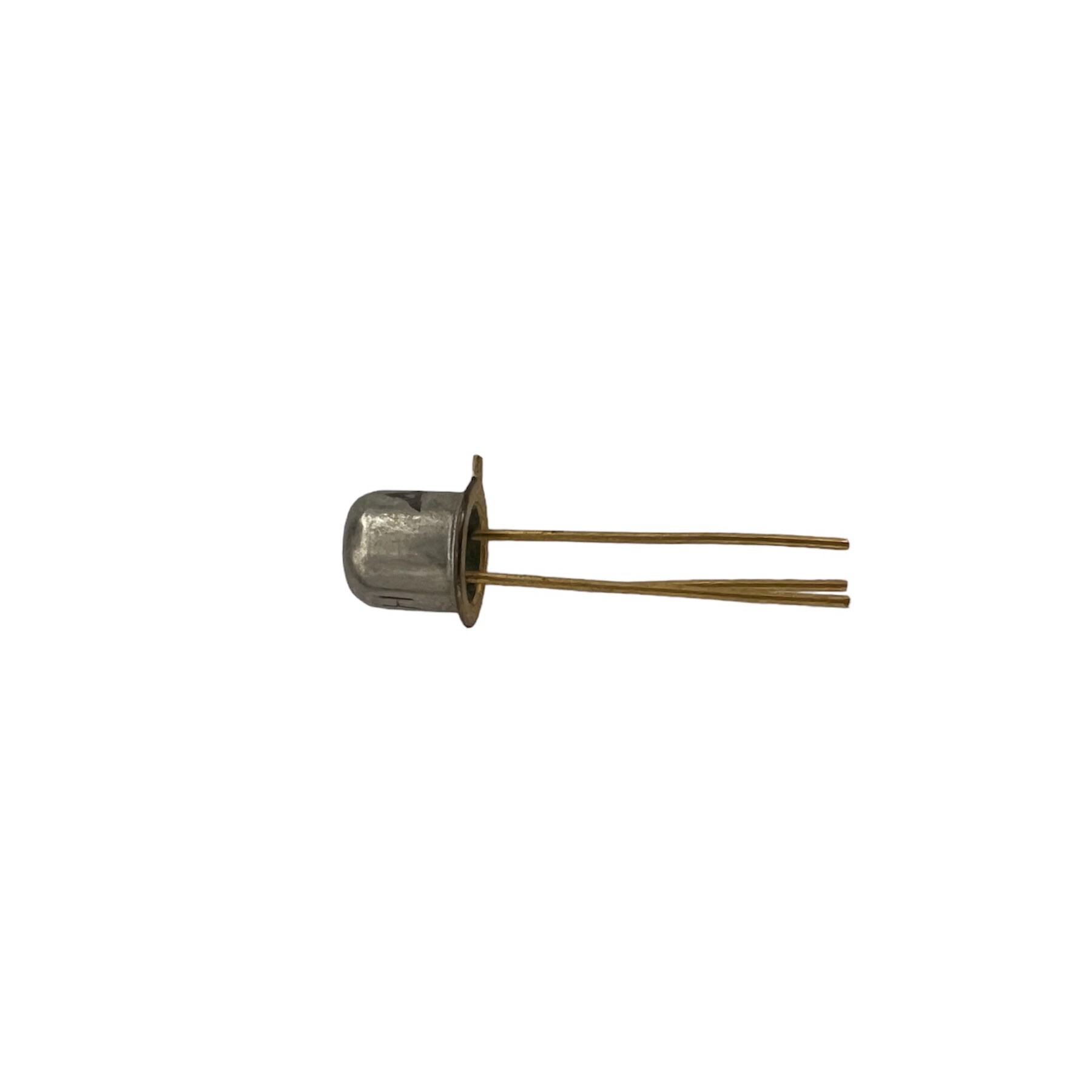

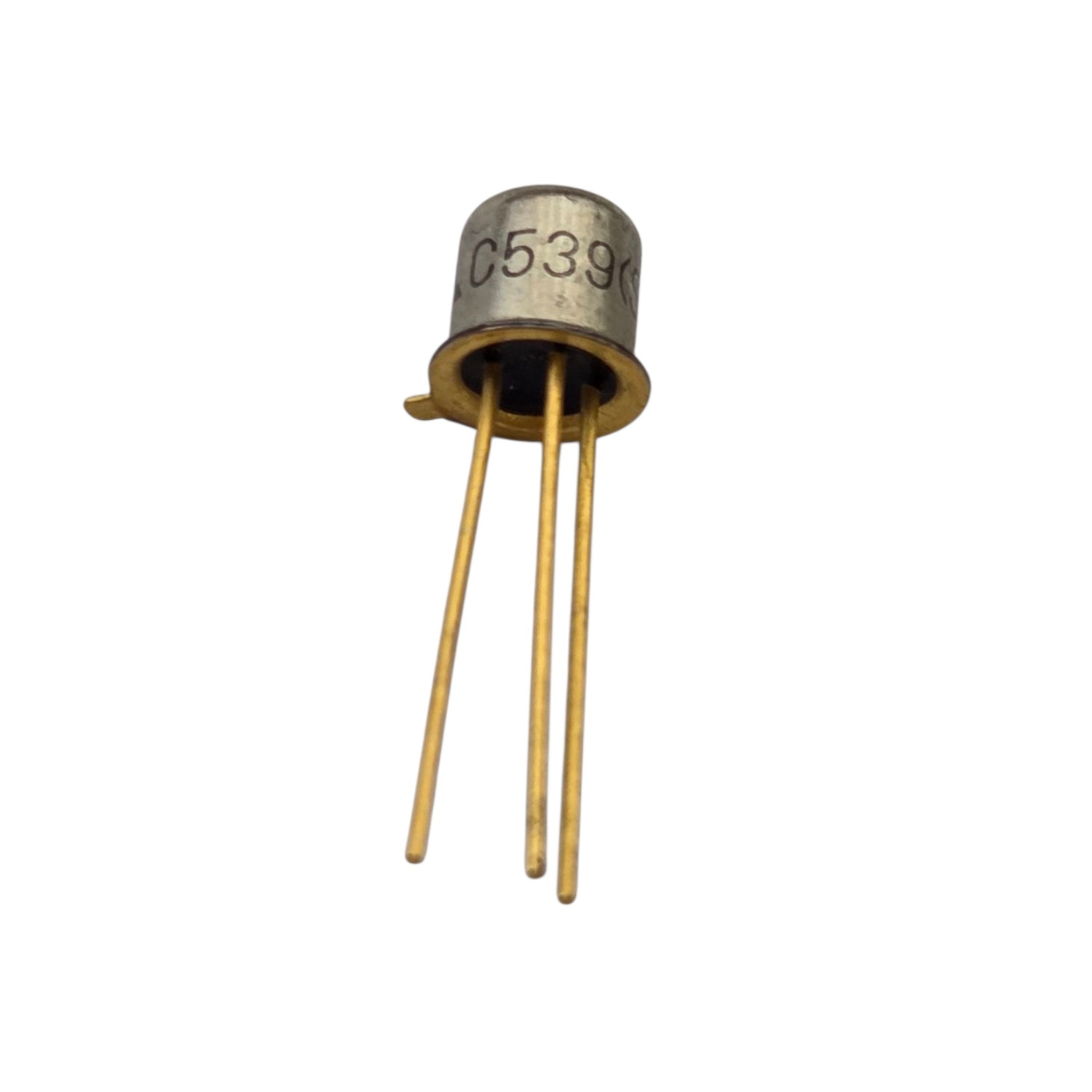

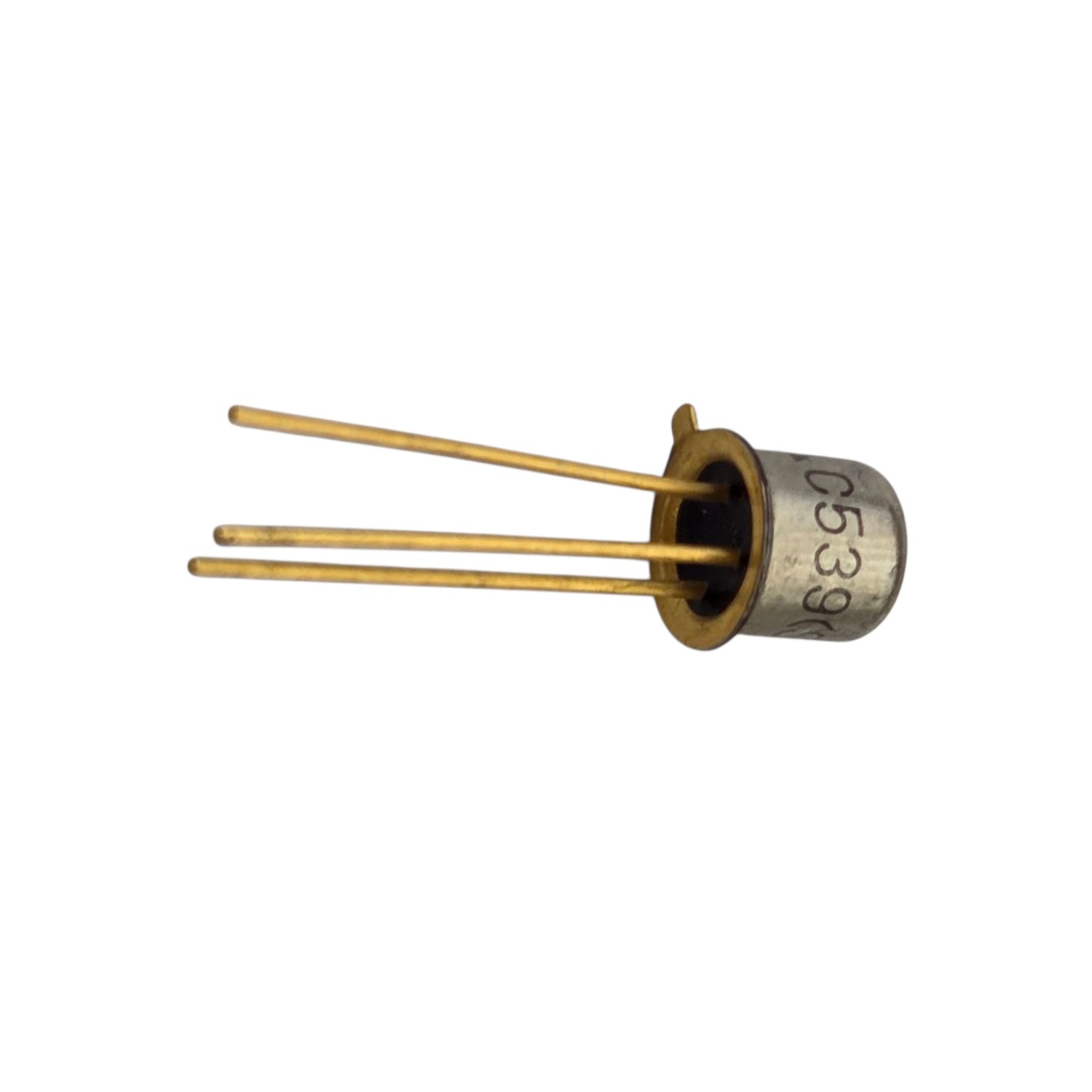

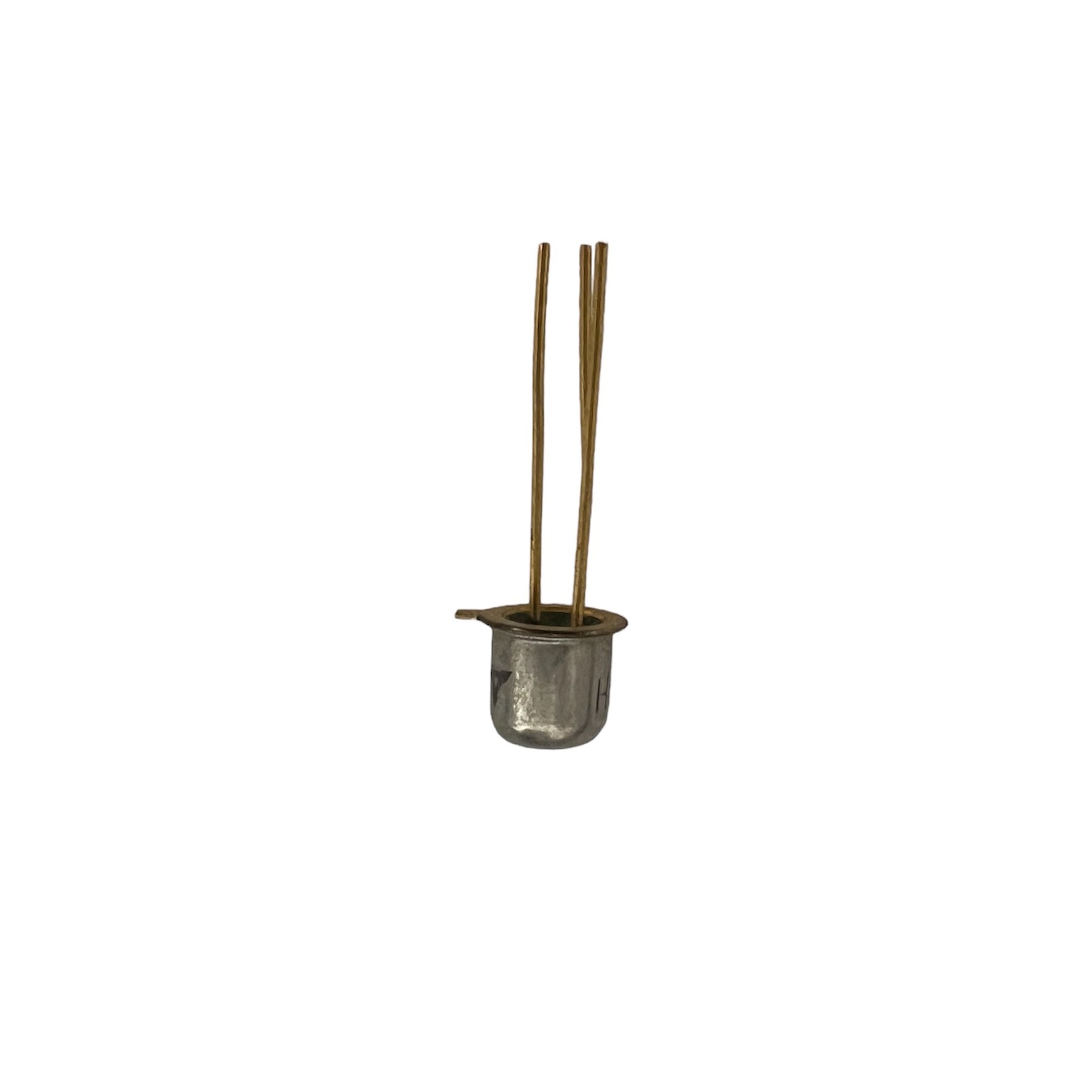

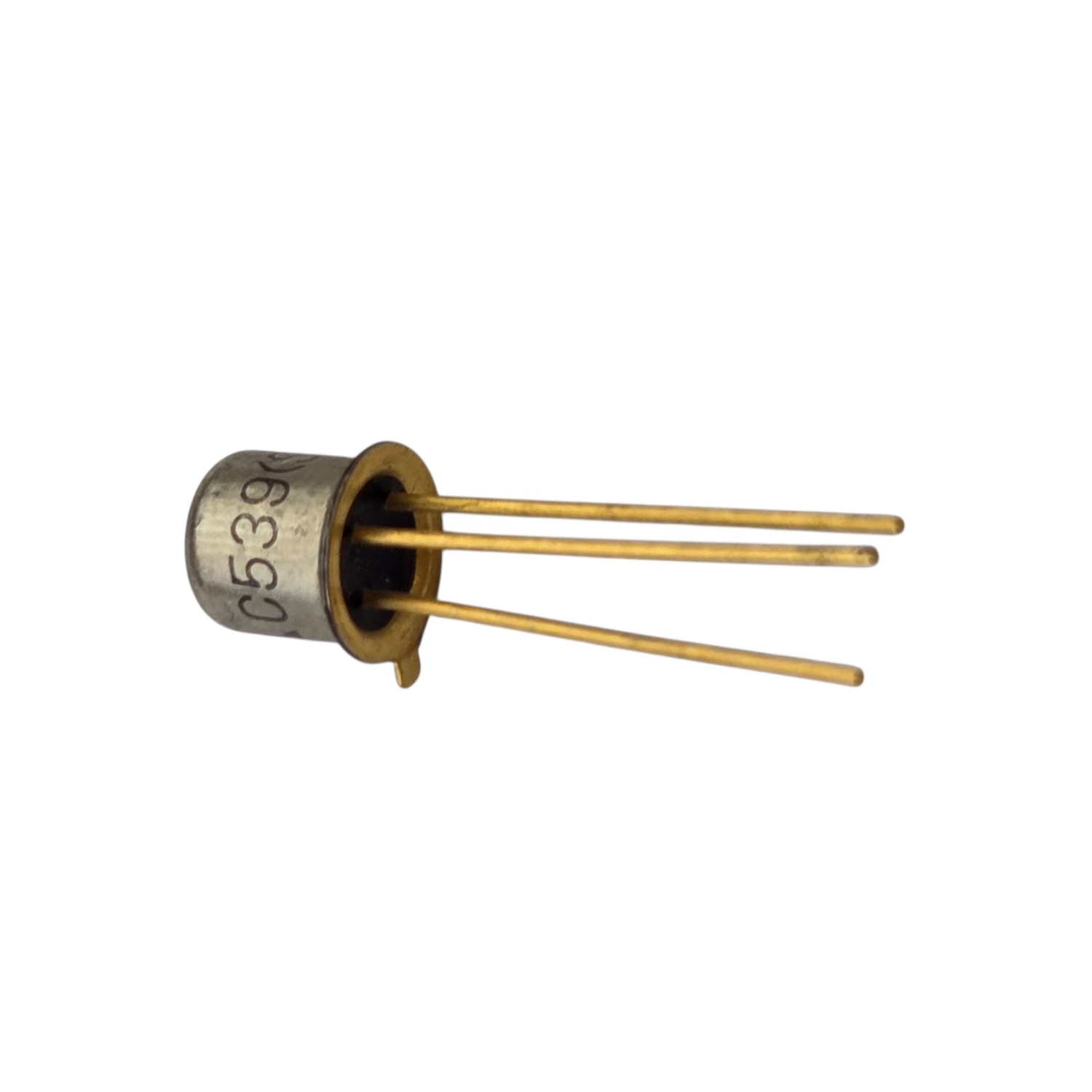

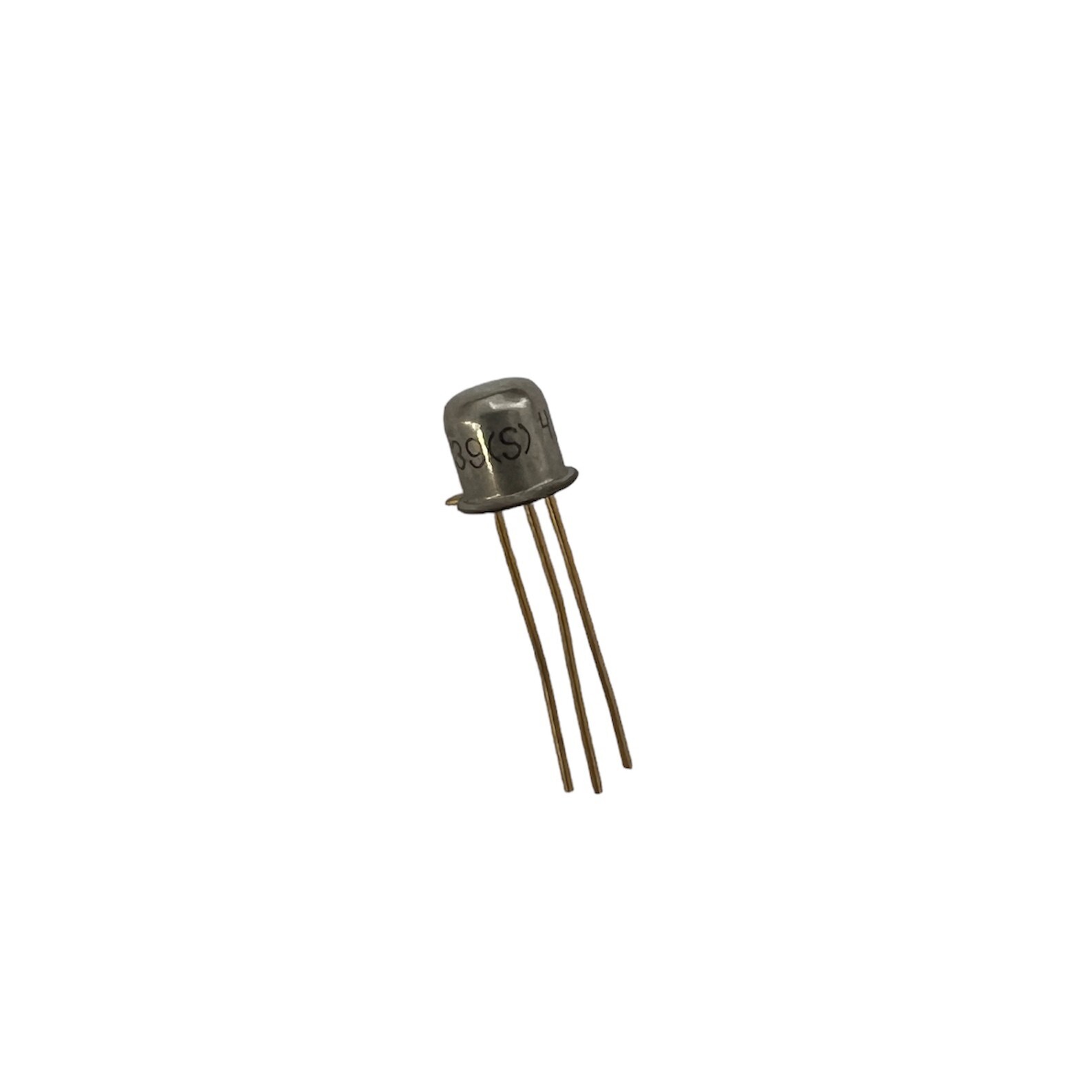

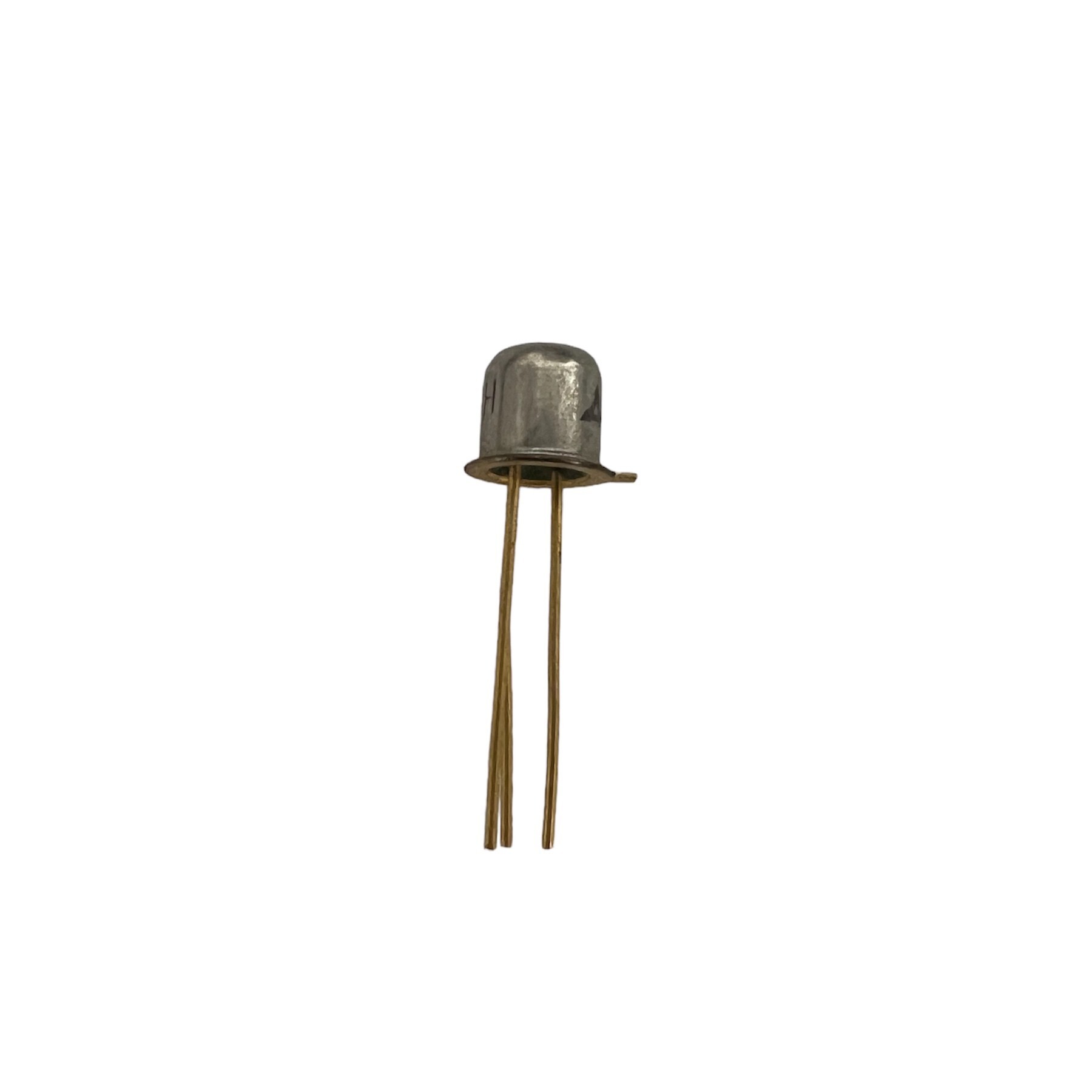

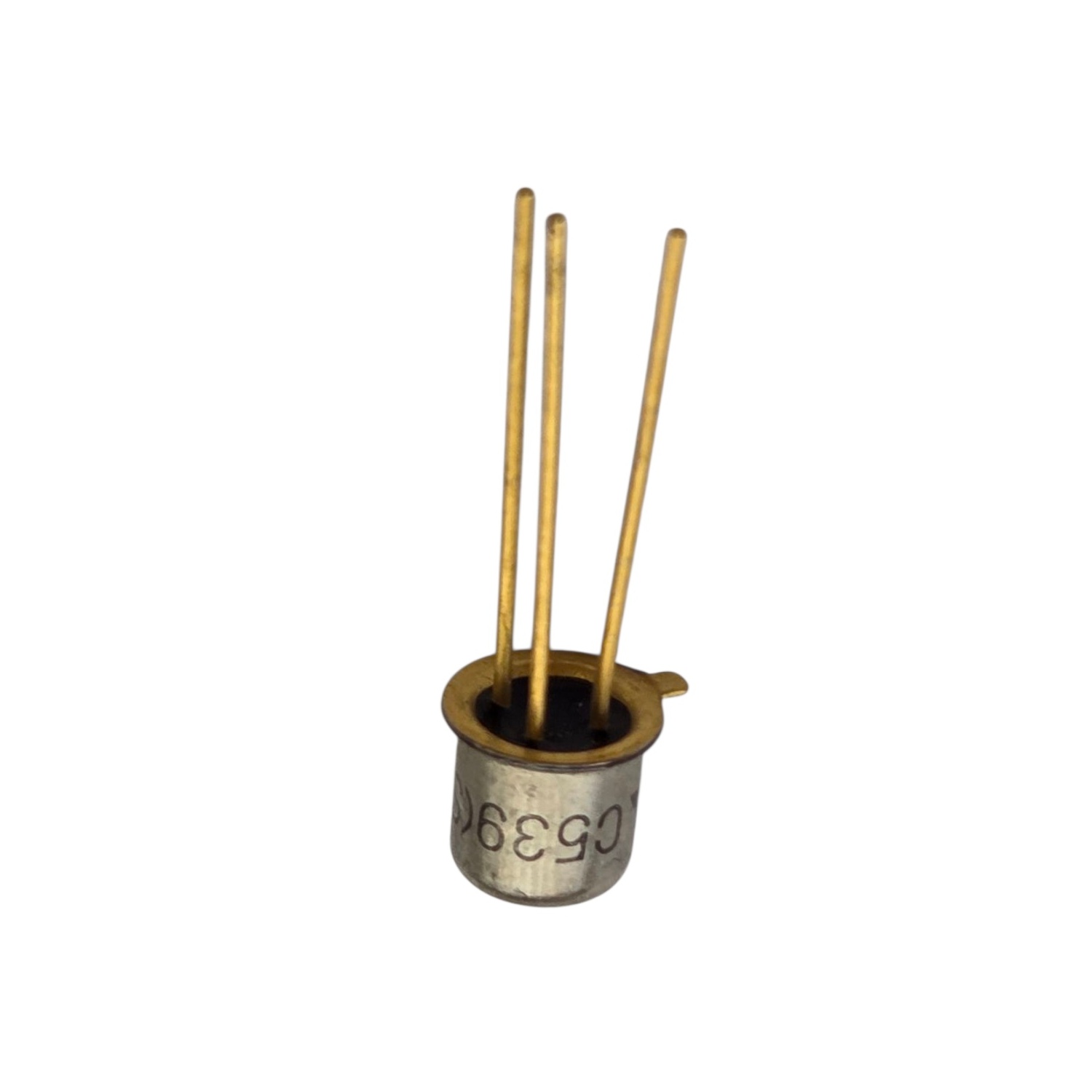

2SC539 Transistor Silicon NPN CASE: TO18 MAKE: Matsushita Electronics
Price:
£23.99 Inc. VAT (£19.99 Ex. VAT)
£23.99 Inc. VAT (£19.99 Ex. VAT)
Qty
  • 1 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Product specifications
Equivalent 2SC539Z
Type Transistor Silicon NPN
Case TO18
Manufacturer Matsushita Electronics
Vbr CBO 25
Vbr CEO 25
Max. PD (W) 300m
Derate (Amb) (W/°C) 2.0m
hfe 250
Ic Max. (A) 50m
Icbo Max. @Vcb Max. (A) .01u
Polarity NPN
@VCE (test) (V) 5.0i
Oper. Temp (°C) Max. 175
@Ic (A) 2.0m
Pinout Equivalence Number 3-12
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.3 W
Maximum Collector-Base Voltage |Vcb| 25 V
Maximum Collector-Emitter Voltage |Vce| 25 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 0.05 A
Max. Operating Junction Temperature (Tj) 175 °C
Transition Frequency (ft): 100 MHz
Forward Current Transfer Ratio (hFE), MIN 250
SKU 395391
