2SC5501
View detailed images (4)

2SC5501

SKU: 2SC5501

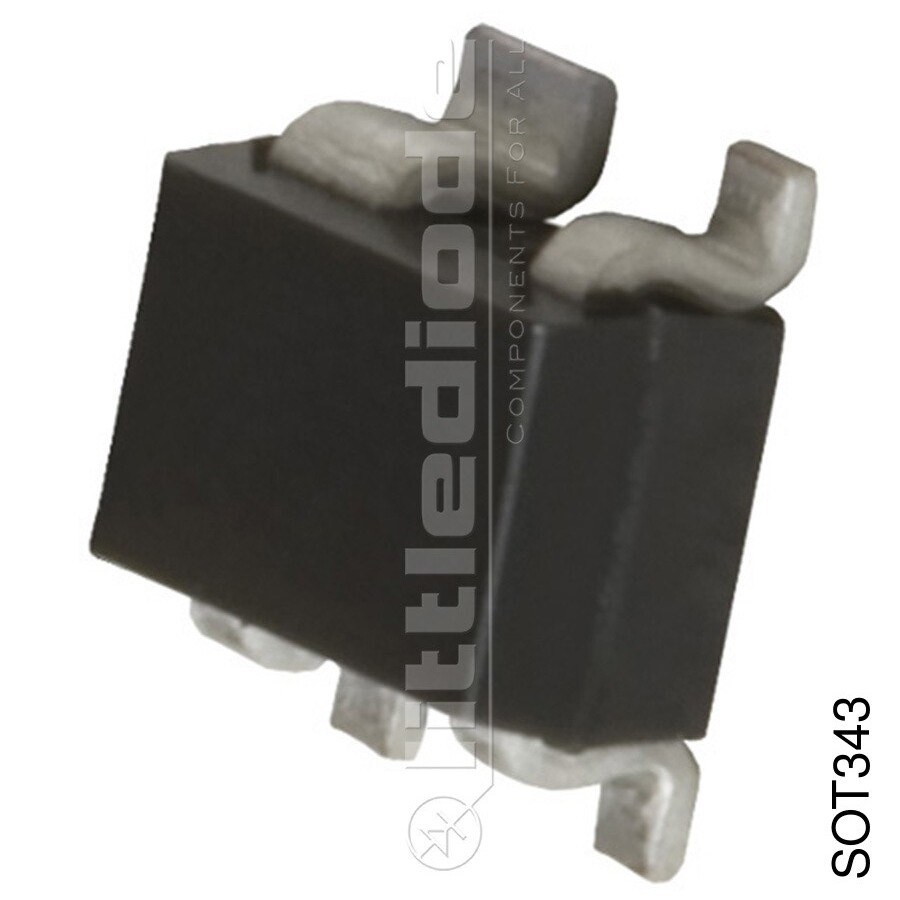

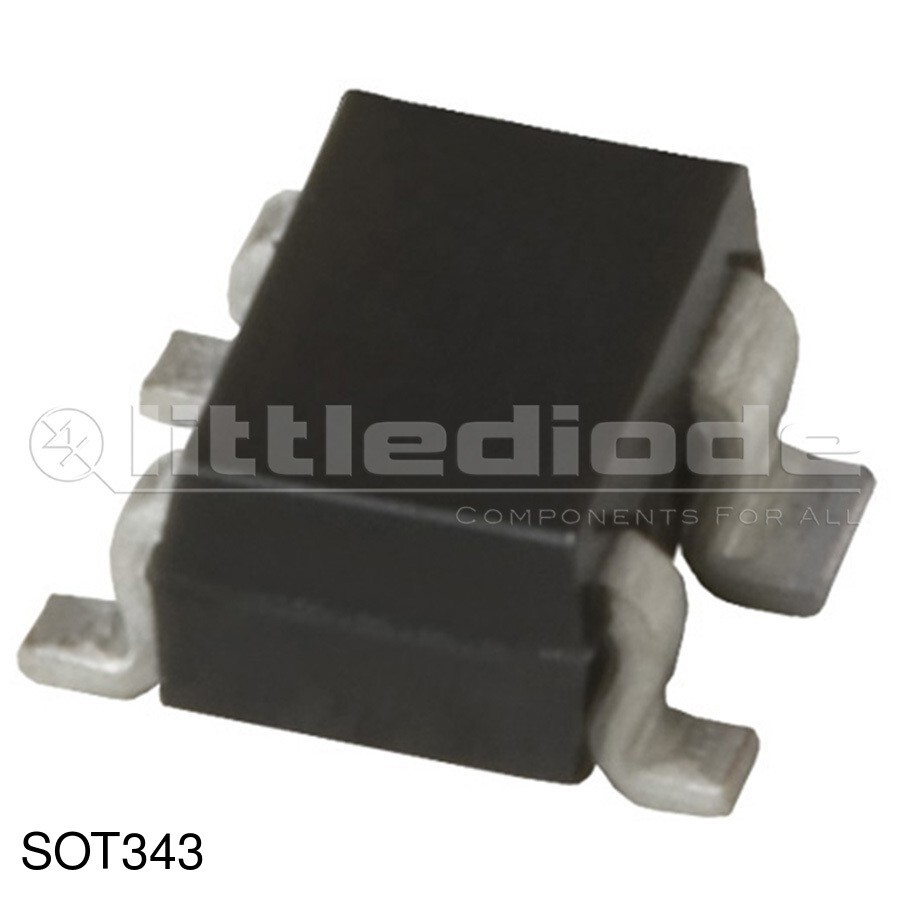

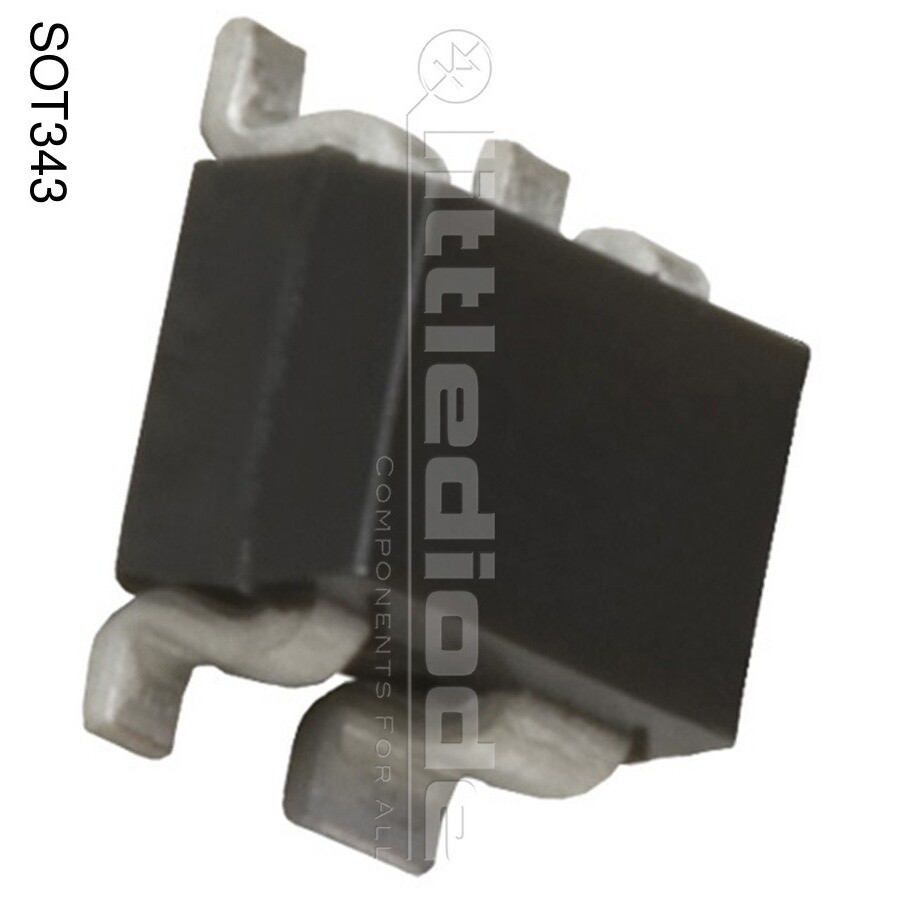

2SC5501 Transistor Silicon NPN CASE: SOT343 MAKE: Sanyo Semiconductor
Datasheet
2SC5501 Datasheet
Product specifications
Type Transistor Silicon NPN
Case SOT343
Manufacturer Sanyo Semiconductor
Polarity NPN
Maximum Collector Power Dissipation (Pc) 0.5 W
Maximum Collector-Base Voltage |Vcb| 20 V
Maximum Collector-Emitter Voltage |Vce| 10 V
Maximum Emitter-Base Voltage |Veb| 2 V
Maximum Collector Current |Ic max| 0.07 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 0.75 pF
Transition Frequency (ft): 5000 MHz
Forward Current Transfer Ratio (hFE), MIN 90
SMD Transistor Code LN
SKU 345144
