2SC5506
View detailed images (5)

2SC5506

SKU: 2SC5506

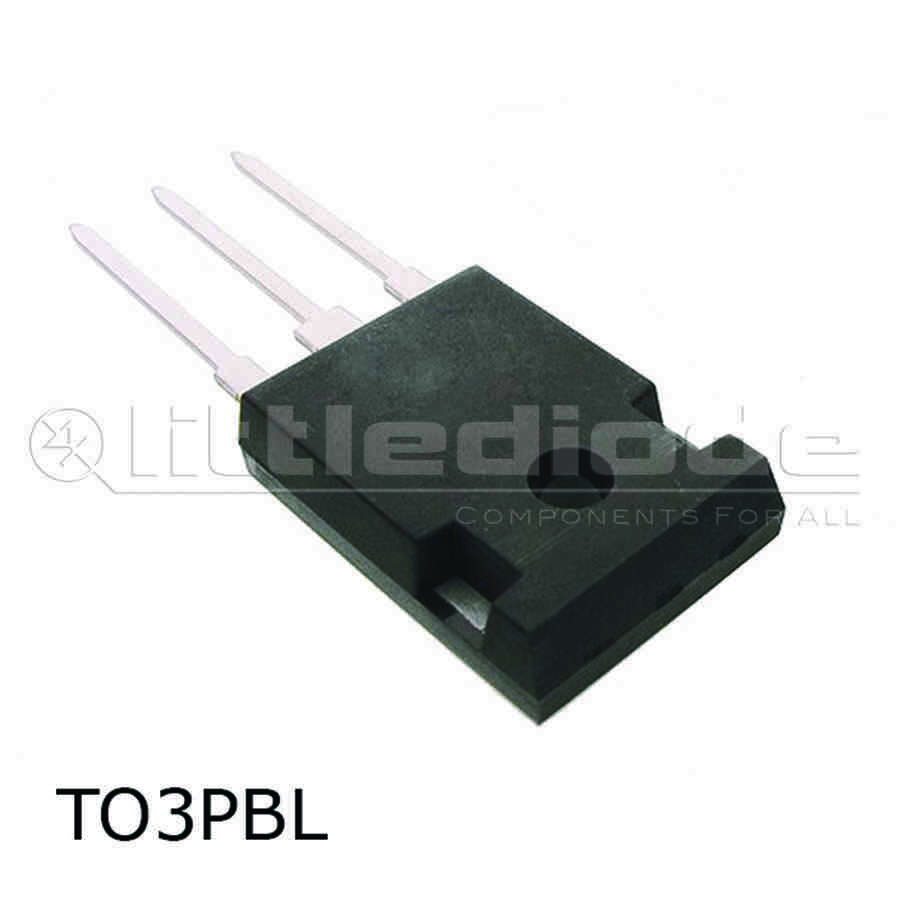

2SC5506 Transistor Silicon NPN CASE: TO3PBL MAKE: Sanyo Semiconductor
Datasheet
2SC5506 Datasheet
Product specifications
Type Transistor Silicon NPN
Case TO3PBL
Manufacturer Sanyo Semiconductor
Polarity NPN
Maximum Collector Power Dissipation (Pc) 180 W
Maximum Collector-Base Voltage |Vcb| 1600 V
Maximum Collector-Emitter Voltage |Vce| 800 V
Maximum Emitter-Base Voltage |Veb| 6 V
Maximum Collector Current |Ic max| 20 A
Max. Operating Junction Temperature (Tj) 150 °C
Forward Current Transfer Ratio (hFE), MIN 4
SKU 345148
