2SC5509
View detailed images (4)

2SC5509

SKU: 2SC5509

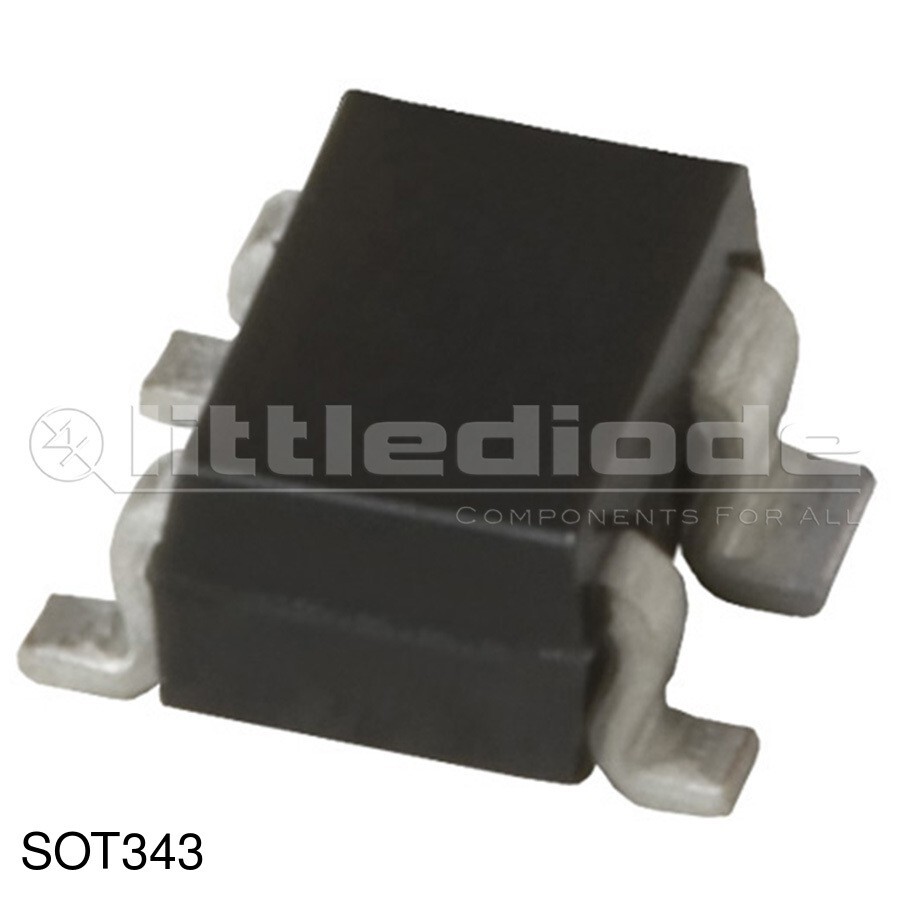

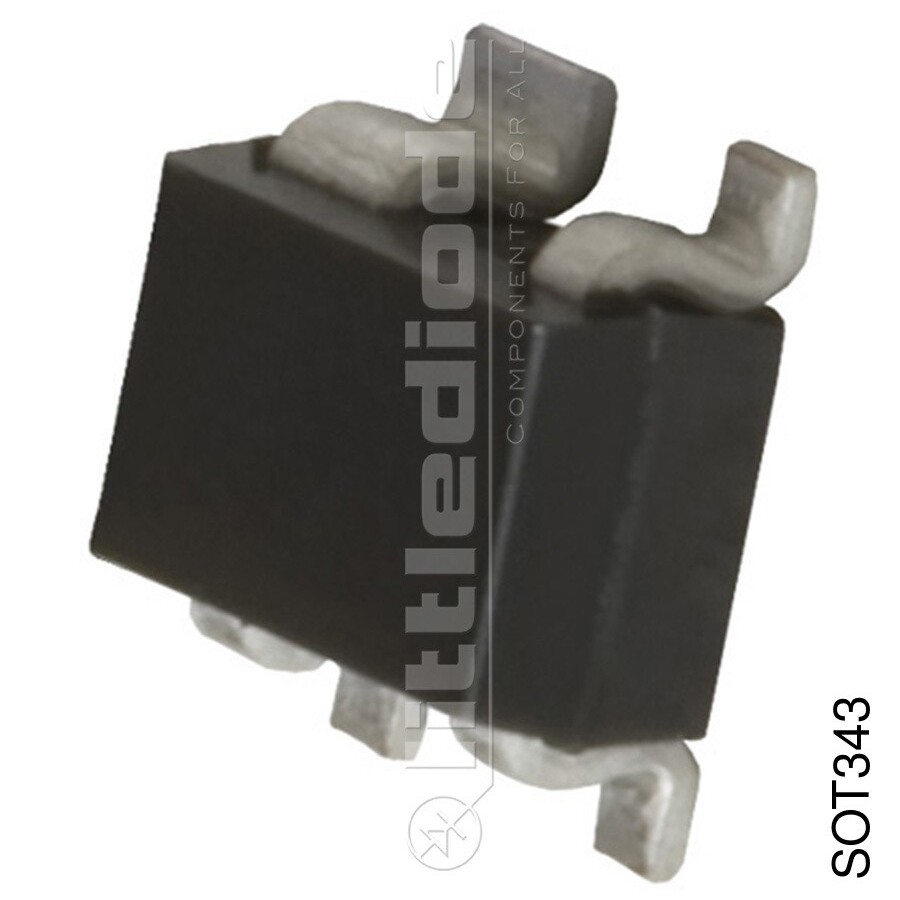

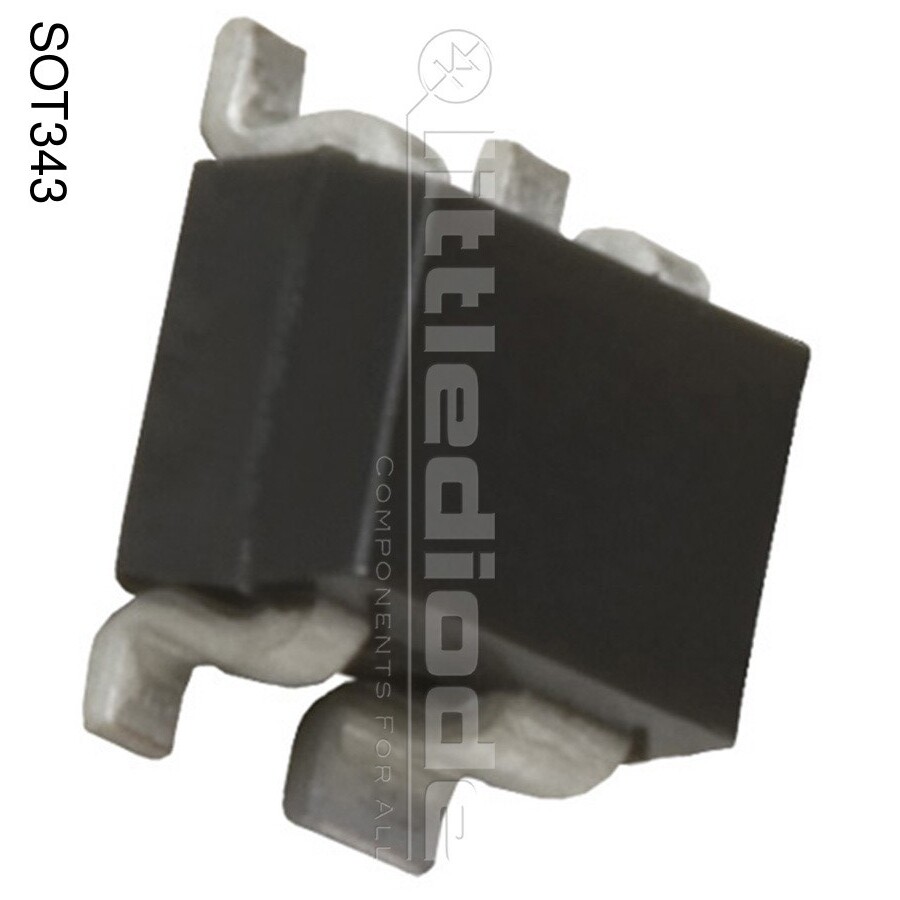

2SC5509 Transistor Silicon NPN CASE: SOT343 MAKE: NEC
Product specifications
Type Transistor Silicon NPN
Case SOT343
Manufacturer NEC
Polarity NPN
Maximum Collector Power Dissipation (Pc) 0.19 W
Maximum Collector-Base Voltage |Vcb| 15 V
Maximum Collector-Emitter Voltage |Vce| 3.3 V
Maximum Emitter-Base Voltage |Veb| 1.5 V
Maximum Collector Current |Ic max| 0.1 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 0.5 pF
Transition Frequency (ft): 13000 MHz
Forward Current Transfer Ratio (hFE), MIN 50
SMD Transistor Code T80
SKU 762874
