2SC5658M3T5G
View detailed images (4)

2SC5658M3T5G

SKU: 2SC5658M3T5G

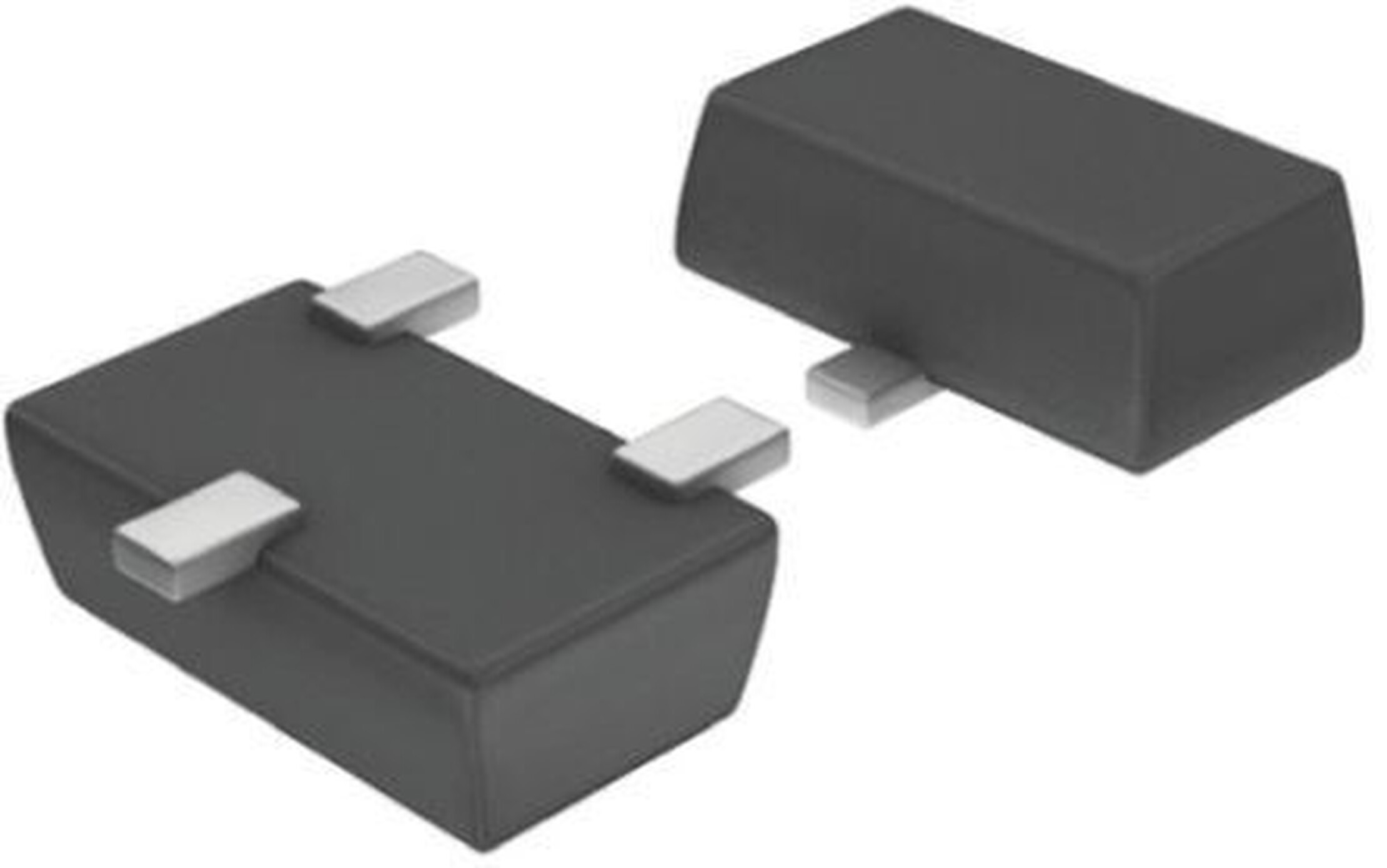

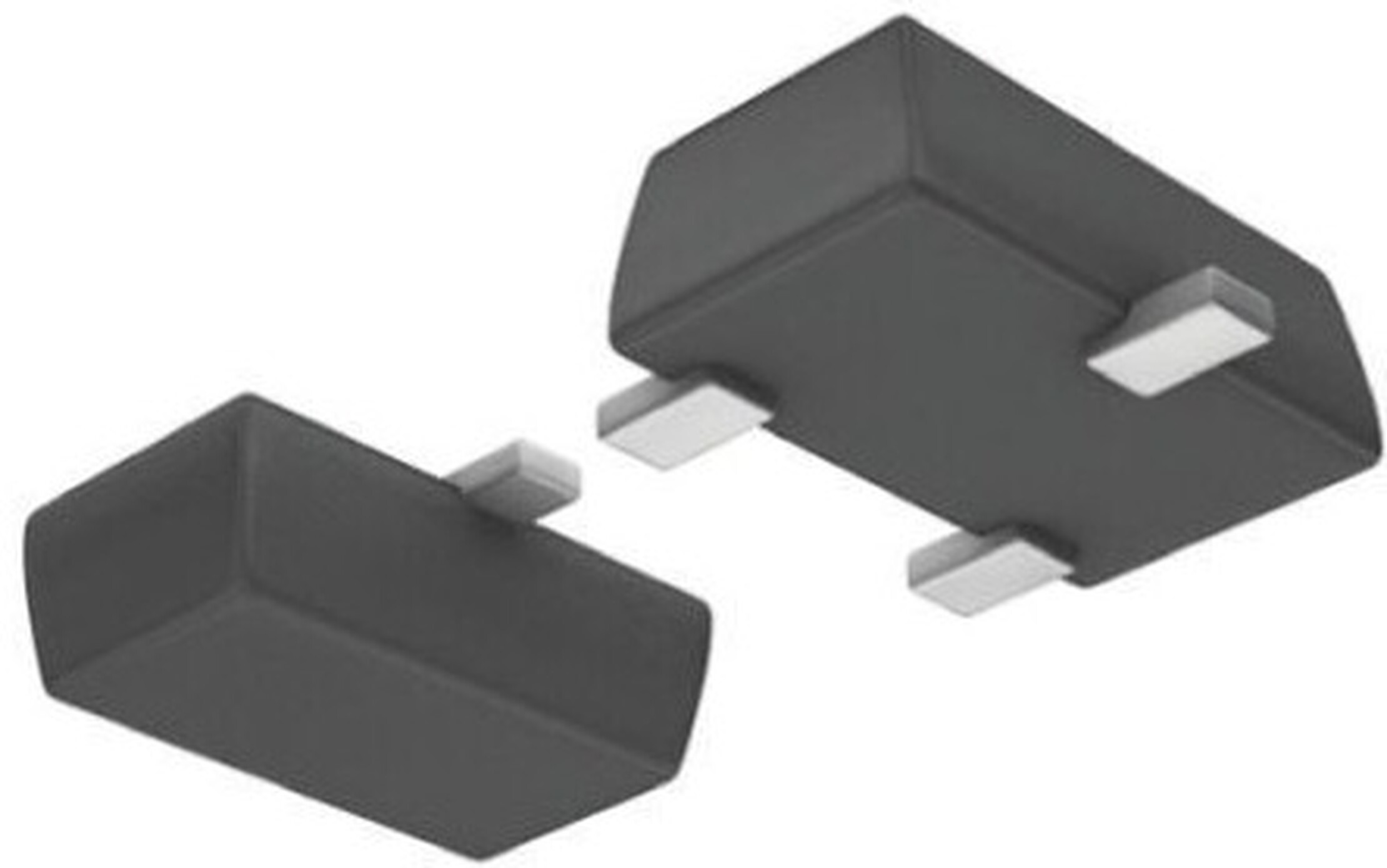

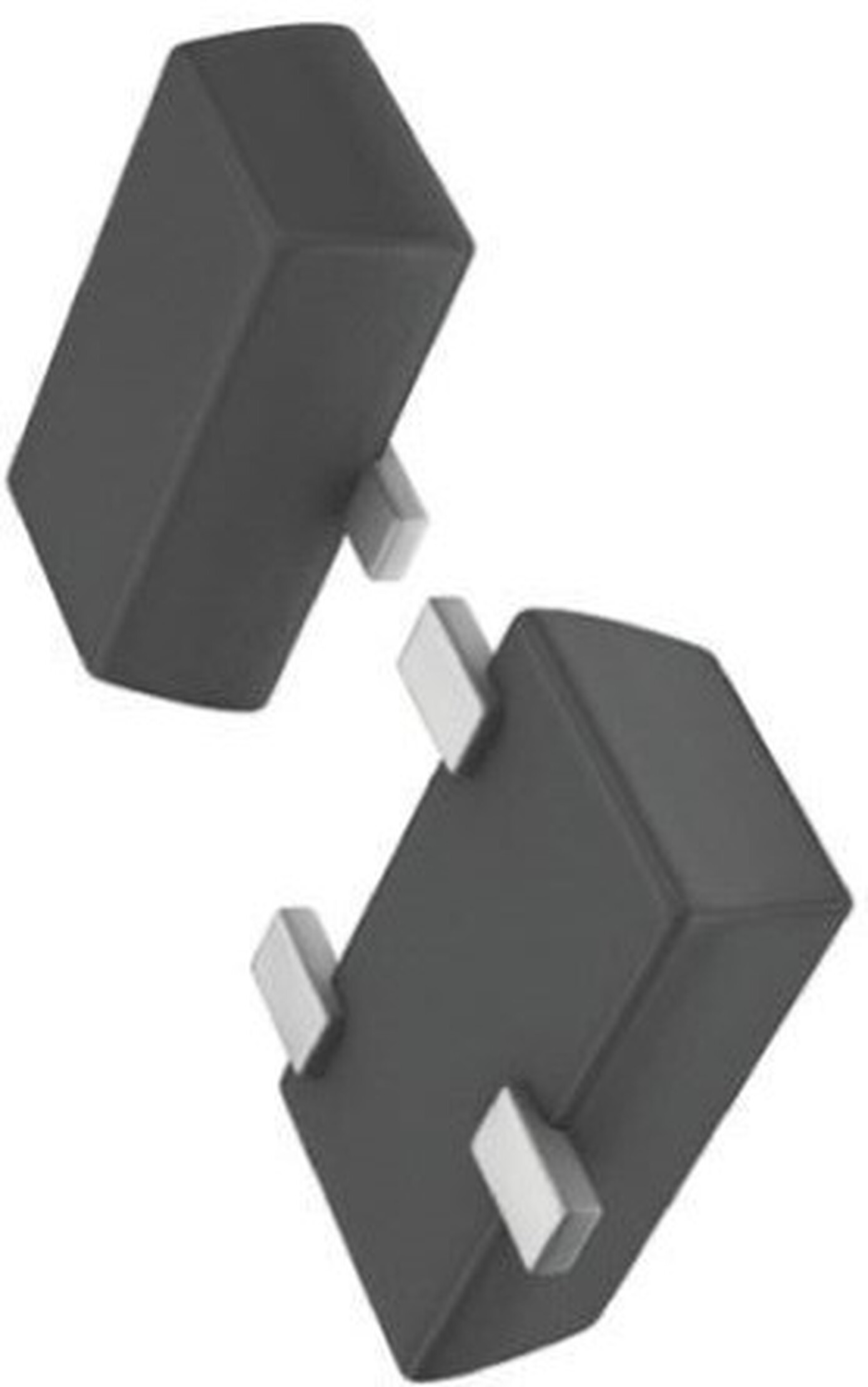

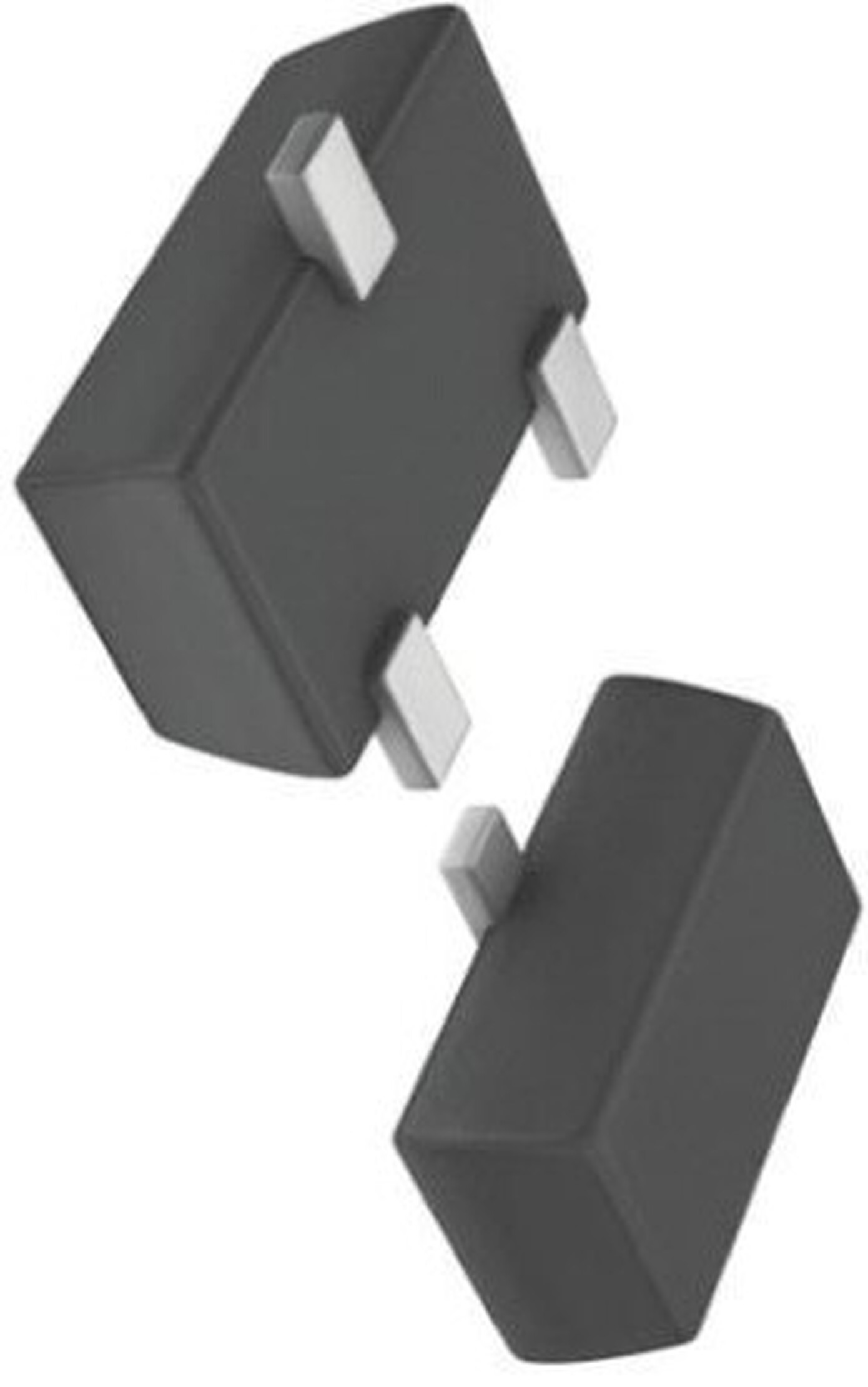

2SC5658M3T5G Transistor Silicon NPN CASE: SOT723 MAKE: Generic
Product specifications
Type Transistor Silicon NPN
Case SOT723
Manufacturer Generic
Polarity NPN
Maximum Collector Power Dissipation (Pc) 0.26 W
Maximum Collector-Base Voltage |Vcb| 50 V
Maximum Collector-Emitter Voltage |Vce| 50 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 0.1 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 2 pF
Transition Frequency (ft): 180 MHz
Forward Current Transfer Ratio (hFE), MIN 120
SMD Transistor Code B9
SKU 1423015
