2SC5820

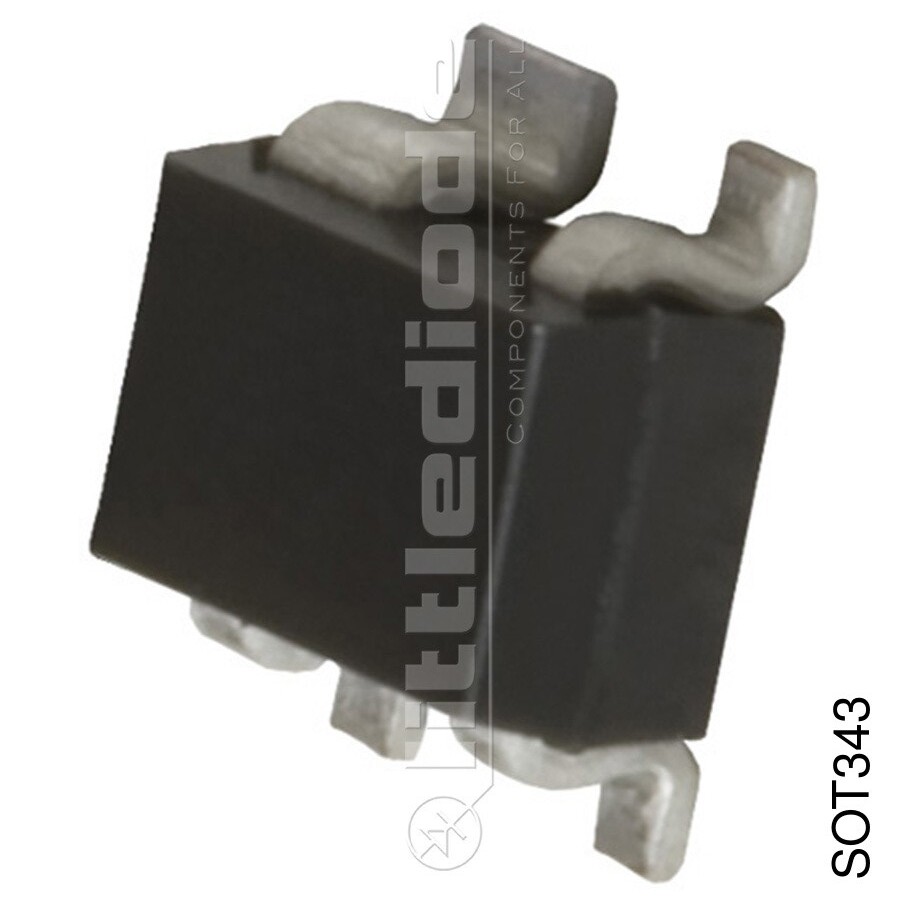

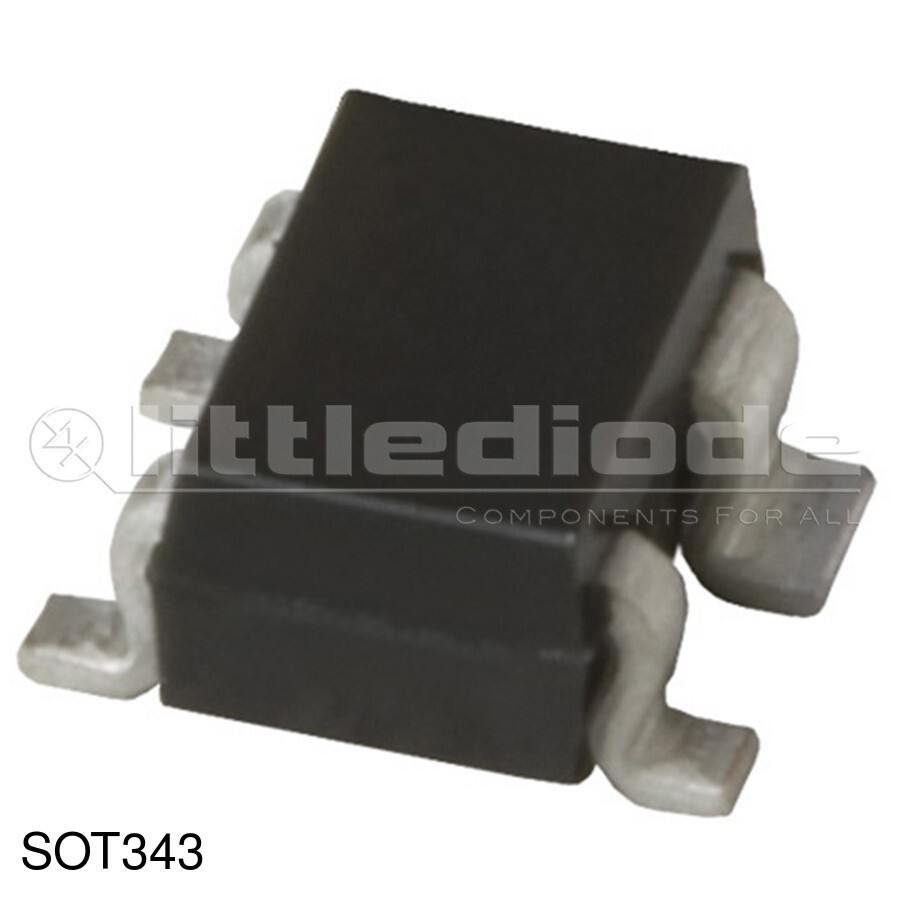

View detailed images (4)

2SC5820

SKU: 2SC5820
2SC5820 Transistor Silicon NPN CASE: SOT343 MAKE: Ria Con
Datasheet
2SC5820 Datasheet
Product specifications
Type Transistor Silicon NPN
Case SOT343
Manufacturer Ria Con
Polarity NPN
Maximum Collector Power Dissipation (Pc) 0.1 W
Maximum Collector-Base Voltage |Vcb| 12 V
Maximum Collector-Emitter Voltage |Vce| 4 V
Maximum Emitter-Base Voltage |Veb| 1.5 V
Maximum Collector Current |Ic max| 0.035 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 0.3 pF
Transition Frequency (ft): 17000 MHz
Forward Current Transfer Ratio (hFE), MIN 70
SMD Transistor Code WU_WY-
SKU 566555
