2SC5939

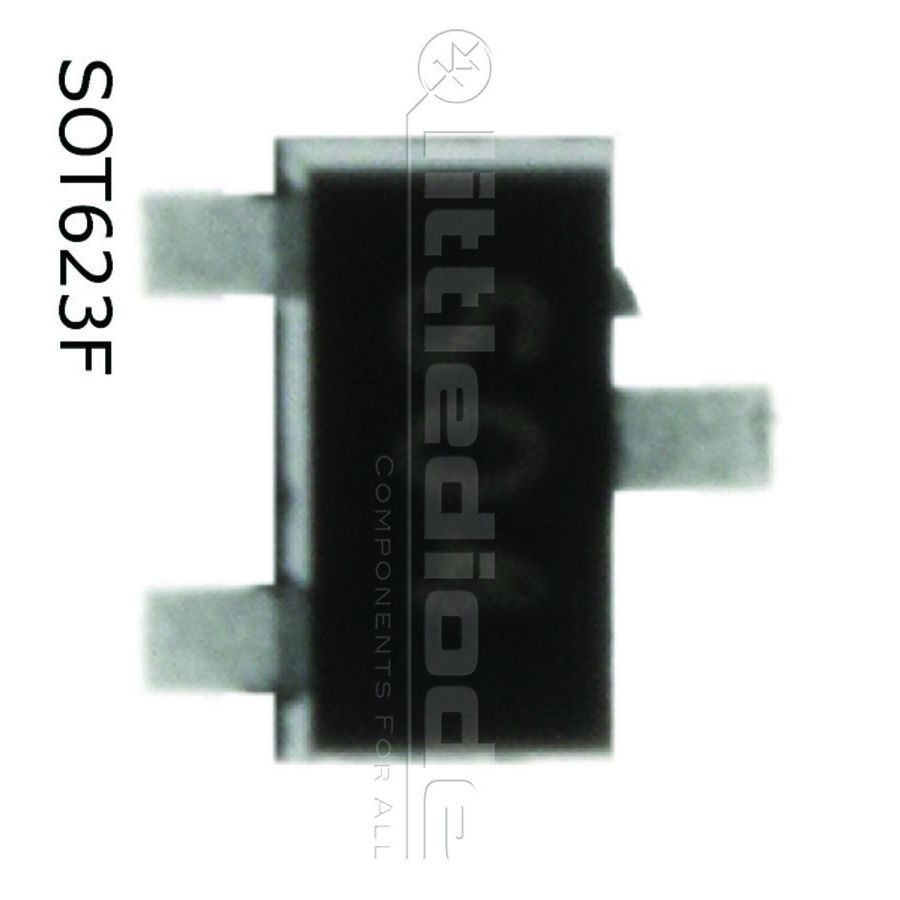

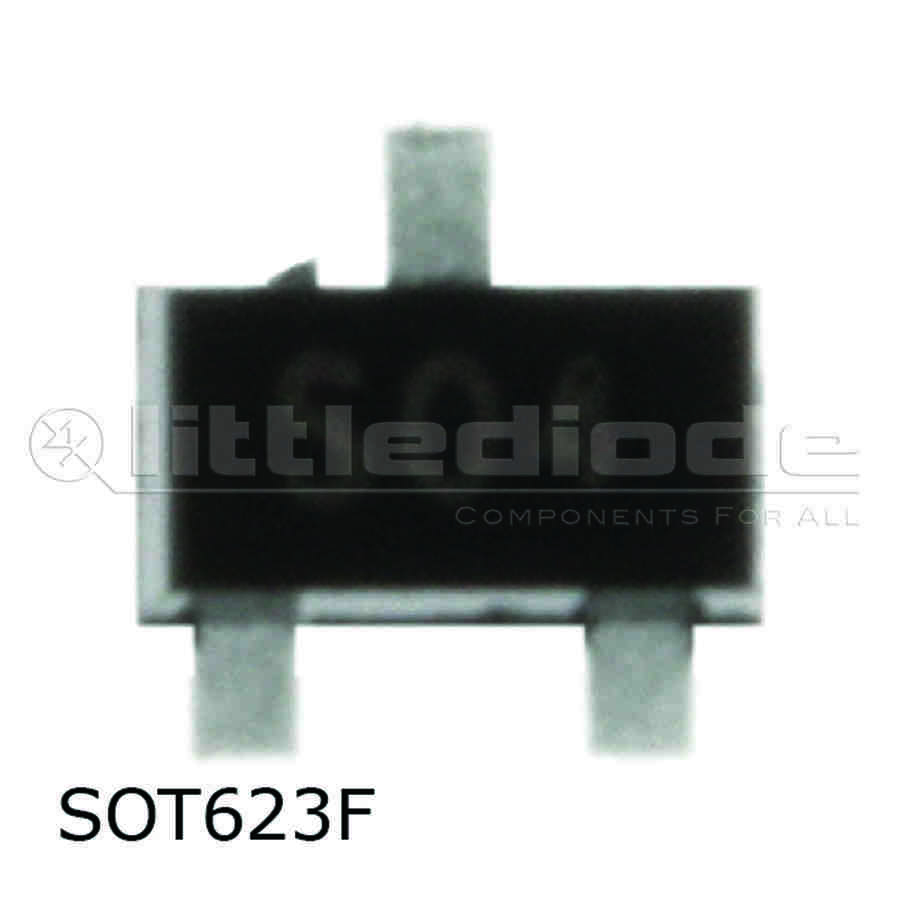

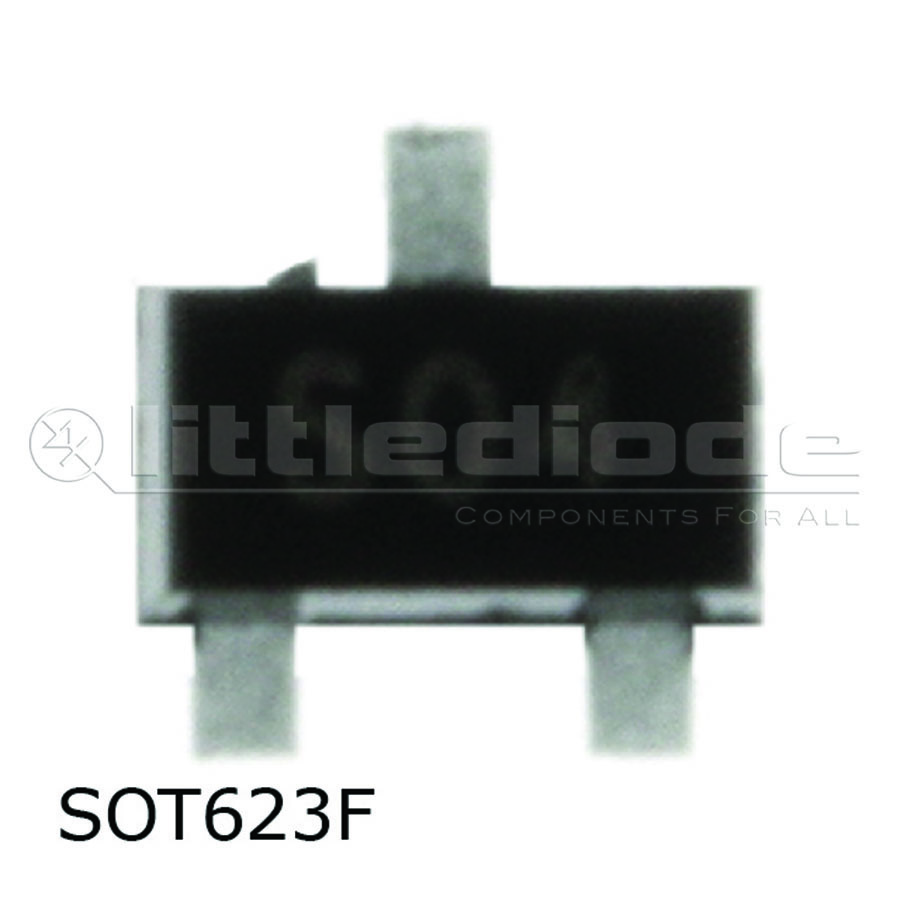

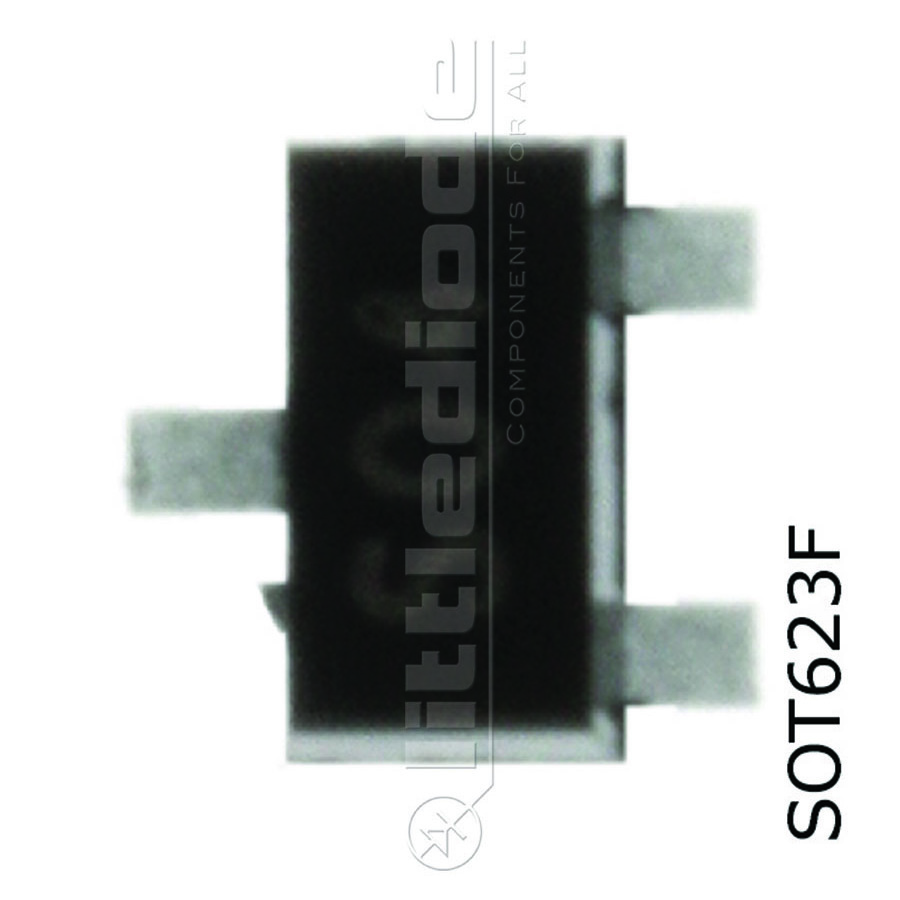

View detailed images (5)

2SC5939

SKU: 2SC5939
2SC5939 Transistor Silicon NPN CASE: SOT623F MAKE: Panasonic
Datasheet
2SC5939 Datasheet
Product specifications
Type Transistor Silicon NPN
Case SOT623F
Manufacturer Panasonic
Polarity NPN
Maximum Collector Power Dissipation (Pc) 0.1 W
Maximum Collector-Base Voltage |Vcb| 15 V
Maximum Collector-Emitter Voltage |Vce| 10 V
Maximum Emitter-Base Voltage |Veb| 3 V
Maximum Collector Current |Ic max| 0.05 A
Max. Operating Junction Temperature (Tj) 125 °C
Collector Capacitance (Cc) 1.4 pF
Transition Frequency (ft): 1400 MHz
Forward Current Transfer Ratio (hFE), MIN 75
SMD Transistor Code 1S
SKU 560539
