2SC6046
View detailed images (5)

2SC6046

SKU: 2SC6046

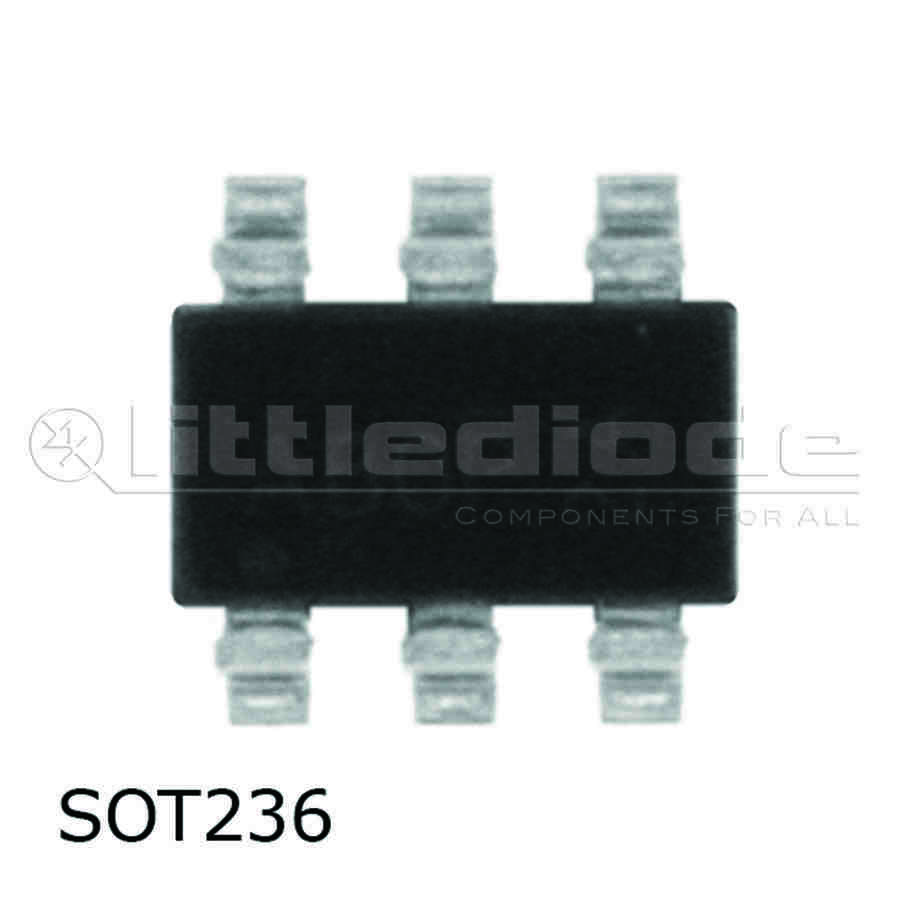

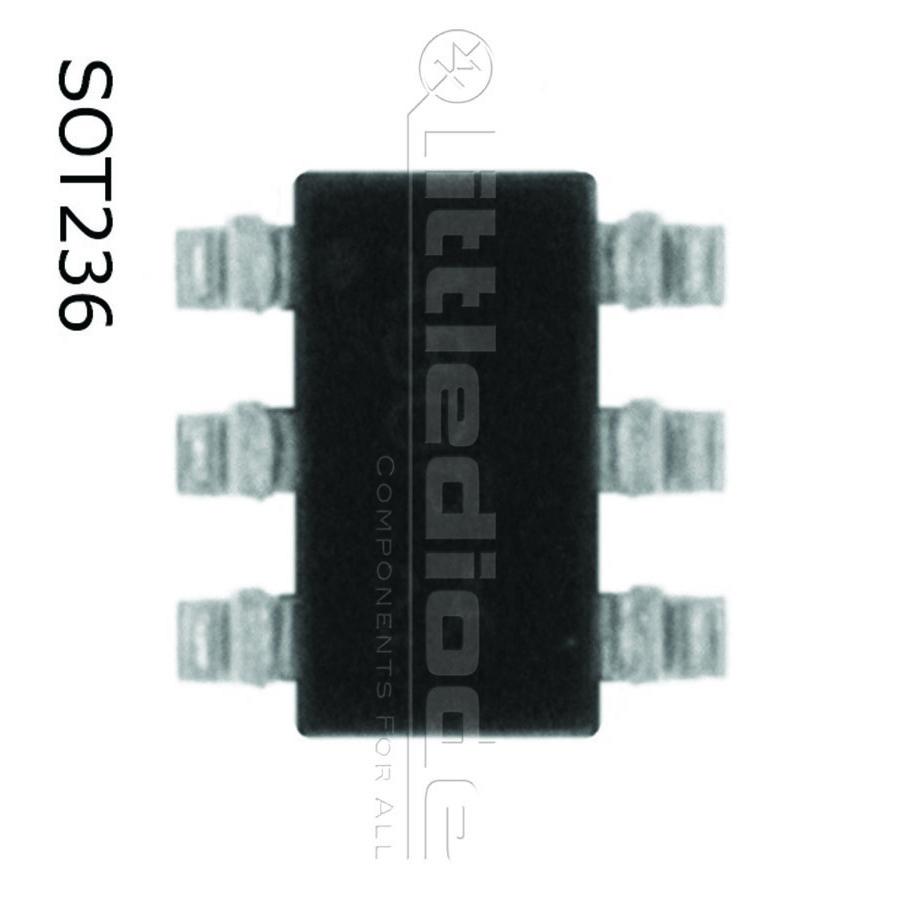

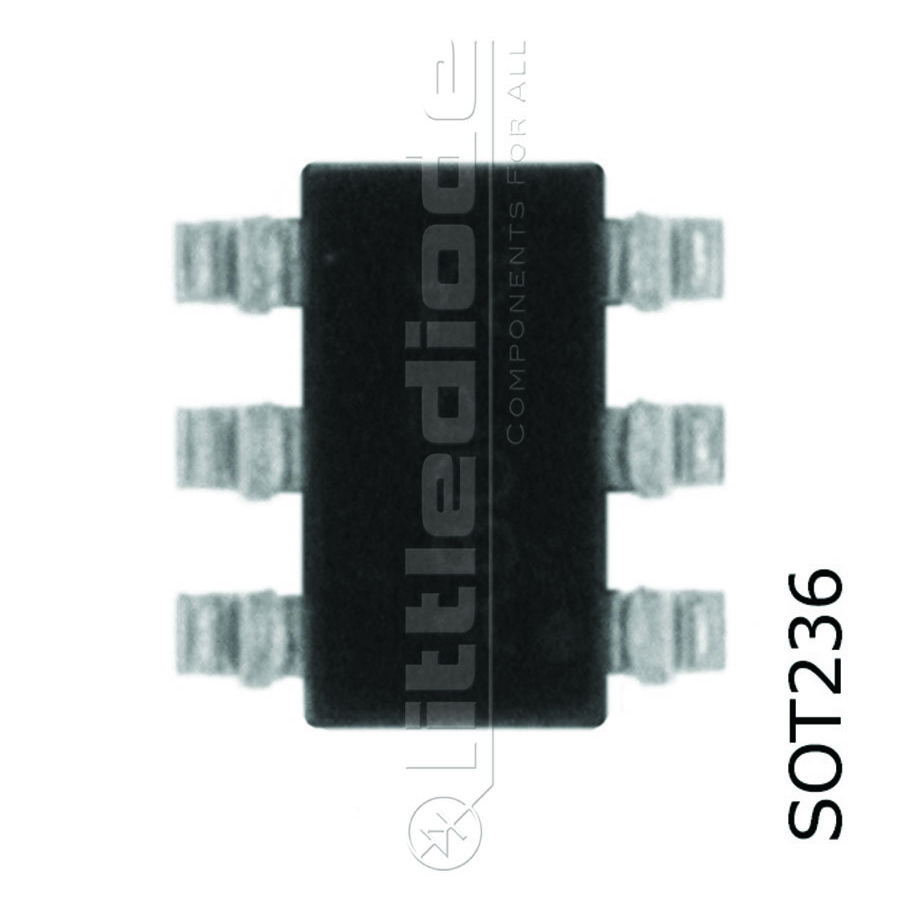

2SC6046 Transistor Silicon NPN CASE: SOT236 MAKE: Isahaya Electronics
Product specifications
Type Transistor Silicon NPN
Case SOT236
Manufacturer Isahaya Electronics
Polarity NPN
Maximum Collector Power Dissipation (Pc) 0.2 W
Maximum Collector-Base Voltage |Vcb| 75 V
Maximum Collector-Emitter Voltage |Vce| 40 V
Maximum Emitter-Base Voltage |Veb| 6 V
Maximum Collector Current |Ic max| 0.6 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 8 pF
Transition Frequency (ft): 250 MHz
Forward Current Transfer Ratio (hFE), MIN 100
SMD Transistor Code B*W_BW
SKU 762607
