2SC640
View detailed images (4)

2SC640

SKU: 2SC640

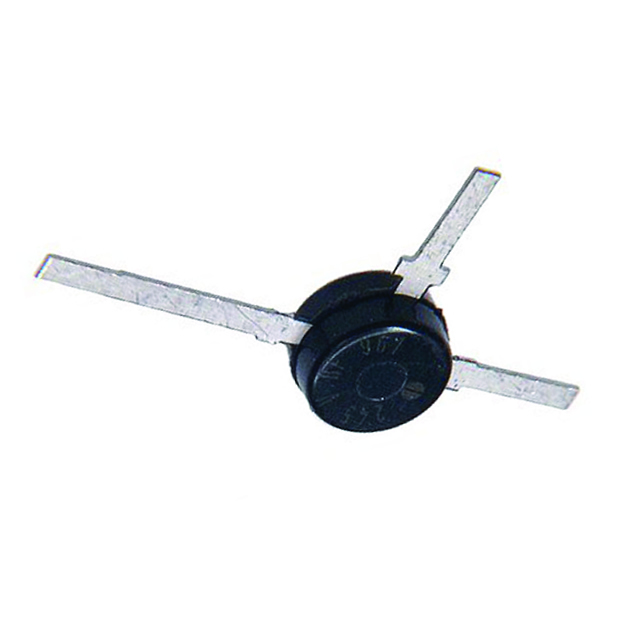

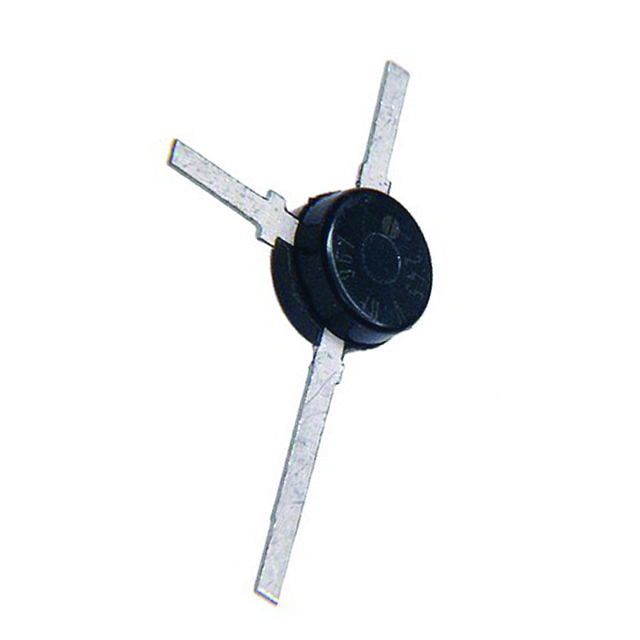

2SC640 Transistor Silicon NPN CASE: SOT37 MAKE: NEC
Price:
£9.59 Inc. VAT (£7.99 Ex. VAT)
£9.59 Inc. VAT (£7.99 Ex. VAT)
Qty
  • 19 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Product specifications
Type Transistor Silicon NPN
Case SOT37
Manufacturer NEC
Vbr CBO 30
Vbr CEO 25
Max. PD (W) 150m
hfe 300
Ic Max. (A) 100m
Icbo Max. @Vcb Max. (A) .10u
Polarity NPN
@VCE (test) (V) 3.0
Oper. Temp (°C) Max. 150
@Ic (A) .50m
Pinout Equivalence Number 3-14
Surface Mounted Yes/No YES
Maximum Collector Power Dissipation (Pc) 0.15 W
Maximum Collector-Base Voltage |Vcb| 30 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 0.1 A
Max. Operating Junction Temperature (Tj) 125 °C
Transition Frequency (ft): 50 MHz
Forward Current Transfer Ratio (hFE), MIN 120
SKU 20327
