2SC989
View detailed images (4)

2SC989

SKU: 2SC989

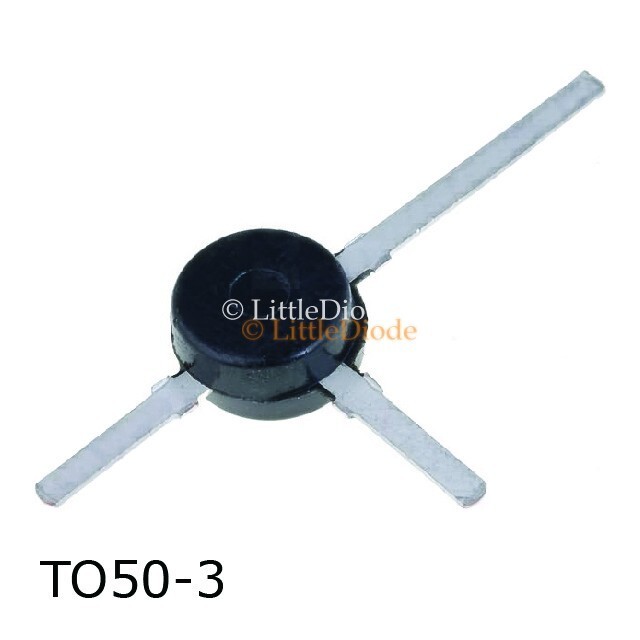

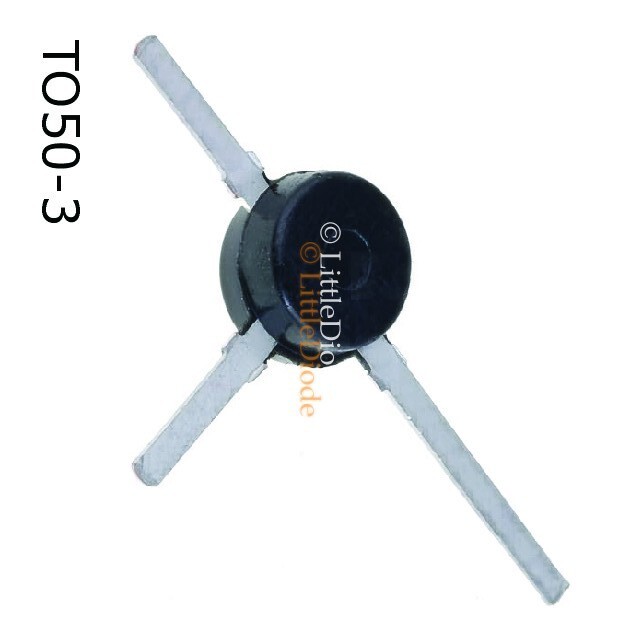

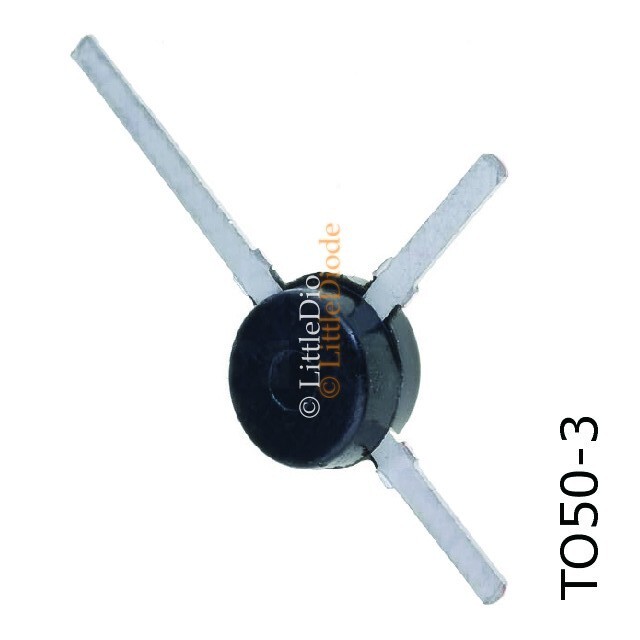

2SC989 Transistor Silicon NPN CASE: TO50-3 MAKE: NEC
Product specifications
Type Transistor Silicon NPN
Case TO50-3
Manufacturer NEC
Vbr CBO 20
Vbr CEO 12
Max. PD (W) 150m
C(ob) (F) 1.5p
Derate (Amb) (W/°C) 1.2m
t(f) Max. (S) 500p-+
hfe 30
Ic Max. (A) 50m
Icbo Max. @Vcb Max. (A) 1.0u
Polarity NPN
Tr Max. (s) 700p-
Trans. Freq (Hz) Min. 3.0G
@VCE (test) (V) 1.0
Oper. Temp (°C) Max. 150
@Ic (A) 30m
Pinout Equivalence Number 3-14
Surface Mounted Yes/No YES
Maximum Collector Power Dissipation (Pc) 0.3 W
Maximum Collector-Base Voltage |Vcb| 20 V
Maximum Collector-Emitter Voltage |Vce| 12 V
Maximum Emitter-Base Voltage |Veb| 3 V
Maximum Collector Current |Ic max| 0.05 A
Max. Operating Junction Temperature (Tj) 200 °C
Transition Frequency (ft): 1500 MHz
Forward Current Transfer Ratio (hFE), MIN 40
SKU 762350
