2SD1038
View detailed images (13)

2SD1038

SKU: 2SD1038

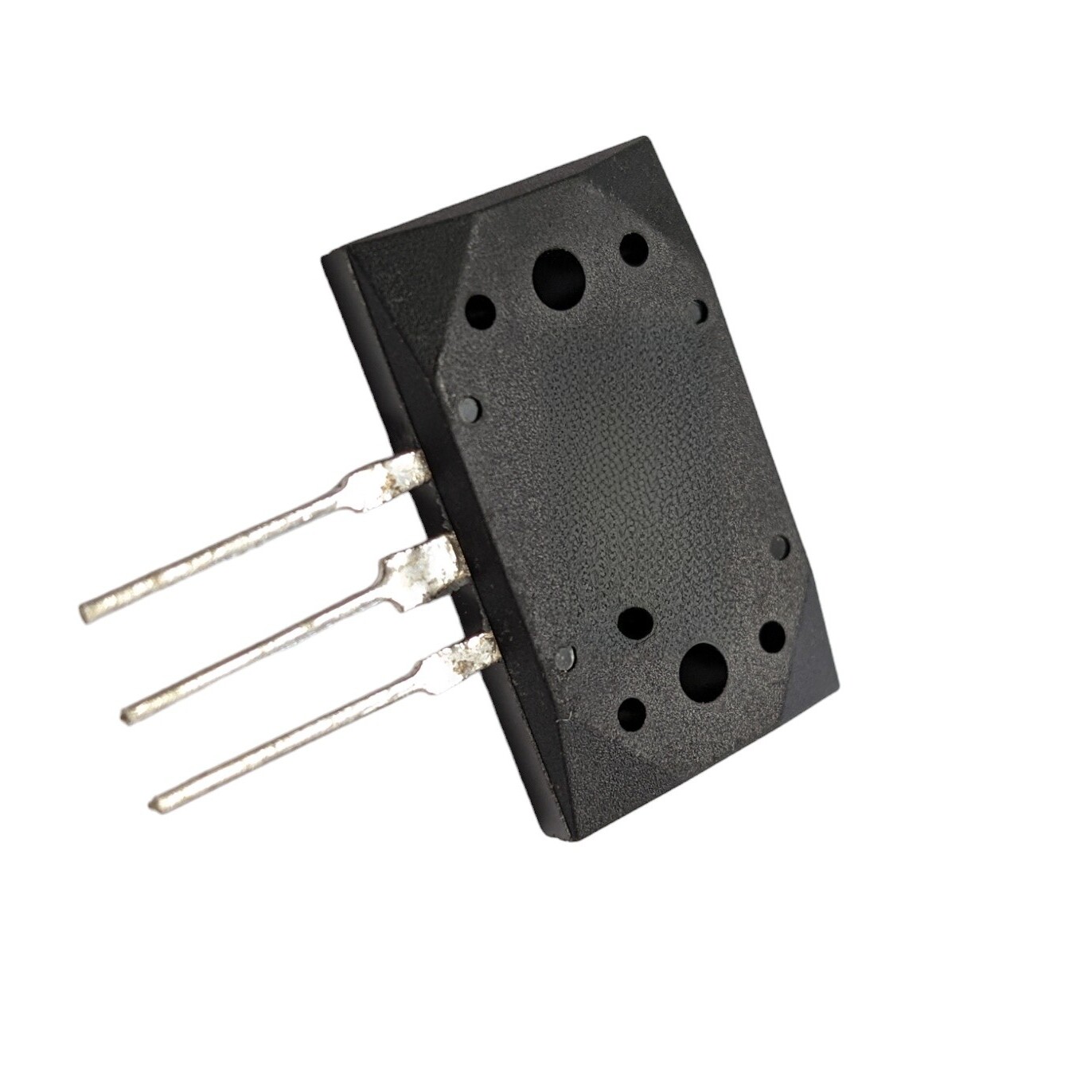

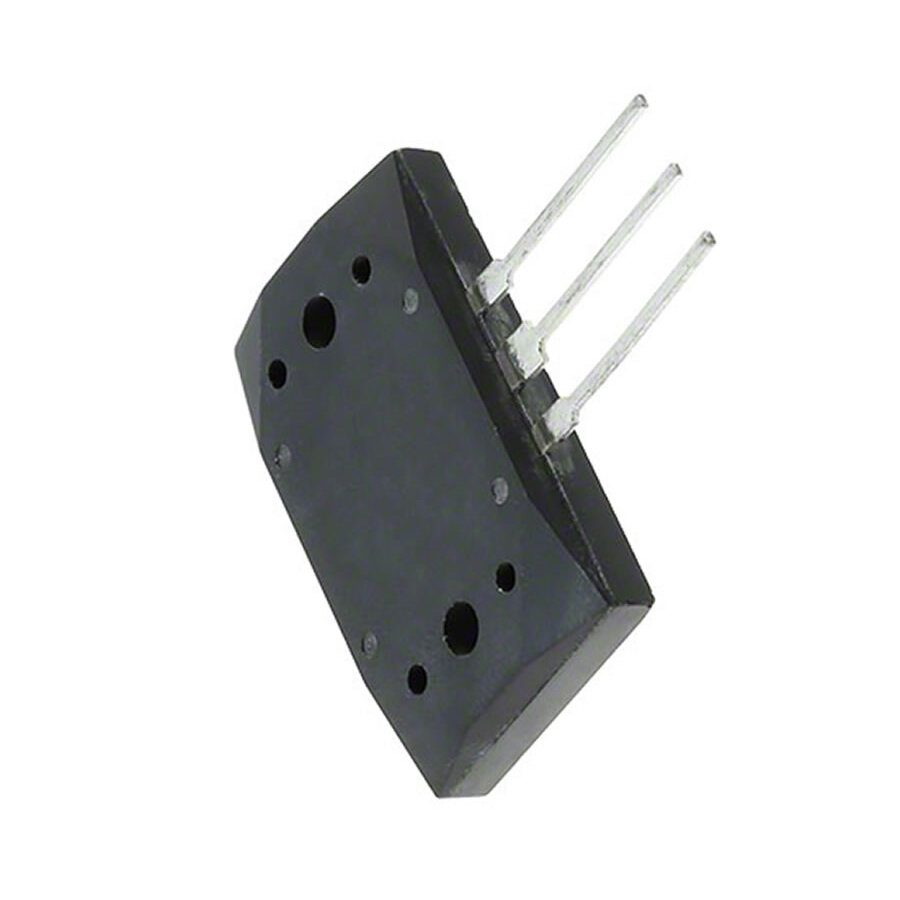

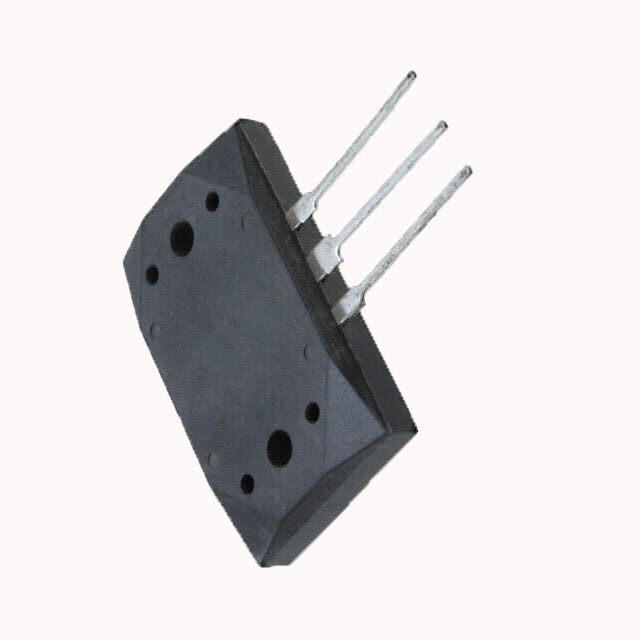

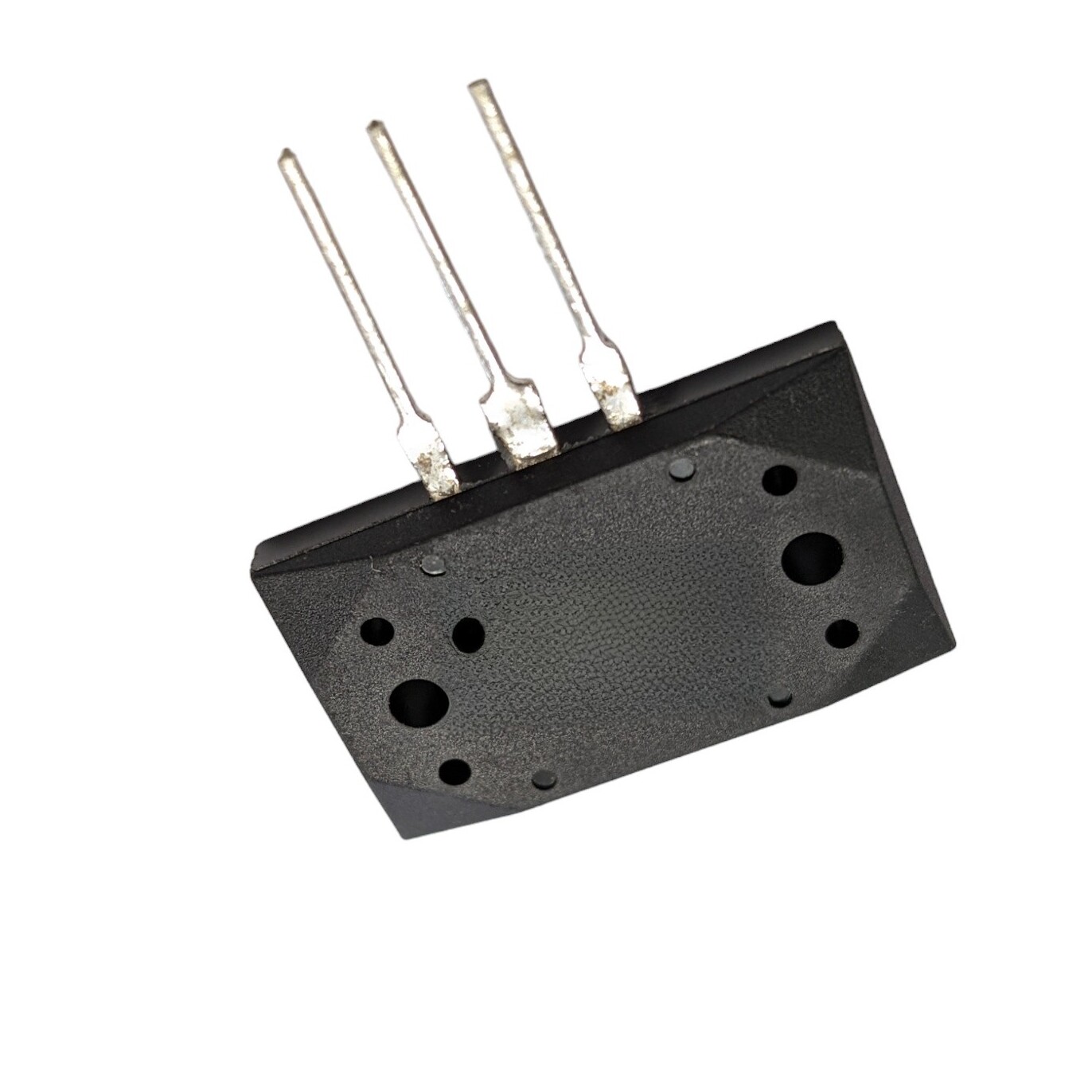

2SD1038 Transistor Silicon NPN CASE: MT200 MAKE: Fujitsu
Product specifications
Type Transistor Silicon NPN
Case MT200
Manufacturer Fujitsu
Vbr CBO 150
Vbr CEO 120
Max. PD (W) 180
Min hFE 40-
Ic Max. (A) 40
@Ic (test) (A) 15
Polarity NPN
Tr Max. (s) 1.3
Trans. Freq (Hz) Min. 1.5M
Oper. Temp (°C) Max. 175
@VCE (V) 4.0
Pinout Equivalence Number N/A
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 180 W
Maximum Collector-Base Voltage |Vcb| 150 V
Maximum Collector-Emitter Voltage |Vce| 120 V
Maximum Emitter-Base Voltage |Veb| 100 V
Maximum Collector Current |Ic max| 40 A
Max. Operating Junction Temperature (Tj) 150 °C
Transition Frequency (ft): 1 MHz
Forward Current Transfer Ratio (hFE), MIN 40
SKU 762217
