2SD1198
View detailed images (4)

2SD1198

SKU: 2SD1198

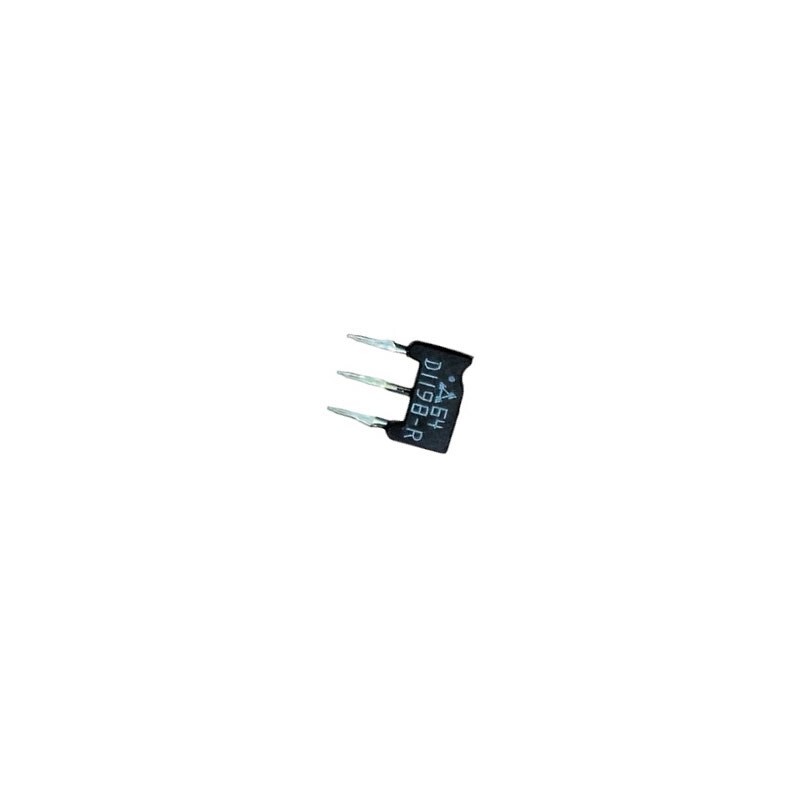

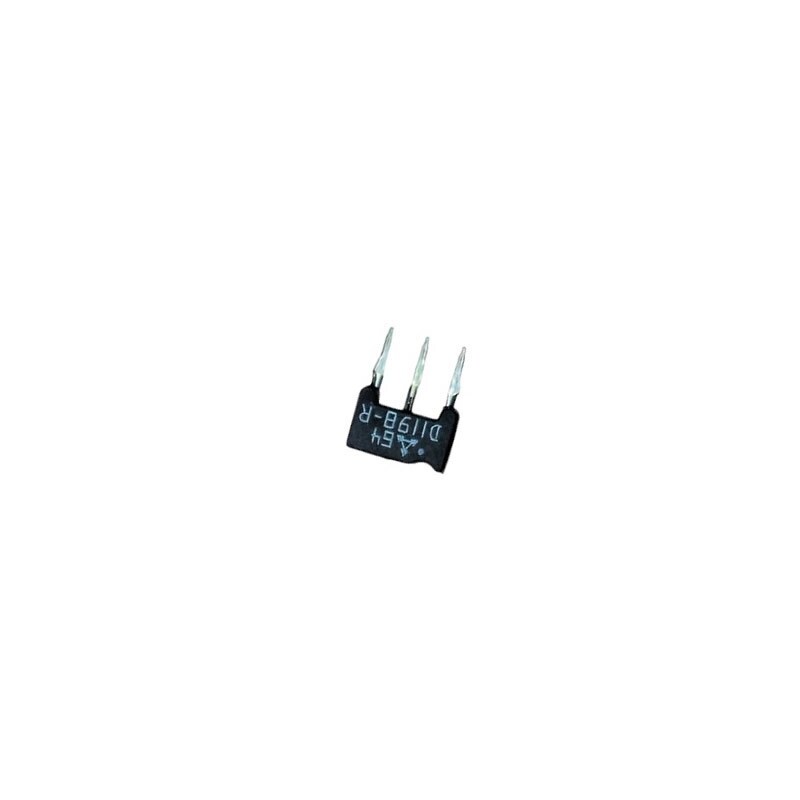

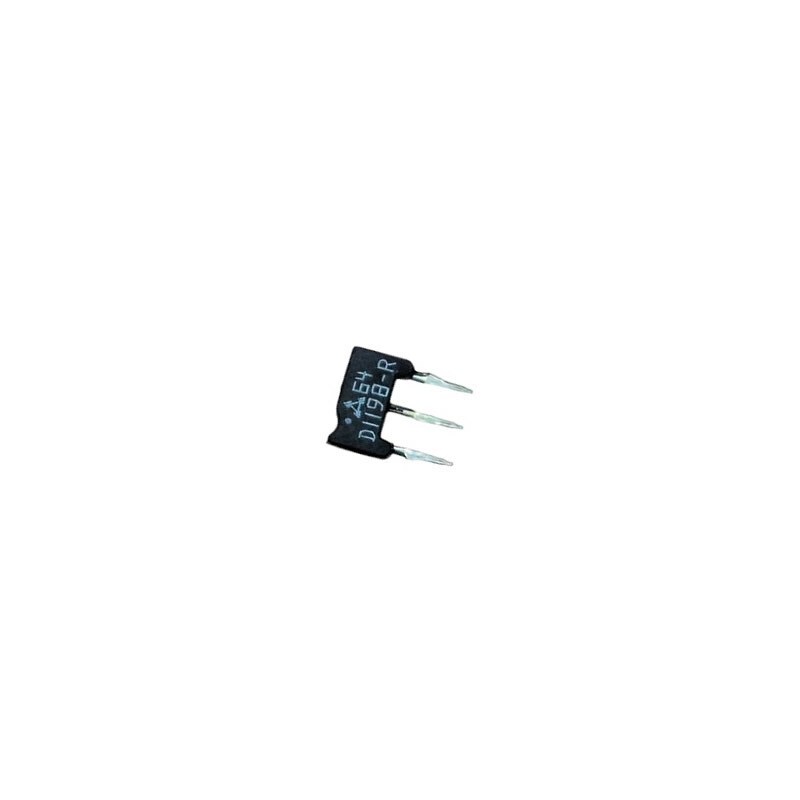

2SD1198 Transistor Silicon NPN CASE: TO92 MAKE: Panasonic
Price:
£4.79 Inc. VAT (£3.99 Ex. VAT)
£4.79 Inc. VAT (£3.99 Ex. VAT)
Qty
  • 39 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Datasheet
2SD1198 Datasheet
Product specifications
Type Transistor Silicon NPN
Case TO92
Manufacturer Panasonic
Vbr CEO 25
Max. PD (W) 1.0
Max. hFE 20k
Min hFE 2.0k
Ic Max. (A) 1.0
@Ic (test) (A) 1.0
Icbo Max. @Vcb Max. (A) 100n
Mat. Silicon Logic
Polarity NPN
Derate Above 25°C 8.0m
@VCE (test) 10
Oper. Temp (°C) Max. 150
Pinout Equivalence Number 3-15
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.75 W
Maximum Collector-Base Voltage |Vcb| 30 V
Maximum Collector Current |Ic max| 1 A
Max. Operating Junction Temperature (Tj) 175 °C
Forward Current Transfer Ratio (hFE), MIN 7000
SKU 81402
