2SD1223
View detailed images (5)

2SD1223

SKU: 2SD1223

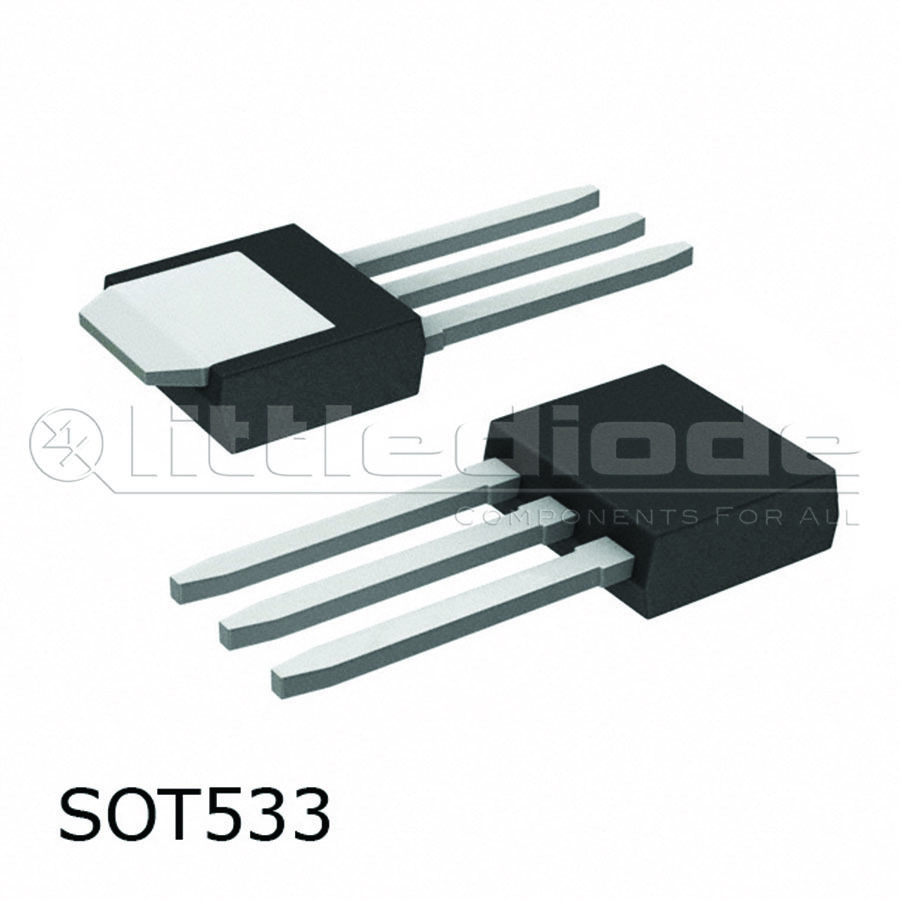

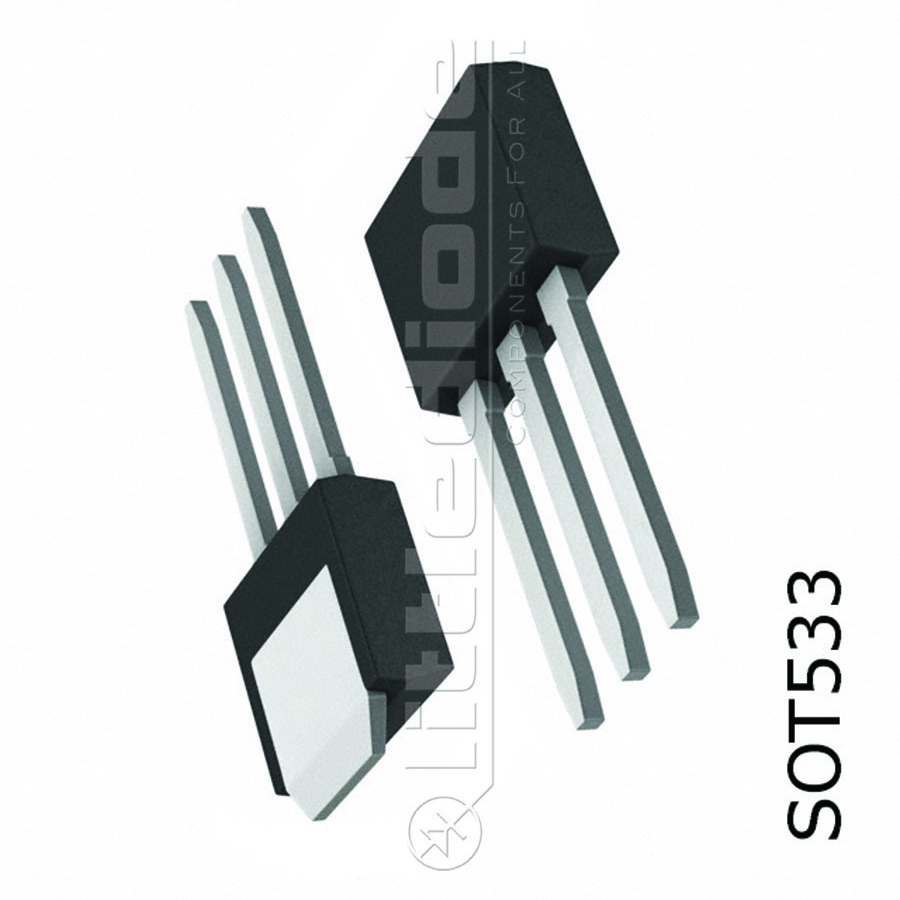

2SD1223 Transistor Silicon NPN CASE: SOT533 MAKE: Toshiba
Price:
£5.75 Inc. VAT (£4.79 Ex. VAT)
£5.75 Inc. VAT (£4.79 Ex. VAT)
Qty
  • 2 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Datasheet
2SD1223 Datasheet
Product specifications
Type Transistor Silicon NPN
Case SOT533
Manufacturer Toshiba
Vbr CBO 100
Vbr CEO 80
Max. PD (W) 1.0
t(f) Max. (S) .60u
Min hFE 2.0k
Ic Max. (A) 4.0
@Ic (test) (A) 1.0
Icbo Max. @Vcb Max. (A) 20u
Polarity NPN
Derate Above 25°C 8.0m
Oper. Temp (°C) Max. 140
@VCE (V) 2.0
Pinout Equivalence Number 3-15
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 1 W
Maximum Collector-Base Voltage |Vcb| 100 V
Maximum Collector-Emitter Voltage |Vce| 80 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 4 A
Max. Operating Junction Temperature (Tj) 150 °C
Forward Current Transfer Ratio (hFE), MIN 4000
SKU 20337
