2SD1249A
View detailed images (12)

2SD1249A

SKU: 2SD1249A

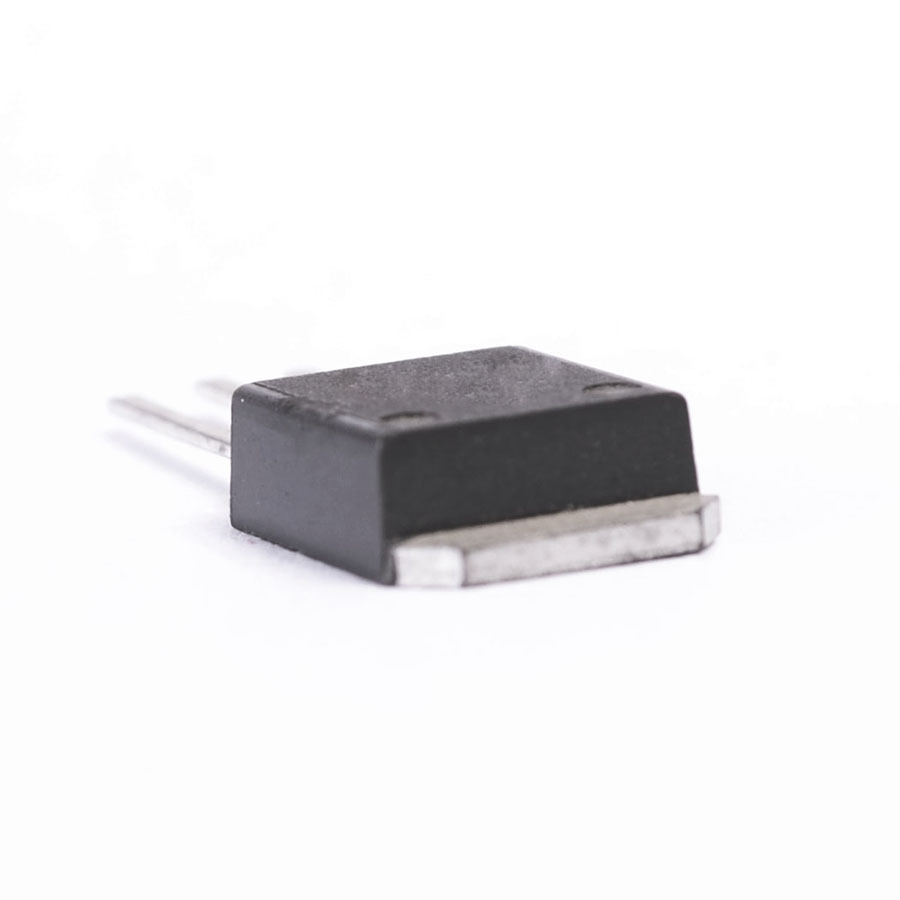

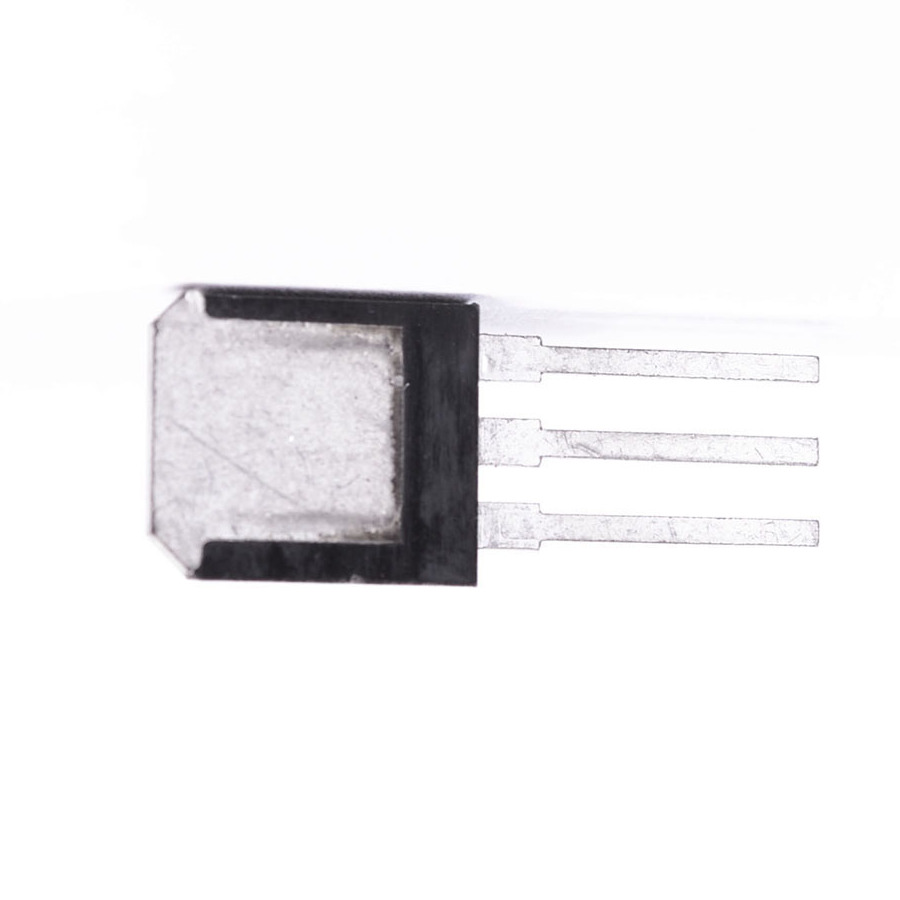

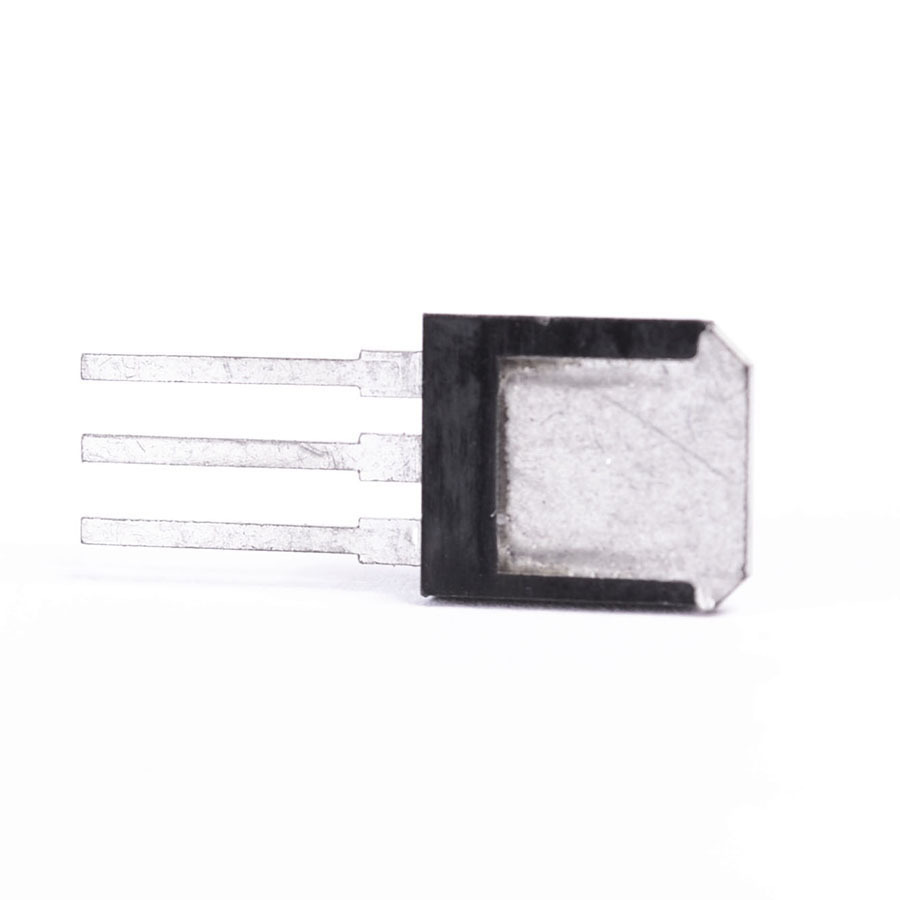

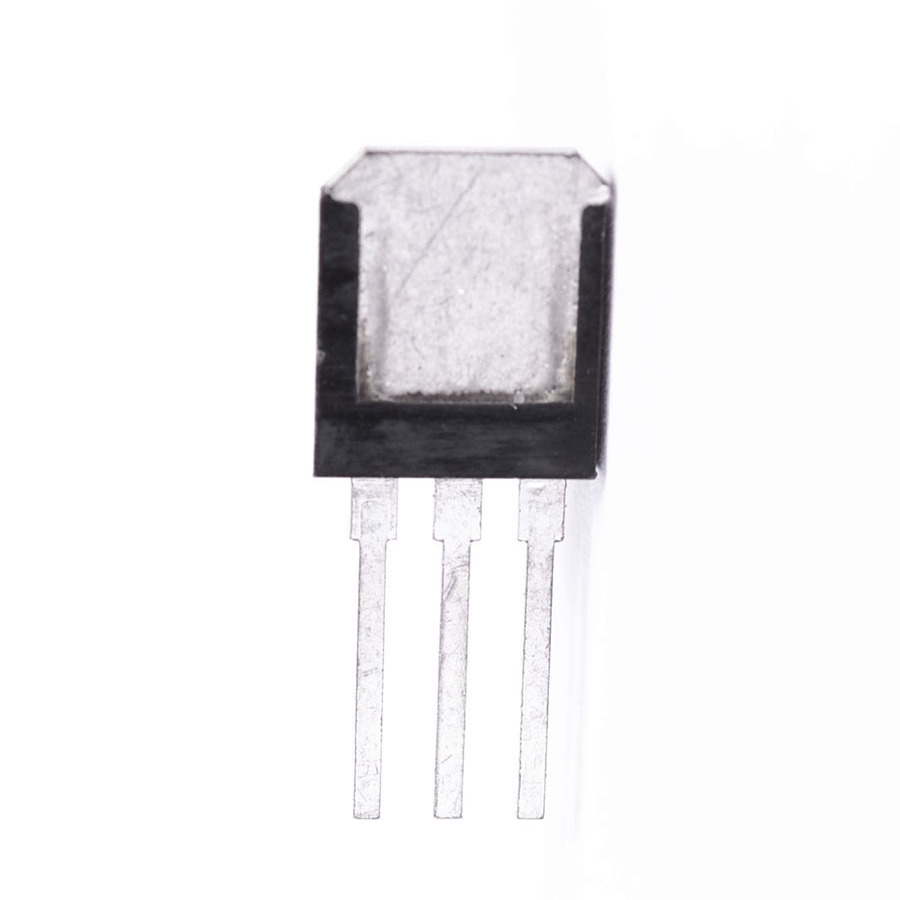

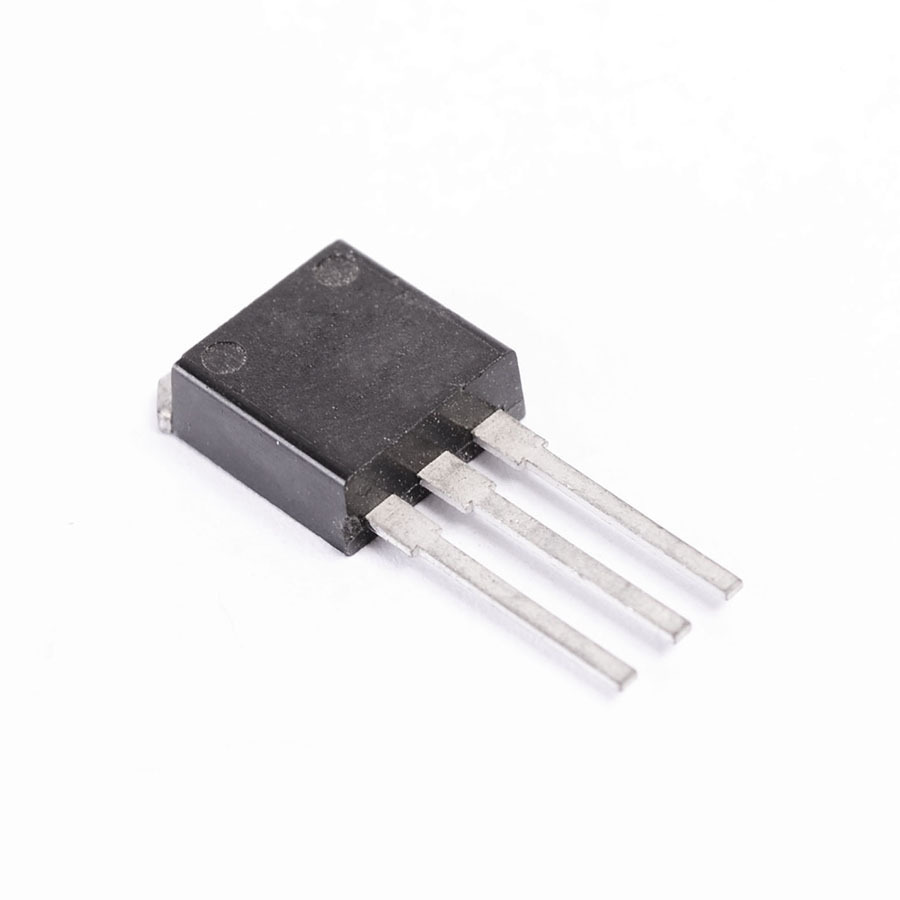

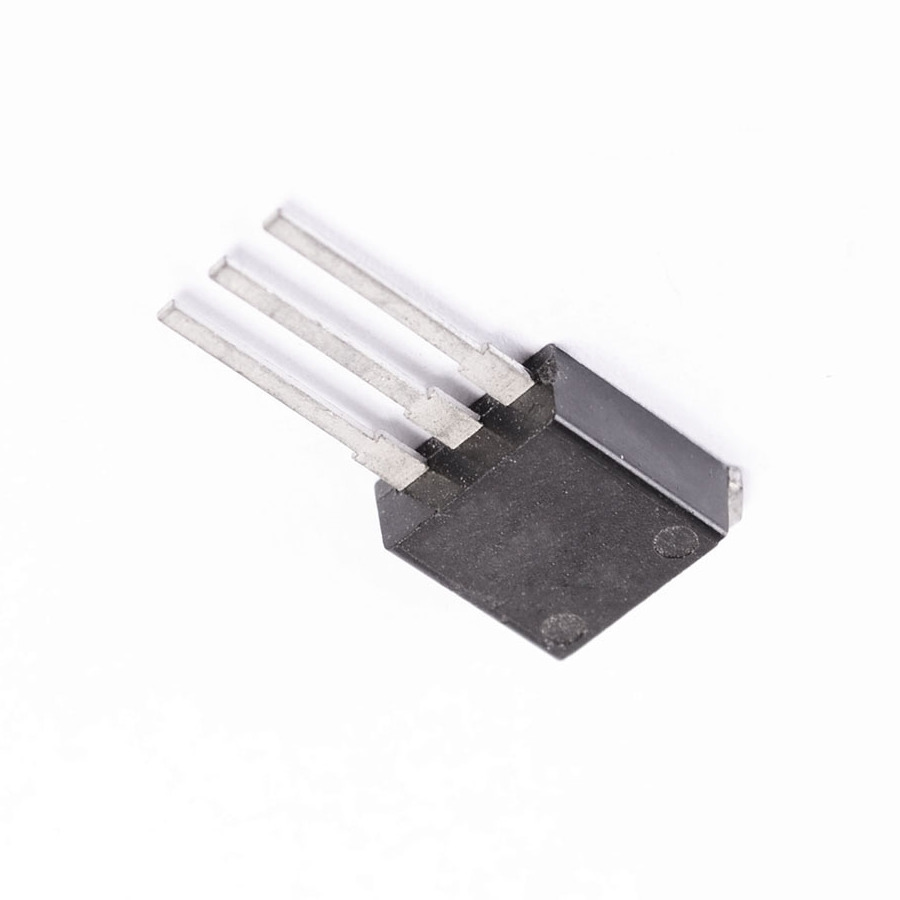

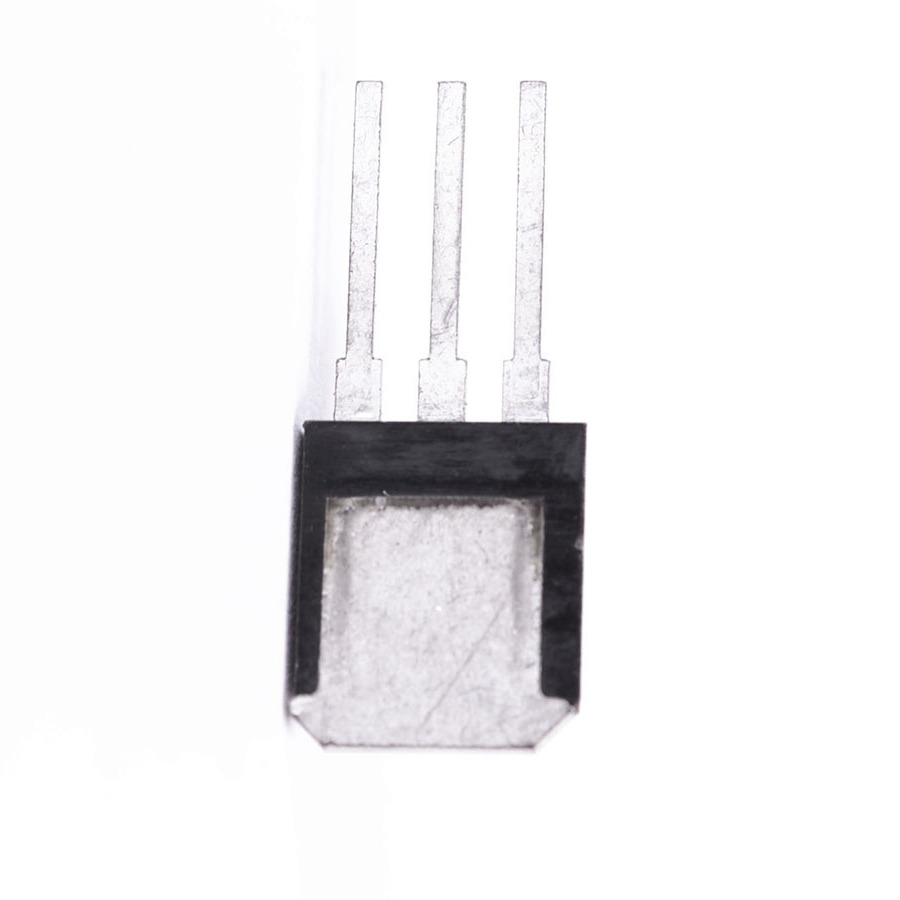

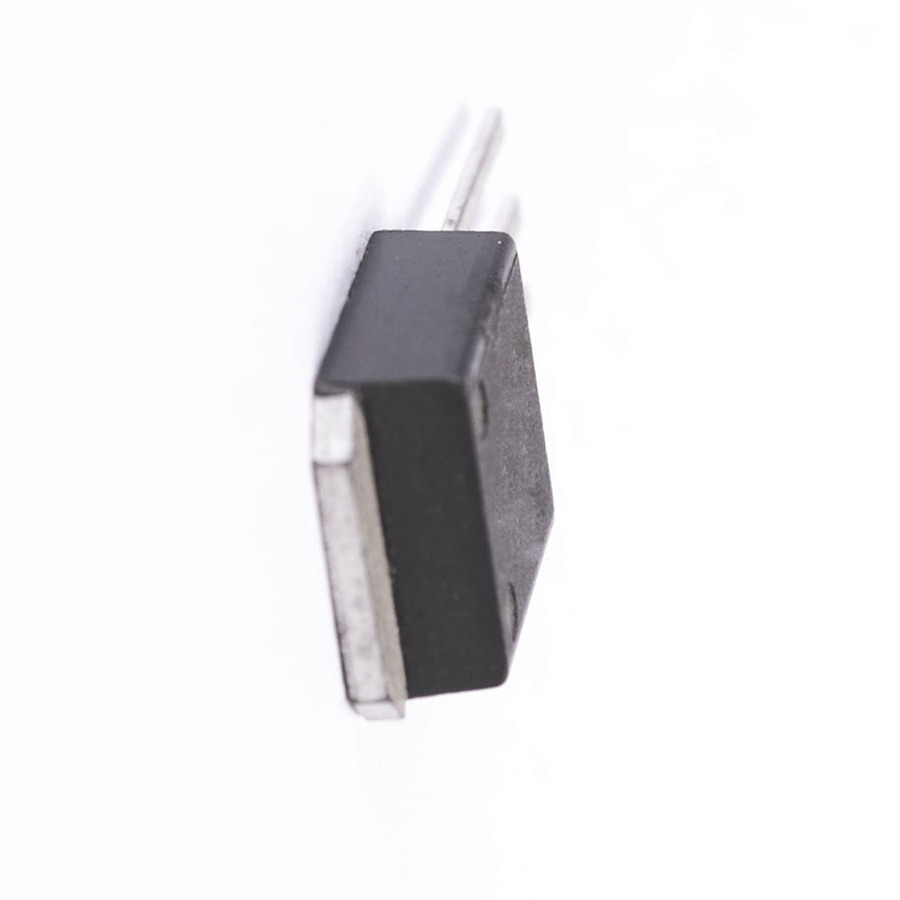

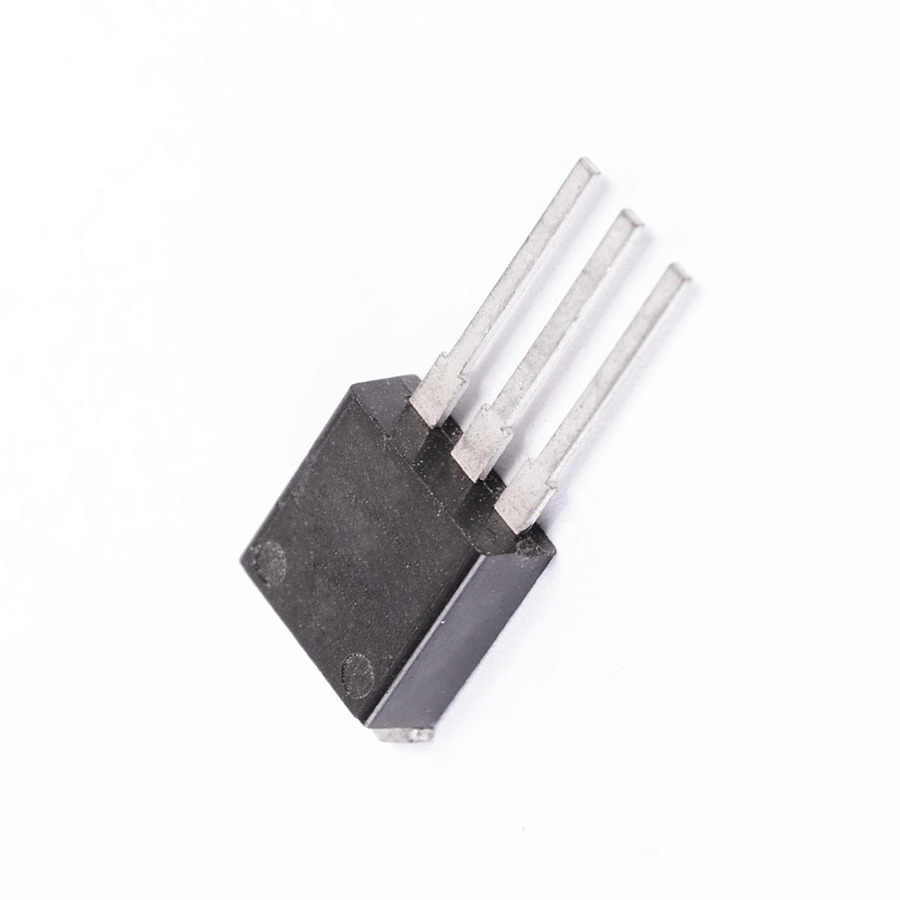

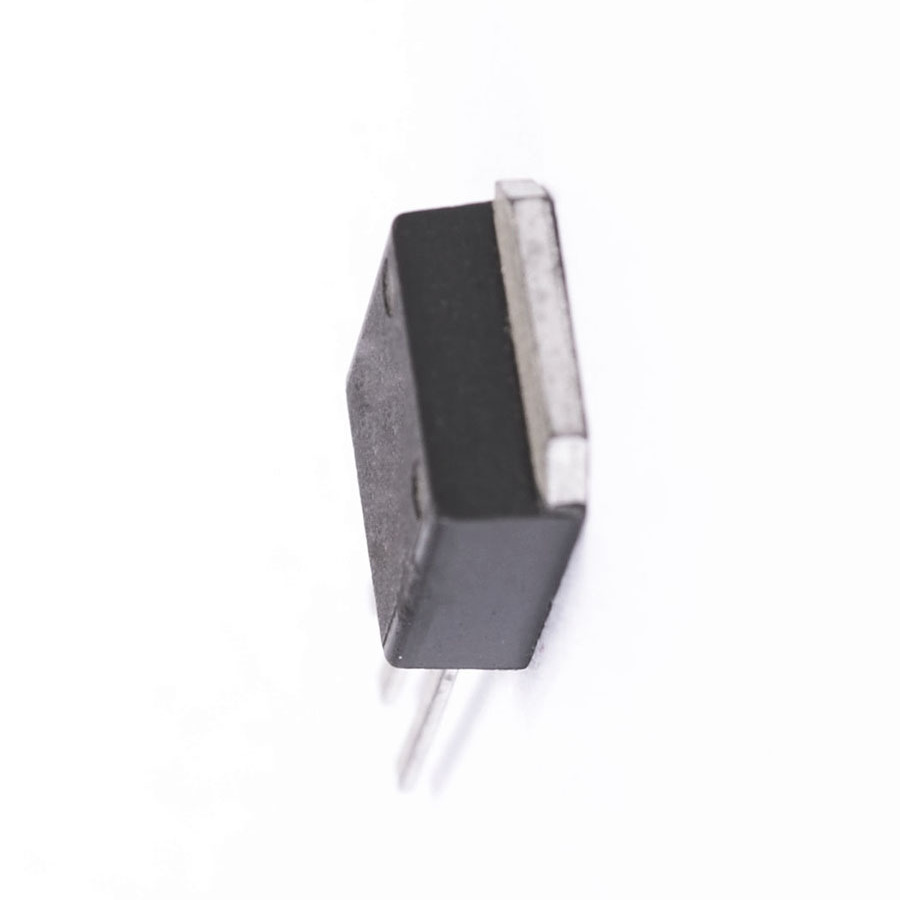

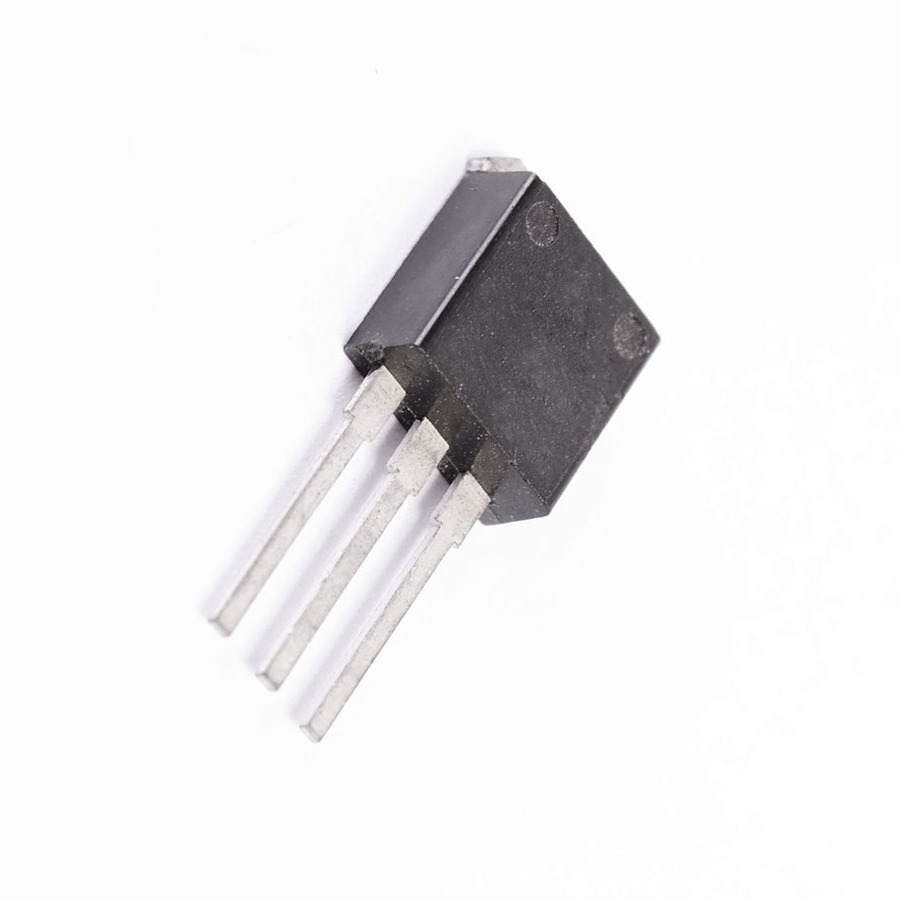

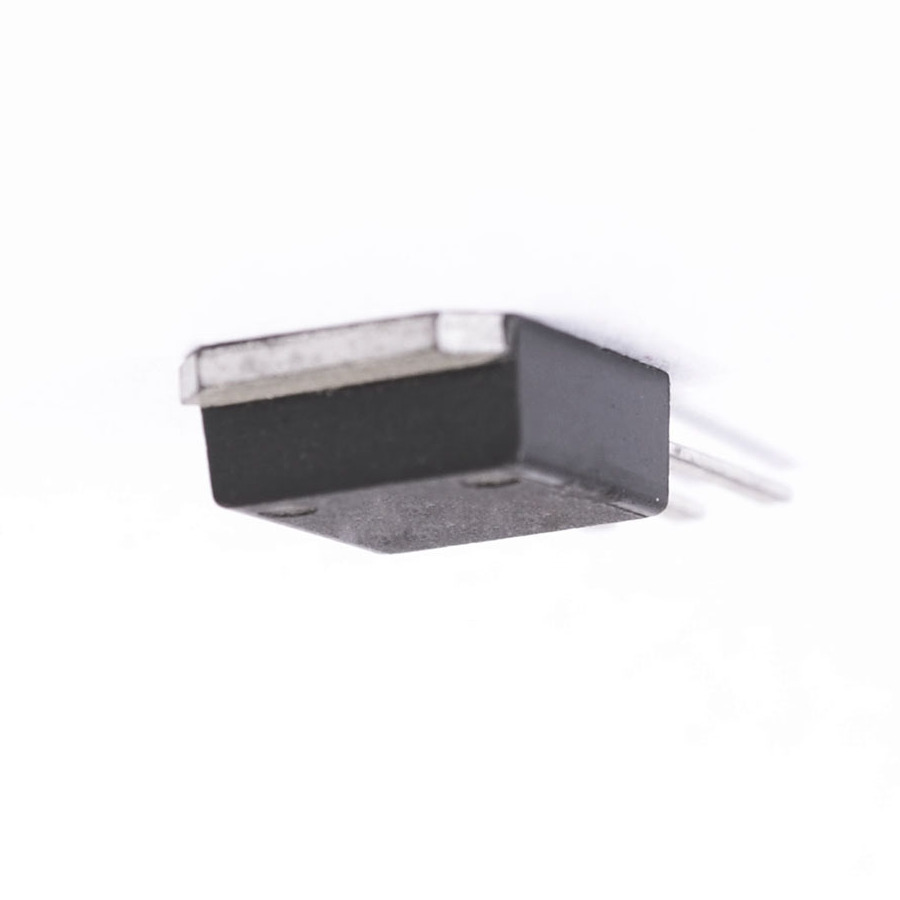

2SD1249A Transistor Silicon NPN CASE: TO262 MAKE: Matsushita Electronics
Datasheet
2SD1249A Datasheet
Product specifications
Equivalent 2SD1249
Type Transistor Silicon NPN
Case TO262
Manufacturer Matsushita Electronics
Vbr CBO 400
Vbr CEO 300
Max. PD (W) 35
Max. hFE 250
Min hFE 40
Ic Max. (A) 750m
@Ic (test) (A) 300m
Icbo Max. @Vcb Max. (A) 1.0m
Polarity NPN
Tr Max. (s) 2.0u
Derate Above 25°C 280m
Oper. Temp (°C) Max. 140
@VCE (V) 10
Pinout Equivalence Number 3-15
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 35 W
Maximum Collector-Base Voltage |Vcb| 400 V
Maximum Collector Current |Ic max| 0.75 A
Max. Operating Junction Temperature (Tj) 175 °C
Forward Current Transfer Ratio (hFE), MIN 30
SKU 345381
