2SD1258
View detailed images (12)

2SD1258

SKU: 2SD1258

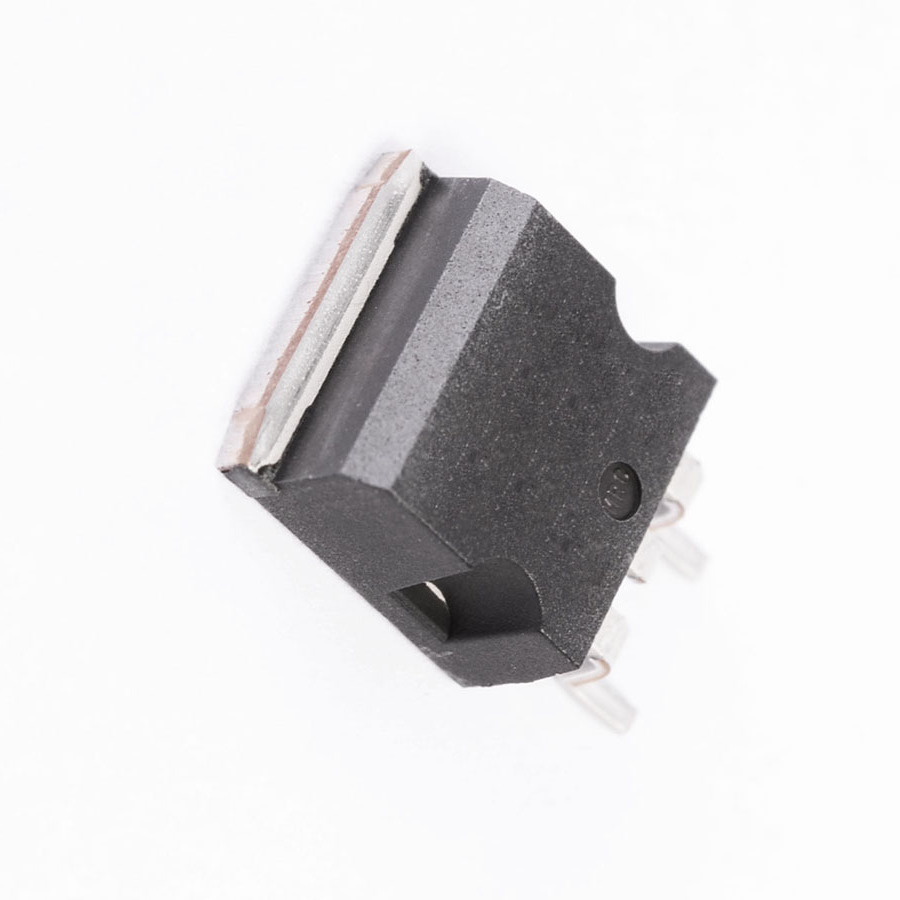

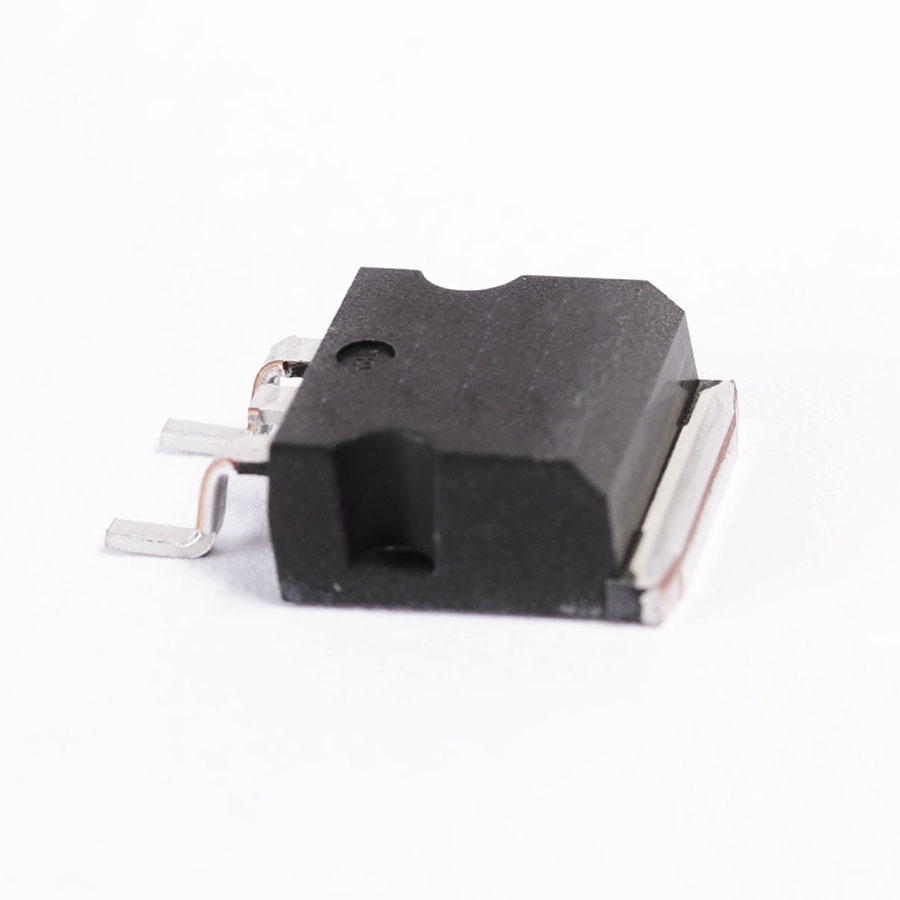

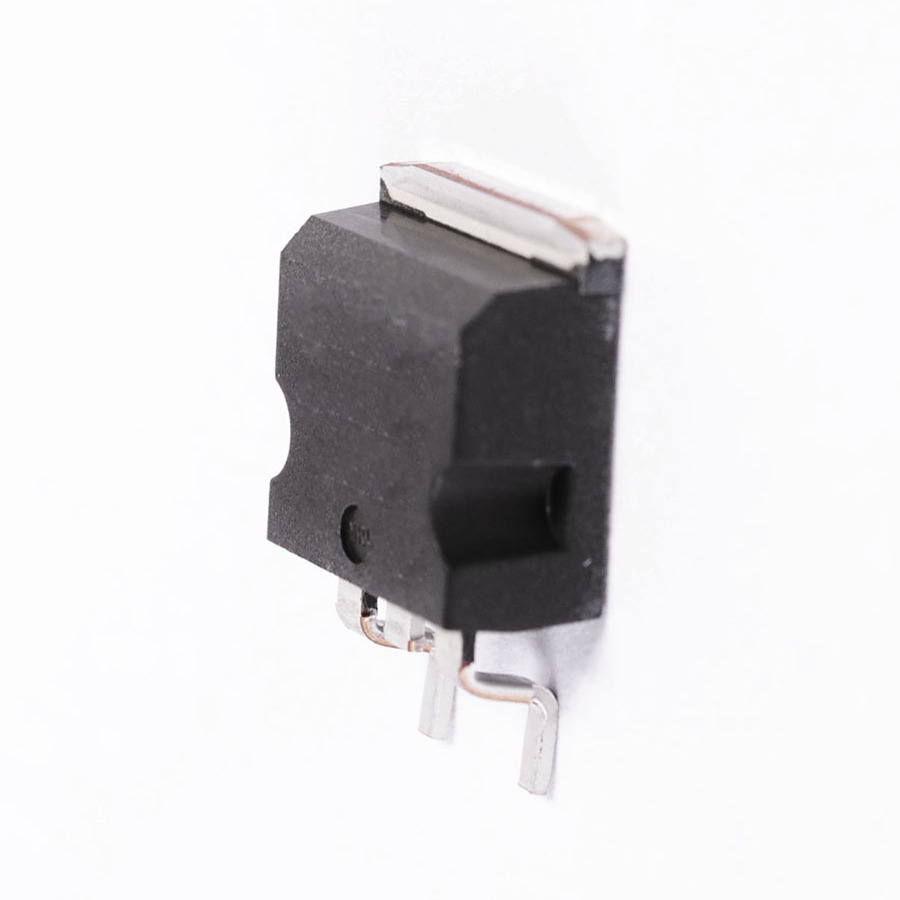

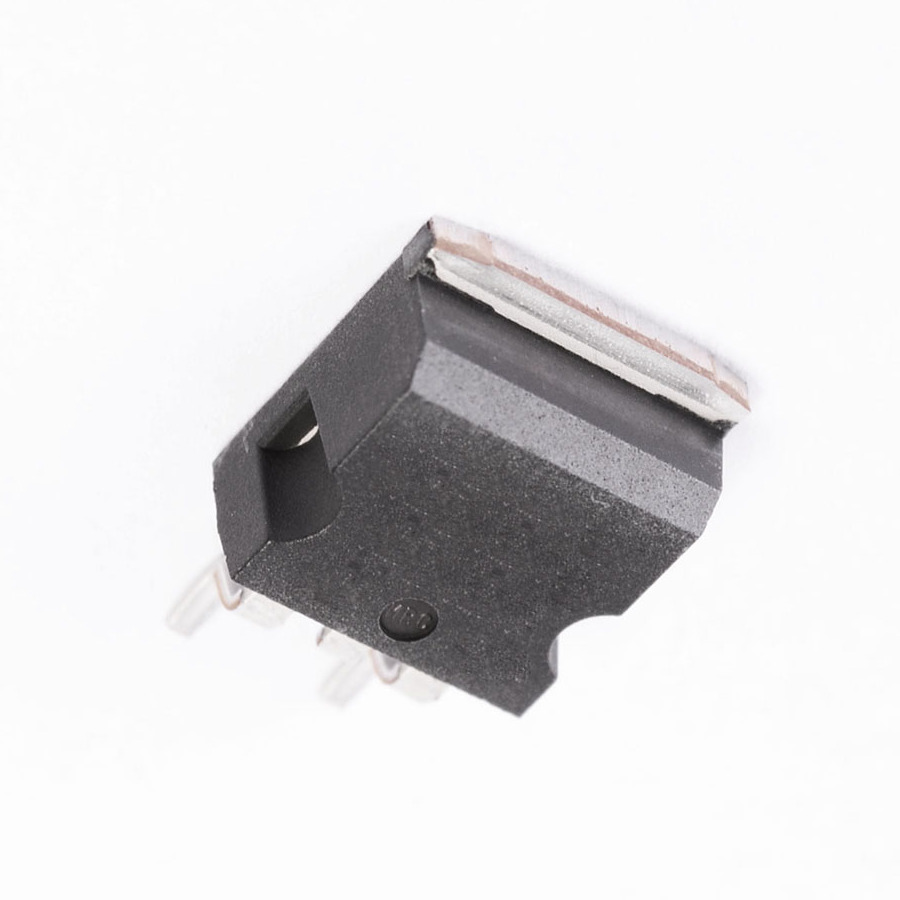

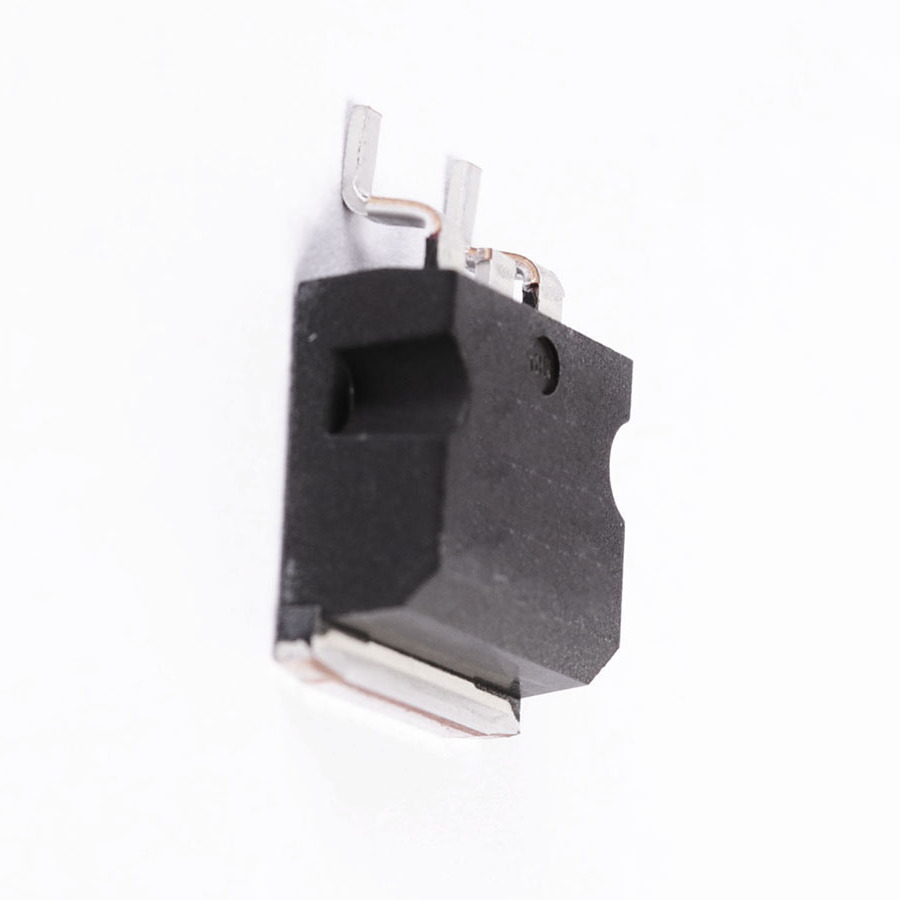

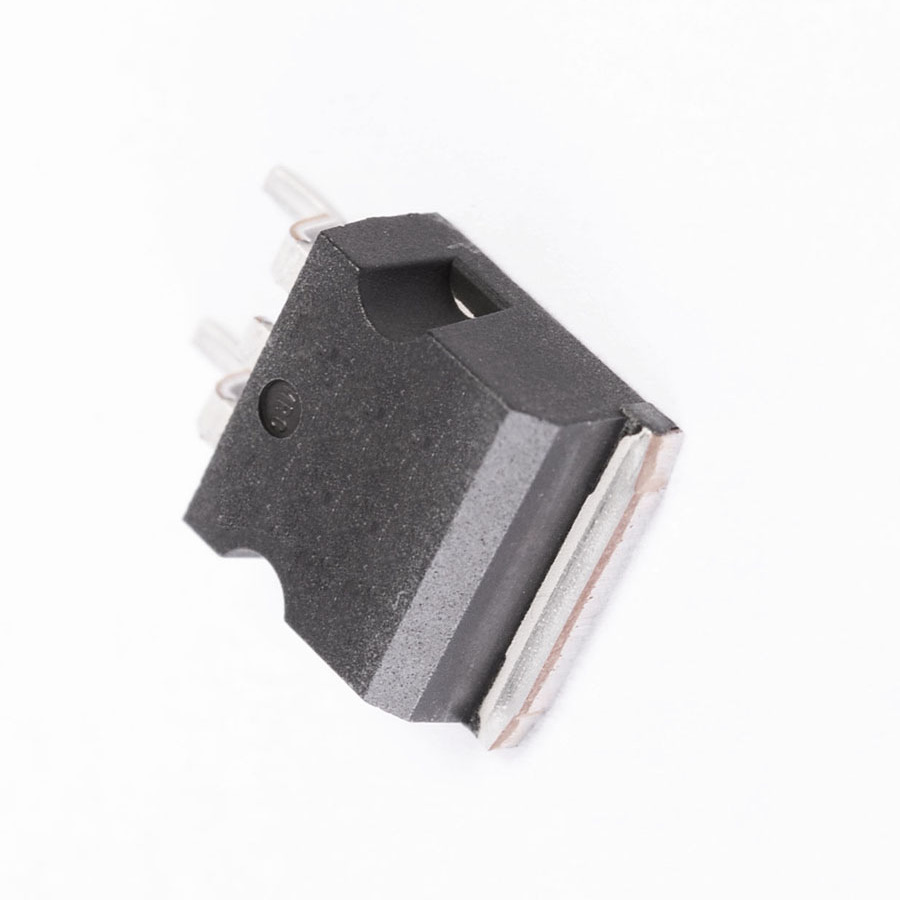

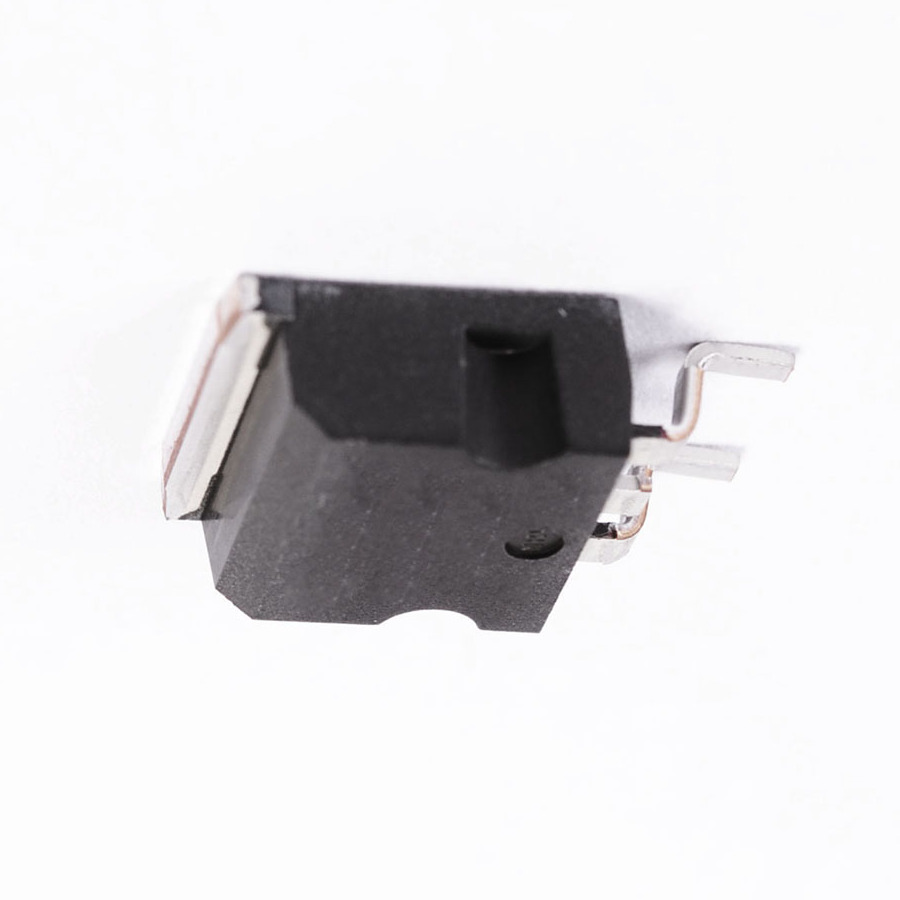

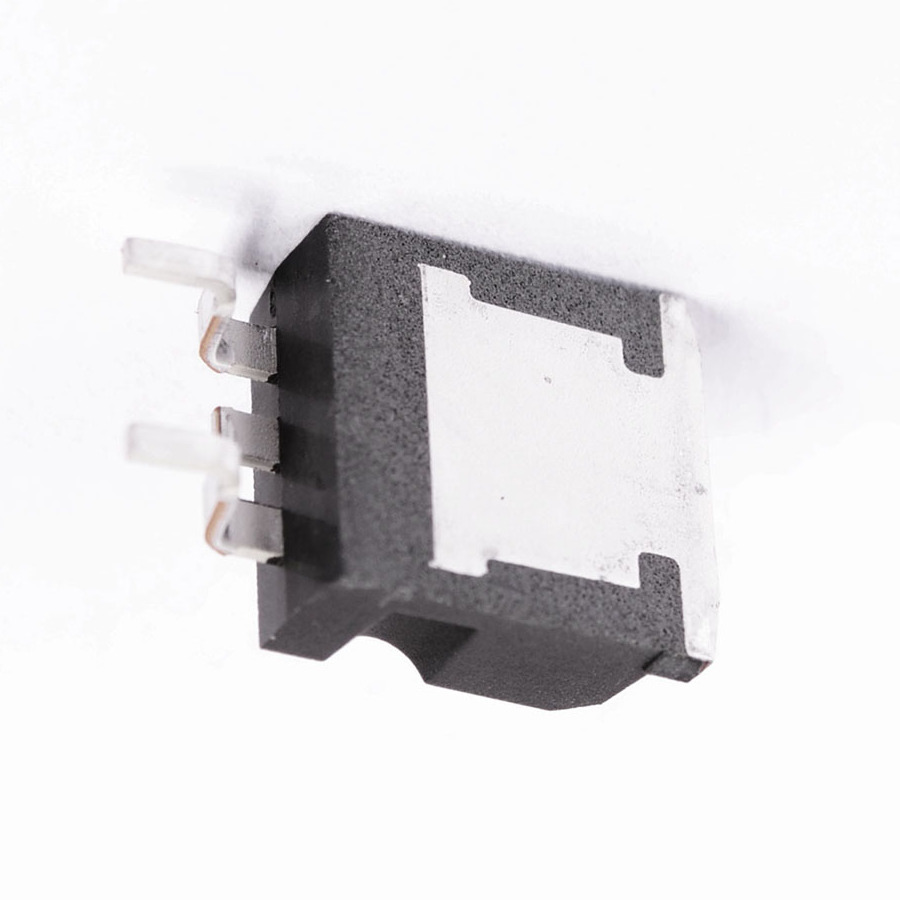

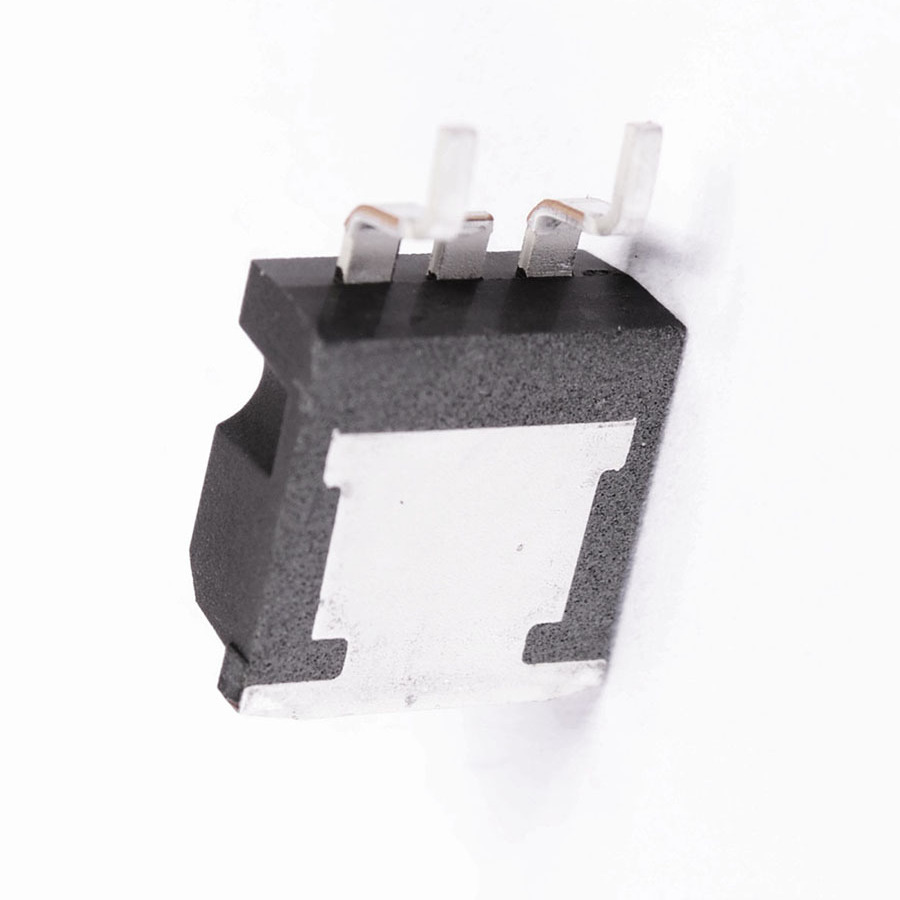

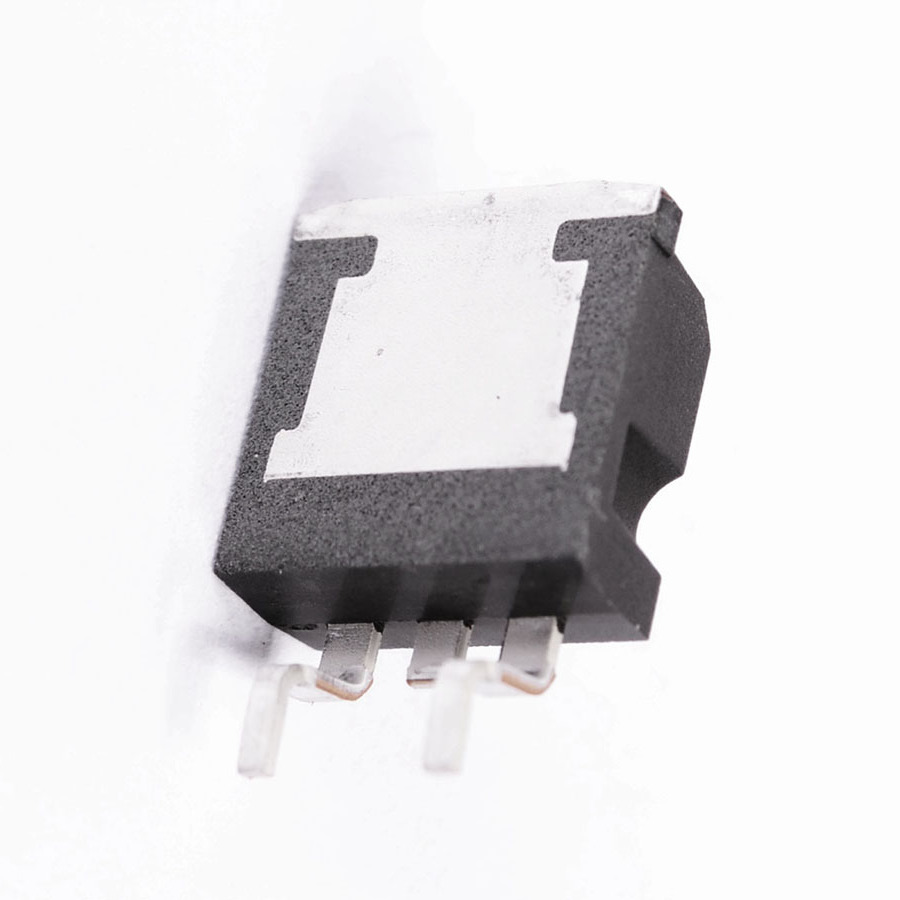

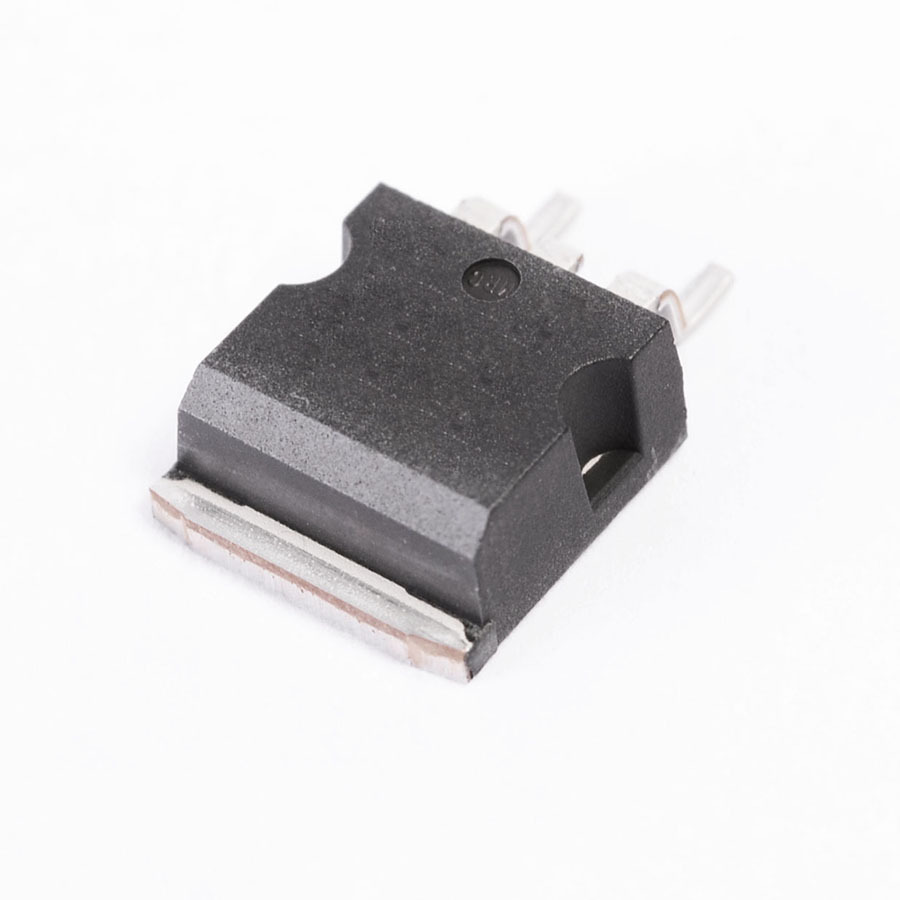

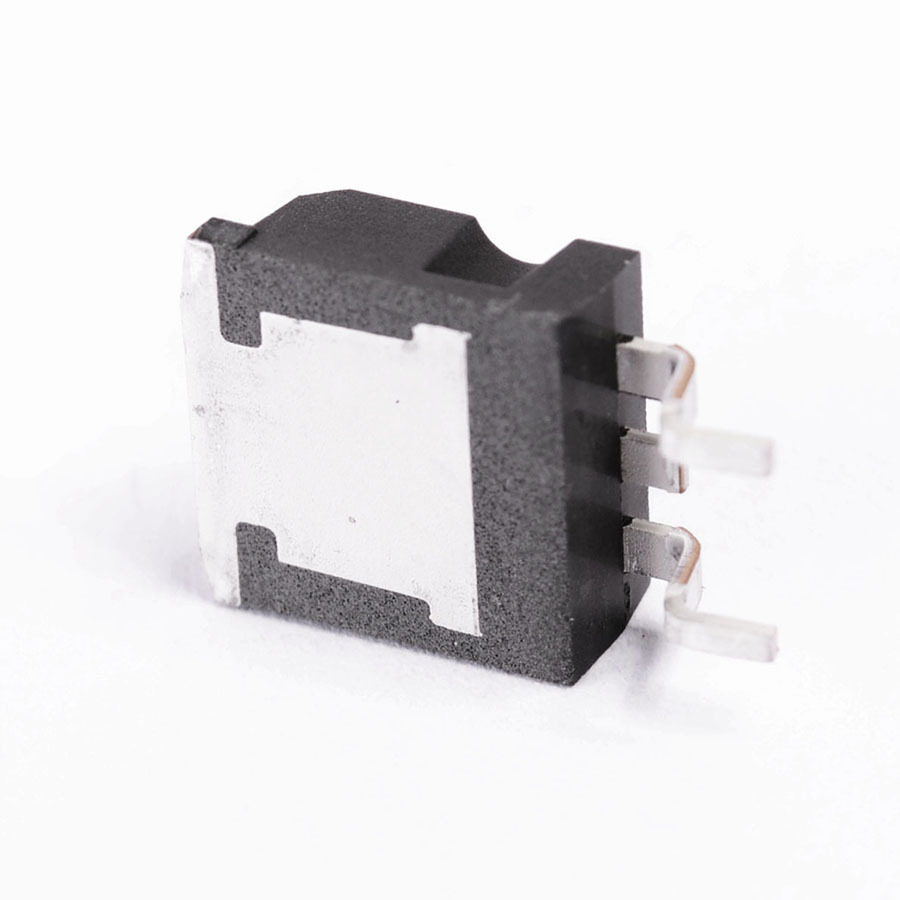

2SD1258 Transistor Silicon NPN CASE: TO263 MAKE: Panasonic
Datasheet
2SD1258 Datasheet
Product specifications
Type Transistor Silicon NPN
Case TO263
Manufacturer Panasonic
Vbr CBO 200
Vbr CEO 150
Max. PD (W) 40
Max. hFE 2.0k
Min hFE 500
Ic Max. (A) 1.0
@Ic (test) (A) 200m
Icbo Max. @Vcb Max. (A) 100u
Polarity NPN
Derate Above 25°C 320m
Trans. Freq (Hz) Min. 25M
Oper. Temp (°C) Max. 140
@VCE (V) 4.0
Pinout Equivalence Number 3-15
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 40 W
Maximum Collector-Base Voltage |Vcb| 200 V
Maximum Collector Current |Ic max| 1 A
Max. Operating Junction Temperature (Tj) 150 °C
Forward Current Transfer Ratio (hFE), MIN 500
SKU 345392
