2SD1289

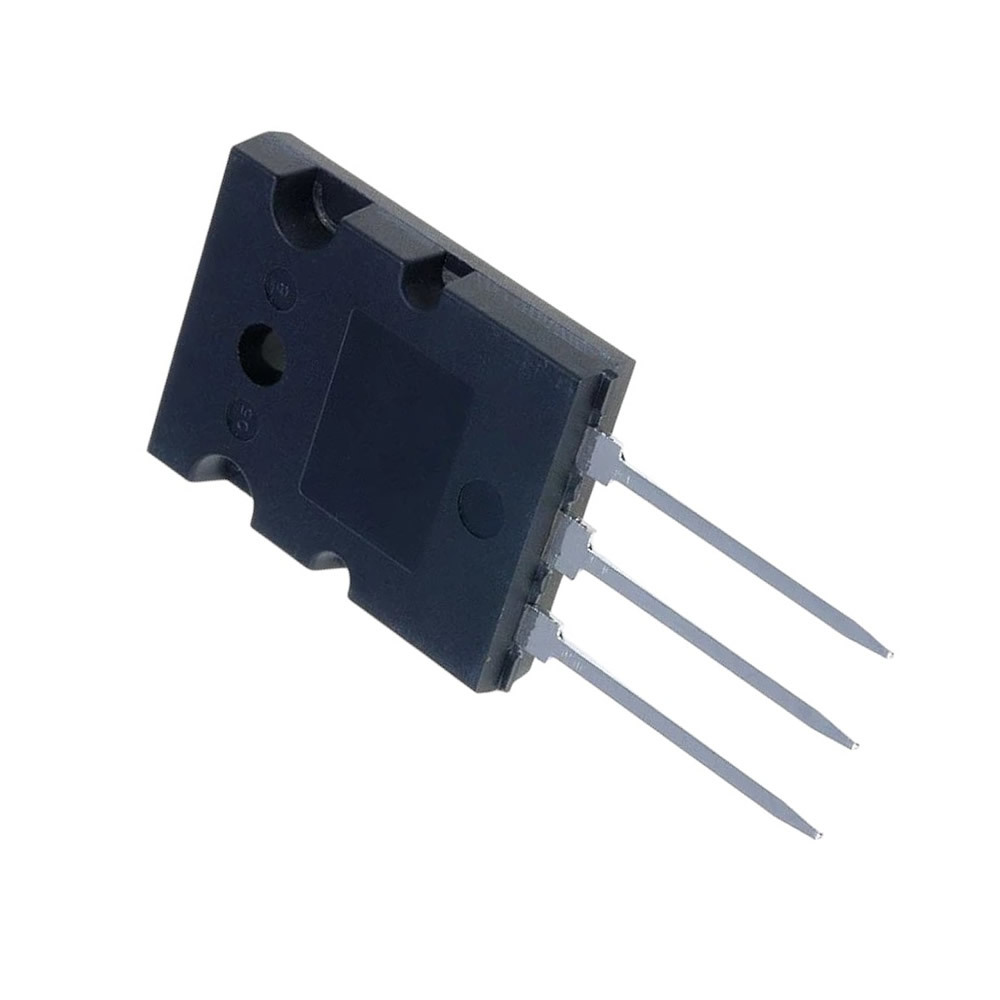

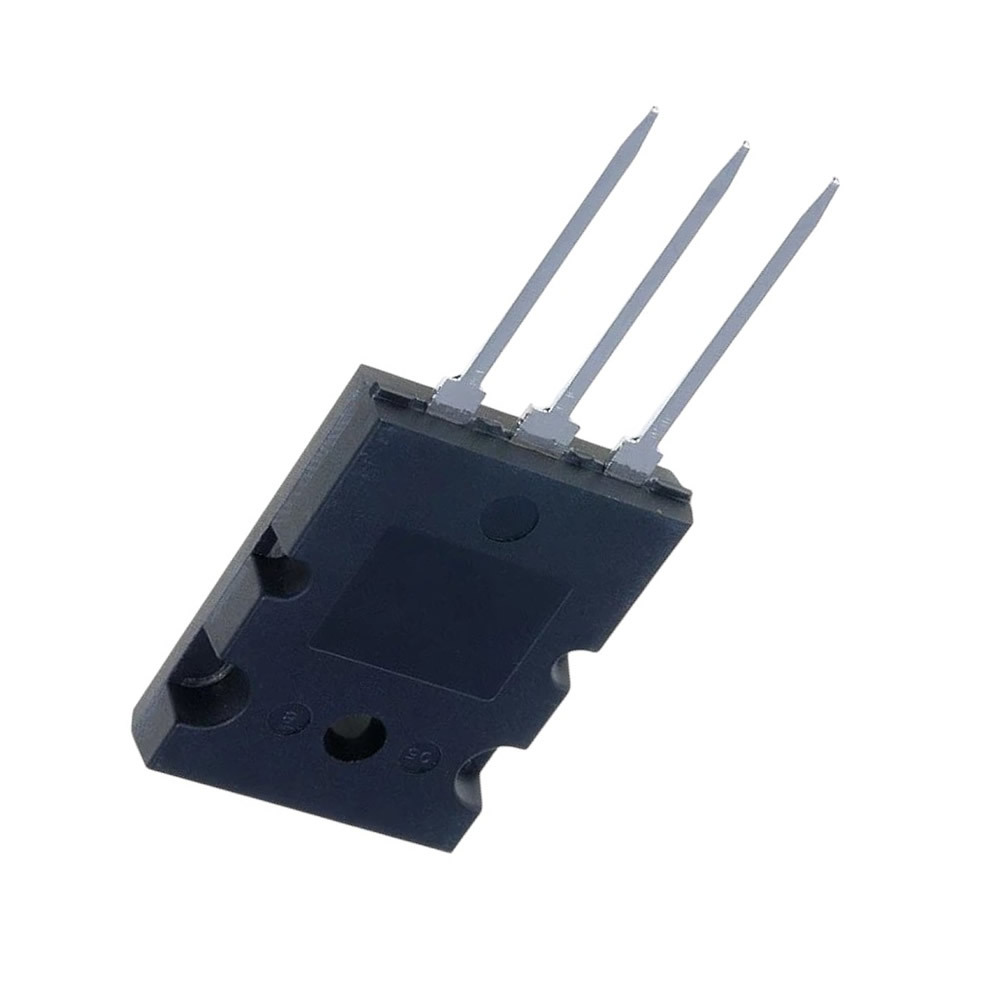

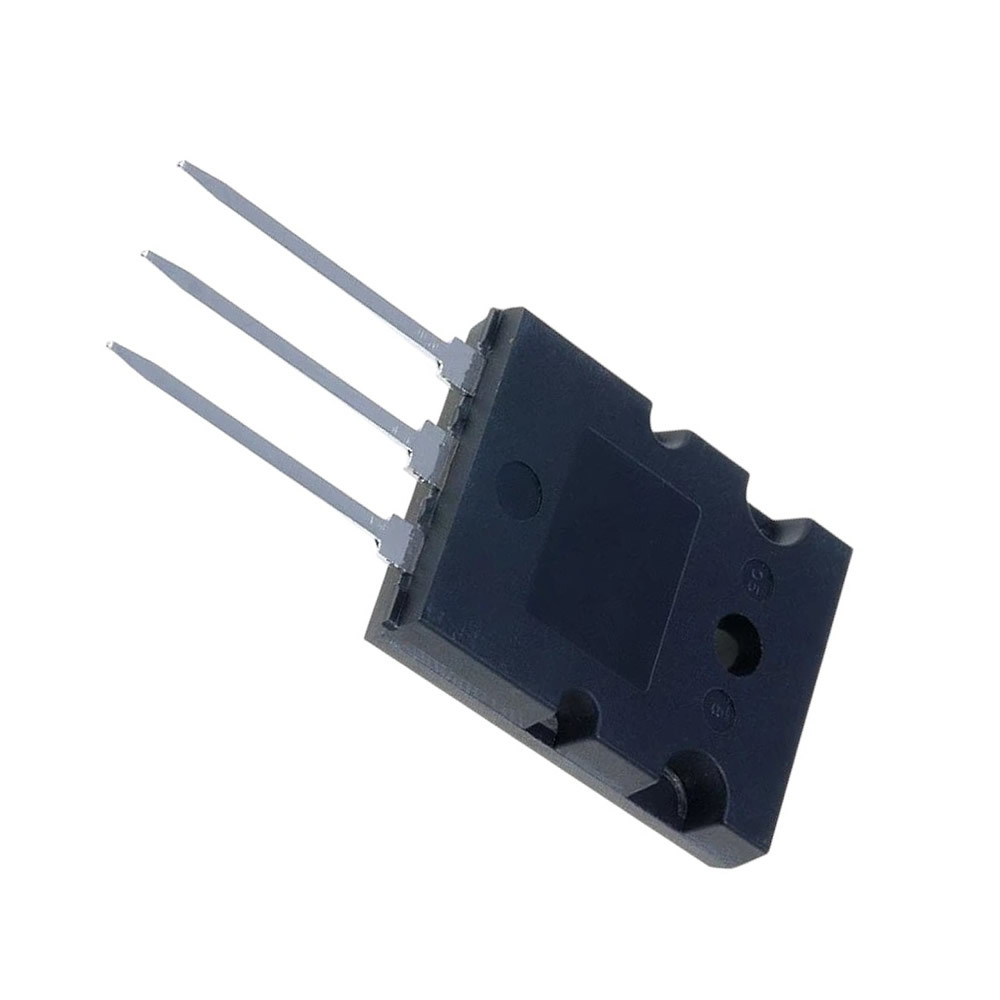

View detailed images (4)

2SD1289

SKU: 2SD1289
2SD1289 Transistor Silicon NPN - CASE: TO264 MAKE: NEC
Price: £3.99
+ VAT 20% for UK purchases
£3.99
Qty
+ VAT 20% for UK purchases
  • 2 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Datasheet
2SD1289 Datasheet
Product specifications
Type Transistor Silicon NPN
Case TO264
Manufacturer NEC
Vbr CBO 120
Vbr CEO 120
Max. PD (W) 70
Max. hFE 320
Min hFE 60
Ic Max. (A) 8.0
@Ic (test) (A) 1.0
Icbo Max. @Vcb Max. (A) 50u
Polarity NPN
Trans. Freq (Hz) Min. 60M
Oper. Temp (°C) Max. 150
@VCE (V) 5.0
Pinout Equivalence Number N/A
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 80 W
Maximum Collector-Base Voltage |Vcb| 120 V
Maximum Collector Current |Ic max| 8 A
Max. Operating Junction Temperature (Tj) 150 °C
Forward Current Transfer Ratio (hFE), MIN 60
SKU 81421
