2SD1336
View detailed images (12)

2SD1336

SKU: 2SD1336

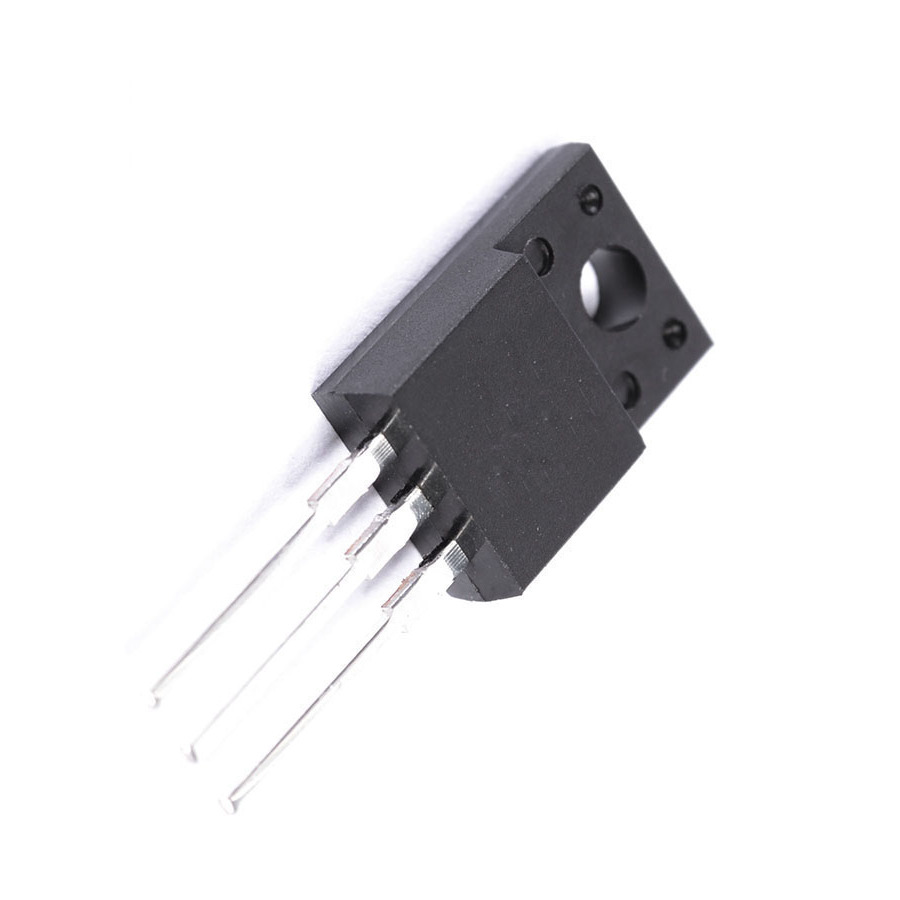

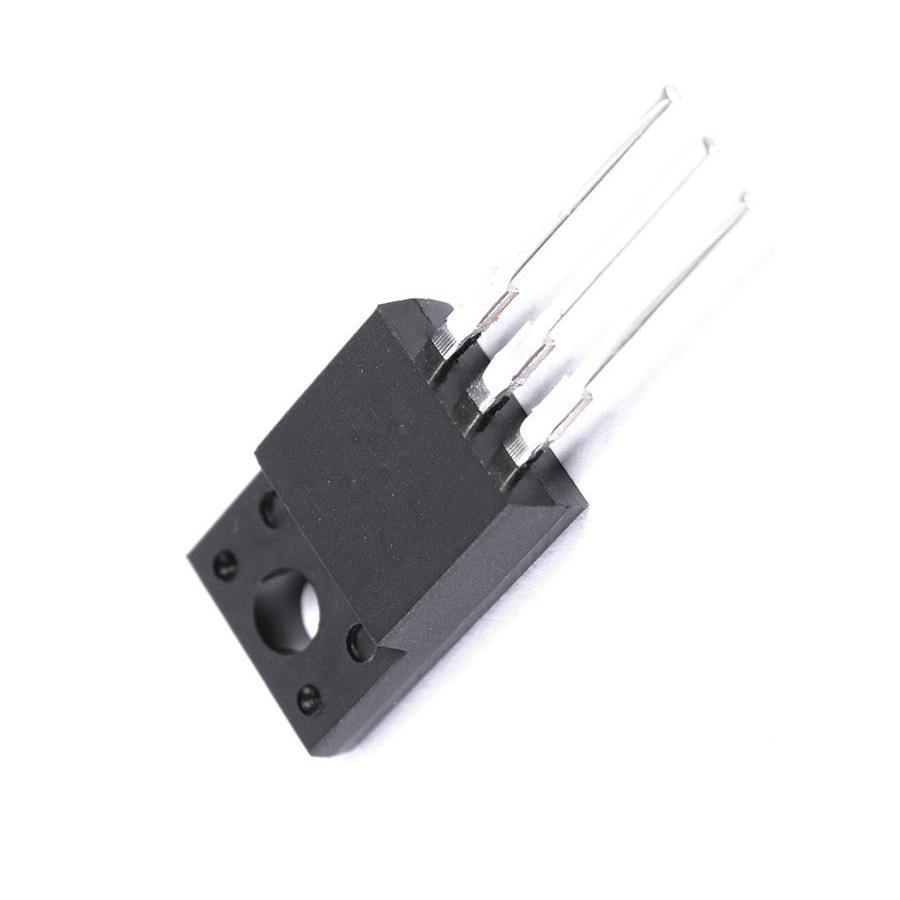

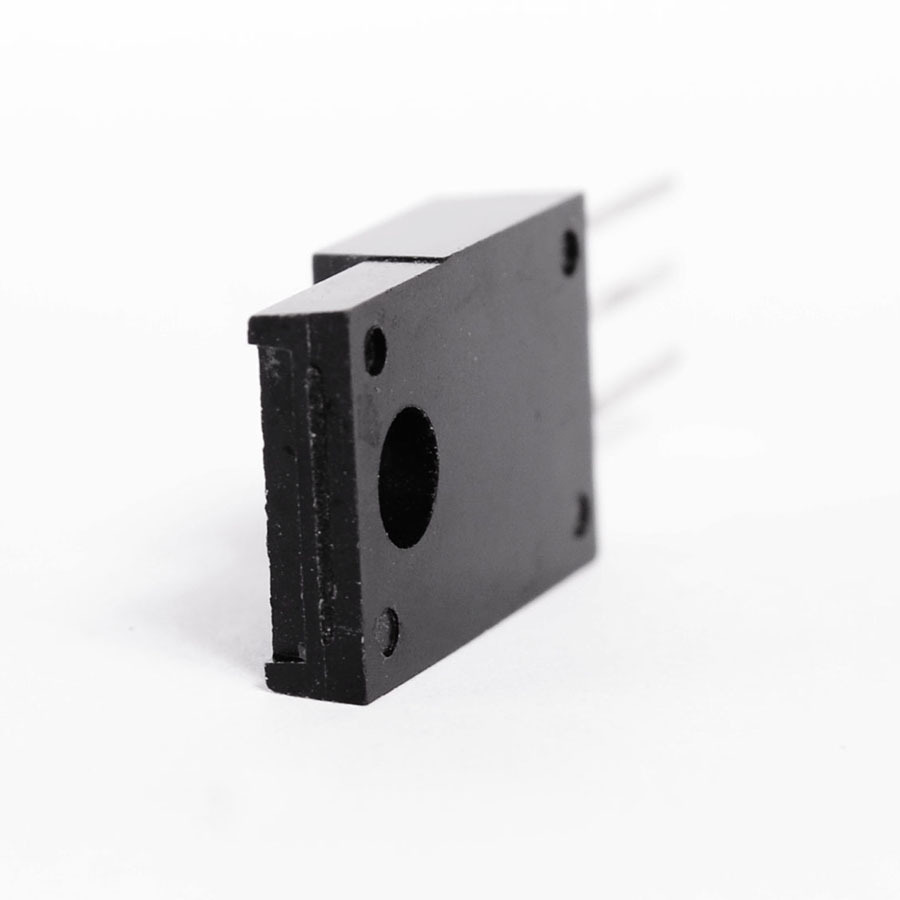

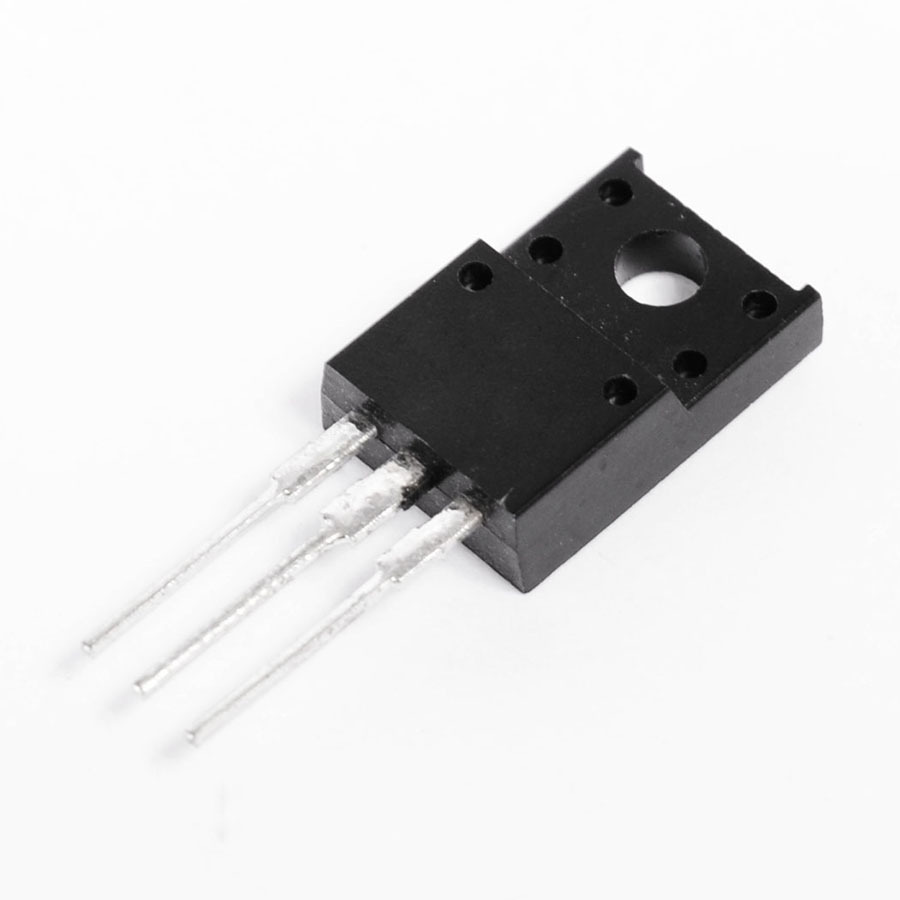

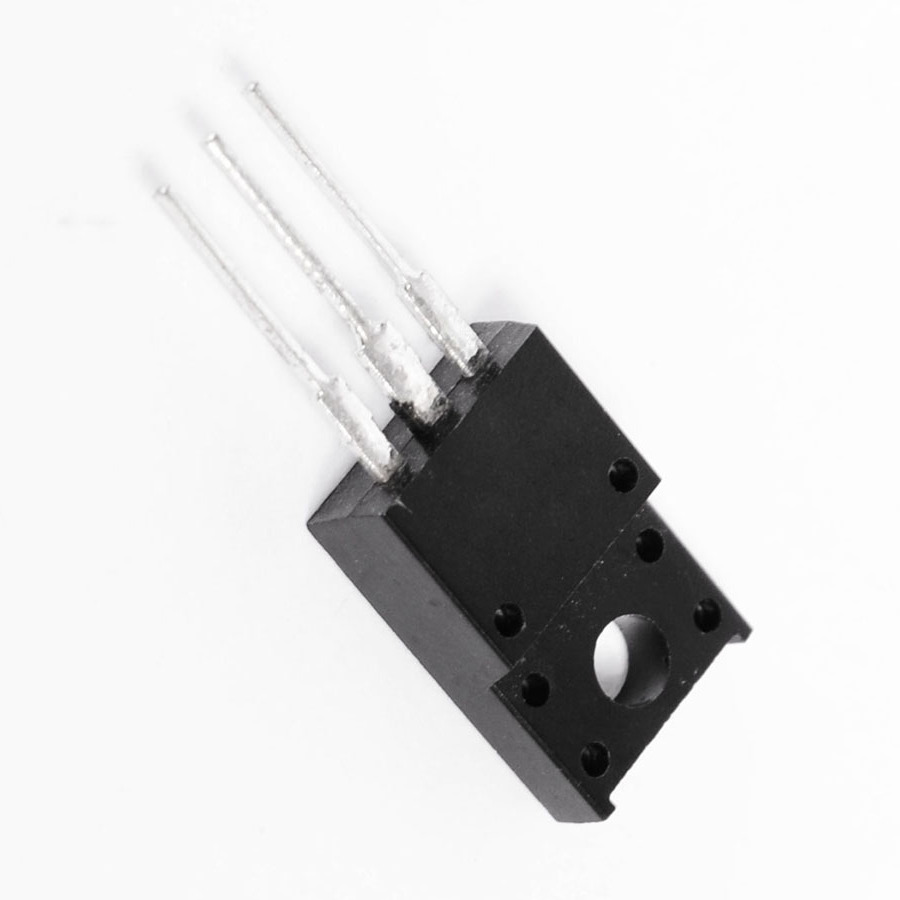

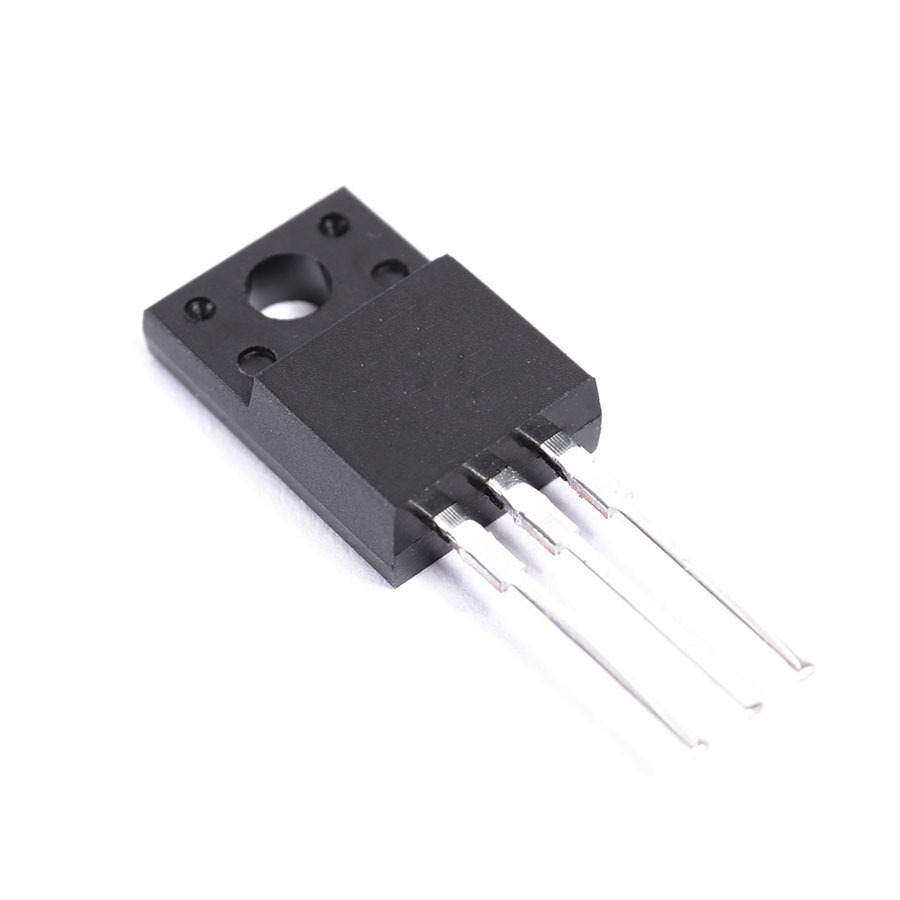

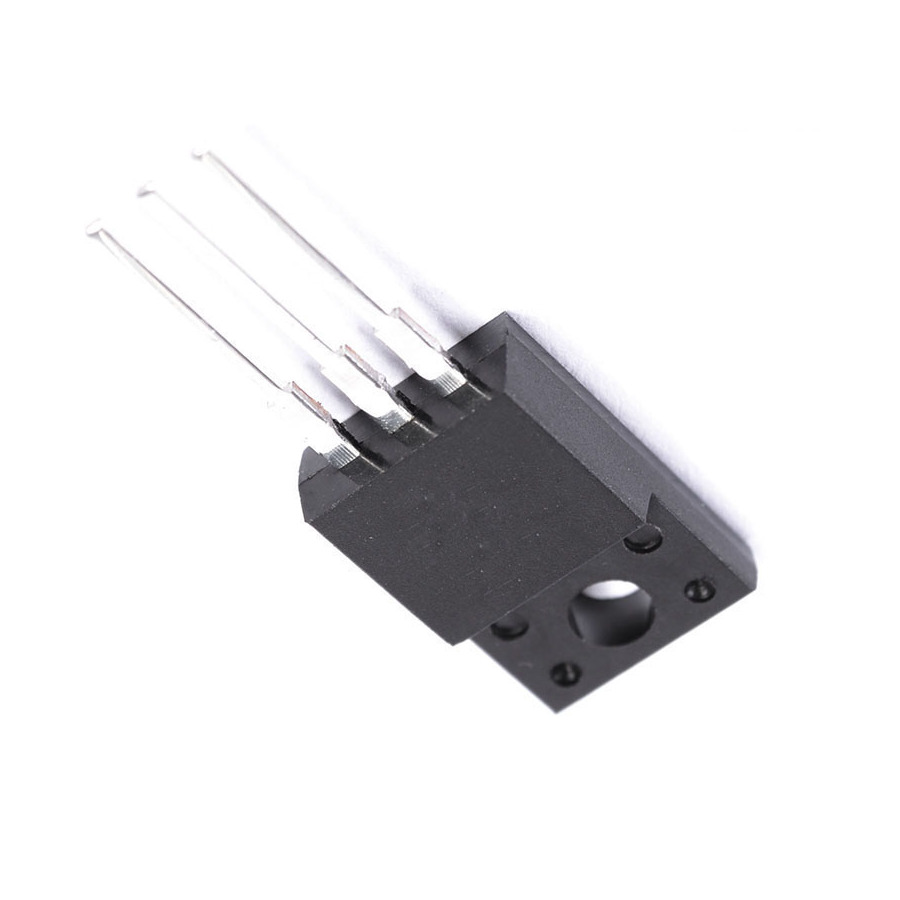

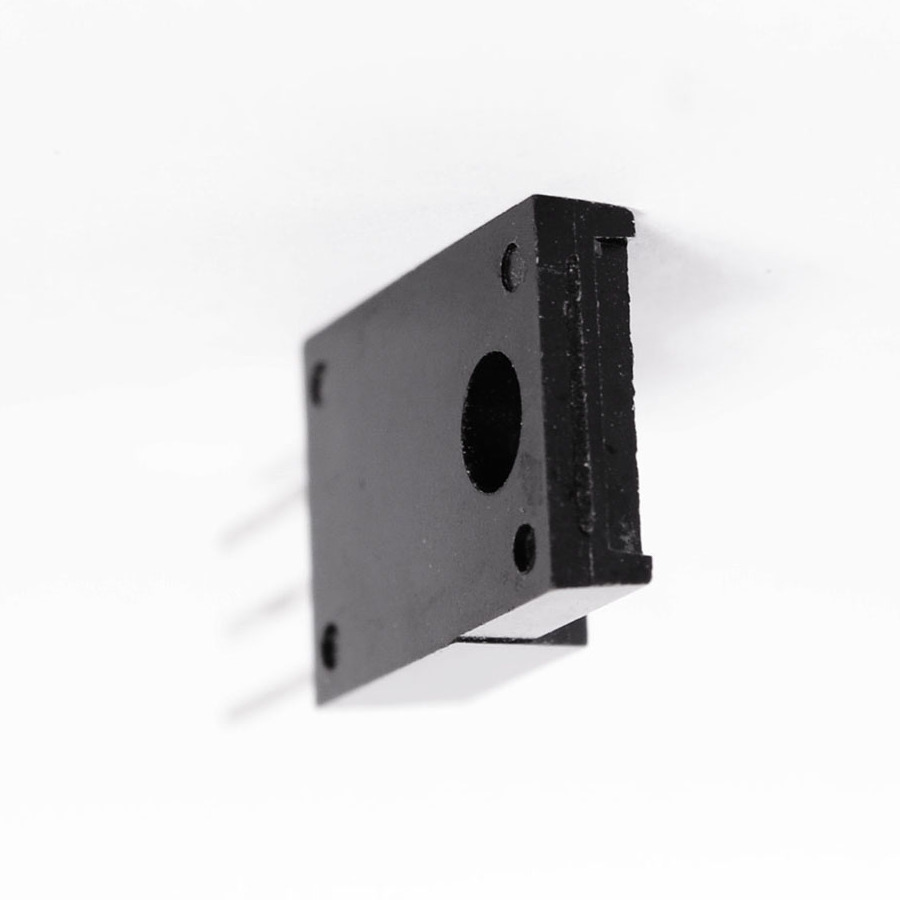

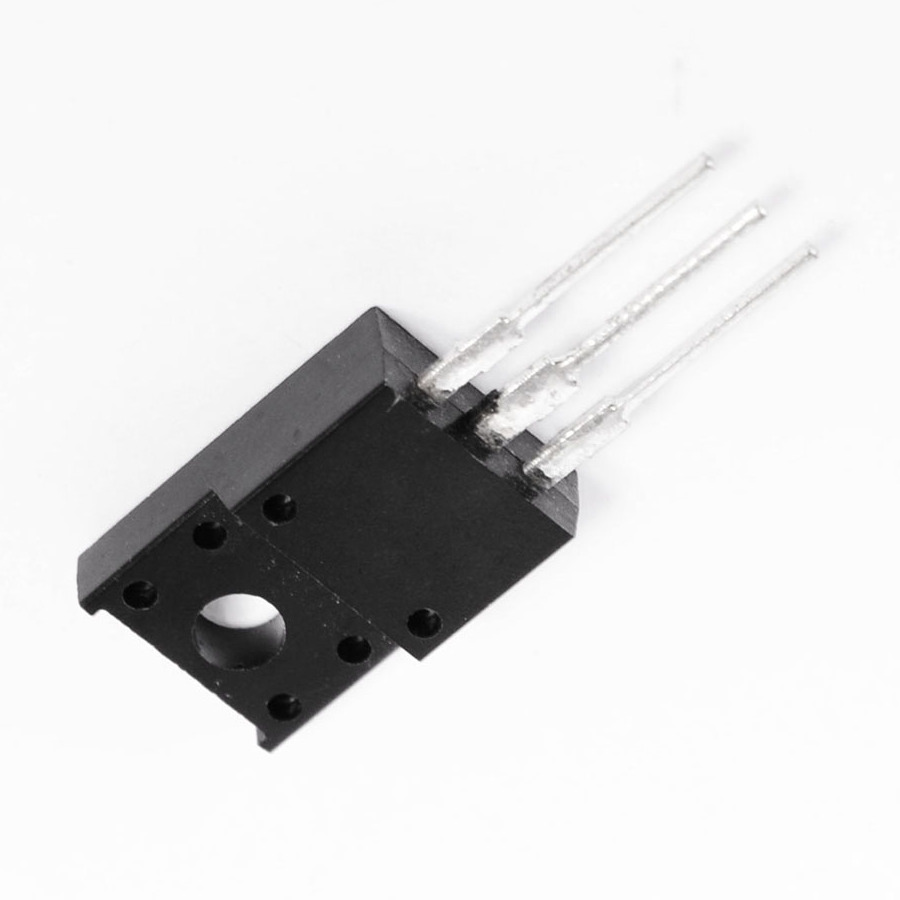

2SD1336 Transistor Silicon NPN CASE: SOT186 MAKE: Matsushita Electronics
Datasheet
2SD1336 Datasheet
Product specifications
Equivalent 2SD1336A
Type Transistor Silicon NPN
Case SOT186
Manufacturer Matsushita Electronics
Vbr CEO 100
Max. PD (W) 35
Min hFE 500
Ic Max. (A) 6.0
@Ic (test) (A) 2.0
Icbo Max. @Vcb Max. (A) 100u
Mat. Silicon Logic
Polarity NPN
Derate Above 25°C 280m
@VCE (test) 2.0
Oper. Temp (°C) Max. 150
Pinout Equivalence Number 3-15
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 40 W
Maximum Collector-Base Voltage |Vcb| 200 V
Maximum Collector Current |Ic max| 6 A
Max. Operating Junction Temperature (Tj) 150 °C
Forward Current Transfer Ratio (hFE), MIN 3000
SKU 550661
